Barth

Talk0
14,941pages on
this wiki
DSC00262

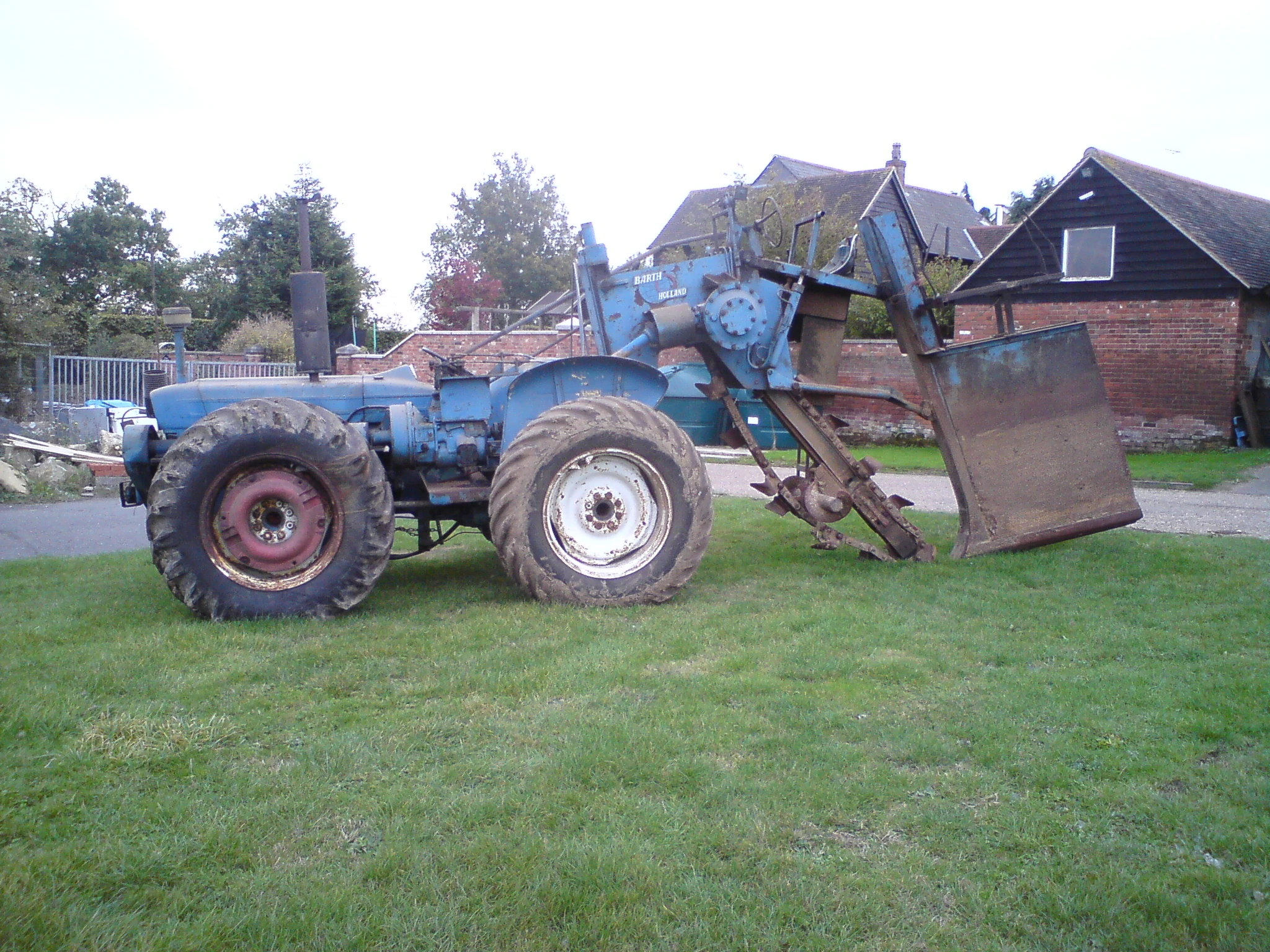

1966 Barth K140 Trencher On County Super-4 Skid

DSC02054

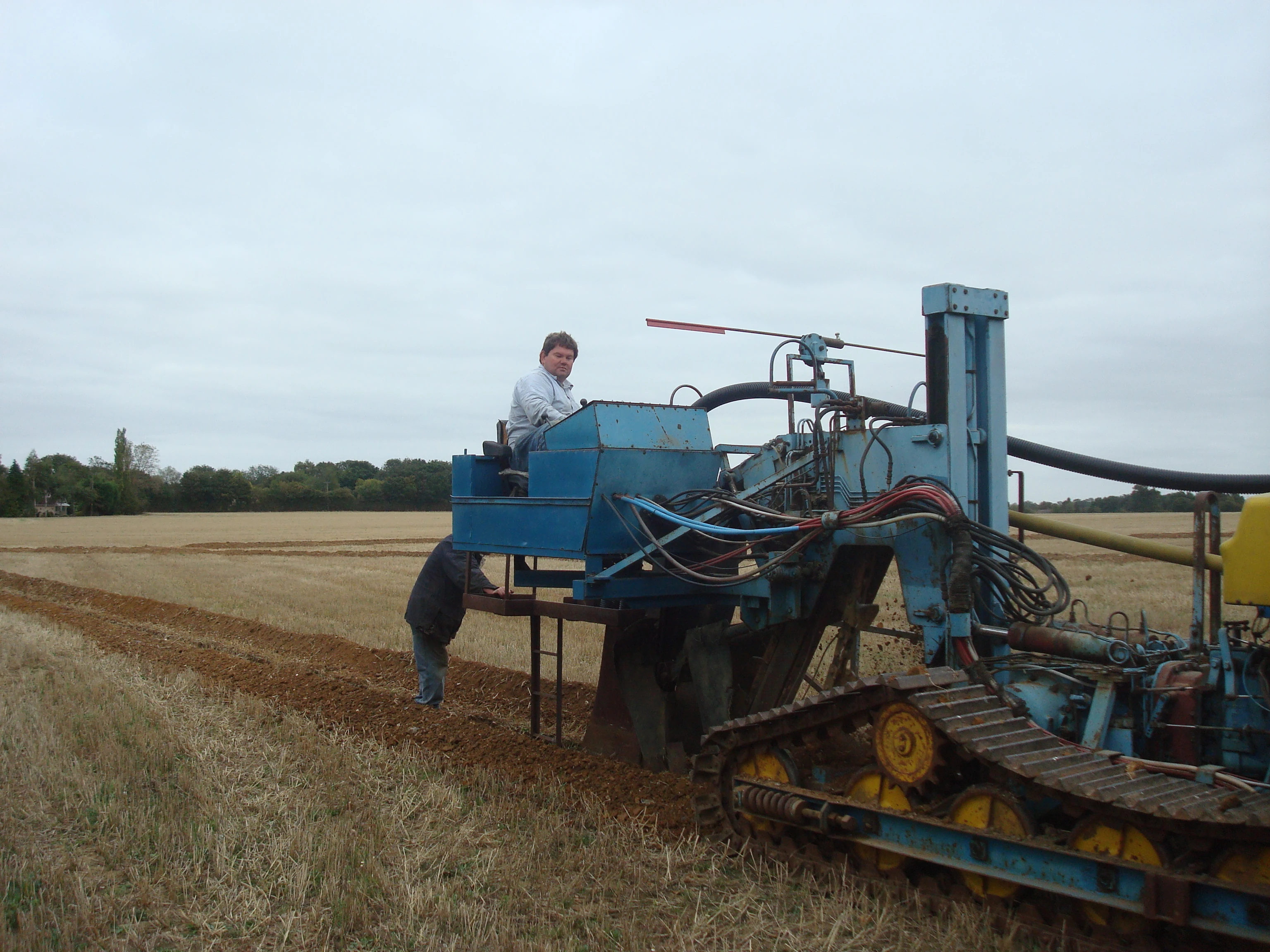

Barth K140 On Tracks Based On Ford TW20 Skid

File2

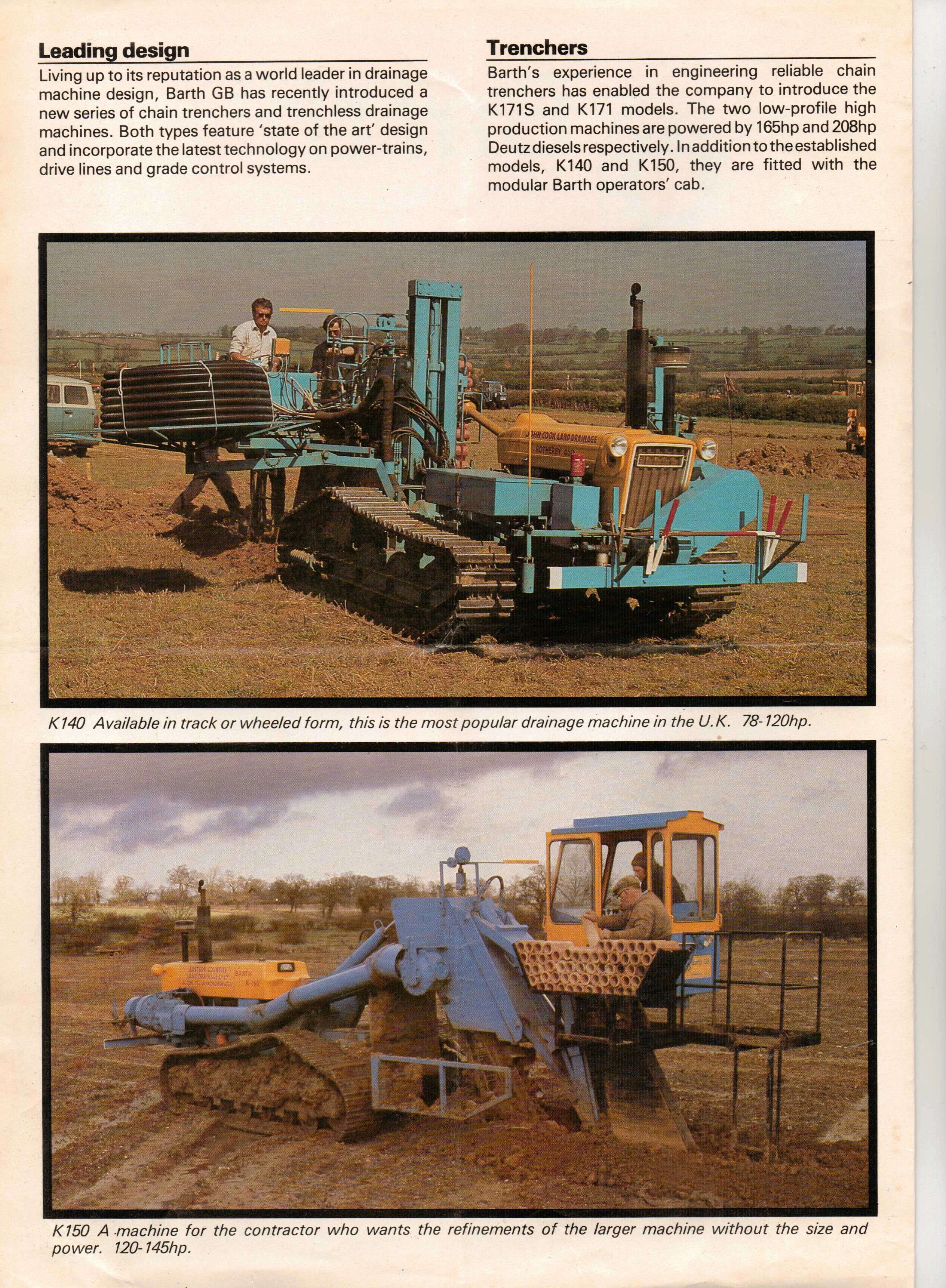

Article featuring John Cook Land Drainage K140 and Eastern Counties K150 machines

File3

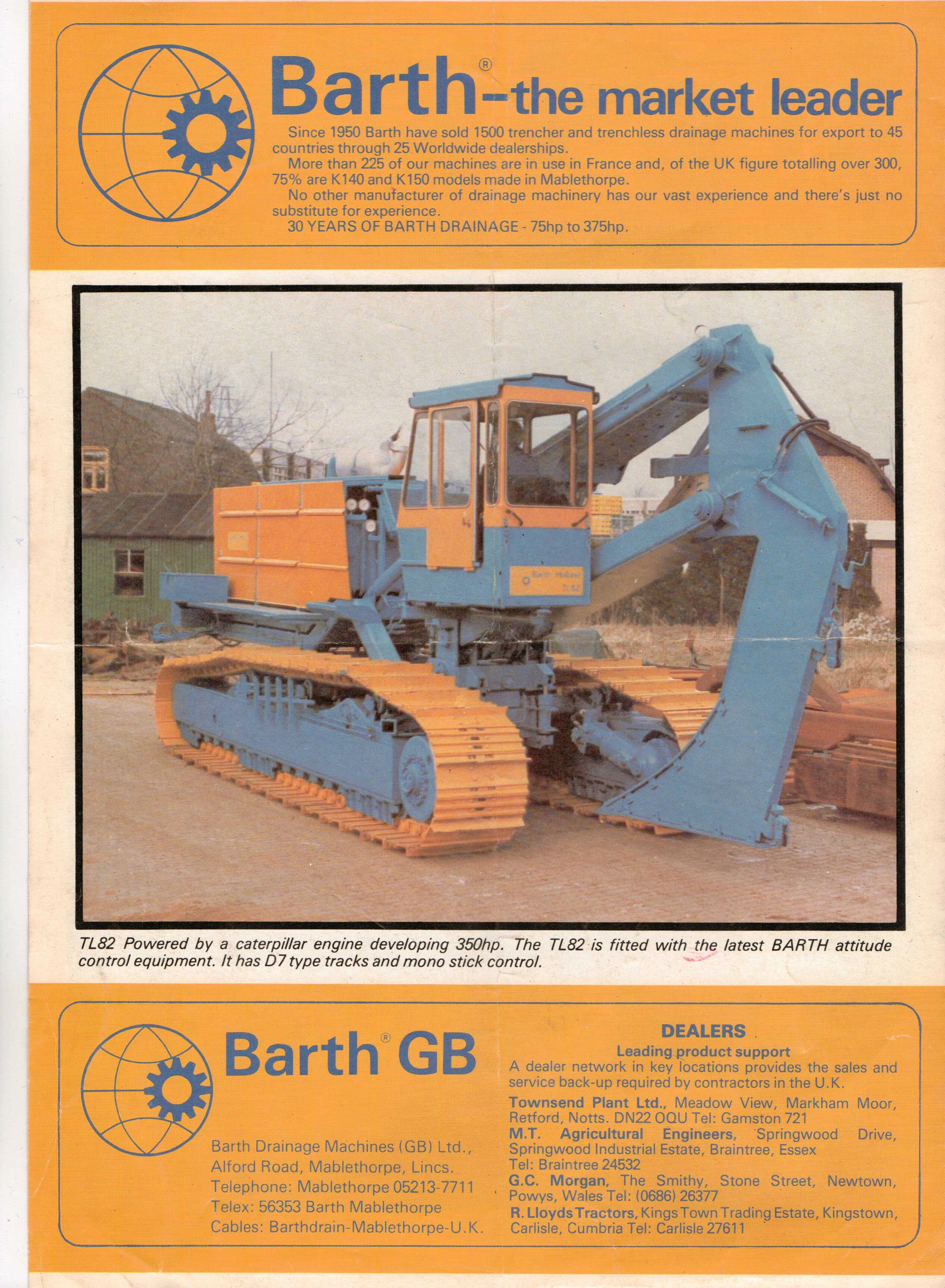

Barth TL82

File1

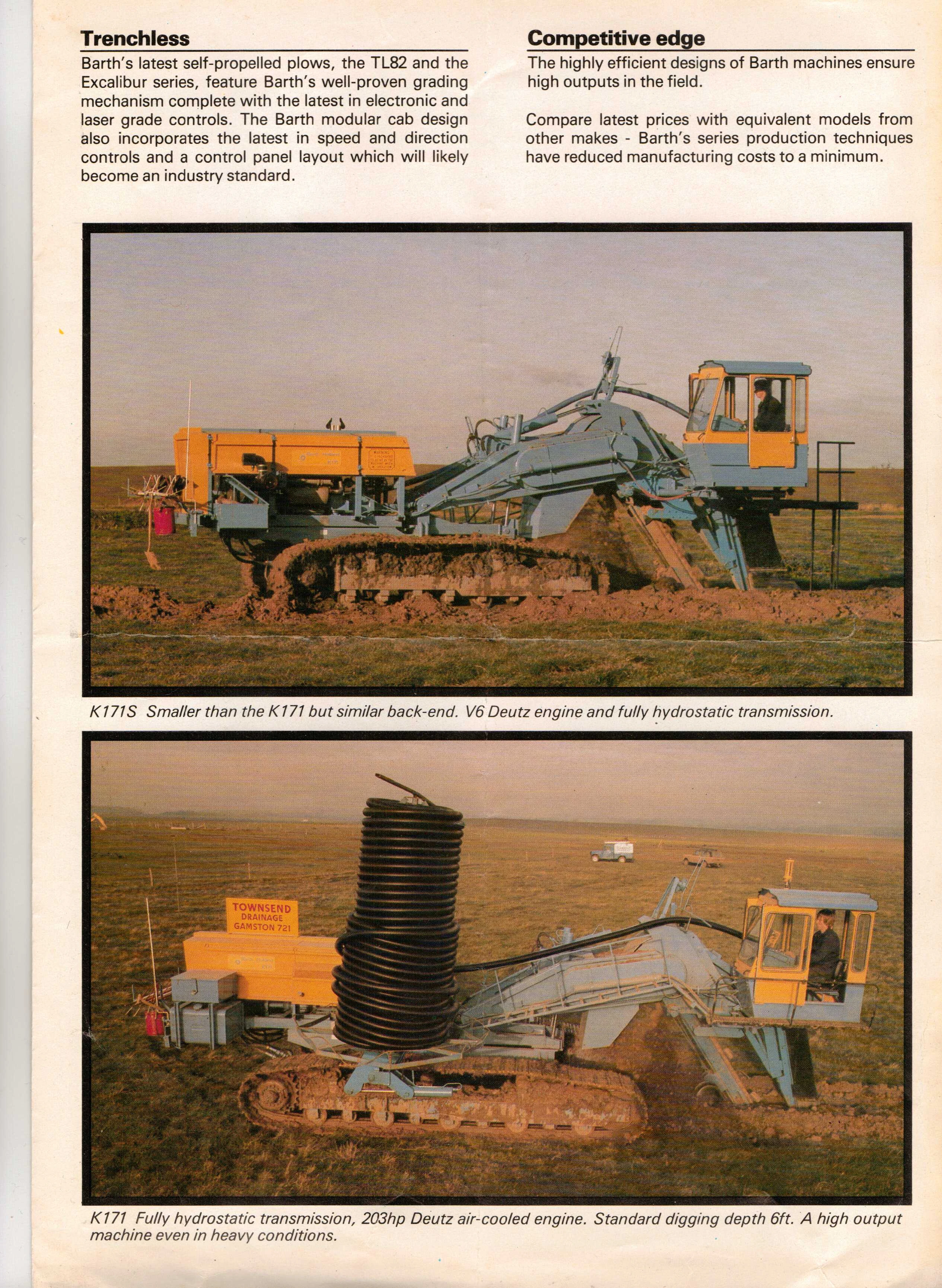

Townsend Plant Ltd K171S and K171 machines

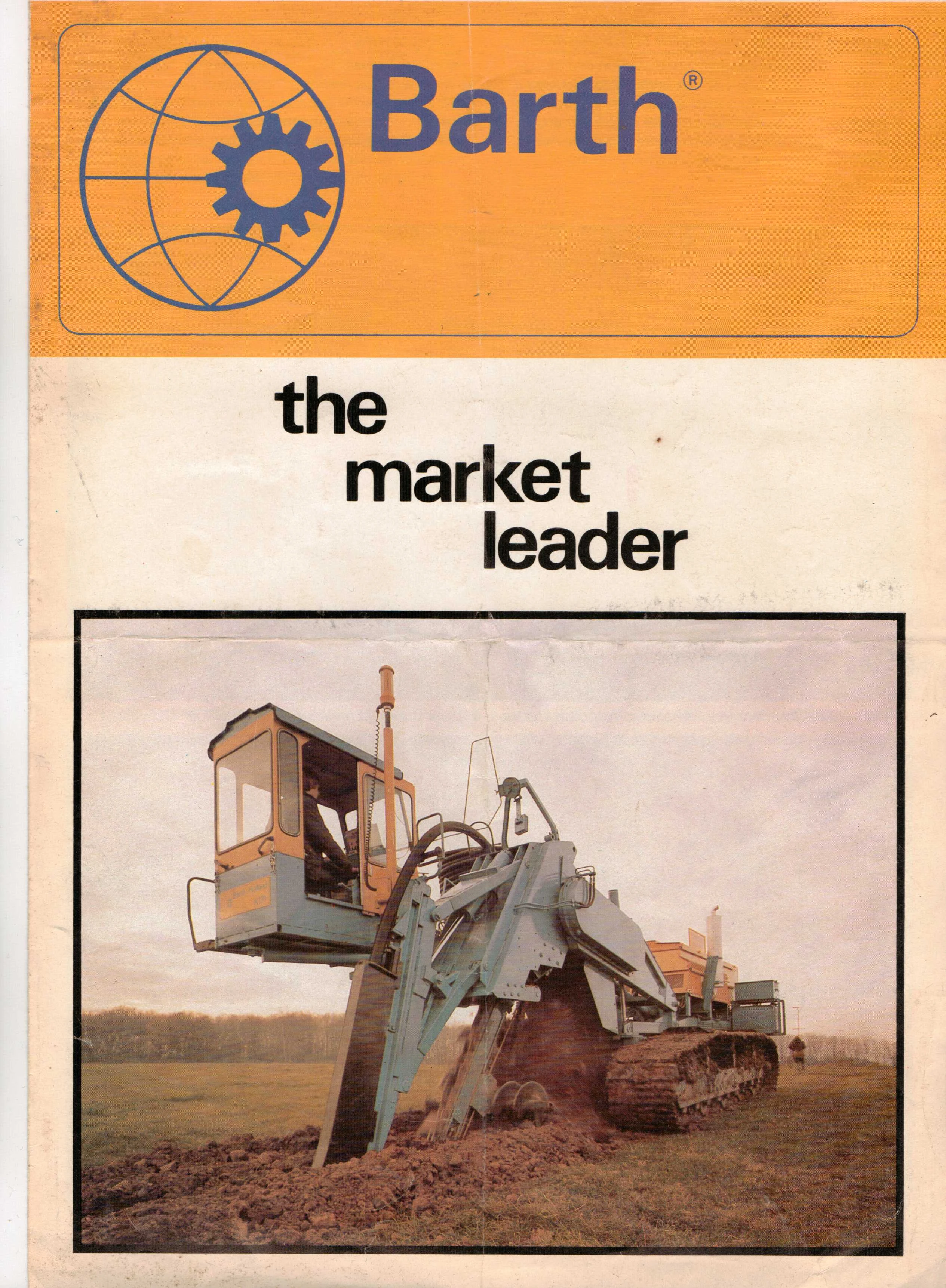

File

Townsend Plant K171

File4

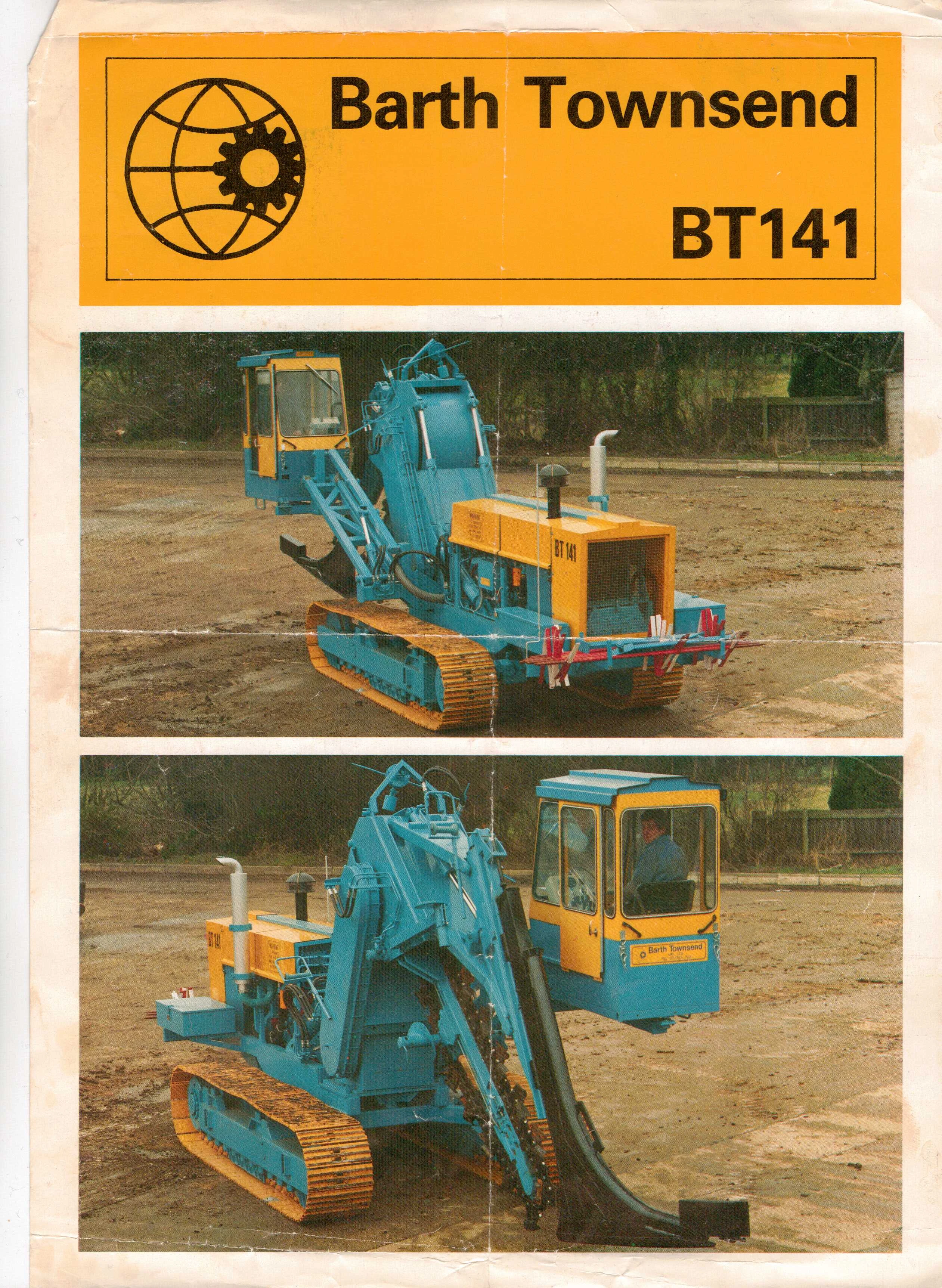

Barth Townsend BT141

Barth G.B were a manufacturer of the specialist machinery for land drainage, from the 1960's till 1984, based in Mablethorpe, Boston in Lincolnshire England.


HistoryEdit

Initially based on Fordson Super Majors & Ford 5000 4-cylinder skid units, Barth trenchers started out in  the early 1960's to produce both wheeled & tracked trenching machines for the U.K. land drainage industry, which grew to flourish in the late 1970's & early 1980's allowing Barth G.B. to develop larger 6-cylinder Ford tractor based machines & ultimately the V8 Deutz engined K200.

Barth G.B. ceased trading in 1984 when the U.K. government extinguished the agricultural 50% drainage grant on 31st August of that year.

Pete Townsend setup Barth Townsend UK Ltd the last machines made being the Barth Townsend BT141 Volvo powered models.

Approximately 80 Barth machines continue to operate in the U.K., most in pretty sorry states of repair, as the agricultural land drainage industry has provided meagre earnings for drainage contractors in recent years.

Model rangeEdit

  • Barth K140 4 cylinder Fordson or Ford 75h.p. , wheeled, vertical slide type digging boom
  • Barth K140 4 cylinder Fordson or Ford 75h.p., tracked, vertical slide type digging boom
  • Barth K140 6 cylinder 154h.p. Ford TW-20 skid, tracked, vertical slide type digging boom
  • Barth K141 6 cylinder, dual duplex chain digging boom drive
  • Barth K150 6 cylinder 186h.p. Ford TW-30 skid, tracked, parallelogram type digging boom
  • Barth K171 dual duplex chain digging boom drive
  • Barth K200 V8 Deutz engine
  • Barth TL82 trenchless 350hp cat engine
  • Barth Townsend BT141 170 hp Volvo powered trencher

Parts Supply Edit

Aardvark Equipment Ltd. of High Hall, Belchamp Otten, Sudbury, Suffolk. CO10 7BE Tel.: 01787 279196 continue to operate a parts service to support these remaining machines & also run their own 1982 6-cylinder tracked Barth K140 on a commercial basis - see picture.

PreservationEdit

Are any more of these machines in preservation ? - the odd example of smaller Howard built trencher machines on Rotapeds 'track system' have appeared at some shows in the last couple of years.

A Barth trencher was part of a special feature at the Newark Tractor & Heritage Show in 2013 along with machines from Bruff, and Howard.

Barth-County drainer at Newark 2013 - IMG 2537

Barth trencher at Newark Vintage Tractor Show
