Cockshutt Plow Company
Founded 1877
Founder(s) James G. Cockshutt
Headquarters Brantford, Ontario, Canada
Products Agriculture machinery tractor, combine harvester, implements
Parent White Motor Company

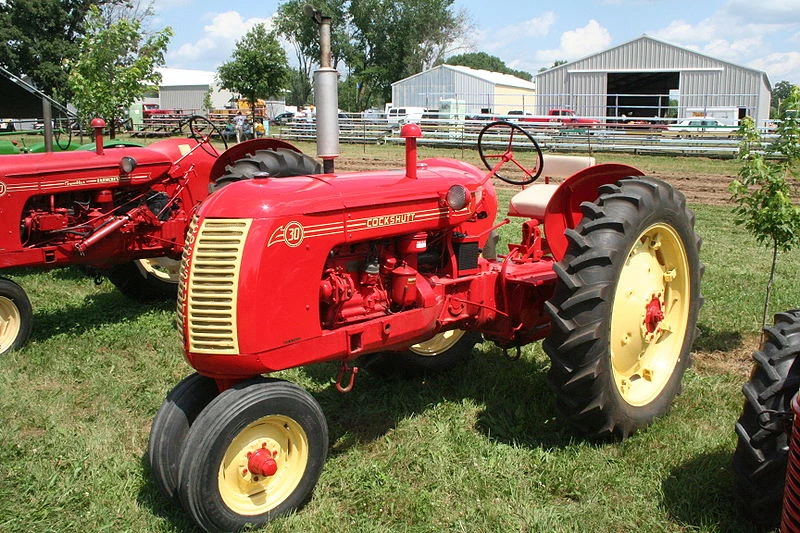

Cockshutt 30 DCAPC August 2008 show

A Cockshutt 30 at the Antique Power Show
(Image from Commons)

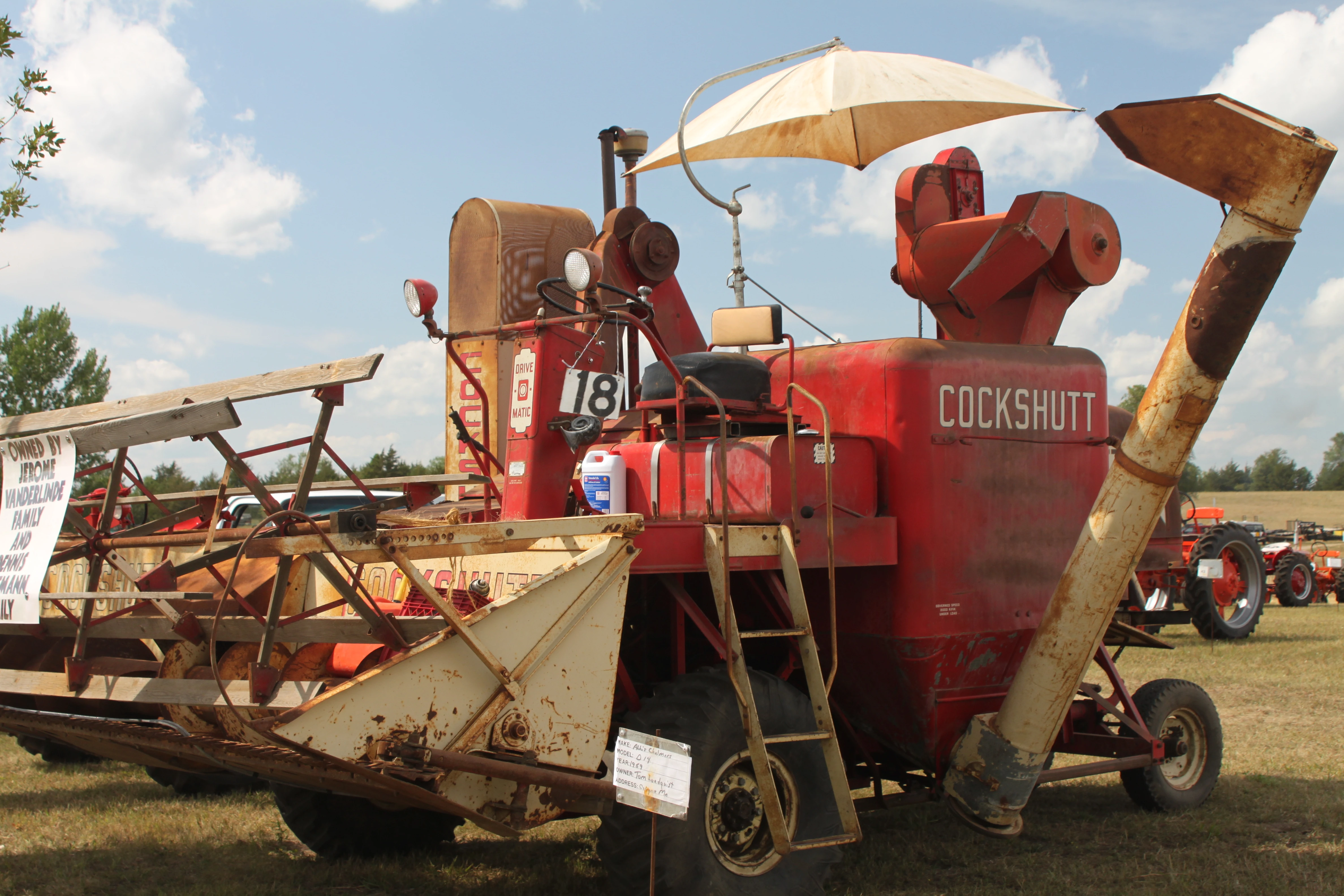

Cockshutt Combine

Cockshutt combine harvester(model ?)

Cockshutt was a large tractor and machinery manufacturer based in Brantford, Ontario, Canada.

Originally founded as the Brantford Plow Works by James G. Cockshutt in 1877, the name was changed to the Cockshutt Plow Company when it was incorporated in 1882. After James died shortly thereafter, his brother William Foster Cockshutt took over as president. He remained until 1888, when another brother Frank Cockshutt became president of the company. In 1910, Henry Cockshutt, the youngest of the brothers, took over the leadership of the company. Under his direction, the company was able to obtain financing for acquisitions and expansion.

Known for quality designs, the company became the leader in the tillage tools sector by the 1920s.

History Edit

Since Cockshutt did not have a tractor design of its own yet, in 1929 an arrangement was made to distribute Allis-Chalmers model 20-35 and United tractors. In 1935 Cockshutt took on the Oliver tractor line, distributing then in Canada. some Hart-Parr tractors were also sold in Canada under the Cockshutt Hart-Parr brand.

During the war years, Cockshutt was able to design its own tractor. It was the Cockshutt 30 tractor and was the first modern production tractor built in Canada.

After the model 30, Cockshutt added the smaller model 20, and the larger 40 and 50.

In 1958, Cockshutt introduced a complete new line of tractors at the same time: the 540, 550, 560, and 570. The sheet metal of the 500 series was designed by Raymond Lowey, an automobile designer of the era, who also designed some Farmall tractor models. The design set a new standard in modern styling.

Also in 1958, the company was taken over by outside interests and the farm equipment division was sold to White Motor Company in 1962. White had previously acquired Oliver in 1960 and subsequently bought Minneapolis-Moline in 1963.

Starting in 1962, White opted to re-brand the Oliver tractors as Cockshutts. Thus, a Cockshutt 1650 was the same tractor as the Oliver 1650, but painted red instead of green.

In 1971, White sold two diesel imports made by Fiat as Cockshutts: the 1265 (41 PTO horsepower, 3-cylinder) and the 1355 (54 PTO horsepower, 4-cylinder). The same tractors were also sold as Minneapolis-Moline and Oliver.

White continued to use the popular Cockshutt brand name until the mid-1970s, when it was phased out. By 1977 the Cockshutt name was no longer used.

Model RangeEdit

Tractor ModelsEdit

Cockshutt Tractor Models
Model Year(s) Produced Horsepower Engine Type Misc Notes Photo
Cockshutt 18-28 18/44 hp (0.31 kW) built by Oliver in the USA
Cockshutt 20 1952-1957 30 hp (22 kW) Continental same as Co-op E2 Stirling Tractor Parade 2008 138
Cockshutt 20 Deluxe 1957 30 hp (22 kW) Continental Cockshutt 20 Deluxe
Cockshutt 30 1946-1957 28 hp (21 kW) Buda Cockshutt 30 DCAPC August 2008 show
Cockshutt 30 Diesel 28 hp (21 kW) Buda
Cockshutt 30 Forklift 28 hp (21 kW) Buda
Cockshutt 35 1956-1958 43 hp (32 kW) Hercules
Cockshutt 35 Deluxe 43 hp (32 kW) Hercules Wingate Sweet Corn Festival 2009
Cockshutt 35L
Cockshutt 40 1949-1958 43 hp (32 kW) Buda same as Co-op E4 Cockshutt 40
Cockshutt 40 Deluxe 43 hp (32 kW) Buda
Cockshutt 40 LPG 43 hp (32 kW) Buda
Cockshutt 50 1953-1957 52 hp (39 kW) Buda same as Co-op E5
Cockshutt 50 Deluxe 52 hp (39 kW) Buda
Cockshutt 59
Cockshutt 60 Row Crop 1942-1948 18 hp (13 kW) Oliver built by Oliver in the USA
Cockshutt 60 Standard 1942-1948 18 hp (13 kW) Oliver built by Oliver in the USA
Cockshutt 70 built by Oliver in the USA
Cockshutt 80 1937-1948 41 hp (31 kW) Waukesha-Oliver built by Oliver in the USA
Oliver 80
Cockshutt 80 at Symmonds Yat - IMG 3716
Cockshutt 90 built by Oliver in the USA
Cockshutt 99 55 hp (41 kW) built by Oliver in the USA
Cockshutt 125 Town & Country 12 hp (8.9 kW) built by Jacobsen in the USA Cockshutt 125 Town & Country (L&G)(Jacobsen) - 1972
Cockshutt 411R built in Italy by Fiat
Fiat 411R
Cockshutt 411R
Cockshutt 540 1958-1962 31 hp (23 kW) Continental Cockshutt 540
Cockshutt 550 diesel 1958-1975 41 hp (31 kW) Oliver built by Oliver in USA Cockshutt 550 Diesel
Cockshutt 550 gas 1958-1975 41 hp (31 kW) Oliver built by Oliver in USA
Cockshutt 560 1958-1961 45 hp (34 kW) Perkins
Cockshutt 560 Diesel 1958-1961 45 hp (34 kW) Perkins
Cockshutt 570 1958-1960 61 hp (45 kW) Hercules Cockshutt 570 - 1959
Cockshutt 570 diesel 1958-1960 61 hp (45 kW) Hercules
Cockshutt 570 Super 1961-1962 64 hp (48 kW) Hercules Cockshutt 570 Super
Cockshutt 580
Cockshutt 660 1963-1964 41 hp (31 kW) Waukesha-Oliver built in USA by Oliver
Cockshutt 770 1963-1967 47 hp (35 kW) Waukesha-Oliver built in USA by Oliver Cockshutt 770 - 1964
Cockshutt 1250 1965 38.5 hp (28.7 kW) Fiat built in Italy by Fiat
Fiat 415
Cockshutt 1250 ad
Cockshutt 1250-A 1966-1969 38.5 hp (28.7 kW) Fiat built in Italy by Fiat
Fiat 450
Cockshutt 1255 39 hp (29 kW) Fiat built in Italy by Fiat
Fiat 450
Cockshutt 1255
Cockshutt 1265 1971-1975 41 hp (31 kW) Fiat built in Italy by Fiat
Fiat 480
same as Minneapolis-Moline G350
and Oliver 1265
Cockshutt 1270 41 hp (31 kW) Fiat built in Italy by Fiat
Fiat 480, same as White 1270
and Oliver 1270
Cockshutt 1350 1966-1968 44 hp (33 kW) Minneapolis-Moline built in USA by Minneapolis-Moline Cockshutt 1350 ad
Cockshutt 1355 1969-1971 51 hp (38 kW) Fiat built in Italy by Fiat
Fiat 550
Cockshutt 1355
Cockshutt 1365 1971-1975 55 hp (41 kW) Fiat built in Italy by Fiat
Fiat 600 & Fiat 640
same as Minneapolis-Moline G450
and Oliver 1365
Cockshutt 1365 MFWD ad
Cockshutt 1370 54 hp (40 kW) Fiat built in Italy by Fiat
Fiat 600 & Fiat 640
same as White 1370 and Oliver 1370
Cockshutt 1450 1966-1969 55 hp (41 kW) Fiat built in Italy by Fiat
Fiat 615
Cockshutt 1450 ad
Cockshutt 1465 1971-1975 70 hp (52 kW) Fiat built in Italy by Fiat
Fiat 750, same as Oliver 1465
Cockshutt 1465
Cockshutt 1550 1965-1969 53 hp (40 kW) Oliver built in USA by Oliver Cockshutt 1550 ad WF
Cockshutt 1555 1970-1975 53 hp (40 kW) Waukesha-Oliver built in USA by Oliver Cockshutt 1555 (White)(Oliver green)
Cockshutt 1600 1963-1964 58 hp (43 kW) Waukesha-Oliver built in USA by Oliver Cockshutt 1600 MFWD WF - 1964
Cockshutt 1600 backhoe 58 hp (43 kW) Waukesha-Oliver built in USA by Oliver Cockshutt 1600 backhoe ad
Cockshutt 1600 Wheatland 58 hp (43 kW) Waukesha-Oliver built in USA by Oliver Cockshutt 1600 Wheatland WF - 1964
Cockshutt 1650 1964-1969 66 hp (49 kW) Waukesha-Oliver built in USA by Oliver Cockshutt 1650 (creme) brochure - 1965
Cockshutt 1650 Industrial 66 hp (49 kW) Waukesha-Oliver built in USA by Oliver
Cockshutt 1655 1970-1975 70 hp (52 kW) Waukesha-Oliver built in USA by Oliver
Cockshutt 1750 1964-1969 80 hp (60 kW) Waukesha-Oliver built in USA by Oliver Cockshutt 1750 MFWD
Cockshutt 1755 1970-1975 86 hp (64 kW) Waukesha-Oliver built in USA by Oliver
Cockshutt 1800 1963-1964 81 hp (60 kW) Waukesha-Oliver built in USA by Oliver Cockshutt 1800 tractor
Cockshutt 1850 1964-1969 93 hp (69 kW) Waukesha-Oliver
Perkins
built in USA by Oliver
Cockshutt 1855 1970-1975 98 hp (73 kW) Waukesha-Oliver Cockshutt 1855 brochure (White)
Cockshutt 1900 1963-1964 101 hp (75 kW) General Motors
Cockshutt 1950 1964-1969 105 hp (78 kW) Perkins
General Motors
built in USA by Oliver
Cockshutt 1950-T 1967-1969 105 hp (78 kW) Waukesha-Oliver
Cockshutt 1955 1970-1975 108 hp (81 kW) Waukesha-Oliver
Cockshutt 2050 1968-1969 118 hp (88 kW) Oliver-Hercules Cockshutt 2050 brochure - 1968
Cockshutt 2150 1968-1969 131 hp (98 kW) Oliver-Hercules built in USA by Oliver Cockshutt 2150 MFWD brochure - 1968
Cockshutt 2255 1972- 145 hp (108 kW) Caterpillar built in USA by Oliver
Cockshutt 2455 139 hp (104 kW) Minneapolis-Moline built in USA by Minneapolis-Moline
Cockshutt 2655 1971-1972 165 hp (123 kW) Minneapolis-Moline built in USA by Minneapolis-Moline Cockshutt 2655 4WD brochure (White)
Cockshutt A4T-1600 1969-1970 165 hp (123 kW) Minneapolis-Moline built in USA by Minneapolis-Moline
Cockshutt Black Hawk 20
Cockshutt Black Hawk 35 43 hp (32 kW) Hercules built to promote acquisition of Ohio Cultivator Co Cockshutt Black Hawk 35 - 1956
Cockshutt Black Hawk 35L
Cockshutt Black Hawk 40
Cockshutt Black Hawk 50
Cockshutt Golden Arrow 1957 Hercules demonstrator
Cockshutt Golden Eagle 1955-1957 39 hp (29 kW) Perkins
Cockshutt Golden Eagle Black Hawk Cockshutt Golden Eagle Black Hawk WF
Cockshutt OC-4 crawler 23 hp (17 kW) Hercules built in USA by Oliver Cockshutt OC-4 crawler - 1964


Cockshutt Hart-ParrEdit

Cockshutt Hart-Parr Tractor Models
Model Year(s) Produced Horsepower Engine Type Misc Notes Photo
Cockshutt Hart-Parr 18-24 24 hp (18 kW) Hart-Parr built in USA Cockshutt Hart-Parr 18-24
Cockshutt Hart-Parr 28-44 44 hp (33 kW) Hart-Parr built by Oliver in the USA Cockshutt Hart-Parr 28-44
Cockshutt Hart-Parr 70 30 hp (22 kW) Oliver built in USA Cockshutt Hart-Parr 70
Cockshutt Hart-Parr 99 62 hp (46 kW) Waukesha-Oliver built in USA Cockshutt Hart-Parr 99 - 1938

Built by Cockshutt for other CompaniesEdit

Tractor Models built by Cockshutt for other Companies
Model Year(s) Produced Horsepower Engine Type Misc Notes Photo
Co-op E2 a Cockshutt 20
Co-op E3 a Cockshutt Co-op E3 (Medium)
Co-op E4 a Cockshutt 40 Harvard-Milk Days Co-Op tractor1
Co-op E4 LPG a Cockshutt 40
Co-op E5 Buda a Cockshutt 50 Co-op E-5

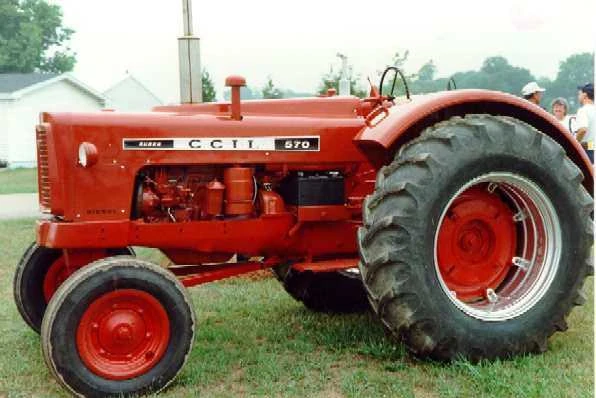

Co-op Implements 570 Super 61 hp (45 kW) Hercules CCIL (Co-op Implements) 570 Super WF
Gambles Farmcrest 30 a Cockshutt 30 Harvard-Milk Days Cockshutt tractor1
