Container ships are cargo ships that carry all of their load in truck-size intermodal containers, in a technique called containerization. They form a common means of commercial intermodal freight transport.

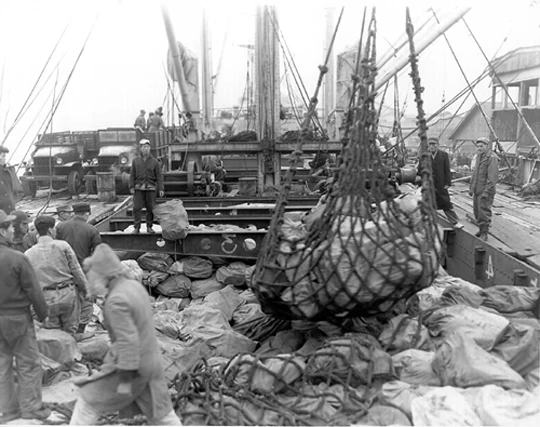

HistoryEditThere are two main types of dry cargo: bulk cargo and break bulk cargo. Bulk cargoes, like grain or coal, are transported unpackaged in the hull of the ship, generally in large volume. Break-bulk cargoes, on the other hand, are transported in packages, and are generally manufactured goods. Before the advent of containerization in the 1950s, break-bulk items were loaded, lashed, unlashed and unloaded from the ship one piece at a time. However, by grouping cargo into containers, 1,000 to 3,000 cubic feet (28 to 85 m³) of cargo, or up to about 64,000 pounds (29,000 kg), is moved at once and each container is secured to the ship once in a standardized way. Containerization has increased the efficiency of moving traditional break-bulk cargoes significantly, reducing shipping time by 84% and costs by 35%. As of 2001, more than 90% of world trade in non-bulk goods is transported in ISO containers. In 2009, almost one fourth of the world's dry cargo was shipped by container, an estimated 125 million TEU or 1.19 billion metric tons worth of cargo.
Container vessels owe their existence to an American trucker by the name of Malcom McLean. In 1931, McLean purchased his first truck which was used to send and pick up loads to and from vessels in various ports. During this time, while he used to wait impatiently for the truck’s contents to be loaded on to the ship he kept thinking of a more efficient and quick way to load and unload vessels and thus save enormous time and labour.

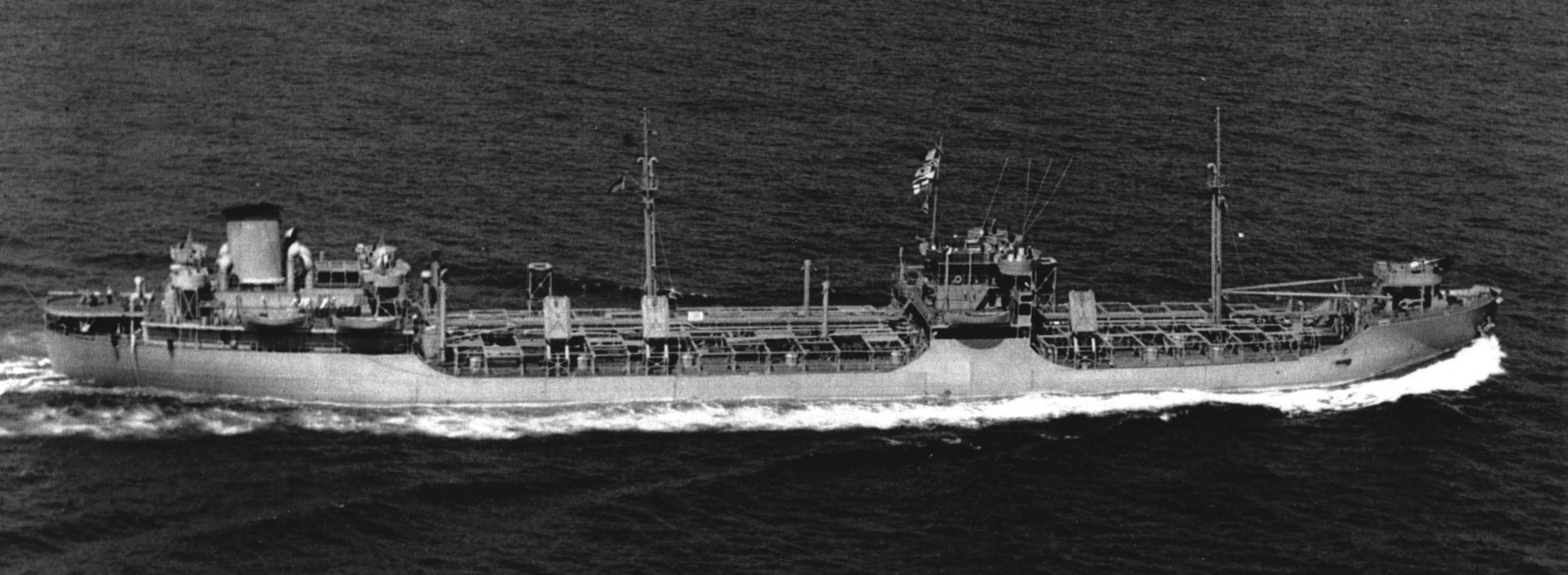

The earliest container ships were converted tankers, built up from surplus T2 tankers after World War II. In 1951 the first purpose-built container vessels began operating in Denmark, and between Seattle and Alaska. The first container ship in the United States was the Ideal X, a T2 tanker, owned by McLean, which carried 58 metal containers between Newark, New Jersey and Houston, Texas on its first voyage, in April 1956.
In 1955, McLean built his company, McLean Trucking into one of USA’s biggest freighter fleets. In 1955, he purchased the small Pan Atlantic Steamship Company from Waterman Steamship and adapted its ships to carry cargo in large uniform metal containers. On April 26, 1956, the first of these rebuilt container vessels, the Ideal X, left the Port Newark in New Jersey and a new revolution in modern shipping resulted.Container vessels eliminate the individual hatches, holds and dividers of the traditional general cargo vessels. The hull of a typical container ship is a huge warehouse divided into cells by vertical guide rails. These cells are designed to hold cargo in pre-packed units – containers.

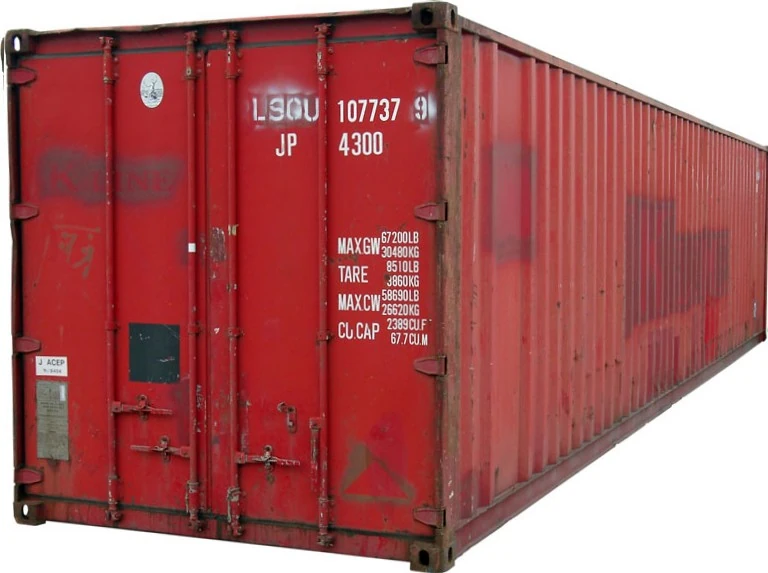

Shipping containers are usually made of steel, but other materials like aluminium, fibreglass or plywood are also used. They are designed to be entirely transferred to and from trains, trucks or trailers to and from a ship. There are several types of containers and they are categorised according to their size and functions.
Today, approximately 90% of non-bulk cargo worldwide is transported by container, and modern container ships can carry up to 15,000 Twenty-foot equivalent units (TEU) (Maersk E Class). As a class, container ships now rival crude oil tankers and bulk carriers as the largest commercial vessels on the ocean.
Coming back to McLean’s invention, while it is a well established fact that containerisation caused a revolution in the world of shipping its introduction did not have an easy passage. Shipping lines, railway (railroad in the US) companies and trade unions vehemently opposed and tried to block the use of containerised ships. It took ten years of legal battles before container ships would be pressed into international service. In 1966, a container liner service from USA to the Dutch city of Rotterdam commenced.
Containerisation changed not only the face of shipping but it also revolutionised world trade as well. A container ship can be loaded and unloaded in a few hours compared to days in a traditional cargo vessel. This, besides cutting labour costs, has reduced shipping times between points to a great extent, for example it takes a few weeks instead of months for a consignment to be delivered from India to Europe and vice versa. It has also resulted in less breakage due to less handling and there is less danger of cargo shifting during a voyage. As containers are sealed and only open at the destination, pilferage and theft levels have been greatly reduced.Exporters load (stuff) their merchandise in boxes which are provided by the shipping companies. They are then delivered to the docks by road, rail or a combination of both for loading on to container ships. Prior to containerisation, huge gangs of men would spend hours fitting various items of cargo into different holds.
Cranes, installed either on the pier or on the ship, are used to place containers on board the ship. When the hull is loaded, additional containers are stacked on the deck.
Containerization has lowered shipping costs and decreased shipping time, and this has in turn helped the growth of international trade. Cargo that once arrived in cartons, crates, bales, barrels or bags now comes in factory sealed containers, with no indication to the human eye of their contents, except for a product code that machines can scan and computers trace. This system of tracking has been so exact that a two week voyage can be timed for arrival with an accuracy of under fifteen minutes.
It has resulted in such revolutions as on time guaranteed delivery and just in time manufacturing. Raw materials arrive in factories in sealed containers less than an hour before they are required in manufacture, resulting in reduced inventory costs.
Today's largest container ships measure almost 400 metres (1,300 ft) in length. They carry loads equal to the cargo carrying capacity of sixteen to seventeen pre WWII freighter ships.
ArchitectureEditThere are several key points in the design of modern container ships. The hull, similar to bulk carriers and general cargo ships, is built around a strong keel. Into this frame is set one or more below-deck cargo holds, numerous tanks, and the engine room. The holds are topped by hatch covers, onto which more containers can be stacked. Many container ships have cargo cranes installed on them, and some have specialized systems for securing containers on board.
The hull of a modern cargo ship is a complex arrangement of steel plates and strengthening beams. The hull is fashioned around the keel, which is often compared to a human backbone. Resembling ribs, and fastened at right-angles to the keel are the ship's frames. The ship's main deck, the metal platework that covers the top of the hull framework, is supported by beams that are attached to the tops of the frames and run the full breadth of the ship. The beams not only support the deck, but along with the deck, frames, and transverse bulkheads, strengthen and reinforce the shell. Another feature of recent hulls is a set of double-bottom tanks, which provide a second watertight shell that runs most of the length of a ship. The double-bottoms generally hold liquids such as fuel oil, ballast water or fresh water.
A ship's engine room houses its main engines as well as auxiliary machinery such as the fresh water and sewage systems, electrical generators, fire pumps, and air conditioners. In most new ships, the engine room is located in the after portion of the ship.
Size categories Edit

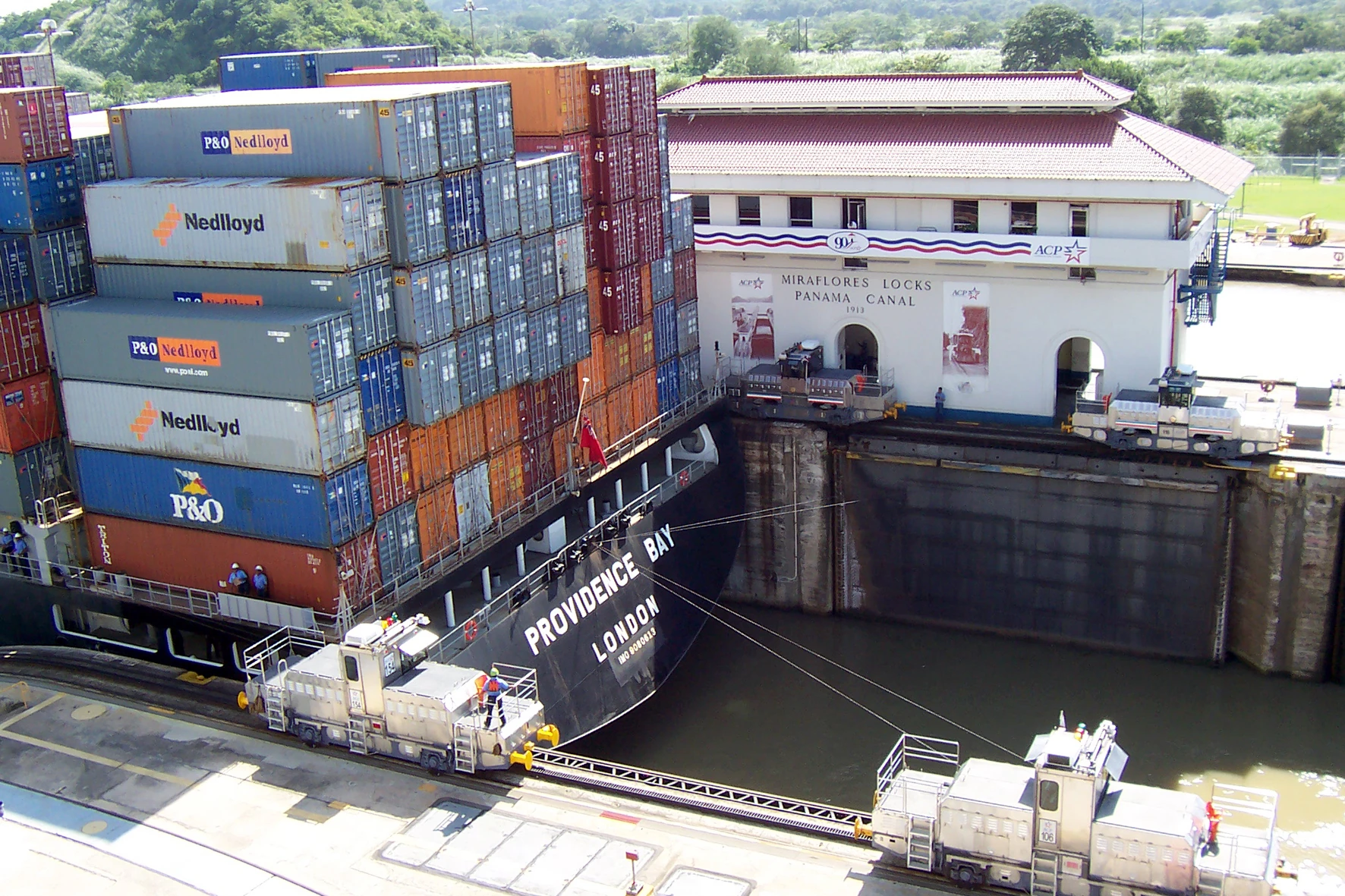

The size of a panamax vessel is limited by the Panama canal's lock chambers, which can accommodate ships with a beam of up to 32.31 m, a length overall of up to 294.13 m, and a draft of up to 12.04 m. The "post panamax" category has historically been used to describe ships with a moulded breadth over 32.31 m, however the Panama Canal expansion project is causing some changes in terminology. The "new panamax" category is based on the maximum vessel-size that will be able to transit a new third set of locks. The new locks are being built to accommodate a container ship with a length overall of 366 metres (1,200 ft), a maximum width of 49 metres (160 ft), and tropical fresh-water draft of 15.2 metres (50 ft). Such a vessel would be wide enough to carry 19 rows of containers, have a total capacity of approximately 12,000 TEU and be comparable in size to a capesize bulk carrier or a suezmax tanker.
Container ships under 3,000 TEU are generally called feeders. Feeders are small ships that typically operate between smaller container ports. Some feeders collect their cargo from small ports, drop it off at large ports for transshipment on larger ships, and distribute containers from the large port to smaller regional ports. This size of vessel is the most likely to carry cargo cranes onboard.
|Container Ship Size Categories|
|Ultra Large Container Vessel (ULCV)||14,501 and higher||With a length of 397 m, a width of 56 m, draft of 15.5 m, and a capacity of over 15,000 TEU, ships of the Emma Maersk class are well over the limits of the New Panamax class. (Photo: The 15,000 TEU MV Edith Maersk.)|

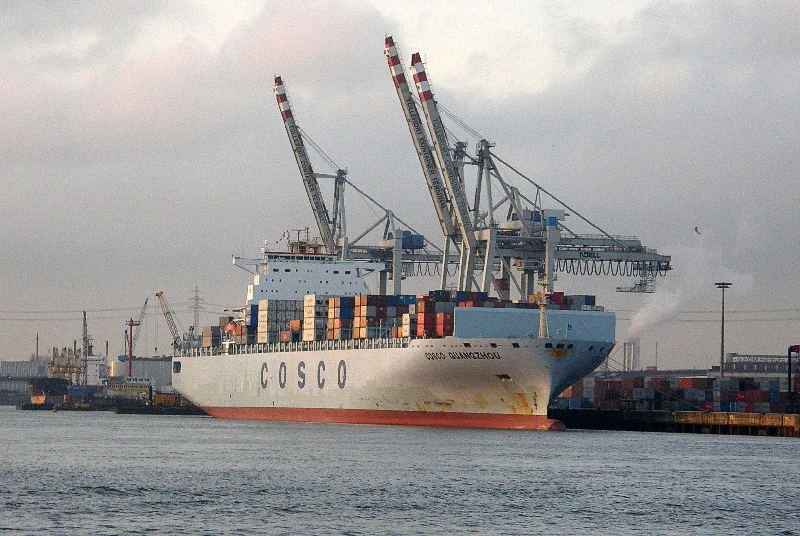

|New panamax||10,000–14,500||With a beam of 43 m, ships of the COSCO Guangzhou class are much too big to fit through the Panama Canal's old locks, but could easily fit through the new expansion. (Photo: The 9,500 TEU MV COSCO Guangzhou pierside in Hamburg. )|
|Panamax||3,001 – 5,100||Ships of the Bay-class are at the upper limit of the Panamax class, with an overall length of 292.15 m, beam of 32.2m, and maximum depth of 21.2 m. (Photo: The 4,224 TEU MV Providence Bay passing through the Panama Canal.)|
|Feedermax||2,001 – 3,000||Container ships under 3,000 TEU are typically called feeders, and are most likely to have cargo cranes. (Photo: The 384 TEU MV TransAtlantic at anchor.)|
|Feeder||1,001 – 2,000|
|Small feeder||Up to 1,000|

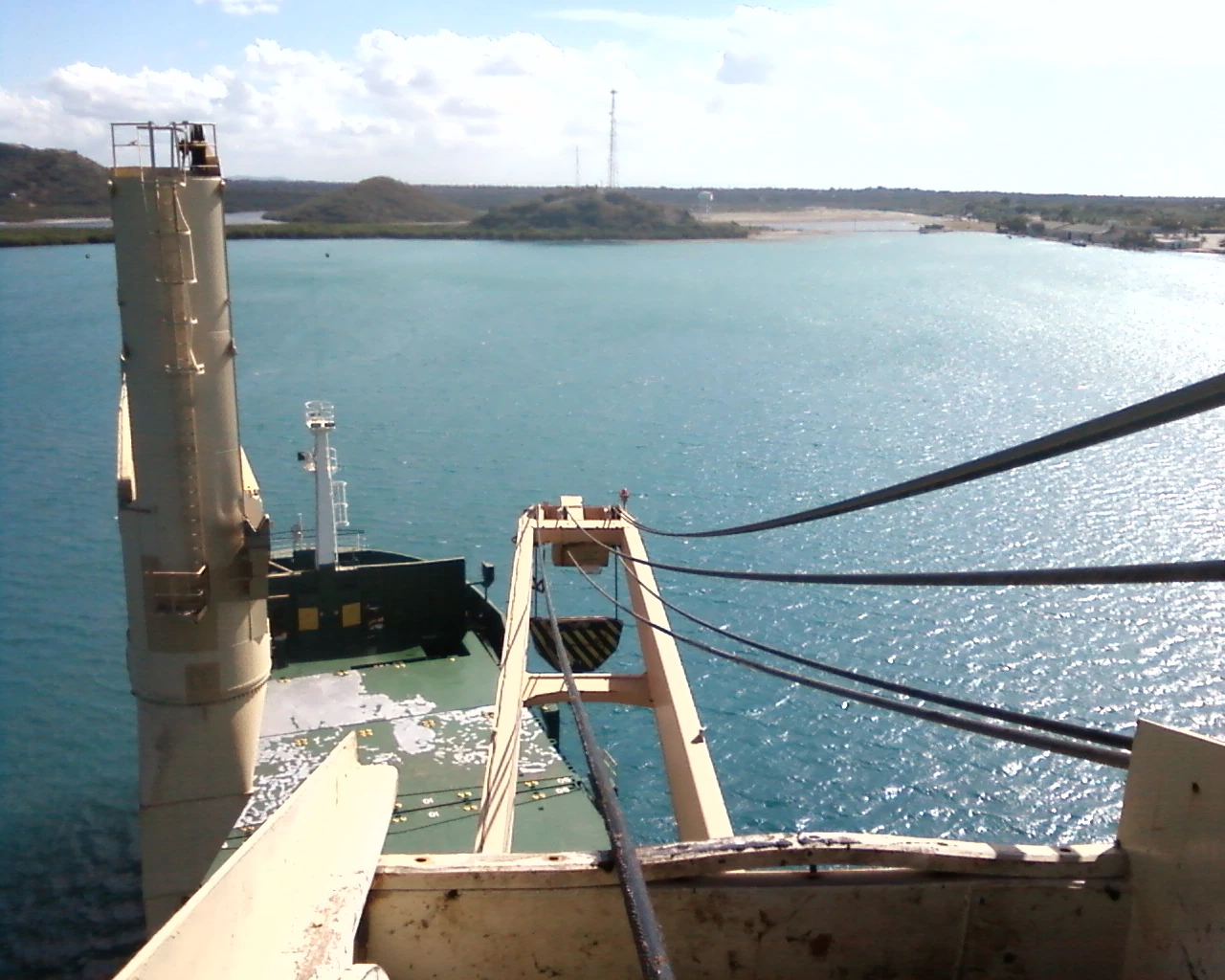

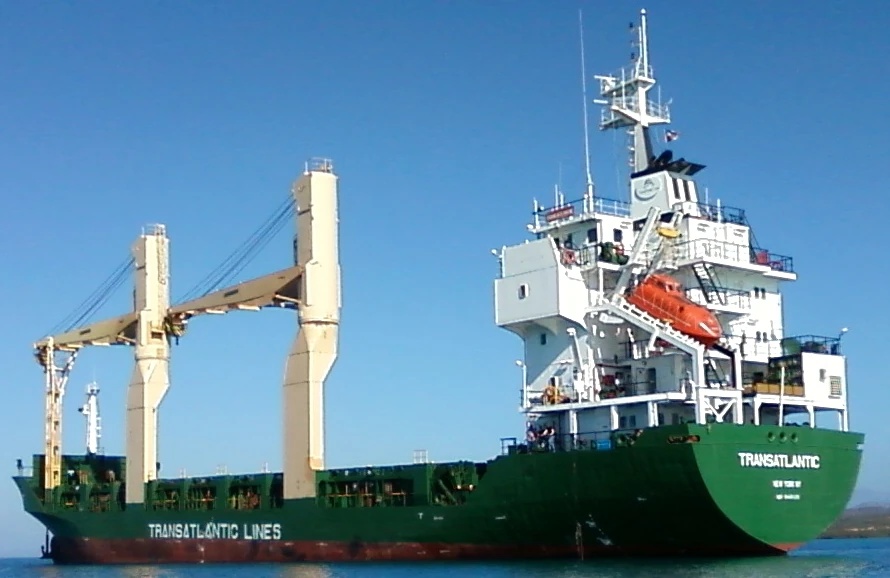

A major characteristic of a container ship is whether it has cranes installed for handling its cargo. Those that have cargo cranes are called geared and those that don't are called ungeared or gearless. The earliest purpose-built container ships in the 1970s were all gearless. Since then, the percentage of geared newbuilds has fluctuated widely, but has been decreasing overall, with only 7.5% of the container ship capacity in 2009 being equipped with cranes.

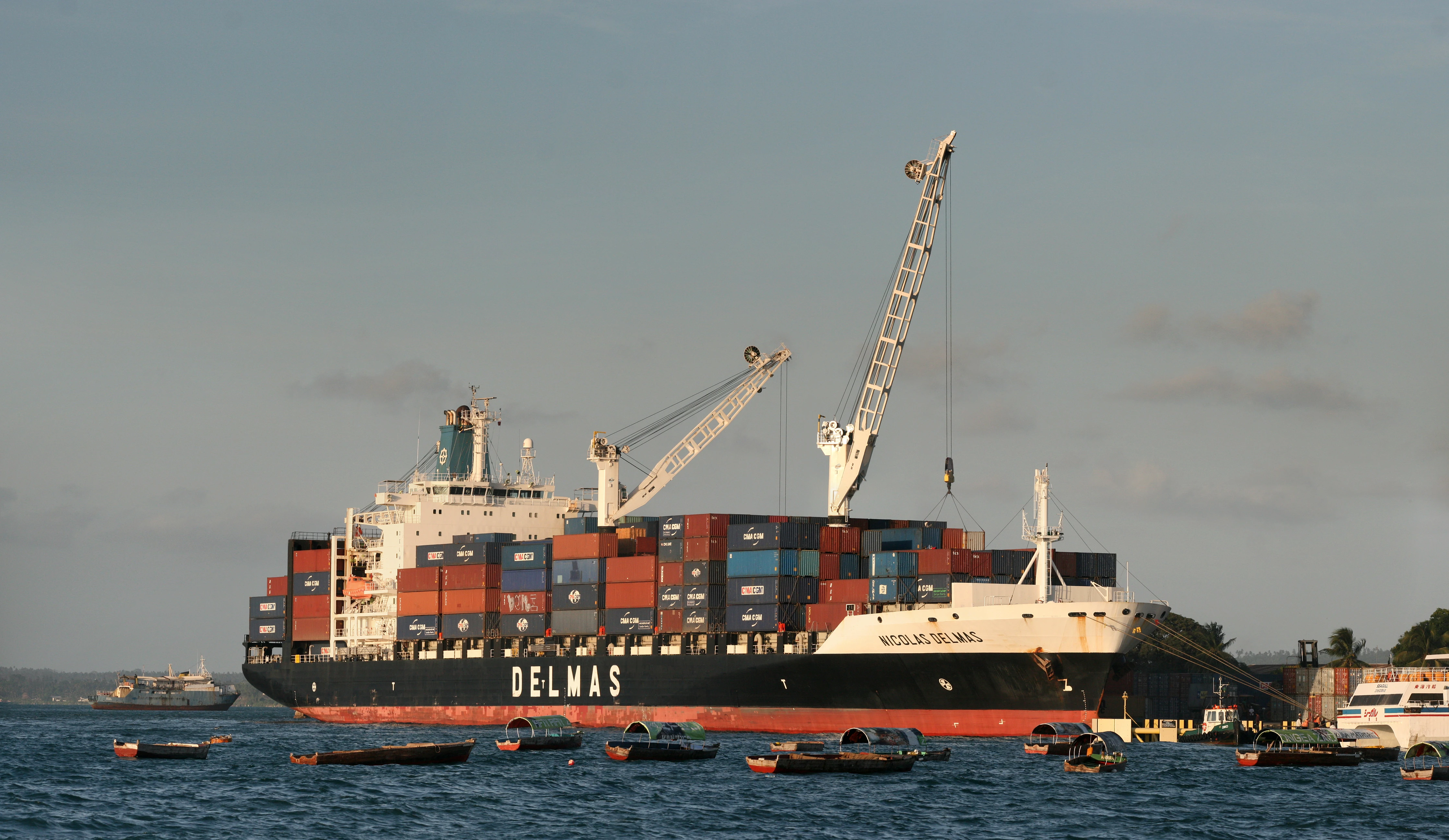

While geared container ships are more flexible in that they can visit ports that are not equipped with pierside cranes, they suffer from several drawbacks. To begin with, geared ships will cost more to purchase than a gearless ship. Geared ships also incur greater recurring expenses, such as maintenance and fuel costs. The United Nations Council on Trade and Development characterizes geared ships as a "niche market only appropriate for those ports where low cargo volumes do not justify investment in port cranes or where the public sector does not have the financial resources for such investment."
Instead of rotary cranes, some geared ships have gantry cranes installed. These cranes, specialized for container work, are able to roll forward and aft on rails. In addition to the additional capital expense and maintenance costs, these cranes generally load and discharge containers much more slowly than their shoreside counterparts.

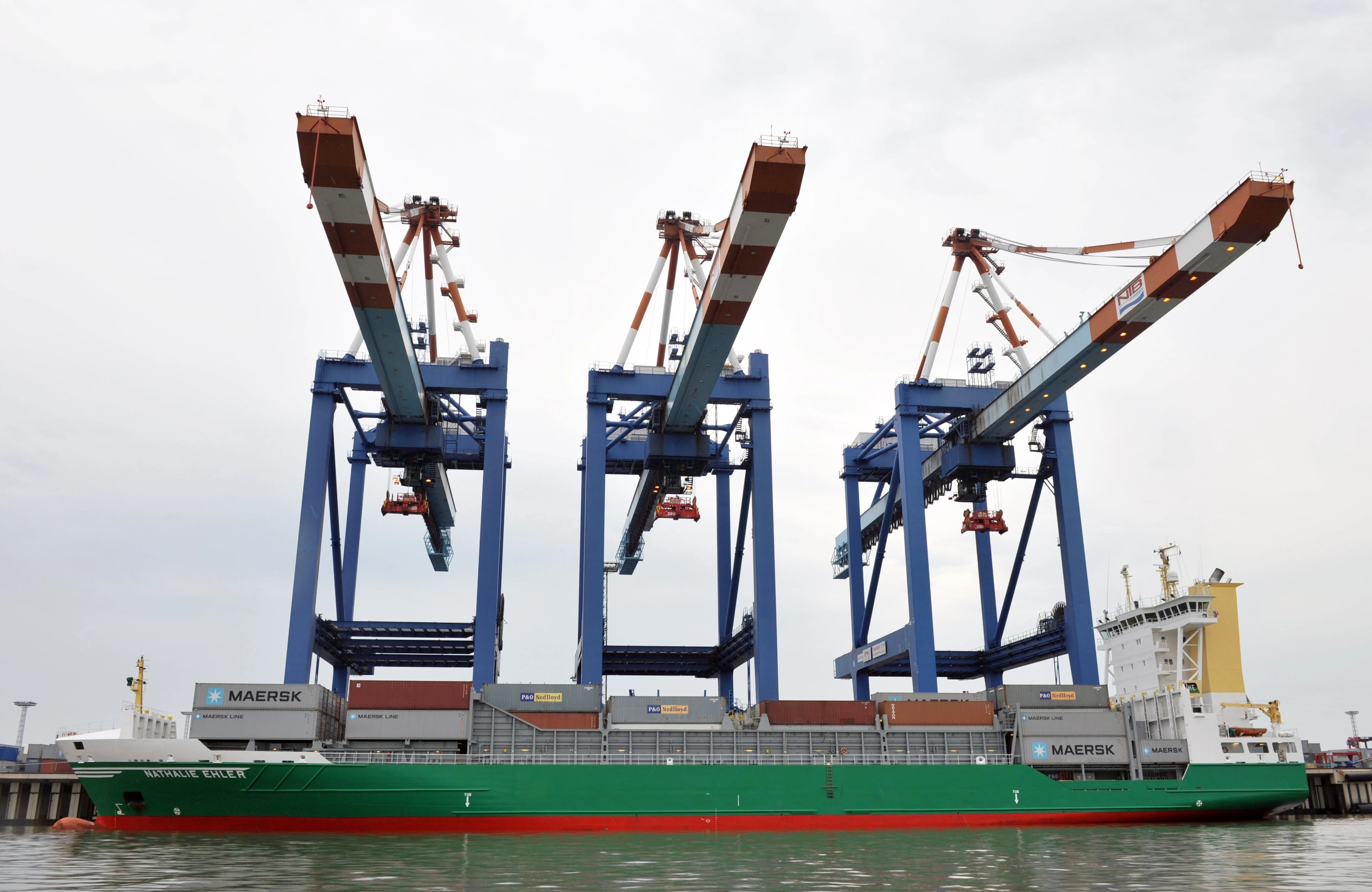

The introduction and improvement of shoreside cranes have been a key to the success of the container ship. The first crane that was specifically designed for container work was built in California's Port of Alameda in 1959. By the 1980s, shoreside gantry cranes were capable of moving containers on a 3-minute-cycle, or up to 400 tons per hour. In March 2010, at Port Klang in Malaysia, a new world record was set when 734 container moves were made in a single hour. The record was achieved using 9 cranes to simultaneously load and unload the MV CSCL Pusan, a ship with a capacity of 9,600 TEU.
Vessels in the 1,500–2,499 TEU range are the most likely size class to have cranes, with more than 60% of this category being geared ships. Slightly less than a third of the very smallest ships (from 100–499 TEU) are geared, and almost no ships with a capacity of over 4,000 TEU are geared.

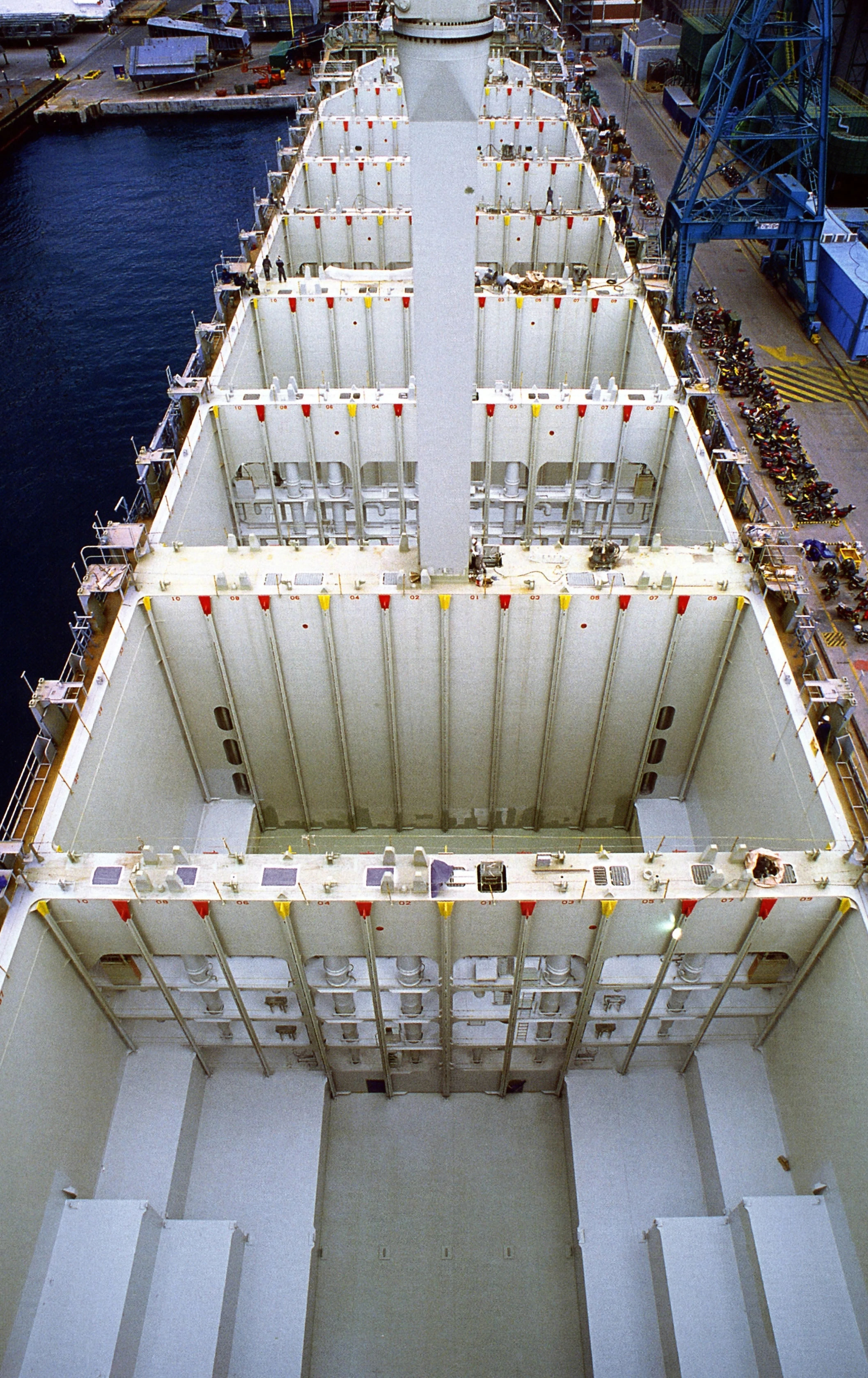

Cargo holdsEditEfficiency has always been key in the design of container ships. While containers may be carried on conventional break-bulk ships, cargo holds for dedicated container ships are specially constructed to speed loading and unloading, and to efficiently keep containers secure while at sea. A key aspect of container ship specialization is the design of the hatches, the openings from the main deck to the cargo holds. The hatch openings stretch the entire breadth of the cargo holds, and are surrounded by a raised steel structure known as the hatch coaming. On top of the hatch coamings are the hatch covers. Until the 1950s, hatches were typically secured with wooden boards and tarpaulins held down with battens. Today, some hatch covers can be solid metal plates that are lifted on and off the ship by cranes, while others are articulated mechanisms that are opened and closed using powerful hydraulic rams.
Another key component of dedicated container-ship design is the use of cell guides. Cell guides are strong vertical structures constructed of metal installed into a ship's cargo holds. These structures guide containers into well-defined rows during the loading process and provide some support for containers against the ship's rolling at sea. So fundamental to container ship design are cell guides that organizations such as the United Nations Conference on Trade and Development use their presence to distinguishing dedicated container ships from general break-bulk cargo ships.
A system of three dimensions is used in cargo plans to describe the position of a container aboard the ship. The first coordinate is the row, which starts at the front of the ship and increases aft. The second coordinate is tier, with the first tier at the bottom of the cargo holds, the second tier on top of that, and so forth. The third coordinate is the slot. Slots on the starboard side are given odd numbers and those on the port side are given even numbers. The slots nearest the centerline are given low numbers, and the numbers increase for slots further from the centerline.

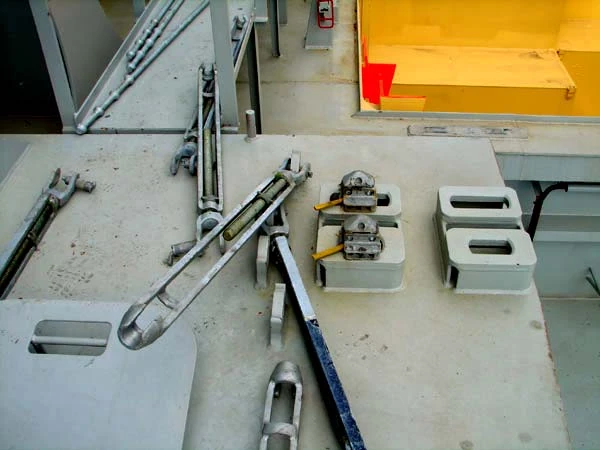

Numerous systems are used to secure containers aboard ships, depending on factors such as the type of ship, the type of container, and the location of the container. Stowage inside the holds of fully cellular (FC) ships is simplest, typically using simple metal forms called container guides, locating cones, and anti-rack spacers to lock the containers together. Above-decks, without the extra support of the cell guides, more complicated equipment is used. Three types of systems are currently in wide use: lashing systems, locking systems, and butress systems. Lashing systems secure containers to the ship using devices made from wire rope, rigid rods, or chains and devices to tension the lashings, such as turnbuckles. The effectiveness of lashings is increased by securing containers to each other, either by simple metal forms (such as stacking cones) or more complicated devices such as twist-lock stackers. A typical twist-lock is inserted into the casting hole of one container and rotated to hold it in place, then another container is lowered on top of it. The two containers are locked together by twisting the device's handle. A typical twist-lock is constructed of forged steel and ductile iron and has a shear strength of 48 metric tons.
The butress system, used on some large container ships, uses a system of large towers attached to the ship at both ends of each cargo hold. As the ship is loaded, a rigid, removable stacking frame is added, structurally securing each tier of containers together.
As of 2010[update], container ships made up 13.3% of the world's fleet in terms of deadweight tonnage. The world's total of container ship deadweight tonnage has increased from 11 million DWT in 1980 to 169.0 million DWT in 2010. The combined deadweight tonnage of container ships and general cargo ships, which also often carry containers, represents 21.8% of the world's fleet.
As of 2009[update], the average age of container ships worldwide was 10.6 years, making them the youngest general vessel type, followed by bulk carriers at 16.6 years, oil tankers at 17 years, general cargo ships at 24.6 years, and others at 25.3 years.
Most of the world's carrying capacity in fully cellular container ships is in the liner service, where ships trade on scheduled routes. As of January 2010, the top 20 liner companies controlled 67.5% of the world's fully cellular container capacity, with 2,673 vessels of an average capacity of 3,774 TEU. The remaining fully 6,862 fully cellular ships have an average capacity of 709 TEU each.
The vast majority of the capacity of fully cellular containerships used in the liner trade is owned by German shipowners, with approximately 75% owned by Hamburg brokers. It is a common practice for the large container lines to supplement their own ships with chartered-in ships, for example in 2009, 48.9% of the tonnage of the top 20 liner companies was chartered-in in this manner.

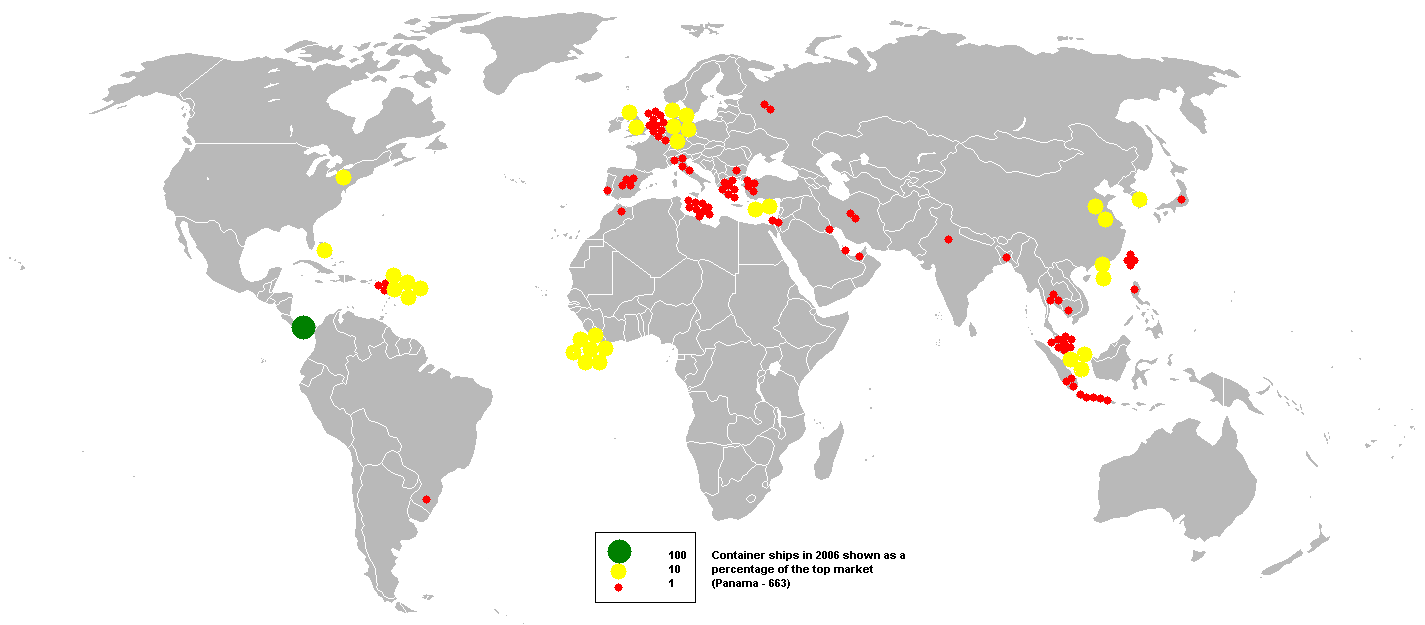

Flag statesEditInternational law requires that every merchant ship be registered in a country, called its flag state. A ship's flag state exercises regulatory control over the vessel and is required to inspect it regularly, certify the ship's equipment and crew, and issue safety and pollution prevention documents. As of 2006[update], the United States Bureau of Transportation Statistics count 2,837 container ships of 10,000 long tons deadweight (DWT) or greater worldwide. Panama was the world's largest flag state for container ships, with 541 of the vessels in its registry. Seven other flag states had more than 100 registered container ships: Liberia (415), Germany (248), Singapore (177), Cyprus (139), the Marshall Islands (118) and the United Kingdom (104). The Panamanian, Liberian, and Marshallese flags are open registries and considered by the International Transport Workers' Federation to be flags of convenience. By way of comparison, traditional maritime nations such as the United States and Japan only had 75 and 11 registered container ships, respectively.
In recent years, oversupply of container ship capacity has caused prices for new and used ships to fall. From 2008 to 2009, new container ship prices dropped by 19–33%, while prices for 10-year-old container ships dropped by 47–69%. In March 2010, the average price for a geared 500-ton container ship was $10 million, while gearless ships of 6,500 and 12,000 TEU averaged prices of $74 million and $105 million respectively. At the same time, secondhand prices for 10-year-old geared container ships of 500-, 2,500-, and 3,500-TEU capacity averaged prices of $4 million, $15 million, and $18 million respectively.
In 2009, 11,669,000 gross tons of newly built container ships were delivered. Over 85% of this new capacity was built in the Republic of Korea, China, and Japan, with Korea accounting for over 57% of the world's total alone. New container ships accounted for 15% of the total new tonnage that year, behind bulk carriers at 28.9% and oil tankers at 22.6%.
Most ships are removed from the fleet through a process known as scrapping. Scrapping is rare for ships under 18 years old and for those over 40 years in age. Ship-owners and buyers negotiate scrap prices based on factors such as the ship's empty weight (called light ton displacement or LTD) and prices in the scrap metal market. Scrapping rates are volatile, the price per light ton displacement has swung from a high of $650 per LTD in mid-2008 to $200 per LTD in early 2009, before building to $400 per LTD in March 2010. As of 2009[update], over 96% of the world's scrapping activity takes place in China, India, Bangladesh, and Pakistan.
The global economic downturn of 2008–2009 resulted in more ships than usual being sold for scrap. In 2009, 364,300 TEU worth of container ship capacity was scrapped, up from 99,900 TEU in 2008. Container ships accounted for 22.6% of the total gross tonnage of ships scrapped that year. Despite the surge, the capacity removed from the fleet only accounted for 3% of the world's containership capacity. The average age of containerships scrapped in 2009 was 27.0 years.
|2008||CMA CGM Thalassa||2||10,960|||
|2006||CMA CGM Medea||4||9,415|||
- Main article: List of largest container ships

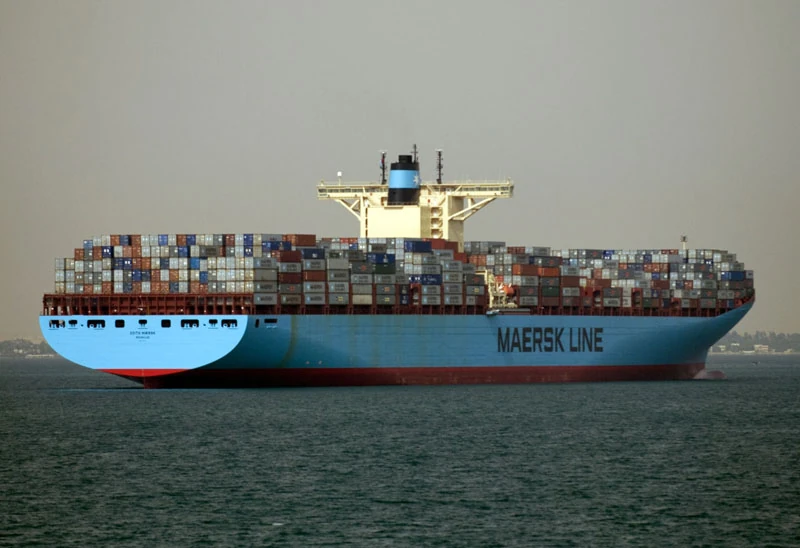

Economies of scale have dictated an upward trend in sizes of container ships in order to reduce costs. However, there are certain limitations to the size of container ships. Primarily, these are the availability of sufficiently large main engines and the availability of a sufficient number of ports and terminals prepared and equipped to handle ultra-large container ships. Furthermore, the permissible maximum ship dimensions in some of the world's main waterways could present an upper limit in terms of vessel growth. This primarily concerns the Suez Canal and the Singapore Strait.
In 2008 the South Korean shipbuilder STX announced plans to construct a container ship capable of carrying 22,000 TEU, and with a proposed length of 450 metres and a beam of 60 metres. If constructed, the container ship would become the largest seagoing vessel in the world.
Since even very large container ships are vessels with relatively low draft compared to large tankers and bulk carriers, there is still considerable room for vessel growth. Compared to today's largest container ships, Maersk Line's 15,200 TEU Emma Mærsk-type series, a 20,000 TEU container ship would only be moderately larger in terms of exterior dimensions. According to a 2011 estimate, an ultra-large container ship of 20,250 TEU would measure 440m x 59m, compared to 397.71 x 56.40m for the Emma Mærsk class. It would have an estimated deadweight of circa 220,000 tons. While such a vessel might be near the upper limit for a Suez Canal passage, the so-called Malaccamax concept(for Straits of Malacca) does not apply for container ships, since the Malacca and Singapore Straits' draft limit of about 21 metres is still above that of any conceivable container ship design. In 2011, Maersk announced plans to build a new "Triple E" family of containerships with a capacity of 18,000TEU, with an emphasis on lower fuel consumption.
In the present market situation, main engines will not be as much of a limiting factor for vessel growth either. The steadily rising cost of fuel oil has prompted most container lines to adapt a slower, more economical voyage speed, of about 21 knots, compared to earlier top speeds of 25 or more knots. Subsequently, new-built container ships can be fitted with a smaller main engine. Engine types fitted to today's ships of 14,000 TEU are thus sufficiently large to propel future vessels of 20,000 TEU or more. Maersk Line, the world's largest container shipping line, nevertheless opted for twin engines (two smaller engines working two separate propellers), when ordering a series of ten 18,000 TEU vessels from Daewoo Shipbuilding in February 2011. The ships will be delivered between 2013 and 2014.
|Recent liner freight rates (in 1000 US$/TEU)|
The act of hiring a ship to carry cargo is called chartering. Outside of special bulk cargo markets, ships are hired by three types of charter agreements: the voyage charter, the time charter, and the bareboat charter. In a voyage charter, the charterer rents the vessel from the loading port to the discharge port. In a time charter, the vessel is hired for a set period of time, to perform voyages as the charterer directs. In a bareboat charter, the charterer acts as the ship's operator and manager, taking on responsibilities such as providing the crew and maintaining the vessel. The completed chartering contract is known as a charter party.
The United Nations Conference on Trade and Development, or UNCTAD, in its 2010 Review of Maritime Trade tracks two aspects of container shipping prices. The first is a chartering price, specifically the price to time-charter a 1 TEU slot for a 14 metric ton cargo on a container ship. The other is the freight rate, or comprehensive daily cost to deliver one-TEU worth of cargo on a give route. As a result of the late-2000s recession, both indicators showed sharp drops during 2008–2009, and have shown signs of stabilization since 2010.
UNCTAD uses the Hamburg Shipbrokers’ Association (formally the Vereinigung Hamburger Schiffsmakler und Schiffsagenten e. V. or VHSS for short) as its main industry source for container ship freight prices. The VHSS maintains a few indices of container ship charter prices. The oldest, which dates back to 1998, is called the Hamburg Index. This index considers time-charters on fully cellular containerships controled by Hamburg brokers. It is limited to charters of 3 months or more, and presented as the average daily cost in U.S. dollars for a one-TEU slot with a weight of 14 metric tons. The Hamburg Index data is divided into ten categories based primarily on vessel carrying capacity. Two additional categories exist for small vessels of under 500 TEU that carry their own cargo cranes. In 2007, VHSS started another index, the New ConTex which tracks similar data obtained from an international group of shipbrokers.
The Hamburg Index index shows some clear trends in recent chartering markets. First, rates were generally increasing from 2000 to 2005. From 2005 to 2008, rates slowly decreased, and in mid-2008 began a "dramatic decline" of approximately 75% which lasted until rates stabilized in April 2009. Rates have ranged from $2.70 to $35.40 in this period, with prices generally lower on larger ships. The most resilient sized vessel in this time period were those from 200–300 TEU, a fact that the United Nations Council on Trade and Development attributes to lack of competition in this sector. Overall, in 2010, these rates rebounded somewhat, but remained at approximately half of their 2008 values. As of 2011, the index shows signs of recovery for container shipping, and combined with increases in global capacity, indicates a positive outlook for the sector in the near future.
UNCTAD also tracks container freight rates. Freight rates are expressed as the total cost in U.S. dollars for a shipper to transport one TEU worth of cargo along a given route. Data is given for the three main container liner routes: U.S.-Asia, U.S.-Europe, and Europe-Asia. Prices are typically different between the two legs of a voyage, for example the Asia-U.S. rates have been significantly higher than the return U.S.-Asia rates in recent years. Generally, from the fourth quarter of 2008 through the third quarter of 2009, both the volume of container cargo and freight rates dropped sharply from the . In 2009, the freight rates on the U.S.–Europe route were sturdiest, while the Asia-U.S. route fell the most.
Liner companies responded to their overcapacity in several ways. For example, in early 2009, some container lines dropped their freight rates to zero on the Asia-Europe route, charging shippers only a surcharge to cover operating costs. They decreased their overcapacity by lowering the ships' speed (a strategy called "slow steaming") and by laying up ships. Slow steaming increased the length of the Europe-Asia routes to a record high of over 40 days. Another strategy used by some companies was to manipulate the market by publishing notices of rate increases in the press, and when "a notice had been issued by one carrier, other carriers followed suit."
The Trans-Siberian Railroad (TSR) has recently become a more viable alternative to container ships on the Asia-Europe route. This railroad can typically deliver containers in 1/3 to 1/2 of the time of a sea voyage, and in late 2009 announced a 20% reduction in its container shipping rates. With its 2009 rate schedule, the TSR will transport a forty-foot container to Poland from Yokohama for $2,820, or from Pusan for $2,154.
Container traffic through a port is often tracked in terms of twenty foot equivalent units or TEU of throughput. As of 2009[update], the Port of Singapore was the world's busiest container port, with 25,866,000 TEU handled. That year, six of the busiest ten container ports were in the People's Republic of China, with Shanghai in 2nd place, Hong Kong in 3rd, Shenzhen 4th, Guangzhou 6th, Ningbo 8th, and Qingdao 9th. Rounding out the top ten spots were Busan in South Korea at number 5, Dubai in the United Arab Emirates at number 7, and Rotterdam in the Netherlands in the 10th position with 9,743,290 TEU served. In total, the busiest twenty container ports handled 220,905,805 TEU in 2009, almost half of the world's total estimated container traffic that year of 465,597,537 TEU.
In March 2007, a London based container ship capsized in Antwerp, Belgium while loading.
It has been estimated that container ships lose between 2,000 and 10,000 containers at sea each year, costing $370 million per year. Most go overboard on the open sea during storms but there are some examples of whole ships being lost with their cargo. When containers are dropped, they immediately become an environmental threat – termed "marine debris". Once in the ocean, they fill with water and sink if the contents cannot hold air. Rough waters smash the container, sinking it quickly.
