Dual-mode bus

Talk0
14,521pages on
this wiki
This article concerns buses that can operate from two independent fuel sources. For other hybrid technologies, see Hybrid bus or Fuel cell bus

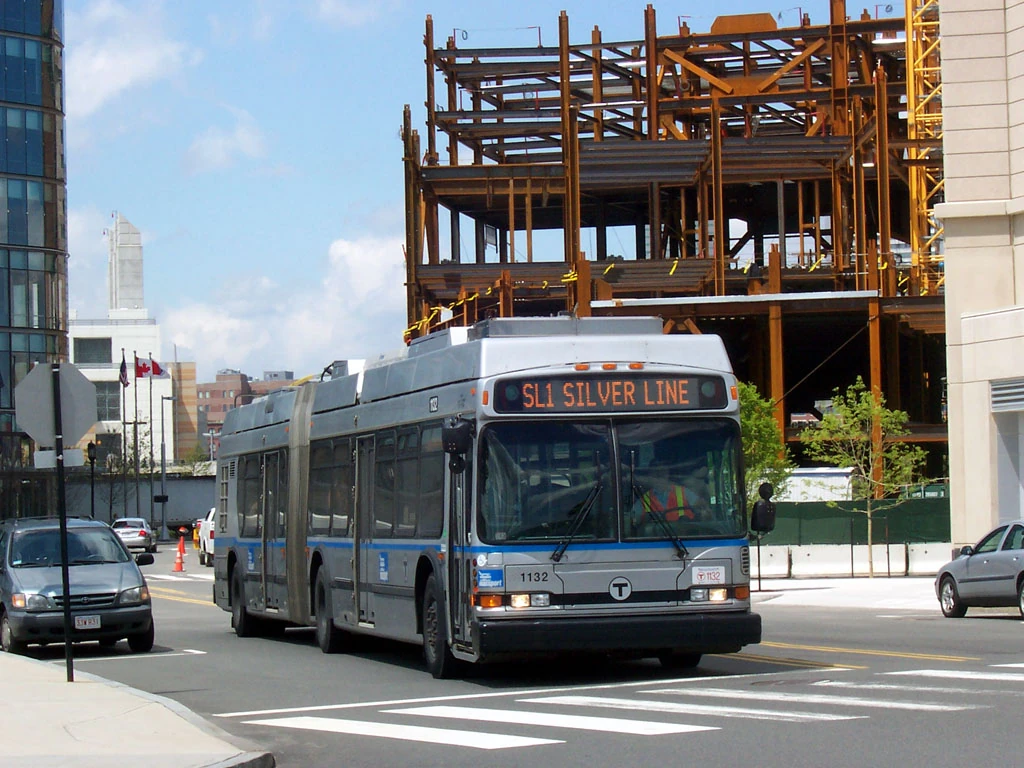

MBTA Silver Line bus 1132

Boston Neoplan AN460LF dual-mode trolleybus, operating in diesel mode (with its trolley poles lowered)

A dual-mode bus is a bus that can run independently on power from two different sources, typically electricity from overhead lines (in a similar way to trolleybuses) or batteries, alternated with conventional fossil fuel (generally diesel fuel).

In contrast to other hybrid buses, dual-mode buses can run forever exclusively on their electric power source (wires). Several of the examples listed below involve the use of dual-mode buses to travel through a tunnel on electric overhead power.

Many modern trolleybuses are equipped with auxiliary propulsion systems, either using a small diesel engine or battery power, allowing movement away from the overhead wires, called "off-wire" movement, but such vehicles are generally not considered to be dual-mode buses if their off-wire capability is very limited. Examples include the fleet of about 300 trolleybuses in San Francisco[1] and the trolleybuses used on a 2005-opened system in Rome, Italy,[2] which are capable of running on battery power only for short distances or short periods of time before needing recharging. The Rome vehicles are powered from overhead trolley wires over most of the 11.5-km route and only use battery power on the 500-metre section closest to the city centre.[2]

ExamplesEdit

  • Bergen, Norway features dual-mode MAN-Neoplan buses in the Bergen trolleybus system
  • Boston, Massachusetts, USA installed dual-mode Neoplan buses on the Waterfront portion of its Silver Line in 2005. Electric power is required in the exclusive right of way that runs in a tunnel under Fort Point Channel to South Station; diesel power is used to run on city streets and highways, including the Ted Williams Tunnel to Logan Airport
  • Castellón de la Plana, Spain installed a new trolleybus line that went into operation 25 June 2008.[3][4] The Irisbus Civis vehicles are optically guided and are capable of switching to diesel engine power for turning in front of the Parque Ribalta.[5][6]
  • Seattle, Washington, USA used 236 dual-mode Breda ETB buses in its downtown bus tunnel from 1990 until late 2004, when the fleet of dual-mode buses were retired, except for 59 converted to electric-only service[7][8] and were replaced in the tunnel by hybrid diesel-electric buses.

See alsoEdit

ReferencesEdit

  1. "About Trolley Buses". San Francisco MTA. Retrieved on 2009-12-15.
  2. 2.0 2.1 Webb, Mary (ed.) (2009). Jane's Urban Transport Systems 2009-2010, p. 195. Coulsdon (UK): Jane's Information Group. ISBN 978-0-7106-2903-6.
  3. Dave Chick. "Castellon". British Trolleybus Society. Retrieved on 2009-01-10.[dead link]
  4. "Castellón-de-la-Playa (sic) Trolleybus Photos". Retrieved on 2009-01-10.
  5. "A First in Spain: Optiguide for Castellon’s Trolleybus Line". Retrieved on 2009-01-11.
  6. "Castellón de la playa notes". Retrieved on 2009-01-10.
  7. "Retired - Breda 5000 dual mode bus". Retrieved on 2009-12-04.
  8. "Breda Articulated Trolley Bus". Retrieved on 2009-12-04.
