Tractor & Construction Plant Wiki

Dutra

Talk0
14,505pages on
this wiki
Dutra
Fate merged/restructured
Predecessor HSCS
Successor RABA
Founded ?
Headquarters Budapest, Hungary
Area served Eastern Block
UK
Europe
Industry Manufacturing
Products Tractors
Loaders

DUTRA Tractor Works also known as ´´Red Star Tractorworks´´ was a Hungarian builder of tractors. Based in Budapest, Hungary, the company manufactured tractors from 1957-1975. DUTRA was an acronym for DUmper TRActor. Previously, the company was known as HSCS (Hofherr Schranz Clayton and Shuttelworth), or simply HSCS, which was related to Hoffer-Schranz, Hofherr HSCS. It later evolved into what is today RÁBA.

MarketsEdit

Small numbers ( about 200 ) were exported to the UK and all around Europe in the 1960's and 70´s. Largest importer was East Germany with a number of 4500 pieces of D4K and D4K-B. Sweden has imported about 120 Dutras, and 65 still remaining. Cuba has also imported about 120 pieces of D4K between 1960 and 1963. They were also exported to New Zealand.[1] They were imported under the name DUTRA-LeRobuste in France.

With some cooperation from Steyr, there was a DUTRA Steyr model(s) built in 1968 using a Steyr WD 610 6 cylinder engine.

Company historyEdit

add details here

Model rangeEdit

DUTRA Tractor Models
Model Year(s) Produced Horsepower Engine Type Photo Misc Notes
DUTRA D4K 4WD  1960-1965   65 HP Csepel DT414 Image needed LHB
DUTRA D4K-B 4WD 1964-1972 90 HP Csepel DT 614 Image needed LHB
DUTRA D4K-70 4WD  1960 (was only prototype) 70 HP Csepel DT 414 Image needed LHB
DUTRA D4K 1000 4WD 90 hp (67 kW) Csepel DT 614 Image needed LHB
DUTRA D4K-B 4WD 100 horsepower (75 kW) 125 horsepower (93 kW) Perkins/Csepel
UK market. Models mainly used a Perkins engine.

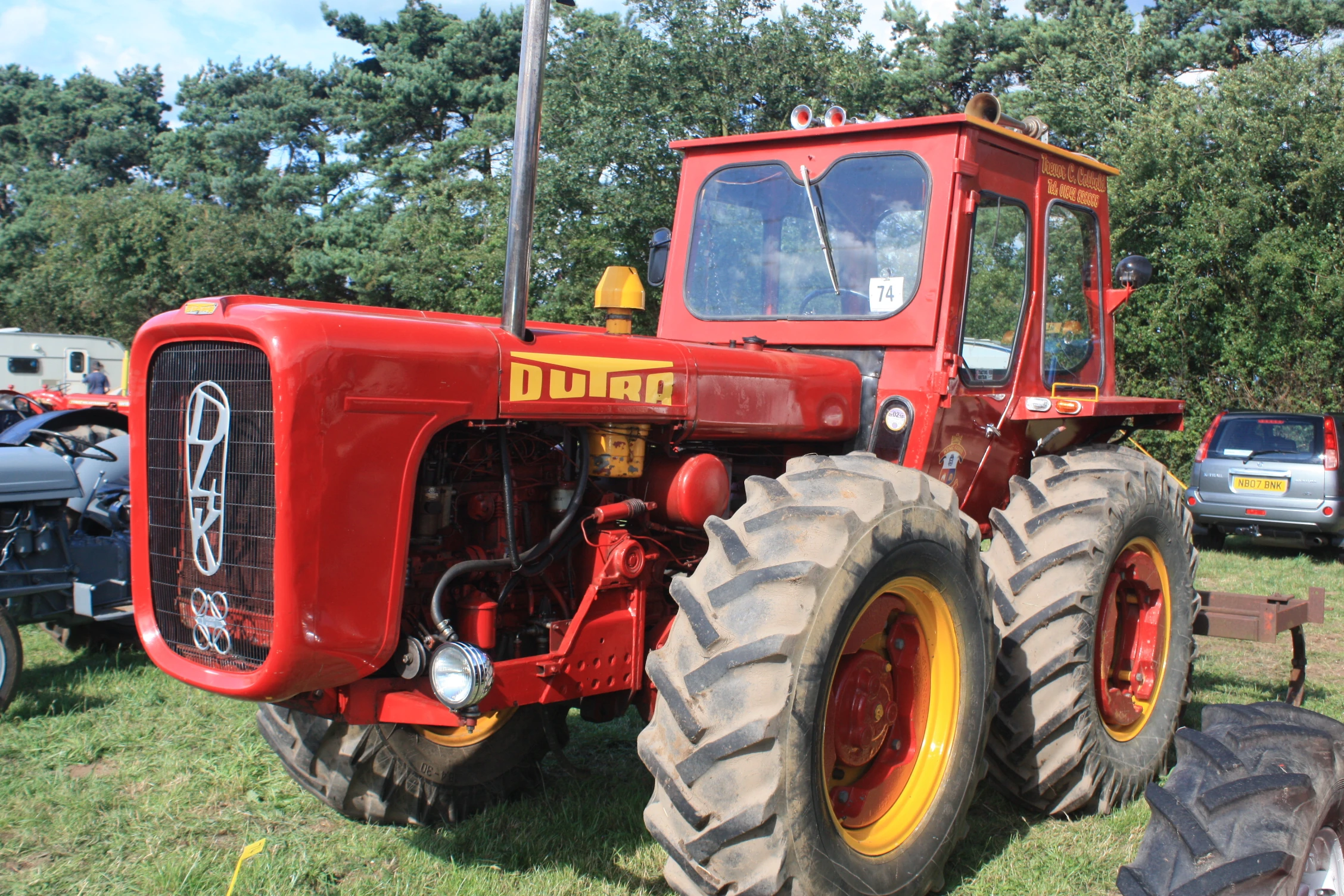

Dutra at Weeting 09 - IMG 9709 The tractor was notable for the engine forward (nose heavy) design which when using a mounted implement gave near perfect balance and maximum traction.
DUTRA UE-28 4WD 1959-1972 28 Csepel DT 213 C / Csepel EDT 123 Image needed LHB For UK market was delivered with 3 cylinder Perkins 35 HP engine as well.
DUTRA Le Robuste D4K-B 4WD Csepel or Steyr
DUTRA Le Robuste 120 4WD 120 hp (89 kW) Steyr
DUTRA U-28 57 hp (43 kW)
DUTRA UB-28
DUTRA UE-28 57 hp (43 kW)
DUTRA Robuste UE 40 4WD Csepel
DUTRA UE-50 4WD 1967-68 65 hp (48 kW)55 Csepel Dt 413

Also known as Dutra-4400

Dutra ?
DUTRA Le Robuste UE-65 4WD Csepel
DUTRA UH-40 Csepel
DUTRA 1100 1972 (prototype ) 110 hp (82 kW) 110 Csepel DT 615
DUTRA 1300 4WD (Prototype) 1973 130 hp (97 kW) RÁBA 5 Cylinder
DUTRA 4010 35 hp (26 kW) Csepel
DUTRA 4020 35 hp (26 kW) Csepel
DUTRA Le Robuste UE 4400 4WD
DUTRA 4620 90 hp (67 kW) Csepel
DUTRA 4650 Csepel
DUTRA 4652 90 hp (67 kW) Csepel
DUTRA 4654 110 hp (82 kW) Csepel
DUTRA Steyr Tractor Models
Model Year(s) Produced Horsepower Engine Type Photo Misc Notes
DUTRA Steyr 110 4WD  ? 105 hp (78 kW) Steyr Dutra-Styr at Newark 2011 - DSCF2321

GalleryEdit

PreservationEdit

There are a few examples about on the UK tractor preservation circuit.

List of Preserved Dutra tractors
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Dutra-Steyr  ?  ?  ? Steyr  ? Dutra-Styr at Newark 2011 - DSCF2321 At Newark Vintage Tractor and Heritage Show 2011

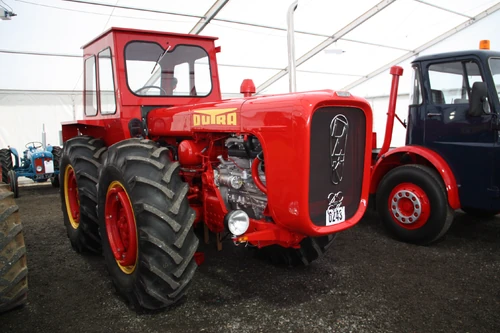

Dutra D4K-B SEB 171K+ sn ? year Perkins A6.354  ? Dutra D4KB - (SEB 171K) at Newark 2012 - IMG 4894 At Newark Tractor & Heritage Show 2012 Restored by owner
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.


See alsoEdit

References / sourcesEdit

External linksEdit

Commons-logo
Wikimedia Commons has media related to:

https://onedrive.live.com/?cid=5771250AFB05C17F&id=5771250AFB05C17F!2802 Collection of photos and scanned adverts/data sheets] by Red Star Tractor. (text in Hungarian)
