Farmall 200

Talk0
14,494pages on
this wiki
McCormick Farmall 200 1955

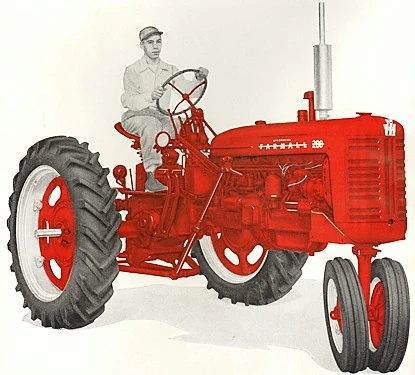

McCormick Farmall 200 tricycle, 1955
Model history
Model introduced 1954
Model discontinued 1956
Model status Discontinued
No. produced 15,198
Preceded by Farmall Super C
Superseded by Farmall 230
Engine Specification
Engine make International
Engine model C-123
Fuel type gasoline
Power hp 24 belt, 21 drawbar
Governed rpm 1650
Displacement cu in /(litre) 123 ci
No. of Cylinders 4
Bore in (mm) 3.125"
Stroke in (mm) 4"
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category
  • 2-point "Fast Hitch"
Tyre Sizes (std/options)
Front 5.00-15 4-ply
Rear 10-36 4-ply
Tractor Dimensions
Length (inches/metres) 123"
Width (inches/meters) 81"
Height (inches/meters) 75"
Weight (nominal) lb/kg 3160 lb
Turning circle (nominal) inches/meters 15 ft
Wheelbase 82"
Other info
Factories Tractor Works, Chicago, Illinois, USA
Plow rating 2-14"
Nebraska Tests No. 536
Approximate Cost new in (year) $1975 (1956)
This box: view · talk

The Farmall 200 was built by International Harvester from 1954 to 1956 in Chicago, Illinois, USA.

Model History Edit

For Company history see
Main article: International Harvester

The McCormick Farmall 200 was nearly identical to the Farmall Super C except for the new grille. The 200 was available with the Hydra-Creeper, an attachment providing four creeper speeds with the hydraulic pump driving the tractor through the power take off shaft.

Tractor Comparison Edit

The Farmall 200 was the best-selling tractor in the 2-plow 25-hp class from 1955-56. Other tractors competing with the 200 were the Allis-Chalmers CA, John Deere 40T, Massey-Harris Colt, Minneapolis-Moline BF, and Oliver 66. The Cockshutt 20 and Oliver Super 66 had larger engines and developed more power. In mid 1956 John Deere also managed to squeeze more power out of the little 2-cylinder engine in the new 420T, which replaced the 40T. In mid-1956 the Farmall 200 became the Farmall 230 with increased power from a higher rpm engine.

Make & model Pto hp Weight (lb) Price ($)
Farmall 200 24 3160 1975 (1956)
Allis-Chalmers CA 26 2835
Cockshutt 20 29 2795
John Deere 40T 24 3000 1541 (1954)
Massey-Harris Colt 25 2550 1704 (1957)
Minneapolis-Moline BF 27 2803 1700 (1953)
Oliver 66 24 2830 1990 (1954)
Farmall 230 28 3100 2140 (1958)

Note: Some specifications and prices for comparison tables from [1] and [2]

Timeline Edit

Factory locations Edit

  • Tractor Works, Chicago, Illinois, USA
  • Louisville Works, Louisville, Kentucky, USA

Specification Edit

See Infobox for basic details

  • 4-cylinder gasoline engine
  • 4-speed transmission
  • Dual front wheels
  • Electric starter and lights
  • "Touch-Control" hydraulics
  • 2-point "Fast Hitch"
  • Standard tires
    • Front: 5.00-15 4-ply dual
    • Rear: 10-36 4-ply

Variations and Options Edit

  • Single front wheel
  • Adjustable front axle
  • "Hydra-Creeper" slow speed attachment
  • Pto
  • Belt pulley
  • Optional tires
    • Front: 6.00-12, 6.50-16, or 7.50-10 single, 4.00-15 dual, or 4.00-19 with adjustable axle, all 4-ply;
    • Rear: 9-36, 9-42, or 11-36 4-ply; 10-36 6-ply (1955)

Serial Numbers Information Edit

Year Serial no. run
start[3]
Serial no. run
End[3]
Number Built Notes
1954 501 1031 531 Production calculated from serial no. range
1955 1032 10903 9872
1956 10904 15698 4795
Total built 15198

Preservation Edit

No information on any of these tractors in preservation is currently available on here.

Do you know of any examples to list ?

List of Preserved Farmall 200 tractors
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Make & model reg no serial no date built engine owner Image needed LHB

set to 150px
seen at misc info
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.

Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  • Please supply some relevant references or sources for information for verification of data.
  1. Hall, Mike, Ed., The Official Tractor Blue Book 2010, Price Digests, Overland Park, Kansas, 2009
  2. Larsen, Lester, “Farm Tractors 1950-1975”, American Society of Agricultural Engineers, St. Joseph, Michigan, 1981
  3. 3.0 3.1 "Implement & Tractor Red Book Issue 1967", p.A-181
