International 504 Diesel SFW

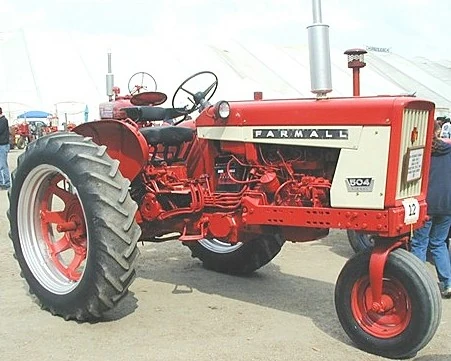

Farmall 504 tricycle with single front wheel and diesel engine
Model history
Model introduced 1961
Model discontinued 1968
Model status Discontinued
No. produced 15,674
Preceded by Farmall 340
Superseded by Farmall 544
Engine Specification
Engine make International
Engine model D-188
Fuel type diesel
Power hp 58 engine, 46 pto, 39 drawbar
Governed rpm 2200
Displacement cu in /(litre) 188 ci
No. of Cylinders 4
Bore in (mm) 3.6875"
Stroke in (mm) 4.3906"
Cooling system Water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type 5-speed sliding gear plus 2-speed planetary
Gearbox make International
Forward 10
Reverse 2
Drive 2-WD
General Data
Linkage Category Category I 3-point hitch
Tyre Sizes (std/options)
Front 6.50-16 6-ply single
Rear 13.9-36 4-ply
Tractor Dimensions
Length (inches/metres) 141"
Height (inches/meters) 74"
Weight (nominal) lb/kg 4370 lb
Turning circle (nominal) inches/meters 16 ft
Wheelbase 90"
Other info
Factories USA
Plow rating 3-14"
Nebraska Tests No. 819
Approximate Cost new in (year) $3820 (1962), $4200 (1968)
This box: view · talk

The Farmall 504 was a row-crop tractor built by International Harvester from 1961 to 1968 in the USA.

Model historyEdit

Main article: International Harvester

For high-clearance version see: Farmall 504 Hi-Clear. For utility version see International 504. For row-crop utility version see: International 504 Hi-Clear

The Farmall 504 replaced the 340. The new model had a longer wheelbase and weighed several hundred pounds more. The gasoline engine had a larger bore and longer stroke to increase displacement from 135 ci to 152 ci. The governed rpm was also increased from 2,000 to 2,200 rpm. The diesel engine was given a longer stroke, increasing displacement from 166 ci to 188 ci. The bore and stroke were now the same as for the Farmall 560’s diesel engine, making the International D-188 4-cylinder essentially two-thirds of that 6-cylinder.

Tractor Comparison, gasoline version Edit

With 46 pto hp, the Farmall 504 was substantially more powerful than the 35 hp Farmall 340. The changes made the 504 approximately equal to the Ford 901-series, John Deere 2010, Minneapolis-Moline 4-Star, and Oliver 770. The Allis-Chalmers D-15 and Case 541 lagged behind with only 40 hp while the Case 641 had 51 hp. The mid-1963 Allis-Chalmers D-15 Series II grew in power to equal the Farmall. In 1968 the more-powerful Farmall 544 replaced the Farmall 504.

Make & model Pto hp Displace. Speeds Weight (lb) Price-$ (year)
Farmall 504 46 152 10 4370 3820 (1962) 4200 (1967)
Allis-Chalmers D15 40 149 8 4270 3315 (1962)
Allis-Chalmers D15 II 46 160 8 4270 4432 (1967)
Case 541 40 159 4-12 3455 3495 (1962)
Case 641 51 188 4-12 4315 4000 (1962)
Ford 901-Series 47 172 12 3270
Ford 4000-Series 46 172 12 3279 3815 (1963)
Ford 4000-Series 46 192 8 3279 4417 (1967)
John Deere 2010 46 144 8 4400 3400 (1962)
Minneapolis-Moline 4-Star 44 206 10 4000 3300 (1962)
Minneapolis-Moline Jet Star II 44 206 10 3370 3445 (1963)
Minneapolis-Moline Jet Star III 44 206 10 3430 3836 (1967)
Oliver 770 48 216 6 4686 3750 (1962)

Tractor Comparison, diesel version Edit

The Farmall 504 diesel was very competitive in 1961-62 with the Case 631, Ford 901-series and 4000, John Deere 2010, Massey Ferguson MF65, and Minneapolis-Moline 4-Star. Allis-Chalmers bracketed the Farmall with the smaller, less powerful D-15 and considerably larger D-17. The Oliver 770 was slightly heavier, more powerful, and expensive and it was eventually replaced by the still more powerful 1550. In mid-1968 International replaced the Farmall 504 with the more powerful 544, which competed with the Oliver 1550 as well as the John Deere 2510 and Allis-Chalmers One-Seventy.

Make & model Pto hp Displace. Speeds Weight (lb) Price-$ (year)
Farmall 504 46 188 10 4553 4400 (1962 4765 (1967)
Allis-Chalmers D15 37 174 8 4220 3950 (1960)
Allis-Chalmers D15 II 37 174 8 4270 5035 (1967)
Allis-Chalmers D17 III 53 262 8 5570 5309 (1963)
Allis-Chalmers D17 IV 53 262 8 5570 5975 (1967)
Case 631 49 188 12 4465 4600 (1962)
Ford 901-Series 45 172 5 3450
Ford 4000 44 172 12 3280 3900 (1962)
Ford 4000 46 201 8 4450 4669 (1967)
John Deere 2010 47 165 8 4700 3950 (1962)
Massey-Ferguson 65 49 204 6 4120
Massey-Ferguson 65 Dieselmatic 51 204 12 4120 4410 (1963)
Minneapolis-Moline 4-Star 44 206 10 4000 3935 (1962)
Minneapolis-Moline Jet Star II 44 206 10 3770 4125 (1963)
Minneapolis-Moline Jet Star III 45 206 10 3940 4595 (1967)
Oliver 770 50 216 6 4864 4620 (1962)

Note: Most specifications and prices in comparison tables from The Official Tractor Blue Book 2010[1], Farm Tractors 1950-1975[2], and Farm Tractors 1975-1995[3]

Timeline Edit

Factory locations Edit

SpecificationEdit

For basic spec see Infobox on the right. Add details here.

  • C-153 4-cylinder gasoline engine
  • 5-speed transmission with Torque Amplifier 2-speed planetary gearbox
  • Dual front wheels
  • Lights
  • Independent pto
  • Category I 3-point hitch with traction control
  • Standard tires
    • Front: 6.00-16 4-ply
    • Rear: 12.4-38 4-ply

OptionsEdit

  • LPG engine
  • D-188 4-cylinder diesel engine
  • 5-speed transmission (without Torque Amplifier)
  • Forward-reverse shuttle (not available with Torque Amplifier)
  • Single front wheel
  • Adjustable front axle
  • Power adjusted rear wheels
  • "Hydra-Touch" hydraulic valves
  • Hydrostatic power steering
  • 2-point "Fast Hitch" in place of 3-point hitch
  • Category II 3-point hitch
  • Optional tires
    • Front: 5.00-15 or 5.50-16 4-ply, 6.50-16 or 7.50-10 single
    • Rear: 12.4-36 or 13.9-36 4-ply, 13.6-38 6-ply

Serial numbers)Edit

Year Serial no. run
start[4]
Serial no. run
End
Number Built Notes
1961 501 809 309 Production calculated from serial no. range
1962 810 6999 6190
1963 7000 7731 732
1964 7732 10695 2964
1965 10697 13595 2899
1966 13596 15112 1517
1967 15113 16114 1002
1968 16115 16175[5] 61 Last built
Total built 15674

PreservationEdit

Add details of known examples in preservation;

List of Preserved Farmall 504 tractors
