Farmall BN

Talk0
14,489pages on
this wiki

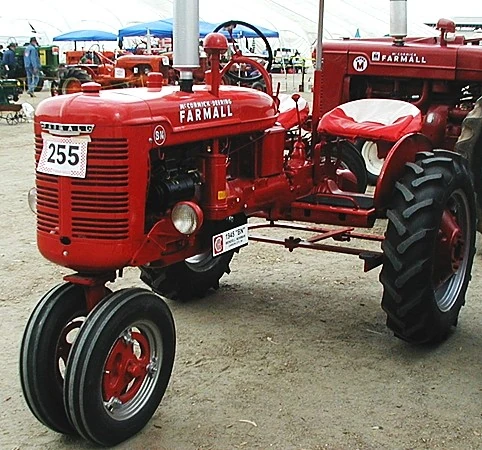

McCormick-Deering Farmall BN 1945
McCormick-Deering Farmall BN 1945, at EDGE & TA Tulare, California antique tractor show
Model history
Model introduced 1941
Model discontinued 1947
Model status Discontinued
Preceded by New model
Superseded by McCormick Farmall C
Engine Specification
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-15 4-ply
Rear 8-24 4-ply
Tractor Dimensions
Length (inches/metres) 108 in
Width (inches/meters) 71 in
Height (inches/meters) 65 in
Weight (nominal) lb/kg 1780 lb
Turning circle (nominal) inches/meters 15 ft
Wheelbase 73 in
Other info
Factories Tractor Works, Chicago, Illinois, USA
Plow rating 1-16"
Nebraska Tests No. 331
This box: view · talk

The Farmall BN was built by International Harvester from 1941 to 1947 in Chicago, Illinois, USA.

Model History Edit

For Company history see
Main article: International Harvester

The McCormick-Deering Farmall BN was a narrow McCormick-Deering Farmall B, with shorter axle shafts to reduce the rear tread.

Timeline Edit

  • 1939 - wide-front McCormick-Deering Farmall A introduced
  • 1940 - narrow-front McCormick-Deering Farmall B added
  • 1941 - narrow-front, narrow rear track McCrmick-Deering Farmall BN added
  • 1946 - name shortened to McCormick Farmall BN
  • 1947 - replaced by McCormick Farmall C

Factory locations Edit

  • Tractor Works, Chicago, Illinois, USA

Specification Edit

See Infobox for basic details

  • Standard tires
    • Front: 6.00-12 4-ply single
    • Rear: 8-24 4-ply

Variations and Options Edit

  • Electric starting
  • Pneumatic "Lift-All" implement lift system
  • Optional tires
    • Front: 7.50-10 4-ply single or 4.00-15 or 5.00-15 4-ply dual (1941)
    • Rear: 9-24, 10-24, or 11-24 4-ply (1941)

Serial Numbers Information Edit

Year Serial no. run
start[1]
Serial no. run
End[1]
Number Built Notes
1941 41500 80738 Serial range includes Farmall A-AV-B-BN and International A
1942 80739 96389 Number built included with Farmall B
1943
1944 96390 113217
1945 113218 146699
1946 146700 182693
1947 182964 198298
1947 200001 220829
Total built

Preservation Edit

No information on any of these tractors in preservation is currently available on here.

Do you know of any examples to list ?

List of Preserved Farmall & International A series tractors
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Make & model reg no serial no date built engine owner Image needed LHB

set to 150px
seen at misc info
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.

Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  1. 1.0 1.1 Wendel, C. H., 150 Years of International Harvester, Crestline Publishing, Sarasota, Florida, 1981
