Farmall C

Talk0
14,494pages on
this wiki

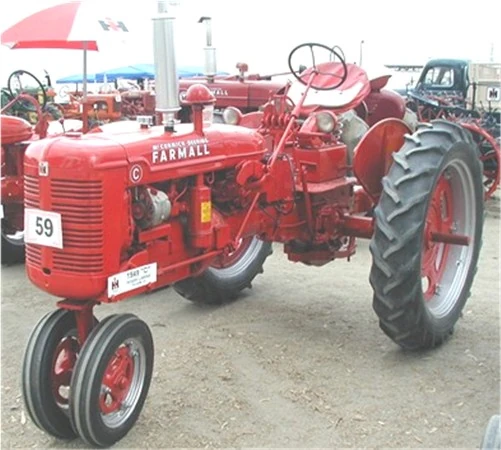

McCormick-Deering Farmall C 1949
McCormick Farmall C 1949
Model history
Model introduced 1948
Model discontinued 1951
Model status Discontinued
No. produced 74,718
Preceded by McCormick Farmall B
Superseded by McCormick Farmall Super C
Engine Specification
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 20 belt
Governed rpm 1650
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-15 4-ply
Rear 9-36 4-ply
Tractor Dimensions
Length (inches/metres) 120 in
Width (inches/meters) 80 in
Height (inches/meters) 70 in
Weight (nominal) lb/kg 2430 lb
Turning circle (nominal) inches/meters 16 ft
Wheelbase 82 in
Other info
Factories Tractor Works, Chicago, Illinois, USA
Plow rating 1-2
Nebraska Tests No. 395
Approximate Cost new in (year) $1510 (1950)
This box: view · talk

The Farmall C was built by International Harvester from 1948 to 1951 in Chicago, Illinois, USA.

Model History Edit

For Company history see
Main article: International Harvester

In 1948 the McCormick Farmall C replaced the McCormick Farmall B. The C was longer, taller, and heavier than the B. It developed more power from a higher governed speed, 1,650 rpm instead of 1,400. The C was designed from scratch as a tricycle type instead of being a modified offset design like the B. The C had larger diameter rear wheels and straight axles instead of the previous drop-drive design. The straight axles made it much easier to change tread width.

Tractor Comparison Edit

The 20 pto hp Farmall C listed for $1510 in 1950. The Case VAC and Oliver 60 were approximately equal in power and price, while the John Deere MT was priced lower than the Farmall. The Allis-Chalmers C, Gibson H, Massey-Harris MH20, and Minneapolis-Moline RT had larger engines than the Farmall and developed more power. By the end of Farmall C production the new Allis-Chalmers CA, Minneapolis-Moline BF, and Oliver 66 were even more powerful. International Harvester enlarged the engine of the C and turned it into the Farmall Super C.

Make & model Pto hp Displace. Speeds Weight (lb) Price ($)
Farmall C 20 113 4 2761 1510 (1950)
Allis-Chalmers C 23 125 4 2155 1200 (1949)
Allis-Chalmers CA 26 125 4 2835
B.F. Avery A 123 3 2280
Case VAC 21 124 4 3173 1388 (1948)
Gibson H 25 133 4 4079
John Deere MT 20 100 4 2800 1200 (1952)
Massey-Harris 20 27 124 4 2700 1560 (1948)
Minneapolis-Moline RT 24 165 4 3150 1800 (1949)
Minneapolis-Moline BF 27 133 4 2803
Oliver 60 18 120 4 2450 1585 (1948)
Oliver 66 24 129 4 3193 1990 (1954)

Timeline Edit

Factory locations Edit

Tractor Works, Chicago, Illinois, USA

Specification Edit

See Infobox for basic details

  • Standard tires
    • Front: 4.00-15 4-ply dual
    • Rear: 9-36 4-ply

Variations and Options Edit

  • "Touch-Control" hydraulics
  • Adjustable front axle with 4.00-19 4-ply tires
  • Optional tires
    • Front: 6.00-12 or 7.50-10 single, 5.00-15 dual, or 4.00-19 with adjustable axle, all 4-ply
    • Rear: 7-36, 8-36, or 10-36 4-ply

Serial Numbers Information Edit

Year Serial no. run
start[1]
Serial no. run
End[1]
Number Built[2] Notes
1948 FC501 22623 15547
1949 22624 47009 26338
1950 47010 71879 24280
1951 71880 80432 8553
Total built 74718

Preservation Edit

No information on any of these tractors in preservation is currently available on here.

Do you know of any examples to list ?

List of Preserved Farmall C tractors
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Farmall C Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Make & model reg no serial no date built engine owner Image needed LHB

set to 150px
seen at misc info
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.


Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  • Please supply some relevant references or sources for information for verification of data.
  1. 1.0 1.1 Wendel, C. H., 150 Years of International Harvester, Crestline Publishing, Sarasota, Florida, 1981
  2. Klancher, Lee, International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, 1996
