Farmall F-12

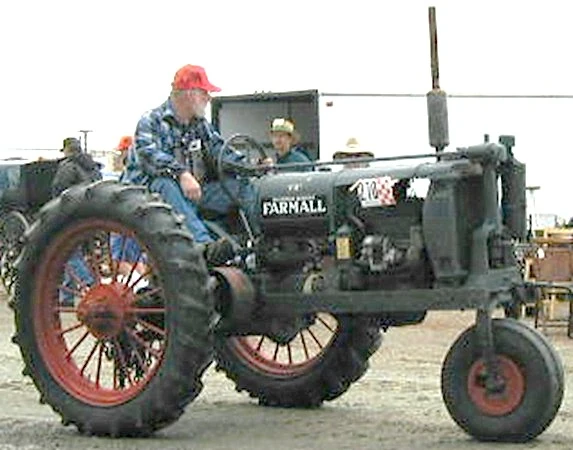

McCormick-Deering Farmall F12
Model history
Model introduced 1932
Model discontinued 1938
Model status Discontinued
No. produced 148,690
Superseded by Farmall F-14
Engine Specification
Engine make International
Fuel type gasoline
Power hp 16 belt, 10 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3
Stroke in (mm) 4
Cooling system Water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 3
Reverse 1
Drive 2-WD
General Data
Linkage Category Drawbar
Tyre Sizes (std/options)
Front 7.50-10 single (steel 23"x6" single standard)
Rear 9.00-40 (steel 54"x6" standard)
Tractor Dimensions
Length (inches/metres) 126 in
Width (inches/meters) 44 in
Height (inches/meters) 63 in
Weight (nominal) lb/kg 2700 lb
Turning circle (nominal) inches/meters 14 ft
Wheelbase 76 in
Other info
Factories Farmall Works, Rock Island, Illinois, USA
Plow rating 1-2
Nebraska Tests No. 212
Approximate Cost new in (year) $798 (1934)
This box: view · talk

The Farmall F-12 was built by International Harvester from 1932 to 1938 in the Rock Island, Illinois Farmall Works factory, USA.

Model history[]

Main article: Farmall

To meet a demand for a low-cost all-purpose tractor even smaller than the Farmall F-20, International Harvester began regular production of the McCormick-Deering Farmall F-12. The F-12 was more than a foot shorter than the F-20 and it weighed about a 1,000 lb less. The engine used for the first year was a 113ci Waukesha L-head 4-cylinder gasoline (except for a few experimental tractors built with a new International ohv engine). The very large diameter (54") rear wheels gave good ground clearance without the need for the drop gears of the F-20. The F-12 came standard with a single front wheel. International’s small ohv 4-cylinder engine was ready for production in 1934 and replaced the Waukesha L-head four in the F-12. The F-12 was a best seller with production of 12,530 in 1934, climbing to a peak of 35681 in 1937.

Timeline[]

Factory locations[]

  • Farmall Works, Rock Island, Illinois, USA


Specification[]

See infobox for details

Variations and Options[]

Serial numbers and production figures[]

Year Serial run[1] Number Built[2] Notes (Total built 148,690).
1932 FS501-525 25
1933 FS526-4880 4355
1934 FS4881-17410 12530
1935 FS17411-48659 31249
1936 FS48660-81836 33177
1937 FS81837-117517 35681
1938 FS117518-123942 6425

Preservation[]

Add details of known examples in preservation here (listed by serial number or registration number if no sn);

(table to follow)


List of Preserved Farmall F-12 tractors
view  talk  edit
Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Farmall F-12 - FS 12870 1934 Farmall owner ? Farmall F-12 sn FS 12870 at Newby Hall 2011 - IMG 9581 At Newby Hall Vintage Gathering 2011 restored example
100px


100px


Please add any tractor with known reg or serial no. with Photo if possible.
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.


Gallery[]

Add extra photos here please.

See also[]

References / sources[]

  1. Wendel, C. H. 1981. 150 Years of International Harvester, Crestline Publishing Co., Sarasota, Florida. (serial numbers p.411)
  2. Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.34
