Farmall MV

Talk0
14,422pages on
this wiki

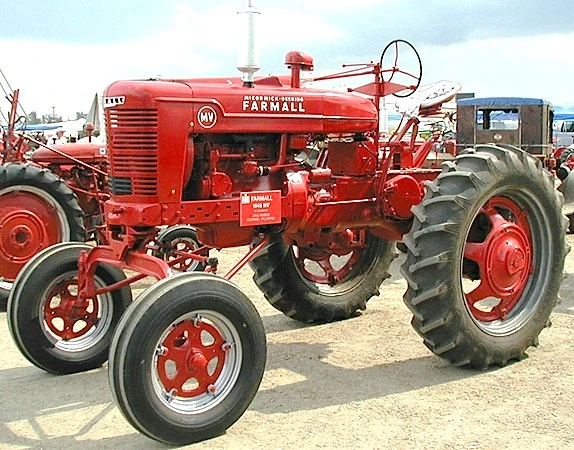

McCormick-Deering Farmall MV 1945
McCormick-Deering Farmall MV 1945
Model history
Model introduced 1942
Model discontinued 1952
Model status Discontinued
Preceded by McCormick-Deering Farmall F-30 Cane Tractor
Superseded by McCormick Farmall Super MV
Engine Specification
Engine make International
Engine model C-248
Fuel type gasoline
Power hp 36 belt, 33 drawbar
Governed rpm 1450
Displacement cu in /(litre) 248 ci
No. of Cylinders 4
Bore in (mm) 3.875 in
Stroke in (mm) 5.25 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 5
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 7.50-20 4-ply
Rear 13.6-38 6-ply
Tractor Dimensions
Length (inches/metres) 147 in
Width (inches/meters) 86 in
Height (inches/meters) 90 in
Weight (nominal) lb/kg 5505 lb
Turning circle (nominal) inches/meters 25 ft
Wheelbase 92 in
Other info
Factories Tractor Works, Chicago, Illinois, USA
Plow rating 3-14"
Nebraska Tests No. 328
This box: view · talk

The Farmall MV was a high-clearance tractor built by the International Harvester company from 1942 to 1952 in Chicago, Illinois, USA.

Model historyEdit

For Company history see
Main article: International Harvester

The McCormick-Deering Farmall MV was a high-clearance version of the Farmall M, designed for use in sugar cane and other tall crops. Drop-drive axle housings in the rear and arched front axles and larger front wheels added several inches of crop clearance.

Timeline Edit

  • 1939 - McCormick-Deering Farmall M gasoline-powered row-crop tractor introduced
  • 1941 - McCormick-Deering Farmall MD diesel model added
  • 1942 - McCormick-Deering Farmall MV gasoline-powered high-clearance tractor added
  • 1945 - McCormick-Deering Farmall MDV diesel-powered high-clearance tractor added
  • 1946 - brand name shortened from McCormick-Deering to McCormick
  • 1952 - Farmall "M" models replaced by Super M, Super MD, Super MV, Super MDV

Factory locations Edit

Tractor Works, Chicago, Illinois

Specification Edit

See Infobox for basic details

  • Standard tires
    • Front: 6.00-20 4-ply (1942); 6.00-20 6-ply (1949)
    • Rear: 10.00-36 6-ply (1942); 13-38 6-ply (1949)

Variations and Options Edit

  • Electric starting
  • Pneumatic "Lift-All" implement lift system
  • Optional Tires
    • Front:
    • Rear: 11.25-36, 12-38, or 13-38 6-ply (1948); 12-36 6-ply (1949)

Serial Numbers Information Edit

Year Serial no. run
start[1]
Serial no. run
End[1]
Number Built Notes
1942 FBKV50988 60010 Serial no range includes Farmall M-MD-MV-MDV
1943 60011 67423 Number built included with Farmall M
1944 67424 88084
1945 88085 105563
1946 105564 122822
1947 122823 151707
1948 151708 180513
1949 180514 213578
1950 213579 247517
1951 247518 290922
1952 290923 298218
Total built


PreservationEdit

A number of examples of this model can be seen in museums and at tractor Shows and Meets in the UK and America.

List of Preserved Farmall M series tractors
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Make & model reg no serial no date built engine owner Image needed LHB

set to 150px
seen at misc info
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.

Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  1. 1.0 1.1 Wendel, C. H., 150 Years of International Harvester, Crestline Publishing, Sarasota, Florida, 1981
