William Foster & Co

Talk0
14,906pages on
this wiki

Redirected from Foster

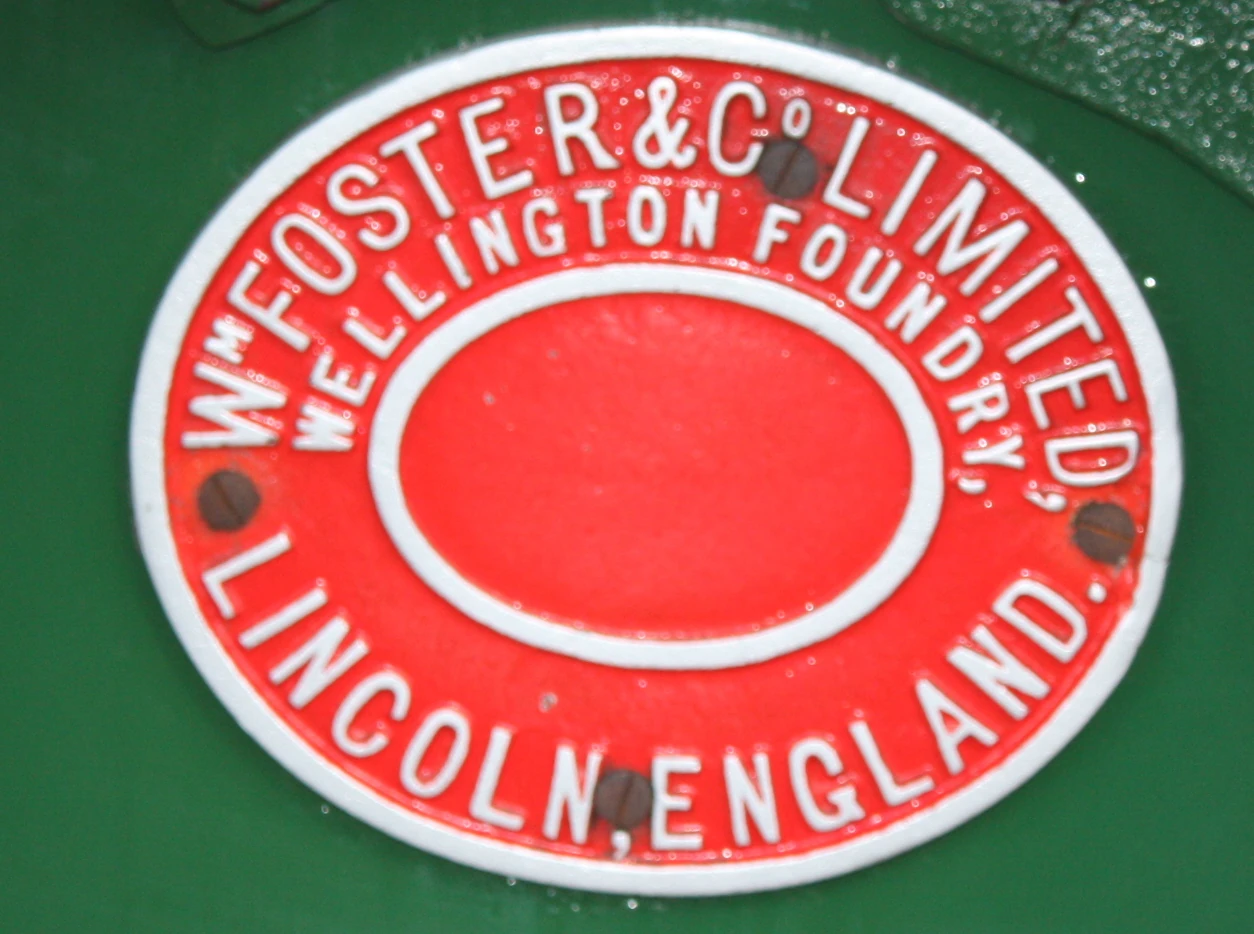

Foster & Co badge IMG 0245

Foster Plate

Foster threshing machine at Harewood 08 - IMG 0509

A Foster threshing machine at the Harewood House Steam Rally in 2008

Foster no. 14622 TE Sir William - FW 1917 at Shugborough 08 - P6220161

Foster no. 14622 engine "Sir William" FW 1917 at Shugborough Hall Rally 2008

William Foster & Co Ltd was an agricultural machinery company based at Lincoln, Lincolnshire, UK and usually just called "Fosters of Lincoln".

The company was known for producing threshing machines, regarded as among the best available. They also made traction engines, steam tractors such as the Foster Wellington and Showman's road locomotives, as well as Steam Wagons.

The last showmans engine built by fosters were No. 14632 Success in and No, 14634 Princess Marina a 7 nhp design.[1] During the First World War they built the first tanks for the British Army.

The TankEdit

Foster Tank logo IMG 0510

The Tank logo on a cast bracket on a thresher

Fosters as builders of agricultural machinery were involved in the production and design of the prototype tanks, which were in effect agricultural tractors with armoured bodies.

After the First World War, The Royal Commission on Awards to Inventors decided that the inventors of the Tank were Sir William Tritton, managing director of Fosters together with Major W G Wilson.

Steam EnginesEdit

Fosters MERL entry:

Products

Traction engines, portable engines, grinding mills, thrashing machines, chaff cutters, tanks.

History

William Foster began his business career as a flour miller, but in 1856 he took the decision to convert his premises into a foundry and engineering shop. Foster began by

producing grinding mills, but he soon expanded his product range to include thrashing machines, chaff cutters and portable steam engines.

William Foster died of typhoid in 1876, but the company which he founded continued to prosper and by the outbreak of the First World War the Wellington Foundry employed 350 people. During the war the company made a vital contribution to the Allied cause by developing and manufacturing the world's first tank.

In 1927 Foster & Co. took over the Hammersmith-based pump manufacturer Gwynnes Engineering and three years later pump production was transferred to Lincoln. Over the next few decades the company moved away from the production of agricultural machinery and concentrated on pumps. In 1960 Foster & Co. was acquired by W H Allen & Co. Ltd and the company began trading as Allen Gwynnes Pumps Ltd. Sadly, the new company did not prosper and the Wellington Foundry closed in 1968.

Steam WagonsEdit

They also manufactured steam lorries (wagons).

Preserved MachineryEdit

Please add any missing engines details to the list.

Preserved machines built by William Foster & Co. Ltd (71 listed in TER list)
view  talk  edit

Engine No. Name Build Date Type Weight Power nhp Reg No. Owner Image Other info
Foster no. 201 Gt.Tew 1870 PE 4 ton  ? hp - Owner ? Image needed LHB


(Location of photo) date
Misc notes
Foster no. 1384 Name ? 1885 Portable  ? ton  ? hp - Owner ?, Canterbury Image needed LHB


Incomplete
Foster no. 2127 Jumbo the 4th 1898 TE  ? ton 8 nhp DO 2003 Owner ? Image needed LHB


(Location of photo) date
Misc notes
Foster no. 2163 Master Fred 1896 TE  ? ton 8 hp DO 1945 Owner ? Foster no. 2163 - TE Master Fred - DO1945 at Haddenham 2010 - IMG 0755 Oldest Foster TE - more photos on Steam Scenes
Foster no. 2373 - 1899 TE  ? ton 8 hp DO 2050 Owner ? Image needed LHB


(Location of photo) date
Misc notes
Foster no. 2728 Stargazer 1903 TE  ? ton  ? hp V 7917 Owner ?, Rudgwick To add At Rudgwick Steam rally
Foster no. 2775 Jane 1903 TE  ? ton 8 nhp FW 3333 Owner ? Image needed LHB


(Location of photo) date
Misc notes
Foster no. 2821 Beryl 1903 Traction  ? ton  ? hp BE 7228 Bressingham Steam Museum Image needed LHB


In the collection of Bressingham Steam Museum
Foster no. 2948 Abigail Date Tractor 3 ton 3 hp CT 5475 David Ragsdale collection Foster no. 2948 - ST - Abigail - LT 5475 at Cromford 2010 - IMG 9771 at Cromford Steam Fair 2010
Foster no. 3002
(New build)
Dragon 2006
(Original 1904)
TE - Wellington pattern 5 ton 3 nhp NK56 NRE M. Young Foster no 3002 Dragon of 2006 reg NX56 NRE at Barnard Castle 09 - IMG 0616 New build recreation of a Scrapped engine. Built by the owner in his garage
Foster no. 3084(T14) - 1905 TE  ? ton 10 hp Reg no. ? Preston Services, Kent Image needed LHB


photos on steamscenes.org
Foster no. 3456 Name ? 1907 Type  ? ton  ? hp Reg no. ? Owner ? - In New Zealand Image needed LHB


photos on steamscenes.org
Foster no. 3633 - 1907 Tractor  ? ton 4 hp SD 527 Owner ?, Richmond Yorks. Image needed LHB


photos on Steamscenes.org
Foster no. 3642 Maude 1608 SRL  ? ton 8 nhp PB 9832 Owner ? Image needed LHB


(Location of photo) year
Misc notes
Foster no. 3643 - 1908 Light Engine - - - Preston collection Foster no. 3643 - Light Engine and Organ at Masham 09 - IMG 0152 Mounted in a road trailer with small Organ
Foster no. 3682 Name ? 1908 TE  ? ton 7 nhp CT 3896 Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 3710 Phoenix 1908 TE  ? ton 7 nhp CJ 4222 Owner ? Foster no. 3710 TE Phoenix - CJ 4222 at Holcot 08 - IMG 0242 At Holcot Steam Rally 2008

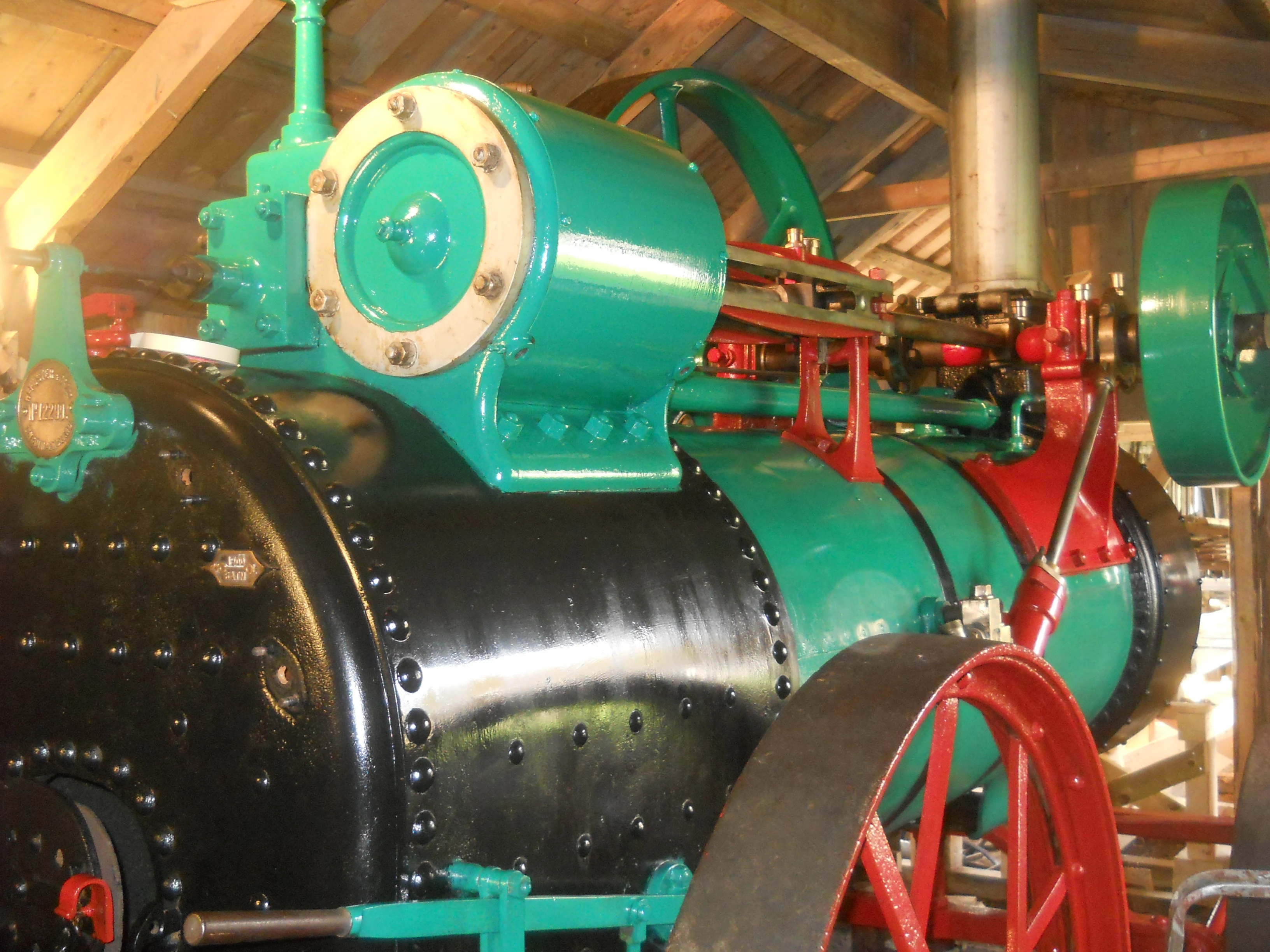

Foster no. 12299 -  ? PE -  ? nhp - owner? 074 No info just photo
Foster no. 12394 Old Smokey 1909 Tractor 9 ton 7 hp BE 7638 Owner ?, Haverfordwest Image needed LHB


photos on Steamscenes.org
Foster no. 12458 Name ? 1909 TE  ? ton 5 nhp AW 9434 Owner ?, Walsall Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 12509 Maid Marion 1909 Showmans Tractor  ? ton 4 hp UX 6727 W. Thompson, West Bridgeford Notts Foster no. 12509 - ST - Maid Marion - UX 6727 at Bedford 09 - IMG 0749 Seen at Bedford Steam Fair 2009 + Hollowell 2010
Foster no. 12539 Winnie 1910 TE 10 ton 6 nhp MA 5730 P. & F. Moston Foster TE sn 12539 Winnie reg MA 5730 at Southport 09 - IMG 7528 Seen at Riverside 2009 & Lincoln in 2008
Foster no. 12544 Independence 1910 TE 9 ton 6 nhp AW 9397 Owner ? Image needed LHB


(Location of photo) 2008
Misc notes

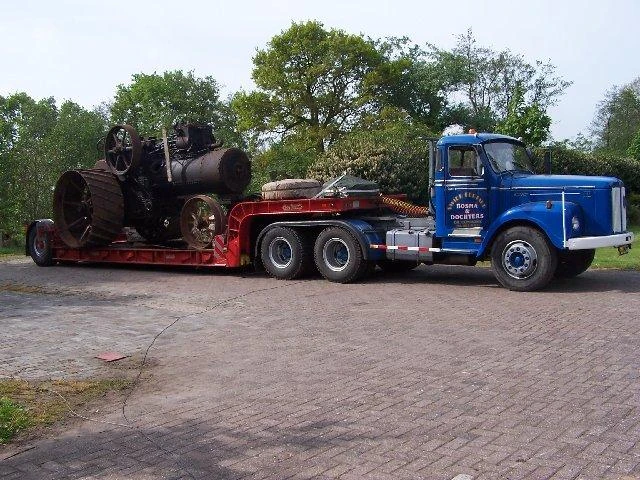

Foster no. 12545 - 1911 PE 8 ton  ? hp - The Netherlands Foster PE 12545 In Dutch preservation
Foster no. 13031 Mighty Atom 1913 TE 5 ton 4 hp FE 1456 P. Parker Photo to add Lincoln 2008
Foster no. 13036 Pride of Essex 1913 Showmans Tractor 5 ton 4 nhp FE 1079 Owner ?, Maldon Essex Foster no. 13036 SM Pride of Essex FE 1079 at Barleylands 09 - IMG 8677 A Barleylands Steam Rally 2009
Foster no. 13088 Name ? 1913 Tractor  ? ton 4 nhp FE 1125 Owner ?, St Austell Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 13111 Herbert 1914 TE 9.5 ton 8 nhp AH 5496 Owner ?, ROI Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 13149 Venture 1914 ST 5 ton 4 nhp FE 1216 Owner ?, Bostton Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 13163 Name ? 1914 PE  ? ton  ? hp - Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 13190 Name ? 1914 PE  ? ton  ? hp - Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 13200 Aquitane 1914 SRL 10 ton 6 nhp NM 224 Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14044 Pride of Reading 1914 Showmans tractor
Ex Roller
5 ton 4 nhp FE 1469 Owner ?, Chorley Image needed LHB


(Location of photo) date
Misc notes
Foster no. 14046 Pride of the North 1915 RR  ? ton  ? hp FE 1350 Owner ?, Cheadder Image needed LHB


(Location of photo) date
Misc notes
Foster no. 14066 Endeavour 1915 SM  ? hp FE 1589 G.R. Dawson & Sons Foster no. 14066 SM - Endeavour - FE 1589 at Llandudno 09 - IMG 8881 At Lincoln 2008 & Llandudno 2009
Foster 14077 Sir William Tritton 1921 Wagon 5 ton  ? hp SV 5506 Owner ? Image needed LHB


Mistake entry in TER for foster 14770
Foster no. 14153 Admiral Beatty 1916 Showman's road locomotive 20 ton 7 nhp BE 7221 Owner ?, Bridgenorth Image needed LHB


Foster no. 14205 Obsession 1915 SM 5 ton 4 hp FE 1874 Dawson & Sheldon Foster no. 14205 SM - Obsession - FE 1874 at Llandudno 09 - IMG 8877 Lincoln 2008 & Llandudno 2009
Foster no. 14289 Olive 1918 Type 5 ton 4 nhp SA 5264 Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14347 Helpmate 1921 Showmans Tractor 5 ton 4 nhp AY 9464 Owner ?, ROI Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14378 The Iron Duke 1925 ? Tractor 5 ton 4 nhp PP 7306 Owner ?, Huntington Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14410 Sprig 1920 TE 10 ton 7 hp UP 6481 J. Bosworth, Derby Foster engine Sprig 14410 at Cromford & Lincoln 2008 + Belvoir Castle show 2009
Foster no. 14411 The Colonels Lady 1920 TE  ? ton 7 hp MI 4388 Owner ?, ROI Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14412 - 1920 TE  ? ton 8 nhp AH 6098 Owner ?, Kent Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14418 Viscountess Rhondda 1920 TE 10 ton 7 nhp LVN 891 Owner ?,Bucks Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14422 - 1924 TE  ? ton 7 nhp CT 6708 Mrs R. Groom, Kettering Foster no. 14422 - TE - CT 6708 at Strumpshaw 09 - IMG 9787 Strumpshaw Steam Rally 2010
Foster no. 14427 - 1924 TE Agricultural -  ? hp  ? Mrs R. Groom To add At Holcot Steam Rally 2008 (sn Typo in guide ?)
Foster no. 14431 Robin Hood 1921 SM 8 ton 4 nhp FE 3217 F&L Dockray Foster no. 14431 SM - Robin Hood - FE 3217 at Driffield 08 - P8100478 at Driffield Steam Rally 2008
Foster no. 14438 No. 105 1921 Tractor 5 ton 4 nhp NR 7262 Belfast Transport Museum Image needed LHB


In the collection of the Belfast Transport Museum, NI
Foster no. 14446 The Leader 1920 SRL  ? ton 10 nhp DH 4593 Owner ?, Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14470 Sir William Tritton 1921 Wagon (tipper)  ? ton  ? hp SV 5506 Owner ? , Ex Tom Varley photos on Steamscenes Sole surviving Foster Wagon in UK (now found to be Foster no. 14550)
also listed as 14077 in TER in Error.
Foster no. 14501 Victorious 1920 SRL 16 ton 7 nhp MD 983 I. Holgrave, Market Rasen, Lincs Foster no. 14501 Victorious reg MD 983 at Strumpshaw 09 - IMG 0428 Lincoln 2008 & Strumpshaw Steam Rally 2009
Foster no. 14502 Victory 1920 SRL 16 ton 7 nhp XC 9852 Owner ? Image needed LHB
On Steam Scenes
Lincoln Ag Show 2008
Under restoration
Foster no. 14514 His Grace 1925 ST  ? ton 4 nhp CA 8534 Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14550
former listed as 14770
Tritton 1921 Tipper Wagon  ? ton  ? hp Reg no. ? Owner ? Image needed LHB


Was formerly thought to be Foster 14470
Foster no. 14564 Victoria 1926 Showmans Tractor (Conversion) 12 ton (8 in TER) 5 hp FE 8065 W. Thompson, West Bridgeford Image needed LHB


Hollowell Steam Show 2010
Misc notes
Foster no. 14568 Matilda 1925 TE  ? ton 5 nhp NT 7184 Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14589 Lord of the Isles 1927 SM 5 ton 4 nhp UT 2109 A. Waling Photo to add Shrugbrough Hall Steam Rally 2008
Foster no. 14593 Fiery Elisa 1927 ST  ? ton  ? hp FE 9179 Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14605 Name ? Date Showmans tractor (Conversion ?)  ? ton  ? hp YC 7165 Owner ? Image needed LHB


on Steam scenes at Lincolnshire Steam and Vintage Rally 2002
Foster no. 14608 Ikanopit 1930 ST 5 ton 4 nhp PN 5629 D Harding, ? Foster no. 14608 ST - Ikanopit - PN 5629 - KM 09 - IMG 7171 At Elvaston Steam Rally & Klondyke Mill 2009
Foster no. 14622 Sir William 1931 TE  ? ton 8 nhp FW 1917  ? Foster no. 14622 TE Sir William - FW 1917 at Shugborough 08 - P6220161 Shugborough Hall Rally 2008
Foster no. 14625 Barbara 1931 TE 10 ton 8 hp VL 3465 Owner ? Image needed LHB


(Location of photo) 2008
Misc notes

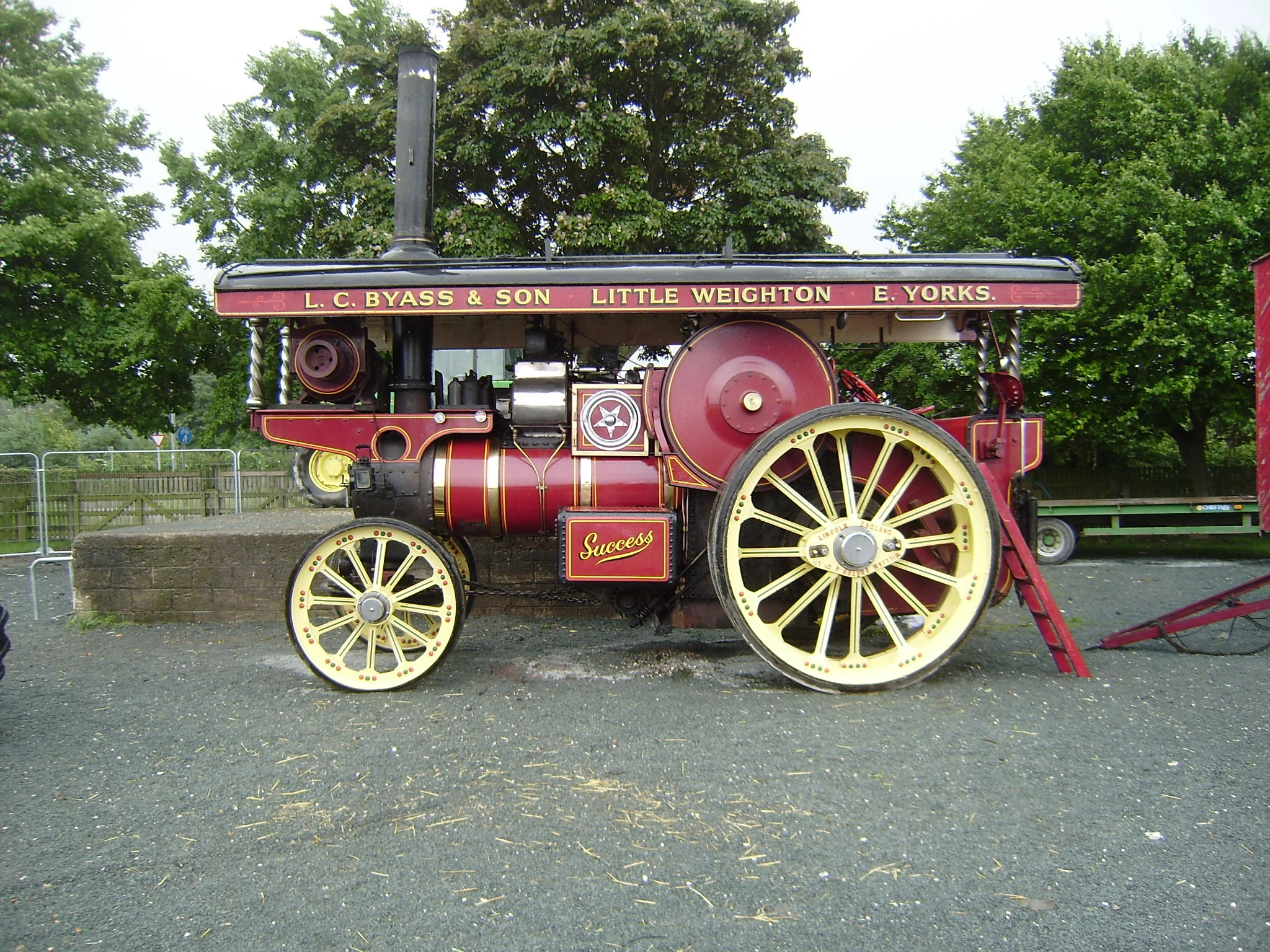

Foster no. 14632 Success 1934 SM  ? ton 10 nhp AAU 370 D. Byass Foster AAU370 Success sn 14632 of 1934-Driffield-P8100494 at Driffield 2008
Last Showmans built by Fosters
Foster no. 14636 - 1936 TE  ? ton 7 nhp JI 7021 Owner ?, in ROI Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14637 Bonnie
(Ex Saint)
1933 TE 10 ton 7 nhp VL 8371 H. Smith photo to add Lincoln 2008
Foster no. 14638 The Little Gem 1933 TE 8 ton 5 nhp VL 4777 Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14639 John Michael 1938 Showmans Tractor 5 ton 4 hp BWV 338 H. Epton & Sons collection, Boston, Lincs Foster no. 14639 - ST - John Michael - BWV 338 at Carrington 2010 - IMG 4844 Carington 2010
Last Foster tractor built
Foster no. 14657 - 1940 Portable - 10 nhp NA Summerlee Industrial Museum, Coatbridge, Scotland Image needed LHB


Photo in gallery -Here
Foster no. 14661 - ~ 1940 Portable  ? ton  ? hp - Owner ?, Boston Image needed LHB
on Steam Scenes
misc notes
Foster no. 14720 - ~ 1940 Portable  ? ton  ? hp - Owner ?, Lanark Image needed LHB


Incomplete
Foster no. 14724 - 1941 Portable  ? ton 10 nhp - Owner ? Image needed LHB


(Location of photo) 2008
Misc notes
Foster no. 14736 - 1942 Portable  ? ton  ? hp - Owner ? Image needed LHB
on Steam Scenes
(Location of photo) 2008
Misc notes
Foster no. 14737 - 1942 Portable  ? ton  ? hp - Owner ? Image needed LHB


(Location of photo) 2008
Misc notes

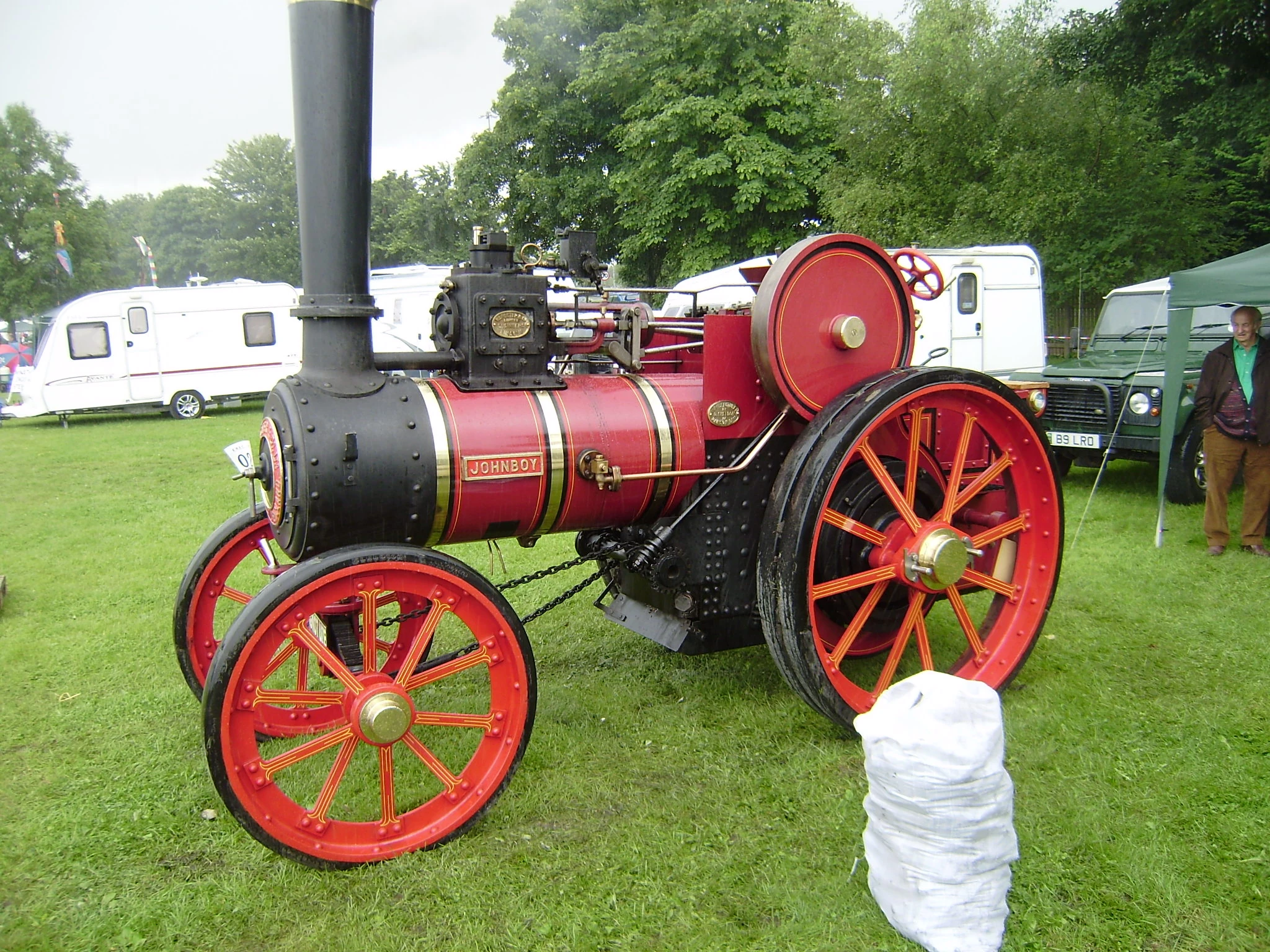

Foster no. 14739
(NEW Build)
Johnboy 2007
(1904 design)
TE 5 ton 3 nhp GN07 UZE I Gilbert, Kent Foster Wellington GN07UZE-Johnboy sn 14739-Driffield-P8100491 At Driffield & Lincoln 2008 & Strumpshaw Steam rally 2009
Foster no. 14740 Annie 2007 Type (New build) 5 ton 3 hp Reg no. ? Hubbuck Foster no. 14740 - ST- Annie at Border City rally 2010 - IMG 6070 At Border City Rally - Carlisle 2010
Foster no. 14741
(New build)
St. George 2008 ST 5 ton  ? hp FX09 OCM P & D Tansley, Rothley Leicestershire to add at Bedfordshire Steam Rally 2009
Misc notes
Foster no. GNS-MTOTWO
(New Build 3/4 scale)
MTOTWO circa 2006 ? Wellington Tractor
(based on)
3 ton (est) 4 nhp Reg no. ? Great Northern Steam Foster Wellington MTOTWO at Old Warden 09 - IMG 0692 3/4 scale new build - Pickering Steam Rally & Old Warden 2009
Foster no. UP102 - 1875 PE  ? ton 6 nhp - At Preston Services Image needed LHB


Foster no. ? Name ? Date Type  ? ton  ? hp Reg no. ? Owner ? Image needed LHB


(Location of photo) date
Misc notes
Machine types Key: SW = Steam Wagon, PE = Ploughing Engine, RR = Road Roller, SM = Showmans, ST = Steam tractor,
SRL = Showmans Road loco, TE = Traction Engine
Foster engine Sprig 14410

Foster no. 14410 - 7 hp tractor of 1920 "Sprig" at Cromford Steam Rally

Several examples of there engines are in UK preservation and can be seen at shows during the summer.

They are not as common as some of the other makes.
