Hattat Tarim

Predecessor	Hema Endustry A.Ş.
Founded	1971
Headquarters	Istanbul, Turkey
Industry	agriculture machinery
Website	http://www.hattattarim.com/

Hattat Tarim is a company based in Istanbul, Turkey that manufactures tractors, components, and other industrial items, and is a part of the Hattat Holding A.Ş. conglomerate. It was originally called Hema Endustry A.Ş. and the original company was founded in 1971. Hattat Holding came into existance in 1996. One of the group companies manufactures Military vehicles.^[1]

Hattat currently manufactures tractors under contract for Valtra and Massey Ferguson, both part of AGCO, under the Hattat name using some Valtra designs as well as their own designs, and under license manufacture the Universal (Hattat) tractors. Hattat also distributes Ferrari tractors in Turkey.

Hattat/Hema HistoryEdit

Hema Traktor Sanayi Ve Ticaret A.S. was founded in 1971, and began building Ford tractors under license. This continued until 1990, when the license expired. They continued building the tractors under the HEMA name. In 2001, Hema began building Universal (UTB) tractors under license. Sometime after the company name to Hattat, they began including the Hattat name on the Universal tractors, i.e. Hattat Universal, or Universal with Hattat below it.

In 2003, Hattat secured a contract with AGCO to begin building the Valtra A-series. Production for Valtra began in 2008. Hattat also began building the A-series under the Hattat name, and later developed the new Hattat-designed H-series. In 2009, after the demise of Uzel, AGCO awarded the contract to build Massey Ferguson tractors in Turkey to Hattat. The Valtra tractors by Hattat are sold worldwide.

Tractors have been exported to the Middle East bearing the brand-names Euro-F (or Euro Ford) and Chaman Ford, which were by HEMA and based on old Ford designs.

EnginesEdit

Hema/Hattat has built engines in Turkey under license from Perkins for many years. Many carry the Perkins name, but some carry the Hattat name.

HEMA Gear, another group company, manufactures Detroit Diesel engines under license for use in the Defense industry.^[2]

Tractor ModelsEdit

Hattat Tractor Models

Model	Year(s) of Production	Horsepower	Engine Type	Misc Notes	Photo

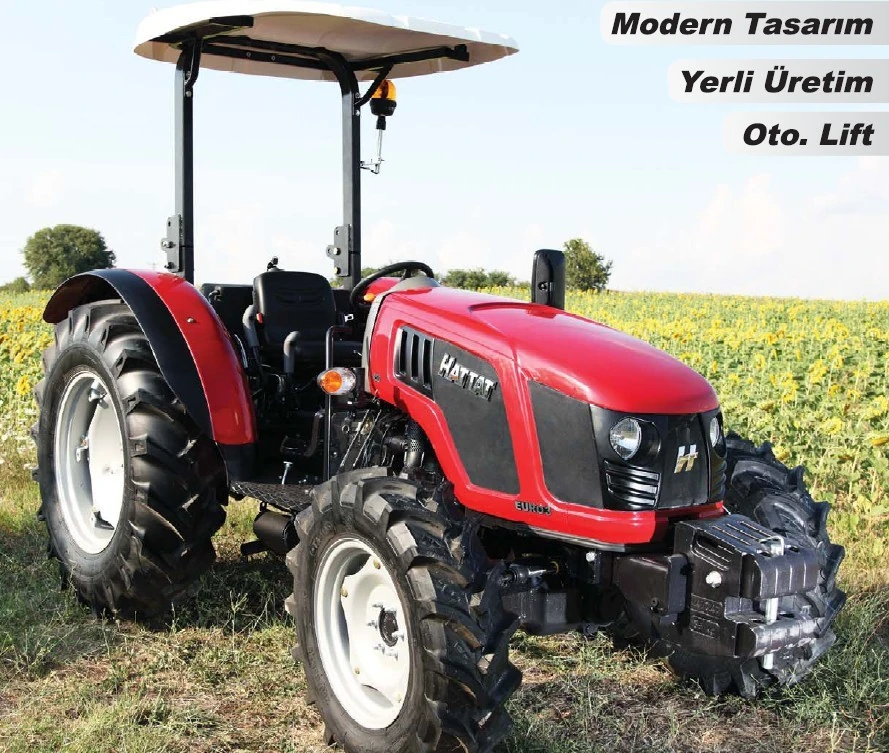

Hattat A50	2010-	50 hp (37 kW)	Hattat

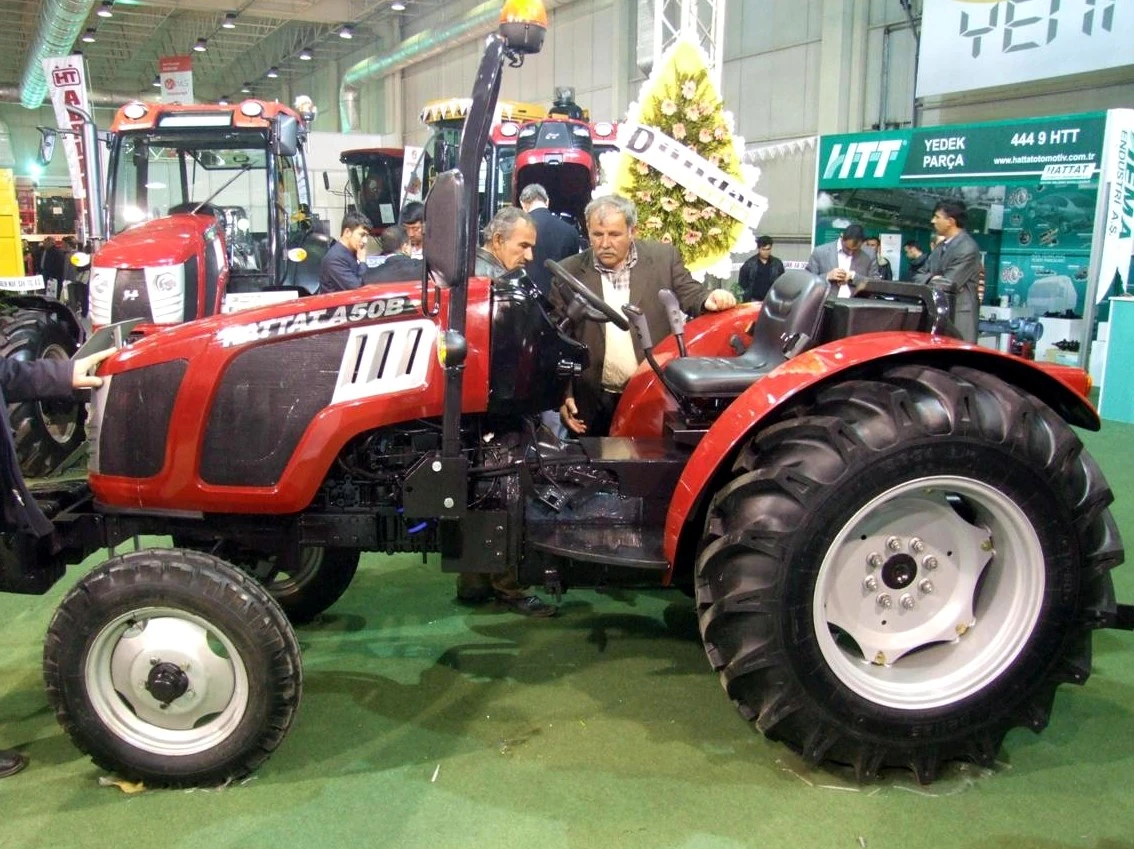

Hattat A50B	2010-	50 hp (37 kW)	Hattat

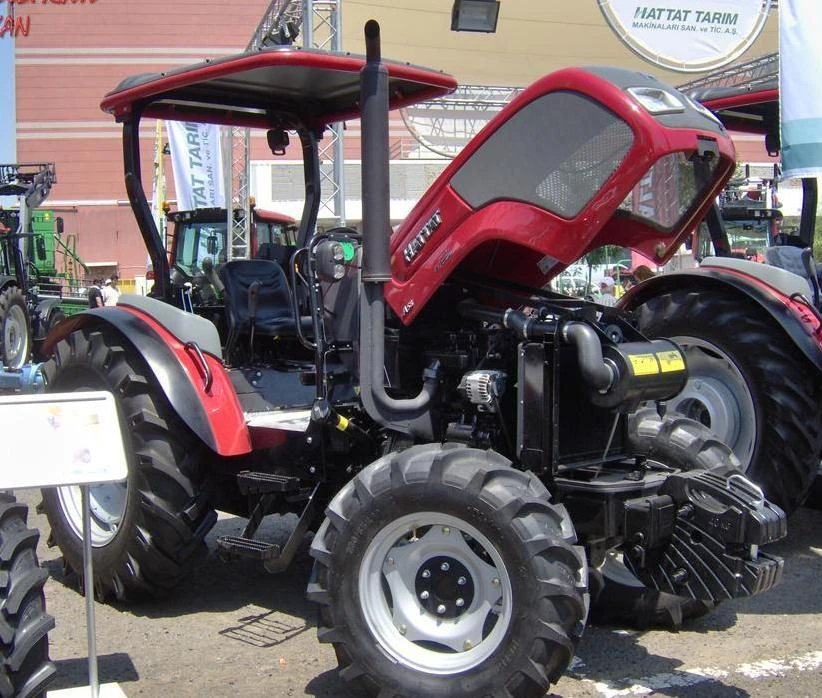

Hattat A58	2005-		Perkins	Valtra design
Hattat A60	2010-	58 hp (43 kW)	Perkins
Hattat A60B	2010-	58 hp (43 kW)	Perkins

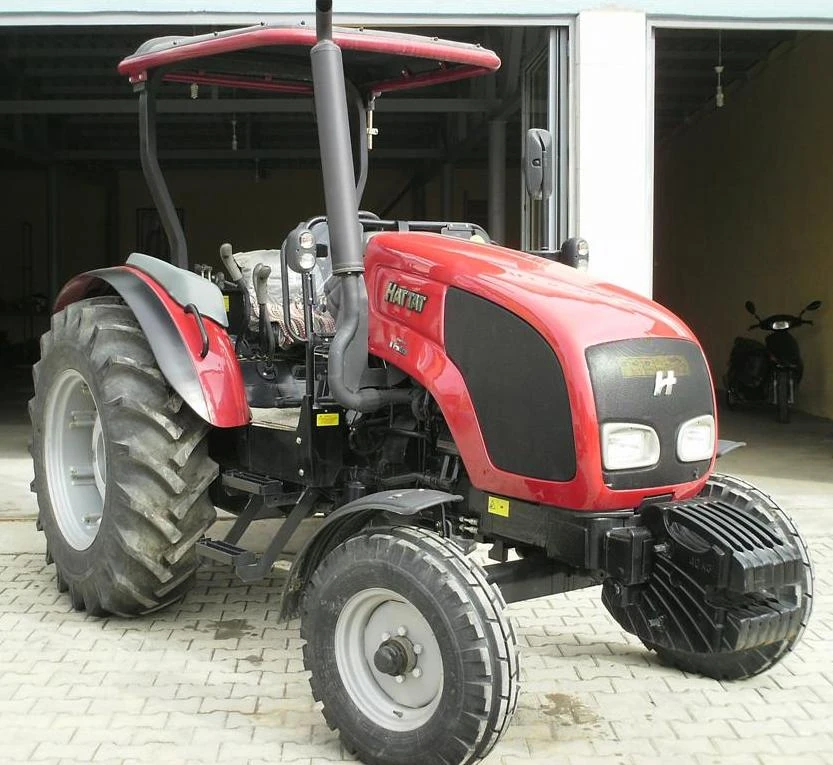

Hattat A68	2005-		Perkins	Valtra design
Hattat A70	2010-	65 hp (48 kW)	Perkins

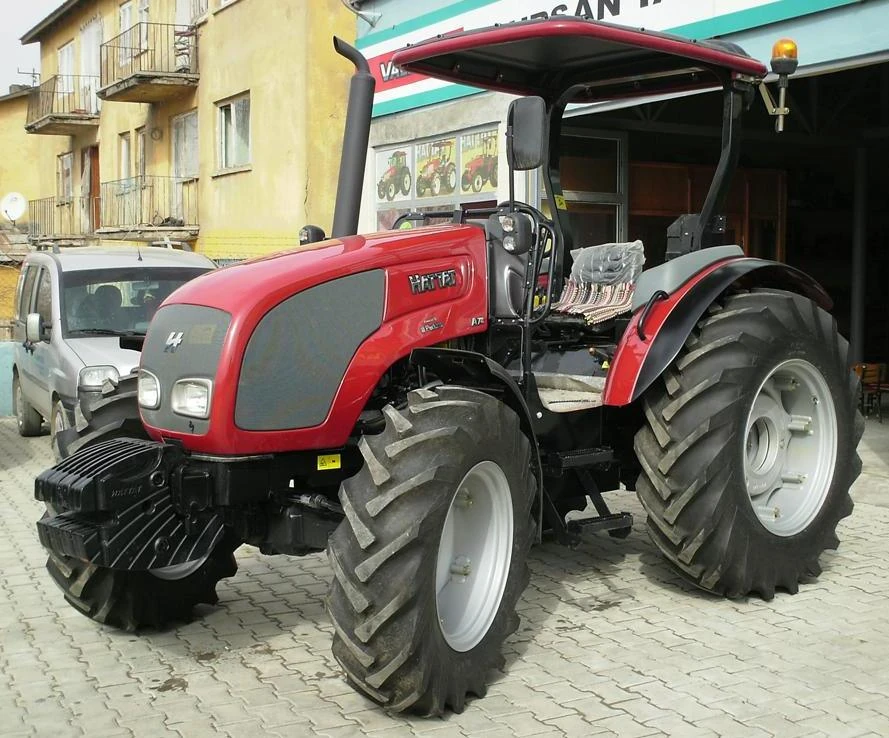

Hattat A78	2005-	78 hp (58 kW)	Perkins	Valtra design

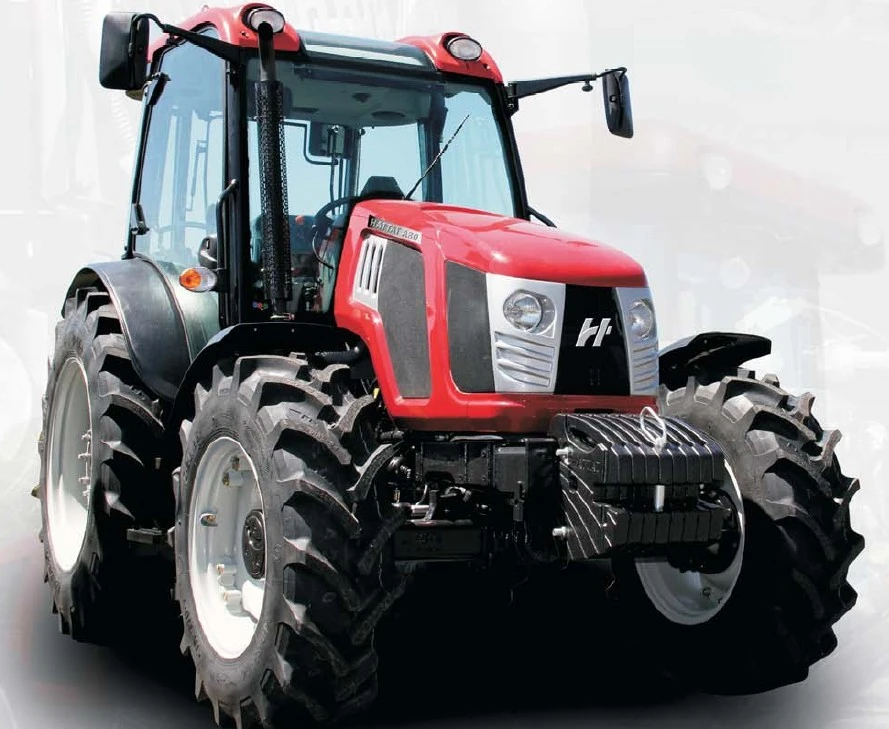

Hattat A80	2010-	75 hp (56 kW)	Perkins
Hattat A90	2010-	82 hp (61 kW)	Perkins
Hattat A100	2010-	92 hp (69 kW)	Perkins
Hattat A110		102 hp (76 kW)	Perkins
Hattat H45		45 hp (34 kW)	Hattat

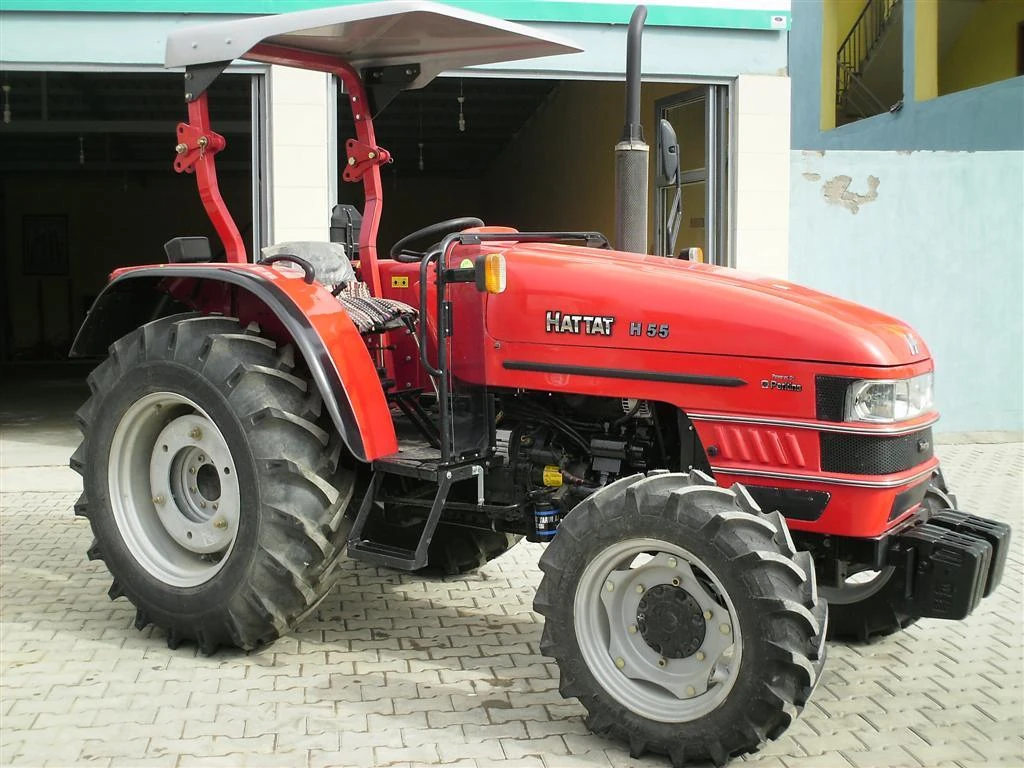

Hattat H55		55 hp (41 kW)	Perkins
Hattat H65		65 hp (48 kW)	Perkins
Hattat H85		85 hp (63 kW)

Hattat Universal Tractor Models

Model	Year(s) of Production	Horsepower	Engine Type	Misc Notes	Photo

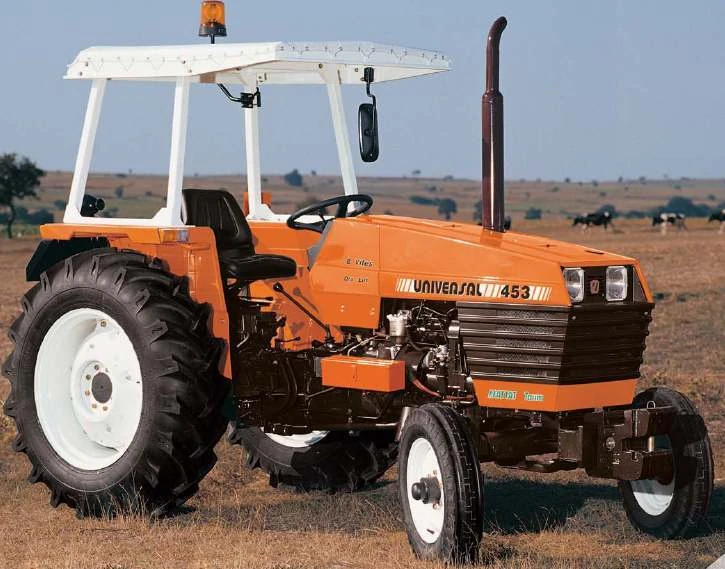

Hattat Universal 453		45 hp (34 kW)	UTB	licensed Universal (UTB)

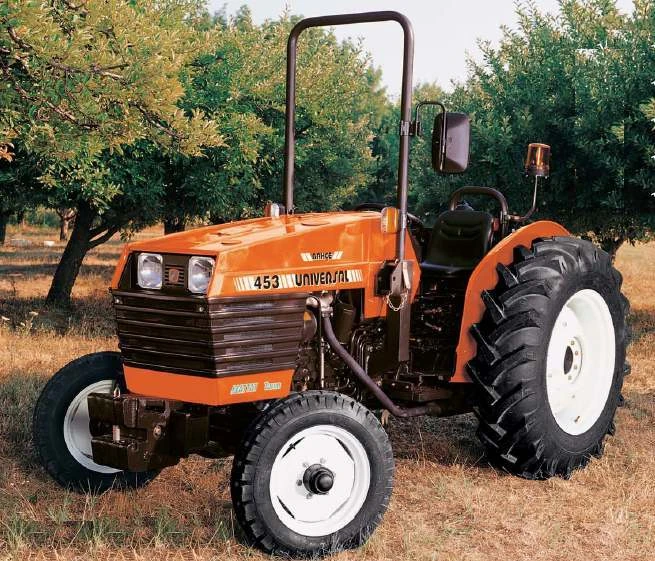

Hattat Universal 453 Garden		45 hp (34 kW)	UTB	licensed Universal (UTB)
Hattat Universal 533		53 hp (40 kW)	UTB	licensed Universal (UTB)
Hattat Universal 533 Garden		53 hp (40 kW)	UTB	licensed Universal (UTB)

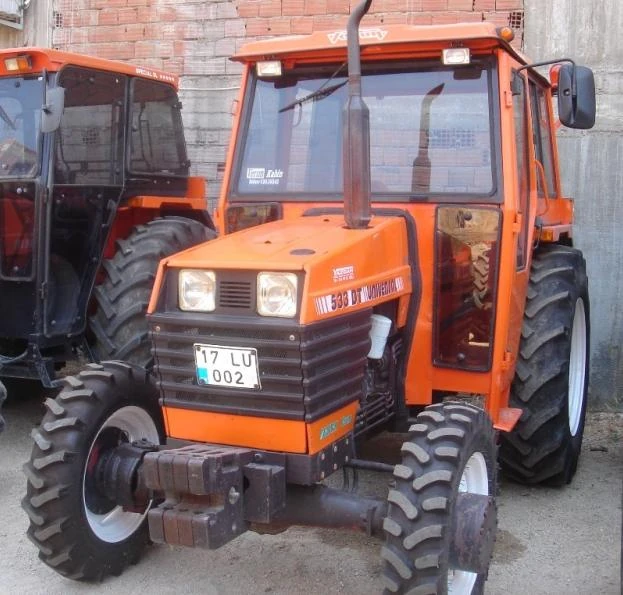

Hattat Universal 533 DT		53 hp (40 kW)	UTB	licensed Universal (UTB)
Hattat Universal 533 DT P		53 hp (40 kW)	UTB	licensed Universal (UTB)
Hattat Universal 643		64 hp (48 kW)	UTB	licensed Universal (UTB)

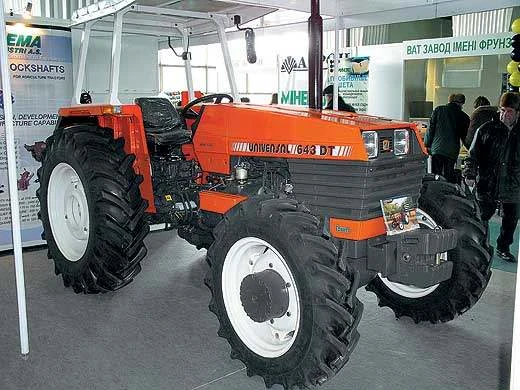

Hattat Universal 643 DT		64 hp (48 kW)	UTB	licensed Universal (UTB)

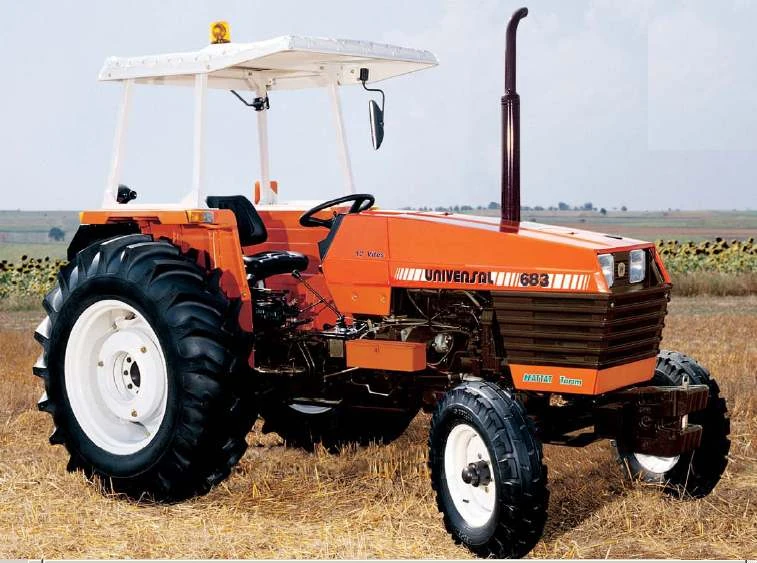

Hattat Universal 683		68 hp (51 kW)	UTB	licensed Universal (UTB)
Hattat Universal 683 DT		68 hp (51 kW)	UTB	licensed Universal (UTB)

HEMA Tractor Models

Model	Year(s) of Production	Horsepower	Engine Type	Misc Notes	Photo
Hema 3600				licensed Ford
Hema 3610				licensed Ford

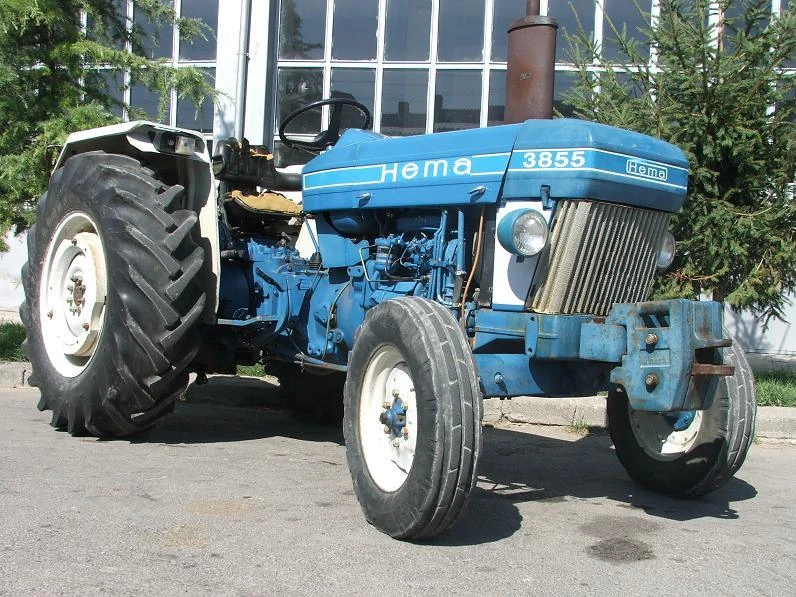

Hema 3855				licensed Ford

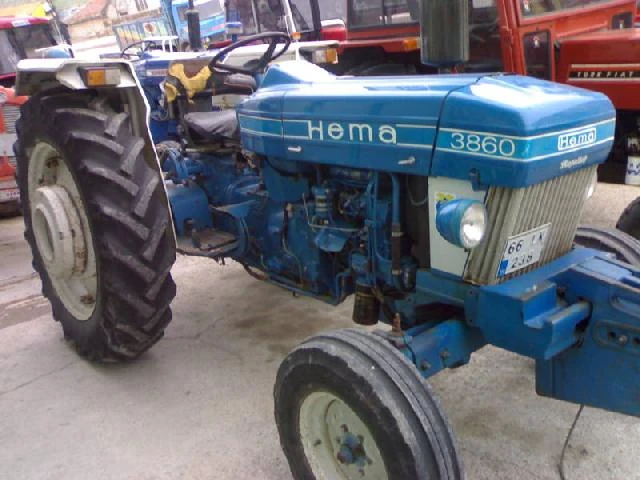

Hema 3860				licensed Ford
Hema 4865				licensed Ford

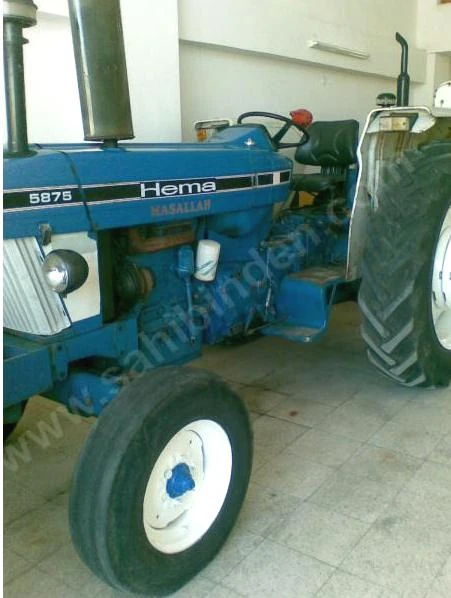

Hema 5875				licensed Ford
Hema 6610				licensed Ford

Euro-F (Euro Ford) Tractor Models

Model	Year(s) of Production	Horsepower	Engine Type	Misc Notes	Photo
Euro-F (Euro Ford) 3850		50 hp (37 kW)		licensed Ford

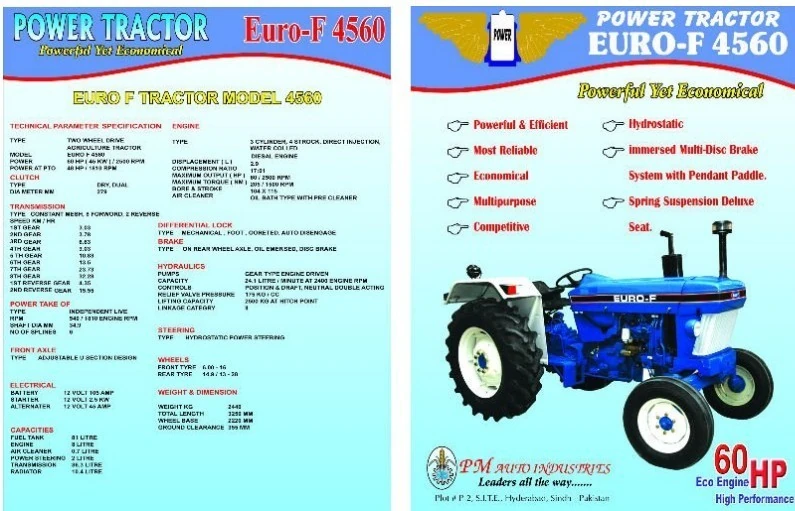

Euro-F (Euro Ford) 4560		60 hp (45 kW)		licensed Ford
Euro-F (Euro Ford) 5880		80 hp (60 kW)		Ford 6610

Valtra Tractor Models by Hattat (under contract)

Model	Year(s) of Production	Horsepower	Engine Type	Misc Notes	Photo
Valtra A65	2008-	63 hp (47 kW)	Valtra	built in Turkey since 2008
Valtra A72	2008-	74 hp (55 kW)	Sisu	built in Turkey since 2008
Valtra A75	2008-	74 hp (55 kW)	Valtra	built in Turkey since 2008
Valtra A75	2008-	74 hp (55 kW)	Valtra	built in Turkey since 2008
Valtra A82	2008-	88 hp (66 kW)	Sisu	built in Turkey since 2008
Valtra A82	2008-	88 hp (66 kW)	Sisu	built in Turkey since 2008
Valtra A85	2008-	88 hp (66 kW)	Valtra	built in Turkey since 2008
Valtra A92	2008-	101 hp (75 kW)	Sisu	built in Turkey since 2008

Ford Tractor Models by HEMA

Model	Year(s) of Production	Horsepower	Engine Type	Misc Notes	Photo

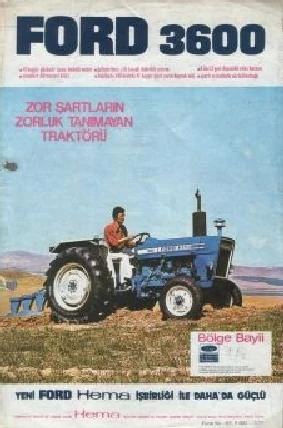

Ford 3600	?	?
details required ?	of the	Ford models	built by Hattat

Please help improve this article or section by expanding it. Further information might be found on the talk page or at requests for expansion.

Massey Ferguson Models built by Hattat (under contract)

Model	Year(s) of Production	Horsepower	Engine Type	Misc Notes	Photo
Unknown	?
Details requited	of the	MF models	Built	by Hattat ?

Please help improve this article or section by expanding it. Further information might be found on the talk page or at requests for expansion.

ReferencesEdit

1. ↑ http://www.hattat.com.tr/en/home/activity_area.asp
2. ↑ http://www.hema.com/EN/Genel/AnaSayfa.aspx?17A16AE30572D313AAF6AA849816B2EF9B71935287F9CB97
