International 2404 Industrial

Talk0
14,523pages on
this wiki
International 2404 1967

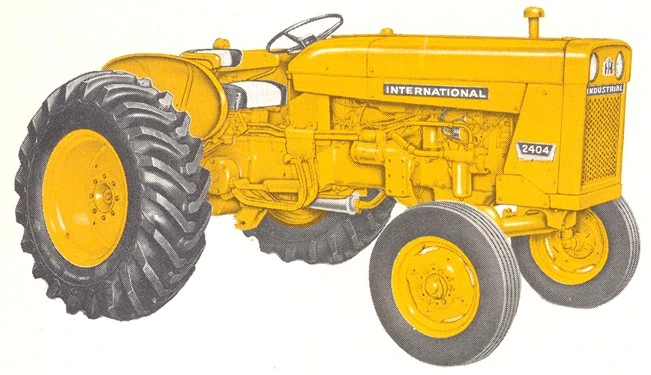

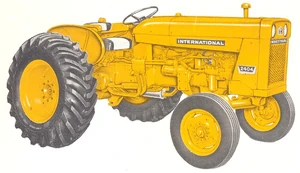

International 2404 Industrial, 1967
Model history
Model introduced 1962
Model discontinued 1968
Model status Discontinued
Preceded by New model
Engine Specification
Engine make International
Engine model C-135
Fuel type gasoline
Power hp 47 engine, 37 pto, 33 drawbar
Governed rpm 2000
Displacement cu in /(litre) 135 ci
No. of Cylinders 4
Bore in (mm) 3.25"
Stroke in (mm) 4.0625"
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 6.00-16 6-ply
Rear 14.9-28 6-ply
Tractor Dimensions
Length (inches/metres) 130"
Width (inches/meters) 63"
Height (inches/meters) 59"
Weight (nominal) lb/kg 3545 lb
Turning circle (nominal) inches/meters 18 ft
Wheelbase 75"
Other info
Factories Tractor Works, Chicago, Illinois, USA
Plow rating
This box: view · talk

The International 2404 Industrial was built by International Harvester from 1962 to 1968 in Chicago, Illinois, USA.

Model History Edit

For Company history see
Main article: International Harvester

The 2404 was an industrial version of the International 404 Utility, powered by the same 135 ci 4-cylinder gasoline engine and with the same standard 4-speed transmission. A dual-range 8-speed was optional, as was a fast reverser for the 4-speed. The 2404 was dropped in early 1968, its role filled by the International 2414 Industrial

Tractor Comparison Edit

Competition for the International 2404 Industrial came from the Allis-Chalmers I-40, Ford 3400, John Deere 1010 Industrial, and Oliver 2-44.

Make & model Pto hp Weight (lb) Price ($)
International 2404 Industrial 37 3545
Allis-Chalmers I-40 33 3980
Ford 3400 38 3358
John Deere 1010 Industrial 36 3645
Oliver Super 2-44 43 3116

Note: Most specifications and prices in comparison tables from The Official Tractor Blue Book 2010[1], Farm Tractors 1950-1975[2], and Farm Tractors 1975-1995[3]

Timeline Edit

  • 1962 - International 2404 Industrial introduced
  • 1968 - Production ended

Factory locations Edit

  • Tractor Works, Chicago, Illinois, USA

Specification Edit

See Infobox for basic details

  • 4-cylinder gasoline engine
  • 4-speed transmission
  • Electric starter
  • Power steering
  • Standard tires
    • Front: 6.00-16 6-ply
    • Rear: 13.6-24 4-ply

Variations and Options Edit

  • Dual-range 8-speed transmission
  • Forward-reverse shuttle transmission
  • Power adjusted rear wheels
  • Hydraulic system
  • Category I 3-point hitch, draft control
  • Pto
  • Lights
  • Optional tires
    • Front: 6.00-16 4-ply
    • Rear: 14.9-24 or 14.9-28 6-ply

Serial Numbers Information Edit

Year Serial no. run
start[1]
Serial no. run
End[1]
Number Built Notes
1962 1045 4204 Production included with International 404 Utility
1963 4205 6451
1964 71880 8291
1965 8292 9547
1966 9548 10533
1967 10534 11031
1968 11032 11077
Total built

Preservation Edit

No information on any of these tractors in preservation is currently available on here.

Do you know of any examples to list ?

List of Preserved International 404 and 2404 model tractors
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
IH 2404 Industrial no registered IH 2404 sn 3760 j-w Built 1962 IH engine User:Mazmach Tract1 owners yrad fitted with IH 2000 loader, Wagner backhoe
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Make & model reg no serial no date built engine owner Image needed LHB

set to 150px
seen at misc info
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.

Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  1. 1.0 1.1 1.2 Hall, Mike, Ed., The Official Tractor Blue Book 2010, Price Digests, Overland Park, Kansas, 2009
  2. Larsen, Lester, Farm Tractors 1950-1975, American Society of Agricultural Engineers, St. Joseph, Michigan, 1981
  3. Gay, Larry, Farm Tractors 1975-1995, American Society of Agricultural Engineers, St. Joseph, Michigan, 1995
