International 2444 Lo-Boy

Talk0
14,648pages on
this wiki

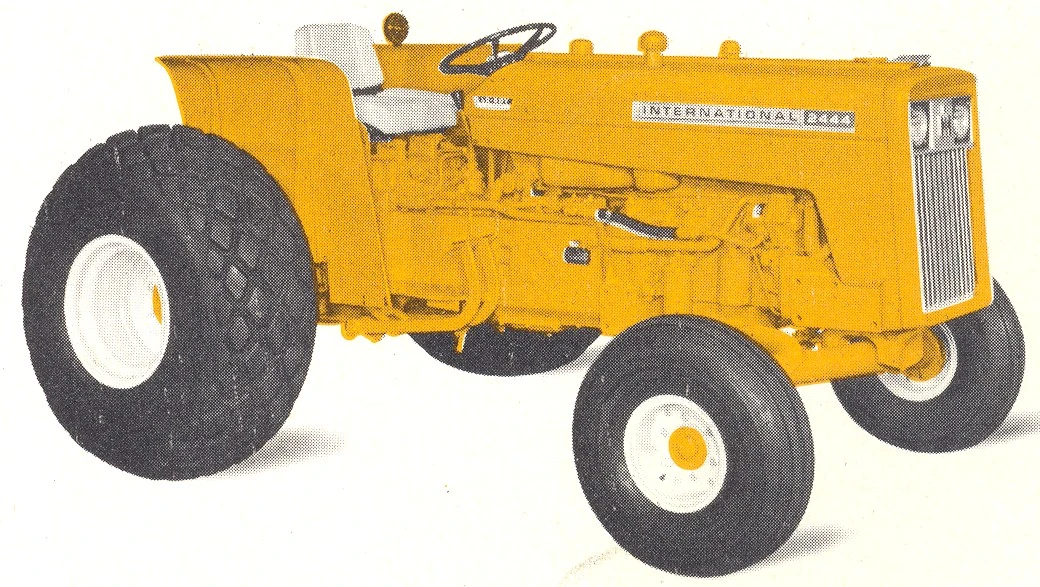

International 2444 Lo-Boy 1968
International 2444 Lo-Boy, 1968
Model history
Model introduced 1967
Model discontinued 1969
Model status Discontinued
Preceded by International 2424 Lo-Boy
Engine Specification
Engine make International
Engine model International C-153
Fuel type gasoline
Power hp 47 gross, 42 net, 38 pto, 33 drawbar
Governed rpm 2000
Displacement cu in /(litre) 152 ci
No. of Cylinders 4
Bore in (mm) 3.375"
Stroke in (mm) 4.25"
Cooling system Water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type dual-range sliding gear
Forward 8
Reverse 2
Drive 2-WD
General Data
Linkage Category Category I 3-point hitch, draft control
Tyre Sizes (std/options)
Front 9.00-10 4-ply
Rear 18.4-16 6-ply
Tractor Dimensions
Length (inches/metres) 109"
Width (inches/meters) 83"
Height (inches/meters) 50"
Weight (nominal) lb/kg 3270 lb
Turning circle (nominal) inches/meters 17 ft
Wheelbase 70"
Other info
Factories Doncaster, England and Louisville, Kentucky, USA
Plow rating
This box: view · talk

The International 2444 Lo-Boy was built by International Harvester from 1967 to 1969, with partial manufacture in Doncaster, England and final assembly in Louisville, Kentucky, USA.

Model historyEdit

Main article: International Harvester

For basic 444 utility tractor see International 444. For higher-profile industrial model see International 2444.

The International 2444 Lo-Boy was basically a 2444 industrial lowered slightly with smaller diameter wheels. Such low-profile tractors, also called LCG (low center-of-gravity) or turf tractors with their small diameter, wide, tires were used for golf-course maintenance, highway mowing, and sometimes for orchard work.

Tractor Comparison, gasoline models Edit

The International 2444 Lo-Boy competed with the Case 430LCK and later 470LCG, Ford 2110, John Deere JD300 Turf, and Massey Ferguson MF2135 Turf Special.

Make & model Pto hp Displace. Speeds Weight (lb) Price-$ (year)
International 2444 Lo-Boy 38 152 8 3270
Case 430LCK 33 148 4-8 3380
Case 470LCG 33 148 4-8 3568
Ford 2110 36 158 6-8 3790
John Deere 300 Turf 39 135 8 3946
Massey-Ferguson 2135 Turf Special 35 134 6 3100

Tractor Comparison, diesel models Edit

Make & model Pto hp Displace. Speeds Weight (lb) Price-$ (year)
International 2444 Lo-Boy 37 154 8 3390
Case 470LCG 34 188 4-8
Ford 2110 32 158 6-8
John Deere 300 Turf 39 152 8 4170
Massey-Ferguson 35 Turf 38 153 6 3160
Massey-Ferguson 2135 Turf Special 38 153 6

Note: Most specifications and prices in comparison tables from The Official Tractor Blue Book 2010[1], Farm Tractors 1950-1975[2], and Farm Tractors 1975-1995[3]

Timeline Edit

  • 1967 - International 444 production began, 2444 industrial version and 2444 Lo-Boy added
  • 1971 - 2444 models discontinued

Factory locations Edit

  • International Harvester Great Britain, Ltd., Doncaster, England
  • Louisville Works, Louisville, Kentucky, USA

SpecificationEdit

For basic spec see Infobox on the right. Add details here.

  • C-153 4-cylinder gasoline engine
  • 8-speed dual range transmission
  • Adjustable front axle
  • Differential lock
  • Electric starter
  • Standard tires
    • Front: 9.00-10 4-ply
    • Rear: 18.4-16A

OptionsEdit

  • BD-154 4-cylinder diesel engine
  • 8-speed dual-range transmission with forward-reverse shuttle
  • Hydrostatic power steering
  • Hydraulic system
  • Category I 3-point hitch, draft control
  • Constant running or transmission driven pto
  • Belt pulley
  • Drawbar
  • Grille guard
  • Lights

Serial numbers (diesel version)Edit

Year Serial no. run
start[1]
Serial no. run
End
Number Built Notes
1967 501 1189 Production included with 444
1968 1190 5269
1969 5270 6260[4] Last built
Total built

PreservationEdit

Add details of known examples in preservation;

List of Preserved International 444 tractors
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Make & model reg no serial no date built engine owner Image needed LHB

set to 150px
seen at misc info
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.

Gallery Edit

Add extra photos here please.

See alsoEdit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References/sourcesEdit

  1. 1.0 1.1 Hall, Mike, Ed., The Official Tractor Blue Book 2010, Price Digests, Overland Park, Kansas, 2009
  2. Larsen, Lester, Farm Tractors 1950-1975, American Society of Agricultural Engineers, St. Joseph, Michigan, 1981
  3. Gay, Larry, Farm Tractors 1975-1995, American Society of Agricultural Engineers, St. Joseph, Michigan, 1995
  4. Baumheckel, Ralph and Borghoff, Kent, International Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, 1997
