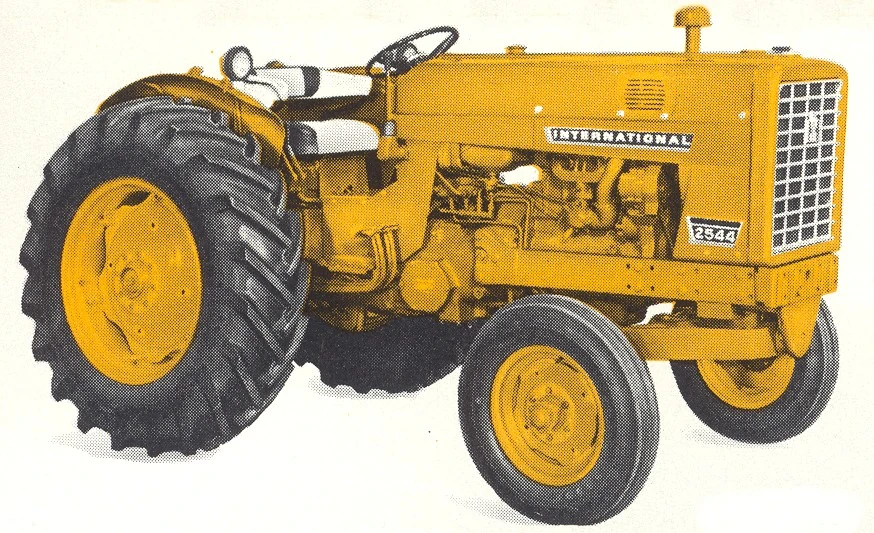

International 2544 gas 1969
International 2544 Industrial tractor with gasoline engine, 1969
Model history
Model introduced 1968
Model discontinued 1973
Model status Discontinued
Preceded by International 2504
Engine Specification
Engine make International
Engine model C-200
Fuel type gasoline
Power hp 66 gross, 60 net, 53 pto, 46 drawbar
Governed rpm 2200
Displacement cu in /(litre) 200 ci
No. of Cylinders 4
Bore in (mm) 3.813"
Stroke in (mm) 4.3875"
Cooling system Water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type 5-speed sliding gear with forward-reverse shuttle
Gearbox make International
Forward 5
Reverse 5
Drive 2-WD
Linkage Category Unknown
Tyre Sizes (std/options)
Front 7.50-16 10-ply standard
Rear 14.9-24 6-ply standard
Tractor Dimensions
Length (inches/metres) 138"
Height (inches/meters) 59"
Weight (nominal) lb/kg 4930 lb
Wheelbase 73"
Other info
Factories USA
Plow rating
This box: view · talk

The International 2544 was an industrial tractor built by International Harvester from 1968 to 1973 in the USA.

Model historyEdit

Main article: International Harvester

For hydrostatic transmission model see: International 2544 Hydro. For regular utility model see: International 544.

The International 2544, a heavy-duty industrial version of the 544 utility, replaced the 2504 industrial. The International C-200 4-cylinder gas engine replaced the old C-153 and the D-239 diesel replaced the D-188.

Tractor Comparison, gasoline version Edit

The gasoline-powered International 2544 competed directly with the John Deere JD400 and JD401, Massey Fergusom MF30, and the improved Ford 4400 introduced in 1969. The 1968 Ford 4400 and the nearest models from Allis-Chalmers, Minneapolis-Moline, and Oliver all had less power than the International.

Make & model Pto hp Displace. Speeds Weight (lb) Price-$ (year)
International 2544 53 200 5-10 4930
Allis-Chalmers I-600 46 160 4-8 4400
Allis-Chalmers 615 46 160 4 4400
Ford 4400 46 192 4 4483
Ford 4400 52 201 4 4483
John Deere 400 54 181 8 4720
John Deere 401 54 181 8 4314
Massey-Ferguson 30 52 212 6-8 4225
Minneapolis-Moline Jet Star III Industrial 44 206 5-10 4260
Oliver 770 Industrial 48 216 6 5237

Tractor Comparison, diesel version Edit

As with the gasoline-powered version, the diesel International 2544 competed directly with the John Deere JD400 and JD401, Massey Fergusom MF30 (and earlier MF3165), and the improved Ford 4400 introduced in 1969. The diesel-powered Oliver 770 Industrial also had about the same power as the International. The 1968 Ford 4400 and the nearest models from Allis-Chalmers and Minneapolis-Moline had less power than the International.

Make & model Pto hp Displace. Speeds Weight (lb) Price-$ (year)
International 2544 53 239 5-10 5170
Allis-Chalmers 615 40 174 4 4550
Ford 4400 47 201 4 4550
Ford 4400 53 201 4 4550
John Deere 400 54 203 8 4800
John Deere 401 54 203 8 4384
Massey-Ferguson 3165 52 203 6 4344
Massey-Ferguson 30 52 203 6-8 4225
Minneapolis-Moline Jet Star III Industrial 45 206 5-10 4260
Oliver 770 Industrial 52 216 6 5357

Note: Most specifications and prices in comparison tables from The Official Tractor Blue Book 2010[1], Farm Tractors 1950-1975[2], and Farm Tractors 1975-1995[3]

Timeline Edit

Factory locations Edit

SpecificationEdit

For basic spec see Infobox on the right. Add details here.

  • C-200 4-cylinder gasoline engine
  • 5-speed transmission
  • Adjustable front axle
  • Hydrostatic power steering
  • Independent pto
  • Category II 3-point hitch with traction control
  • Standard tires
    • Front: 7.50-16 10-ply
    • Rear: 14.9-24 6-ply

OptionsEdit

  • LPG engine
  • D-239 4-cylinder diesel engine
  • Torque Amplifier 2-speed planetary gearbox
  • Forward-reverse shuttle (not available with Torque Amplifier)
  • Heavy-duty fixed tread front axle
  • Power adjusted rear wheels
  • "Hydra-Touch" hydraulic valves

Serial numbers version)Edit

Year Serial no. run
start[4]
Serial no. run
End
Number Built Notes
1968 10250 12698 Production included with International 544 gear drive
1969 12699 14588
1970 14589 16017
1971 16018 16837
1972 16838 17340
1973 17341 17428[5] Last built
Total built

PreservationEdit

Add details of known examples in preservation;

List of Preserved International 544 tractors
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Make & model reg no serial no date built engine owner Image needed LHB

set to 150px
seen at misc info
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.

Gallery Edit

Add extra photos here please.

See alsoEdit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References/sourcesEdit

  1. Hall, Mike, Ed., The Official Tractor Blue Book 2010, Price Digests, Overland Park, Kansas, 2009
  2. Larsen, Lester, Farm Tractors 1950-1975, American Society of Agricultural Engineers, St. Joseph, Michigan, 1981
  3. Gay, Larry, Farm Tractors 1975-1995, American Society of Agricultural Engineers, St. Joseph, Michigan, 1995
  4. "Implement & Tractor Red Book Issue 1966", p.B-196
  5. Baumheckel, Ralph and Borghoff, Kent, International Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, 1997
