International B-100
International 1960 B-100
International 1960 B-100 pickup at American Truck Historical Society show, Fontana, California, 2004
Manufacturer International Harvester Co.
Introduced date 1959
Discontinued date 1960
Preceding model A-100
Superseded by C-100
Capacity tons/GVW/GCW ½-ton, 4200 lb GVW
Engine
Make International
Model Black Diamond BD-220 (BD-240, V-266 optional, BD-220 in show truck)
Fuel gasoline
Cooling water
Cylinders 6 (V8 optional)
Displacement ci / L 221 ci (240, 266 optional)
Power HP @ rpm 112 @ 3800 (141 @ 3800, 155 @ 4400 optional)
Transmission
Gearbox make (model) International
Gearbox type syncromesh
Gears (forward speeds) 3 (overdrive, 4-speed, 3-speed automatic optional)
Axles & drive
Wheels/drive 4x2
Tires standard/optional 6.70-15 4-ply (on show truck) / 7.10-15 6-ply
Other
Shipping weight 3604 lb (with V8)
List price $2151 (with V8)
This box: view · talk

International B-series light and medium-duty models used the same cab as the previous A-series, but were restyled with a new bright mesh grille and vertically-stacked dual headlights. Pickups in the B-line were available with Bonus Load boxes, which were wider inside than the previous wide-body style. The big news for 1959 was the introduction of all-new V8 engines. With its modern overhead-valve V8, International finally caught up with all the other makers of light and medium-duty trucks. International was the only maker to build a small-block V8 specifically for truck duty instead of modifying a passenger car design. The B-100 series was made up of the 4200 lb GVW B-100 model and the 5000 lb B-102. Available engines included the 112-hp Black Diamond 220, the 141-hp Black Diamond 240, and the 155-hp V-266.

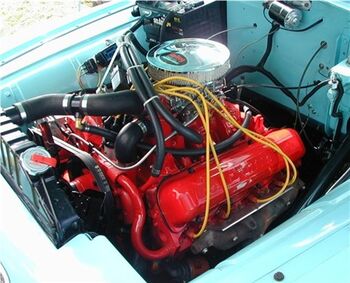

International V-266 engine

International V-266 engine


See alsoEdit

References / sourcesEdit

  • Crismon, Frederick W. (1995). International Trucks. Motorbooks International, Osceola, Wisconsin.
  • Mroz, Albert (1996). The Illustrated Encyclopedia of American Trucks and Commercial Vehicles. Krause Publications, Iola, Wisconsin.
