McCormick International B-275
McCormick International B-275 1960

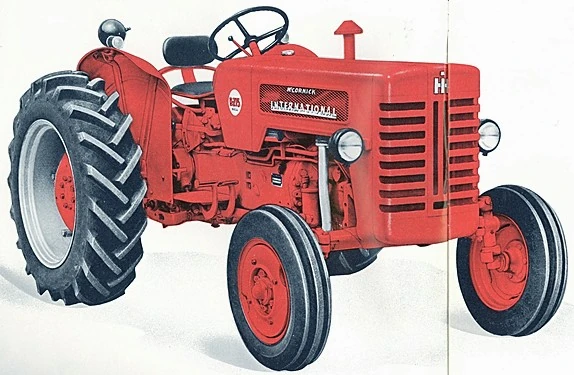

McCormick International B-275 as sold in USA, 1960
Model history
Model introduced 1958
Model discontinued 1968
Model status Discontinued Discontinued
No. produced 54,211 (not including 1968)
Preceded by New model
Superseded by International B-414
Engine Specification
Engine make International (Great Britain)
Engine model IHGB BD-144
Fuel type diesel
Power hp 35 engine, 33 pto, 31 drawbar
Governed rpm 1875
Displacement cu in /(litre) 143 ci
No. of Cylinders 4
Bore in (mm) 3.375"
Stroke in (mm) 4"
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type dual-range sliding gear
Forward 8
Reverse 2
Drive 2-WD
General Data
Linkage Category Category I or II 3-point
Tyre Sizes (std/options)
Front 5.50-16 4-ply
Rear 11-28 4-ply
Tractor Dimensions
Length (inches/metres) 112"
Width (inches/meters) 64"
Height (inches/meters) 59"
Weight (nominal) lb/kg 3520 lb
Turning circle (nominal) inches/meters 20 ft
Wheelbase 74"
Other info
Factories Idle, Bradford, England (former Jowett car factory)
India (Mahindra Tractors)
Plow rating 2-3
Nebraska Tests No. 733
Approximate Cost new in (year) $2755 (1961)
This box: view · talk


The International B275 was built by International Harvester at the former Jowett car factory in Idle, Bradford, England. It was imported into the USA from 1959 to 1961 where it was known as the McCormick International B-275. Some were also built under license by IH's joint venture in India, Mahindra Tractors.

Note
In the UK they had McCormick on the badges but they are generally Referred to as the International B275 The model number being hyphenated in the roundel on the bonnet sides but not generally when described in print articles. (very inconsistent & confusing).

Model historyEdit

For Company history see
Main article: International Harvester
Model details required.
IH B275-Driffield-P8100553
A International B275 at Driffield Steam Rally 2008
BulldozerD11Added by BulldozerD11

Model History in USA Edit

The McCormick International B-275 was imported from England where it was built by International Harvester Great Britain. While International Harvester’s American-made tractors of the 1950s used the McCormick brand name for row-crop models and International for standard-tread and utility wheel tractors and crawlers, the B-275 used both names, with McCormick in small letters and International in larger letters. The B-275 was roughly the size and weight of the International 340 Utility but was a totally different British design. The engine was the British built International BD-144 engine a 143ci 4-cylinder diesel. The tractor had a dual-range 8-speed transmission and a differential lock, not normally available on American tractors at the time.


Tractor Comparison, USA models Edit

The McCormick International B-275 seemed to offer the best value in its class (30 pto hp diesel-powered utility tractors), offering 33 hp for a $2755 in 1961. The Fordson Dexta, also imported from England, was very close, with 31 hp for $2950. As shown in the table, all of the other makes ranged upward in power and/or price.

Make & model Pto hp Displace. Speeds Weight (lb) Price-$ (year)
McCormick International B-275 33 143 8 3520 2755 (1961)
Case 300B 32 157 4-12 3235 3225 (1959)
Case 430 34 188 4-12 3800 3400 (1961)
David Brown 850 34 154 6 4179 4370 (1960)
Ferguson TO-35 33 138 6 3211 3030 (1957)
Fiat 411R 37 139 6 3350
Ford 601 32 141 4-12 2799 2555 (1961)
Fordson Dexta 31 144 6 3030 2950 (1961)
John Deere 1010U 36 144 5 3435 3210 (1965)
Massey-Ferguson MF35 37 153 6 2970 3320 (1964)
Oliver 550 39 155 6 3245

Timeline Edit

  • 1959 - McCormick International B-275 first imported into USA from England
  • 1961 - International B-414 replaced B-275 in USA

Factory locations Edit

Built by International Harvester Great Britain, Ltd., Doncaster, England, at the Bradford factory.


Specifications (USA) Edit

See Infobox for basic details

  • International (Great Britain) 4-cylinder diesel engine
  • Dual-range 8-speed transmission
  • Adjustable front axle
  • Differential lock
  • Electric starter and lights
  • Hydraulic system with Category I or II 3-point hitch, depth control
  • Constant running pto
  • Standard tires
    • Front: 5.50-16 4-ply
    • Rear: 11-28 4-ply

Variations and Options Edit

  • Belt pulley
  • Swinging drawbar
  • Optional tires
    • Front:
    • Rear: 12-28 4-ply

Serial Numbers Information (USA) Edit

Year Serial no. run
start[1]
Serial no. run
End[2]
Number Built Notes
1958 501 632 132 Production calculated from serial number range
1959 633 12160 11528
1960 12161 29467 17307
1961 29468 39539 10072
1962 39540 43119 3580
1963 43120 46417 3298
1964 46418 48976 2559 48173 -last tractor sold in US
1965 48977 51039 2063
1966 51040 52932 1893
1967 52933 54711 1779
1968 54712
Total built 54211 Not including 1968

List of known preserved modelsEdit

Do you know of any International B275 tractors to add to the list ?

(please add details below with reg and/or serial number if possible);

List of Preserved International & Farmall B-275 tractors
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
IH B275 807 UXK no. 563 ? 1961 IH Diesel George White of Higher Farm, Over Compton, Dorset IH B-275 reg 807 UXK at Bath 09 - IMG 4929 At Somerset Vintage & Classic Tractor Show 2009 Is serial no 335 or 563 or 622 (as originally listed) ?
IH B275 303 AYG+ no. 603 year 1958 Engine IH Diesel Owner Alex Robinson, Seamer Image needed LHB


Running on Biodiesel
IH B275 973 BUP+ no. 1285 year ? Engine ? Owner ? Image needed LHB


at Duncombe Park Steam Rally 2009
IH B275 434 XUY+ no. 3389 year ? Engine ? A. Leech, Farndon to add at (455)Rempston Sream Rally 2010
Differs from Guide
IH B275 Reg no ? - no. 4210 year ? Engine ? Owner ? add at (B64)Woodcote Rally 2010
IH B275 25 SYA+ sn 4318 ? year IH diesel owner ? IH B275 sn 4318 - 25 SYA at Corbridge 2010 - IMG 8484 (T22)Corbridge Steam & Vintage Rally 2010 Guide entry does not match
IH B275 631 GTG+ no. 14677 year ? engine ? owner ? Image needed LHB


at Somerset Tractor Show 2009 (unusual 1/2 yellow colour scheme of a demonstrator)
IH B275 reg no. ? sn 18011 year ? IH Diesel Ed Venhuizen, of ? Image needed LHB


seen at ?
IH B275 JEY 298+ no. 24809 To add at Isle of Anglesey Vintage Rally 2010
IH B275 reg no. ? no. 49766 April 9 1965  ? Dave McKissic, of Garland Tx Image needed LHB


Tractor in USA
IH B275 SRR 432F+ no. 55361 1968 Engine ? T. Price of Stretton ? International B275 sn 55361 reg SRR 432F at Rempstone 2010 - IMG 6049 at (473)Rempstone Steam Rally 2010
Tractors with unknown serial numbers below (if number known please update and place in table above here)
IH B275 WUJ 580+ no. ? 1961 Engine ? M. Cox, Telford, Shropshire to add at (452)Rempstone Steam Rally 2010
IH B275 9316 DD+ sn ? year ? IH Diesel Owner To add at Somerset Vintage & Classic Tractor Show 2009.
IH B275 456 JYD+ sn ? year ? IH Diesel Owner ? International B-275 reg 456 JYD Drill (184) at Bath 09 - IMG 4939 At Somerset Vintage & Classic Tractor Show 2009
IH B275 113 KNN+ no. ? 1962 Engine ? A. Leech, Farndon ? to add at (455)Rempstone Steam Rally 2010
IH B275 744 XUV+ sn ? year ? IH Diesel Owner ? to add at Isle of Anglesey Vintage Rally 2010
IH B275 EPE 739+ sn ? year ? IH Diesel owner ? International B-275 reg RPR 739 at Bath 09 - IMG 4942 At Somerset Vintage & Classic Tractor Show 2009
Image needed LHB


IH B275 reg no. ? sn ? year ? IH Diesel Owner ? Image needed LHB


seen at ?
Please add any tractor with known reg or serial no. with Photo if possible.
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.
