International B414 gasoline

Talk0
14,422pages on
this wiki
International B414 gasoline
International B-414 1962

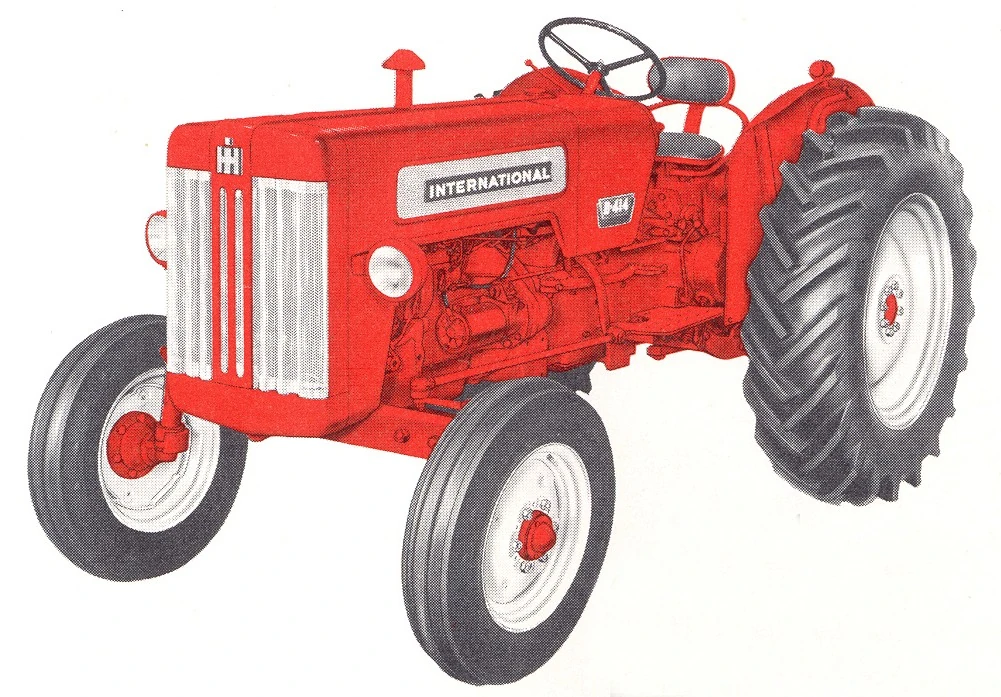

International B414 gasoline model, as sold in US, 1962
Model history
Model introduced 1962
Model discontinued 1966
Model status Discontinued
No. produced 6,026
Preceded by New model
Superseded by International 424 (gasoline)
Engine Specification
Engine make International (Great Britain)
Engine model BC-144
Fuel type gasoline
Power hp 43 engine, 36 pto, 31 drawbar
Governed rpm 2000
Displacement cu in /(litre) 143 ci
No. of Cylinders 4
Bore in (mm) 3.375"
Stroke in (mm) 4"
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type dual-range sliding gear
Forward 8
Reverse 2
Drive 2-WD
General Data
Linkage Category Category I or II 3-point
Tyre Sizes (std/options)
Front 6.00-16 4-ply
Rear 13.6-28 4-ply
Tractor Dimensions
Length (inches/metres) 116"
Width (inches/meters) 64"
Height (inches/meters) 61"
Weight (nominal) lb/kg 3600 lb
Turning circle (nominal) inches/meters 20.5 ft
Wheelbase 77"
Other info
Factories Bradford, England
Plow rating 2-3 14"
Nebraska Tests No. 817
Approximate Cost new in (year) $2720 (1962), $2900 (1966)
This box: view · talk

The International B414 gasoline was built by International Harvester from 1961 to 1966 in Bradford, England.

Model historyEdit

For Company history see
Main article: International Harvester

For diesel version see basic International B414 article.

The diesel-powered British-built International B414 replaced/supplemented the McCormick International B275 in 1961. The new model dropped the McCormick name and became just International (at least in the US). In 1962 a gasoline-powered version was developed, primarily for the US market. The BC-144 gasoline engine was a conversion from the BD-144 British-built diesel of the B275. The gasoline model was assigned a separate serial number range. The B414 gasoline was about the same size and had about the same power as the American-built 404 Utility.


Tractor Comparison, US gasoline models Edit

In its early years the strongest competition for the International B414 gasoline tractor came from the cheaper John Deere 1010 and the cheaper but more powerful Oliver 550. The Case 440, Ford 2000, and Massey-Ferguson MF35 were all slightly less powerful than the International. By the end of production in 1966, the aging B414 significantly undercut the prices of the new Ford 3000, John Deere 1020, Massey Ferguson MF135, and Oliver 1250.

Make & model Pto hp Displace. Speeds Weight (lb) Price-$ (year)
International B414 37 143 8 3600 2720 (1962), 2900 (1966)
Case 440 33 148 8 3530 2940 (1962)
Ford 2000 33 134 4-12 3026 2856 (1963)
Ford 3000 38 158 8 3480 3135 (1966)
John Deere 1010U 36 115 5 3615 2480 (1962)
John Deere 1020U 39 135 8 4100 3325 (1966)
Massey-Ferguson MF35 33 134 6
Massey-Ferguson MF135 35 145 6 3079 3280 (1966)
Oliver 550 41 155 6 3229 2675 (1962)
Oliver 1250 35 116 6 3548 3000 (1966)

Timeline Edit

  • 1961 - International B414 production began, also import into US
  • 1962 - Gasoline version added, mainly for US market
  • 1966 - B414 production ended, replaced by 424 in US

Factory locations Edit

International Harvester Great Britain, Ltd., Bradford, England

Specifications (US) Edit

See Infobox for basic details

  • International (Great Britain) 4-cylinder gasoline engine
  • Dual-range 8-speed transmission
  • Adjustable front axle
  • Differential lock
  • Electric starter and lights
  • Hydraulic system with Category I or II 3-point hitch, depth control
  • Constant running pto
  • Standard tires
    • Front: 6.00-16 4-ply
    • Rear: 13.6-28 4-ply

Variations and Options Edit

  • Power steering
  • Belt pulley
  • Swinging drawbar
  • Optional tires
    • Front:
    • Rear: 14.9-24 6-ply

Serial Numbers Information (gasoline model for US) Edit

Year Serial no. run
start[1]
Serial no. run
End
Number Built Notes
1962 501 2158 1658 Production calculated from serial no. range
1963 2159 3994 1836
1964 3995 5698 1704
1965 5699 6344 646
1966 6345 6526[2] 182 Last built No.
Total built 6026

References / Sources Edit

  • Please supply some relevant references or sources for information for verification of data.
  1. TractorData.com
  2. Baumheckel, Ralph and Borghoff, Kent, International Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, 1997
