International Cub Cadet 122 1967

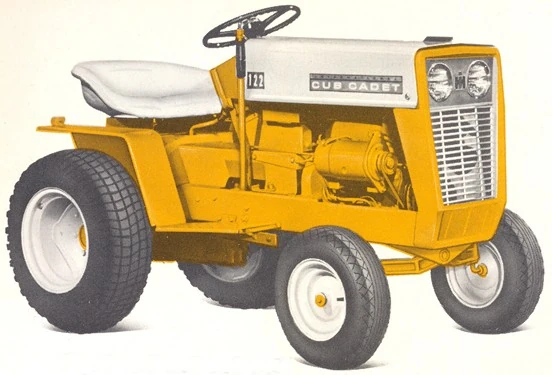

International Cub Cadet 122, from 1967 brochure
Model history
Model introduced 1965
Model discontinued 1967
Model status Discontinued
No. produced 30,989
Superseded by International Cub Cadet 124
Engine Specification
Engine make Kohler
Engine model K301S
Fuel type gasoline
Power hp 12
Power kW 8.9
Governed rpm 3600
Displacement cu in /(litre) 29 ci
No. of Cylinders 1
Bore in (mm) 3.375 in
Stroke in (mm) 3.25 in
Cooling system air
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 3
Reverse 1
Drive 2-WD
Linkage Category Unknown
Tyre Sizes (std/options)
Front 4.80/4.00-8 2-ply
Rear 23x8.50-12 2-ply
Tractor Dimensions
Length (inches/metres) 63 in
Width (inches/meters) 36 in
Height (inches/meters) 40 in
Weight (nominal) lb/kg 640 lb
Turning circle (nominal) inches/meters 13.6 ft
Wheelbase 43 in
Other info
Factories Louisville Works, Louisville, Kentucky, USA
Plow rating
Approximate Cost new in (year) $905 (1967)
This box: view · talk

The International Cub Cadet 122 was built by International Harvester from 1965 to 1967 in the Louisville, Kentucky, USA factory. It features a 12 hp (8.9 kW) Kohler engine.

Contents

Model History Edit

For Company history see
Main article: International Harvester

The 12-hp International Cub Cadet 122 was nearly identical to the 102 except for its larger 30 ci Kohler single-cylinder air-cooled engine. The 122 competed with other 12-hp gear-drive tractors such as the Allis-Chalmers B-12 and B-112, Ford 120, John Deere 112, Minneapolis-Moline 112, and lesser-known tractors such as the Economy, Gravely, Page, Springfield and Red-E-Tractor.

Timeline Edit

Factory locations Edit

  • Louisville Works, Louisville, Kentucky, USA

Specification Edit

See Infobox for basic details

Variations and Options Edit

  • 2-speed underdrive creeper gear box giving 6 forward speeds
  • 3-point hitch
  • Optional Tires
    • Rear: 6-12 2-ply single or dual

Serial Numbers Information Edit

Year Serial run[1][2][3] Number Built Notes (Total built 30,989[4]).
1965 127161-137050 43[5]
1966 137051-180267 19478[6]
1967 180268-218009 27408[7]

Preservation Edit

No information on any of these tractors in preservation is currently available on here.

Do you know of any examples to list ?

{{subst:PML International Cub Cadet 122 }}

Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  1. ↑ Baumheckel, Ralph and Borghoff, Kent. 1997. International Harvester Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, pp.395-396
  2. ↑ Updike, Kenneth. 2002. Farmall Cub & Cub Cadet, MBI Publishing, St. Paul, Minnesota, p.115
  3. ↑ http://www.ihcubcadet.com
  4. ↑ http://www.ihregistry.com
  5. ↑ Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193
  6. ↑ Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193
  7. ↑ Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193 (includes Models 124-125)
