International Cub Cadet 70 | |
Model history | |
---|---|
Model introduced | 1963 |
Model discontinued | 1965 |
Model status | Discontinued |
No. produced | 22,600 |
Preceded by | International Cub Cadet (original) |
Superseded by | International Cub Cadet 71 |
Engine Specification | |
Engine make | Kohler |
Engine model | K161 |
Fuel type | gasoline |
Power hp | 7 |
Power kW | 5.2 |
Governed rpm | 3600 |
Displacement cu in /(litre) | 16 ci |
No. of Cylinders | 1 |
Bore in (mm) | 2.875 in |
Stroke in (mm) | 2.5 in |
Cooling system | air |
Naturally aspirated, Turbo or Supercharged | NA |
Transmission Details | |
Transmission type | sliding gear |
Gearbox make | International |
Forward | 3 |
Reverse | 1 |
Drive | 2-WD |
Linkage Category | Unknown |
Tyre Sizes (std/options) | |
Front | 4.80/4.00-8 2-ply |
Rear | 6-12 2-ply |
Tractor Dimensions | |
Length (inches/metres) | 63 in |
Width (inches/meters) | 33 in |
Height (inches/meters) | 40 in |
Weight (nominal) lb/kg | 560 lb |
Turning circle (nominal) inches/meters | 13.5 ft |
Wheelbase | 43 in |
Other info | |
Factories | Louisville Works, Louisville, Kentucky, USA |
Plow rating | 1-10" |
Approximate Cost new in (year) | $690 |

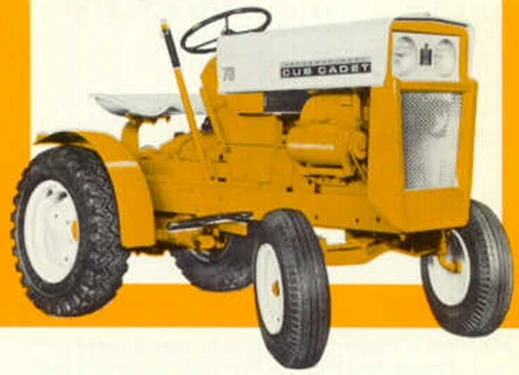

The International Cub Cadet 70 was built by International Harvester from 1963 to 1965 in the Louisville, Kentucky, USA factory. It features a 7 hp (5.2 kW) Kohler engine.
Model History[]
- For Company history see
- Main article: International Harvester
The 7-hp International Cub Cadet 70 was based on the original Cub Cadet and used the same Kohler K161 single-cylinder air-cooled engine and International 3-speed transmission. However, there were major changes: a redesigned frame and straight-through driveline from the engine to the transmission, eliminating the V-belt drive of the original model.
Timeline[]
- Introduced 1963
- Replaced by International Cub Cadet 71 in 1965
Factory locations[]
- Louisville Works, Louisville, Kentucky, USA
Specification[]
See Infobox for basic details
Variations and Options[]
- 2-speed underdrive creeper gear box giving 6 forward speeds
- 3-point hitch
- Dual wheels - 6-12
Serial Numbers Information[]
Year | Serial run[1][2][3] | Number Built | Notes |
---|---|---|---|
1963 | 65458-73874 | 2901[4] | |
1964 | 73875-104306 | 12747[5] | |
1965 | 104307-127160 | 7434[6] | |
Total built | 22,600[7] |
Preservation[]
No information on any of these tractors in preservation is currently available on here.
- Do you know of any examples to list ?
Make + Model No. | Reg No. (if known) |
Serial No. | Build-Date | Engine-Type/Make | Owner (if known) |
Photo | Were seen/Featured in | Other info |
---|---|---|---|---|---|---|---|---|
|
||||||||
|
||||||||
Please add any tractor with known reg or serial no. with Photo if possible. | ||||||||
Make & model | reg no | serial no | date built | engine | owner |
|
seen at | misc info |
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor. |
Gallery[]
Add extra photos here please.
See also[]
- Collection related info
- Shows and Meets - events featuring tractors and other machinery
- Clubs Listing - List of clubs including various tractor marques
- Collections - list of private collections with tractors (add yours)
- Museums - includes museums featuring tractors (please add missing ones)
References / Sources[]
- ↑ Baumheckel, Ralph and Borghoff, Kent. 1997. International Harvester Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, pp.395-396
- ↑ Updike, Kenneth. 2002. Farmall Cub & Cub Cadet, MBI Publishing, St. Paul, Minnesote, p.115
- ↑ http://www.ihcubcadet.com
- ↑ Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193
- ↑ Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193
- ↑ Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193,(includes Model 71)
- ↑ http://www.ihregistry.com
