International Cub Cadet 71
International Cub Cadet 71
Model history
Model introduced 1965
Model discontinued 1967
Model status Discontinued
No. produced 11,071
Preceded by International Cub Cadet 70
Superseded by International Cub Cadet 72
Engine Specification
Engine make Kohler
Engine model K161S
Fuel type gasoline
Power hp 7
Power kW 5.2
Governed rpm 3600
Displacement cu in /(litre) 16 ci
No. of Cylinders 1
Bore in (mm) 2.875 in
Stroke in (mm) 2.5 in
Cooling system air
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 3
Reverse 1
Drive 2-WD
Linkage Category Unknown
Tyre Sizes (std/options)
Front 4.80/4.00-8 2-ply
Rear 6-12 2-ply
Tractor Dimensions
Length (inches/metres) 63 in
Width (inches/meters) 33 in
Height (inches/meters) 40 in
Weight (nominal) lb/kg 560 lb
Turning circle (nominal) inches/meters 13.6 ft
Wheelbase 43 in
Other info
Factories Louisville Works, Louisville, Kentucky, USA
Plow rating 1-10"
Approximate Cost new in (year) $735 (1967)
This box: view · talk

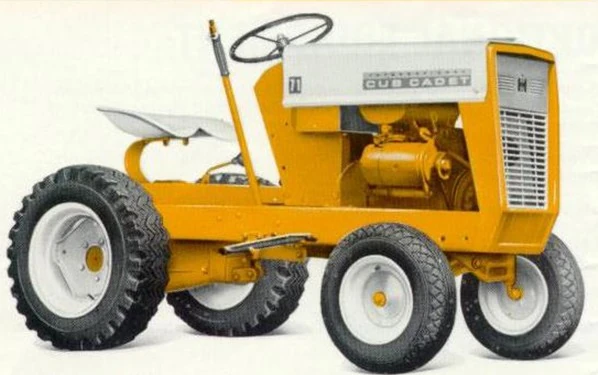

Cub Cadet 71 - 101 0048

The International Cub Cadet 71 was built by International Harvester from 1965 to 1967 in the Louisville, Kentucky, USA factory. It features a 7 hp (5.2 kW) Kohler engine.

Model History Edit

For Company history see
Main article: International Harvester

The IH Cub Cadet model 71 is a narrow frame garden tractor.  Production serial numbers began at 127161 in August of 1965 which ended with serial number 218009 in November of 1967. Other IH Cub Cadet models made during this time of production were the models 102, and 122. The IH Cub Cadet model 123 began production starting in June, 1966 starting with serial number 157490 and ended with 218009 as the serial number, respectably. It was a very much improved line up from the IH Cub Cadet 70/100 series garden tractors in many ways. The IH Cub Cadet 71 was the direct replacement of the model 70. The bacis caraterstics of the model 70 were retained with the 71. There are three noticable upgrades to the 71. For starters,the grill was made to resemble the IH 56 Series agricultural tractors, while the grill housing itself was redesigned. This was dubbed the "swept-back" design, in which the hood was also redesigned to configure correctly with the grill housing as well. The most important upgrade began with the 71, in which that all other tractors would for ever follow, was the new saftey start switch.




Timeline Edit

Factory locations Edit

  • Louisville Works, Louisville, Kentucky, USA

Specification Edit

See Infobox for basic details

Variations and Options Edit

  • 2-speed underdrive creeper gear box giving 6 forward speeds
  • Fenders
  • Lights
  • Utility box
  • 3-point hitch
  • Optional Tires
    • Front: 16x6.50-8
    • Rear: 23x8.50-12 or 6-12 dual

Serial Numbers Information Edit

Year Serial run[1][2][3] Number Built Notes (Total built 11,071[4])
1965 127161-137050 7434[5]
1966 137051-180267 6686[6]
1967 180268-218009 3867[7]

Preservation Edit

No information on any of these tractors in preservation is currently available on here.

Do you know of any examples to list ?

{{subst:PML International Cub Cadet 71 }}

Gallery Edit

Add extra photos here please.


See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  1. Baumheckel, Ralph and Borghoff, Kent. 1997. International Harvester Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, pp.395-396
  2. Updike, Kenneth. 2002. Farmall Cub & Cub Cadet, MBI Publishing, St. Paul, Minnesota, p.115
  3. http://www.ihcubcadet.com
  4. http://www.ihregistry.com
  5. Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193 (includes Model 70)
  6. Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193
  7. Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193 (includes Model 72)
