For Gasoline (petrol) version, see International I-6.

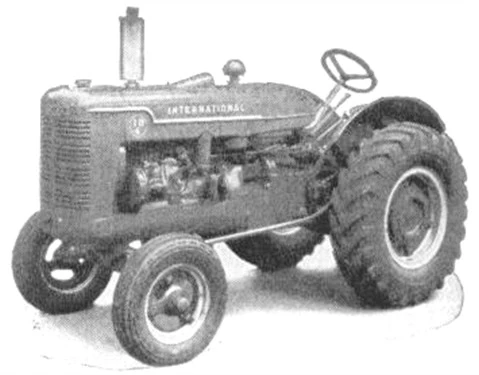

International ID-6 1940
International ID-6 1940
Model history
Model introduced 1940
Model discontinued 1953
Model status Discontinued
Preceded by New model
Engine Specification
Engine make International
Engine model D-248
Fuel type diesel
Power hp 35 belt, 31 drawbar
Governed rpm 1450
Displacement cu in /(litre) 248 ci
No. of Cylinders 4
Bore in (mm) 3.875 in
Stroke in (mm) 5.25 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 5
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 6.00-16 4-ply
Rear 12.00-24 6-ply
Tractor Dimensions
Length (inches/metres) 124 in
Width (inches/meters) 64 in
Height (inches/meters) 69 in
Weight (nominal) lb/kg 5120 lb
Turning circle (nominal) inches/meters 25.5 ft
Wheelbase 76 in
Other info
Factories Rock Island, Illinois, USA
Plow rating
This box: view · talk

The International ID-6 was an industrial tractor built by the International Harvester company from 1940 to 1953 in Rock Island, Illinois, USA.

Model historyEdit

For Company history see
Main article: International Harvester

The International ID-6 was the same as the I-6 except for its diesel engine. The 248 ci diesel used the same block as the gasoline engine but was strengthened with a 5-main bearing crankshaft instead of 3. The diesel engine used International's well-known gasoline starting method.

Timeline Edit

  • 1940 - International ID-6 diesel industrial tractor introduced
  • 1953 - ID-6 discontinued

Factory locations Edit

Farmall Works, Rock Island, Illinois, USA

Specification Edit

See Infobox for basic details

  • Standard tires
    • Front: 6.00-16 4-ply (1941)
    • Rear: 13.00-24 6-ply (1941)

Variations and Options Edit

  • Optional tires
    • Front: 6.00-16 6-ply, 6.50-16 4 or 6-ply; 6.00-20, 6.50-20, 7.00-20, or 7.50-20 8-ply (1947)
    • Rear: 12.00-24 6 or 8-ply, 13.00-24 8-ply, or 14.00-24 6 or 8-ply; 9.00-24 12-ply dual (1947); 12.00-24 or 13.00-24 6-ply dual (1949)

Serial Numbers Information Edit

Year Serial no. run
start[1]
Serial no. run
End[1]
Number Built Notes
1940 IDBK501 1224 Serial range includes W-6, WD-6, O-6, OS-6, ODS-6, I-6, ID-6
1941 1225 3717 Number built included with McCormick-Deering W-6
1942 3718 5056
1943 5057 6312
1944 6313 9495
1945 9496 14152
1946 14153 17791
1947 17792 22980
1948 22981 28703
1949 28704 33697
1950 33698 38517
1951 38518 44317
1952 44318 45273
1953 45274 45274[2]
Total built


PreservationEdit

Add details of any known examples in preservation to the table below (common toall the W-6 based models);

List of Preserved McCormick-Deering W-6 series tractors
view  talk  edit
Make + Model No.
Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.


Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  1. 1.0 1.1 Wendel, C. H., 150 Years of International Harvester, Crestline Publishing, Sarasota, Florida, 1981
  2. Baumheckel, Ralph and Borghoff, Kent, International Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, 1997
