International T-5 series
Image needed LHB
Model history
Model introduced 1959
Model discontinued 1960
Model status Discontinued
Fuel type gasoline
Power hp Unknown
Cooling system Water
Transmission Details
Transmission type Unknown
Drive crawler
Linkage Category Unknown
Other info
Factories Hamilton, Ontario, Canada
Melrose Park, Illinois, USA
Plow rating Unknown
This box: view · talk

The International T-5 series was made up of two compact crawler tractors built by the International Harvester company's Canadian branch from 1959 to 1960 in Hamilton, Ontario, Canada and Melrose Park, Illinois, USA.

Model historyEdit

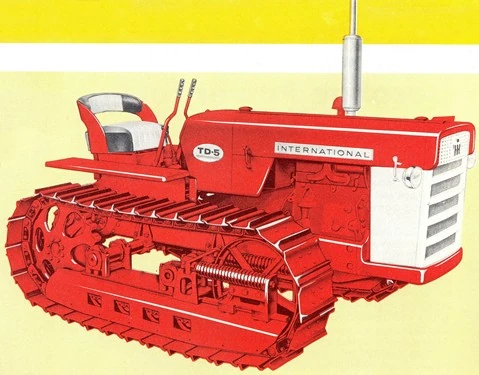

International TD-5 1960 long

International TD-5 with 5-roller tracks

For Company history, see International Harvester.

The International T-5 series compact crawlers were built by International Harvester of Canada. They were different in design from the U.S.-built [[International T-340 series|T-340 series], with smaller dimensions and a lower profile. The T-340s were built for industrial purposes as well as agricultural while the T-5s (and slightly smaller T-4) were mainly designed for agricultural use, especially in orchards.

The T-5 was the very similar to the T-4, with the same dimensions but a slightly higher weight. The engine was the slightly larger 135 ci four from the T-340, adding 3 more pto hp and 3 more drawbar hp. The TD-5 was the diesel version of the T-5, with the British International BD-144 engine, as used in the McCormick International B-275, but set at a higher rpm.

Timeline Edit

  • 1959 - International T-5 series introduced in US
  • 1960 - T-5 series discontinued in US

Specific model listingEdit

Factory locations Edit

  • International Harvester Co. of Canada, Hamilton, Ontario
  • Melrose Park, Illinois, USA

Specification Edit

  • Track gauge: 38", 48", or 68"
  • Track rollers: 4 or 5 rollers, 0 top idlers
  • Track shoe width: 10" and 12"
  • 135 ci ohv 4-cylinder gasoline engine or 144 ci 4-cylinder diesel
  • 5-speed sliding gear transmission
  • Electric starting and lighting
  • Drawbar
  • Live pto 1000 rpm

Variations and Options Edit

  • Wide gauge version
  • 5-roller track frame
  • Optional track shoe width: 12" or 14"
  • Torque Amplifier 2-speed planetary
  • 3-point hitch (Category 1)
  • Hydraulic system
  • Constant running pto

Serial Numbers Information Edit

Year Serial no. run
start
Serial no. run
End
Number Built Notes
1959 501 1344 844 Calculated from serial range
1960 1345 4184 exists
Total built

Preservation Edit

No information on any individual examples of these tractors in preservation is currently available on here.

Do you know of any examples to list ?
