International TD-14

Talk0
14,895pages on
this wiki

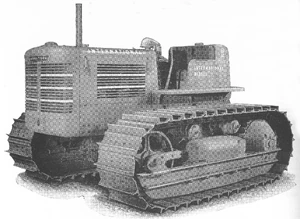

International TD-14 1940

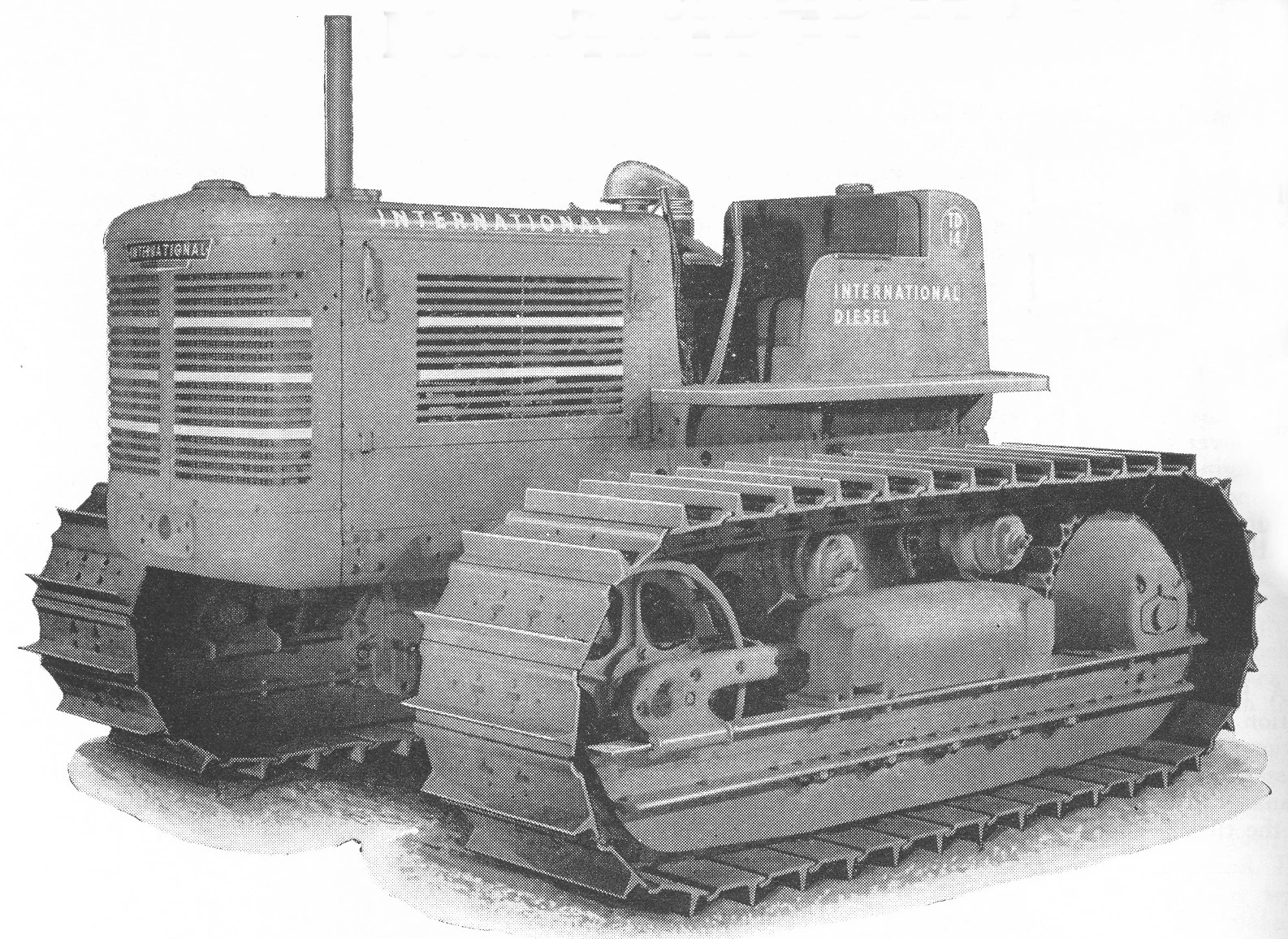

International TD-14 wide gauge 1940
Model history
Model introduced 1939
Model discontinued 1949
Model status Discontinued
No. produced 26,141
Preceded by McCormick-Deering TD-40
Superseded by International TD-14A
Engine Specification
Engine make International
Engine model D-461
Fuel type diesel
Power hp 62 belt, 52 drawbar
Governed rpm 1300
Displacement cu in /(litre) 461 ci
No. of Cylinders 4
Bore in (mm) 4.75"
Stroke in (mm) 6.5"
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type dual-range sliding gear
Clutch Rockford single plate
Gearbox make International
Forward 6
Reverse 2
Drive crawler
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 20" tracks
Tractor Dimensions
Length (inches/metres) 134"
Width (inches/meters) 92"
Height (inches/meters) 83"
Weight (nominal) lb/kg 15900 lb
Turning circle (nominal) inches/meters 17.5 ft
Wheelbase 74" gauge
Other info
Factories Melrose Park, Illinois, USA
Plow rating 6-8 14"
Nebraska Tests No. 343
This box: view · talk

The International TD-14 was a diesel engined crawler tractor built by the International Harvester company from 1939 to 1949 in Melrose Park, Illinois, USA.

Model historyEdit

For Company history, see International Harvester.

The International TD-14 was identical to the T-14 except for its diesel engine, which was essentially two-thirds of the 6-cylinder diesel of the TD-18. The TD-14 replaced the McCormick-Deering TD-40. At 62 belt and 52 drawbar hp the TD-14 had quite a bit more power than the 1940 3-cylinder Caterpillar D-6 but less than the 3-cylinder 2-cycle Allis-Chalmers HD-7 and a little less than the Cletrac DD. In mid-1941 Caterpillar replaced the 3-cylinder D-6 with the all-new 6-cylinder D-6 that was larger and more powerful than the TD-14. When the D-6 got a larger engine in 1947, the TD-14 was falling behind its main competition. In 1949 International brought out the more powerful TD-14A.

Timeline Edit

Factory locations Edit

  • Melrose Park, Illinois, USA

Specification Edit

See Infobox for basic details

  • Track gauge: 55"
  • Track shoe width: 16" (1940)

Variations and Options Edit

  • Optional track gauge: 74"
  • Optional track shoe widths: 14", 18", 20", or 22"
  • Belt pulley
  • Pto
  • Electric lights and starting

Serial Numbers Information Edit

Year Serial no. run
start
Serial no. run
End
Number Built Notes
1939 TDF501 574 74
1940 575 2044 1470
1941 2045 3855 1811
1942 3856 5379 1524
1943 5380 7450 2071
1944 7451 10727 3277
1945 10728 12703 1976
1946 12704 14436 1733
1947 14437 21019 6583
1948 21020 23354 2335
1949 23355 26759 3404
Total built 26141[1]

Preservation Edit

Little information on individual examples of these tractors in preservation is currently available on here.

Do you know of any more examples to list ?

List of Preserved International T-14 and TD-14 series tractors (All variants)
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Make & model reg no serial no date built engine owner Image needed LHB

set to 150px
seen at misc info
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.


Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  1. Wendel, C. H., 150 Years of International Harvester, Crestline Publishing, Sarasota, Florida, 1981
