International TD-15C

Talk0
14,910pages on
this wiki

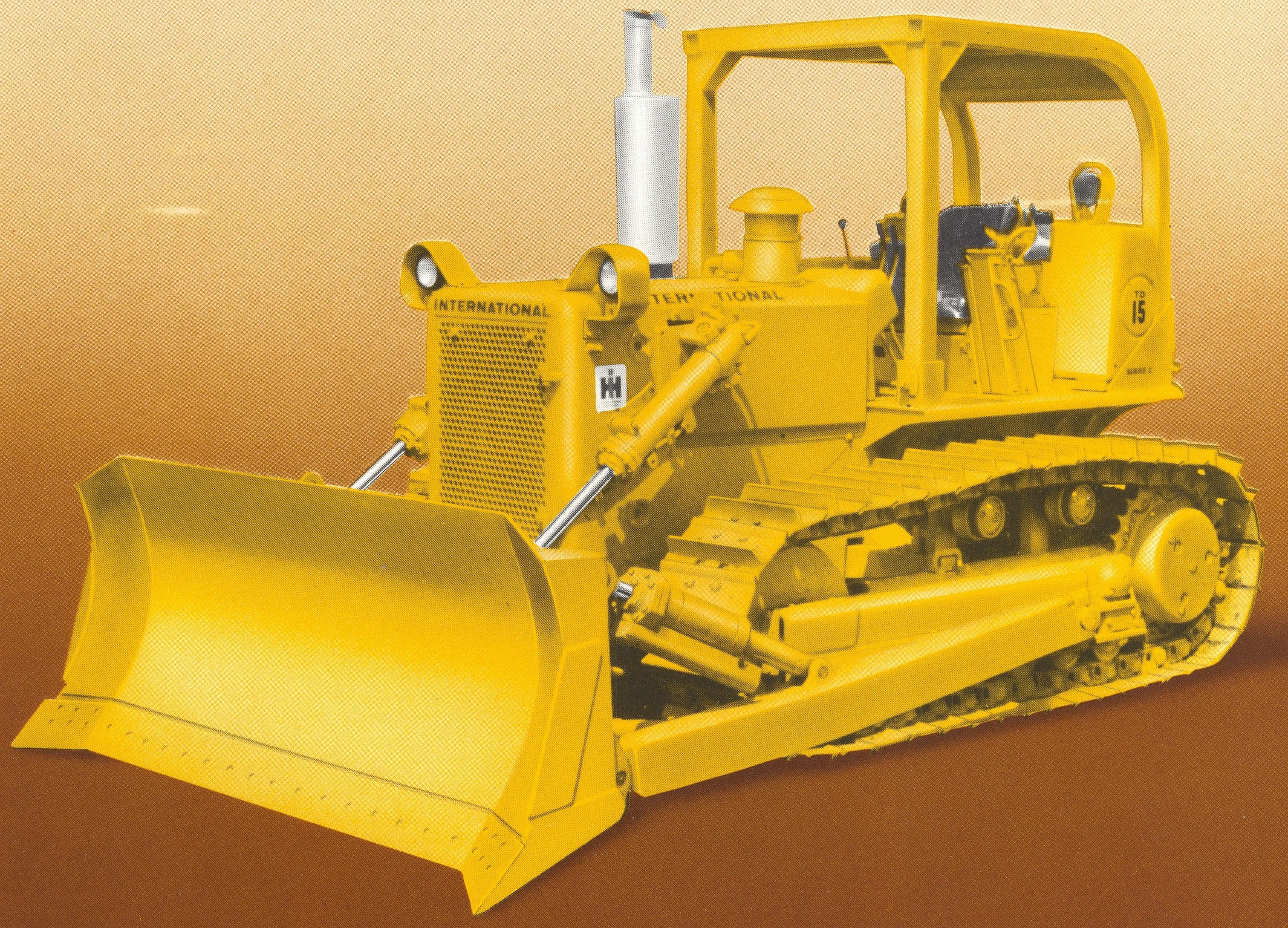

International TD-15C 1975 Pay Dozer
International TD-15C Pay Dozer 1975
Model history
Model introduced 1972
Model discontinued 1984
Model status Discontinued
No. produced 5,671
Preceded by TD-15B
Superseded by Dresser International TD-15C
Engine Specification
Engine make International
Engine model DT-466
Fuel type diesel
Power hp 140 net
Governed rpm 2500
Displacement cu in /(litre) 466 ci
No. of Cylinders 6
Bore in (mm) 4.3"
Stroke in (mm) 4.35"
Cooling system water
Naturally aspirated, Turbo or Supercharged turbocharged
Transmission Details
Transmission type power shift with torque converter
Forward 4
Reverse 4
Drive crawler
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 18" tracks
Tractor Dimensions
Weight (nominal) lb/kg 24163 lb
Other info
Factories USA
Plow rating
This box: view · talk

The International TD-15C was a diesel engined crawler tractor built by the International Harvester company from 1972 to 1984 in the USA.

Model historyEdit

For Company history, see International Harvester.

The International TD-15C replaced the TD-15B. The new model weighed approximately one ton more. The new DT-466 engine replaced the previous DT-407 and boosted the power output to 140 net hp, with 110 drawbar hp for gear drive model. The transmission choices were the same 5-speed gear drive and 4-speed power shift as before. The TD-15C competed with the Allis-Chalmers HD-11 Series B, Caterpillar D-6C and D-6D, Fiat-Allis 11B, and John Deere JD850. In 1984 International Harvester sold its construction equipment operations to Dresser Industries, which continued to build the TD-15C. Weight for 1973 model was 38000 lbs.

Timeline Edit

  • 1972 - TD-15C replaced TD-15B
  • 1984 - TD-15C production taken over by Dresser Industries

Factory locations Edit

  • Melrose Park, Illinois, USA (Chicago area)

Specification Edit

See Infobox for basic details

  • Track frame: 6 rollers, 2 idlers
  • Track shoe width: 18"
  • 5-speed gear drive transmission

Variations and Options Edit

Serial Numbers Information Edit

Year Serial no. run
start
Serial no. run
End
Number Built Notes
1972 501 1129 629 Total calculated
1973 1130 1848 719
1974 1849 2750 901
1975 2750 3320 571
1976 3321 3620 300
1977 3621 3959 339
1978 3960 4515 556
1979 4516 4900 385
1980 4901 5194 294
1981 5195 5700 506
1982 5701 5891 191
1983 5892 6099 208
1984 6100 6171 72
Total built 5671

Preservation Edit

Little information on individual examples of these tractors in preservation is currently available on here.

Do you know of any more examples to list ?

List of Preserved International T-15 and TD-15 series tractors
inc A,B, C and Series 150 & Series 151 + Special Applications (agg) versions.
view  talk  edit

Make + Model No. Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Image needed LHB


Image needed LHB


Please add any tractor with known reg or serial no. with Photo if possible.
Make & model reg no serial no date built engine owner Image needed LHB

set to 150px
seen at misc info
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.

Gallery Edit

Add extra photos here please.
