International TD-15C Custom Application
Talk0
13,374pages on
this wiki
this wiki
 International TD-15C Custom Application | |
| Model history | |
|---|---|
| Model introduced | 1972 |
| Model discontinued | 1973 |
| Model status | Discontinued |
| Preceded by | TD-15B Custom Application |
| Engine Specification | |
| Engine make | International |
| Engine model | DT-466 |
| Fuel type | diesel |
| Power hp | 140 net, 110 drawbar |
| Governed rpm | 2500 |
| Displacement cu in /(litre) | 466 ci |
| No. of Cylinders | 6 |
| Bore in (mm) | 4.3" |
| Stroke in (mm) | 4.35" |
| Cooling system | water |
| Naturally aspirated, Turbo or Supercharged | turbocharged |
| Transmission Details | |
| Transmission type | sliding gear |
| Forward | 5 |
| Reverse | 4 |
| Drive | crawler |
| General Data | |
| Linkage Category | drawbar |
| Tyre Sizes (std/options) | |
| Front | 20" tracks |
| Tractor Dimensions | |
| Length (inches/metres) | 152" |
| Width (inches/meters) | 94" |
| Height (inches/meters) | 86" |
| Weight (nominal) lb/kg | 24762 lb |
| Wheelbase | 74" gauge |
| Other info | |
| Factories | USA |
| Plow rating | |

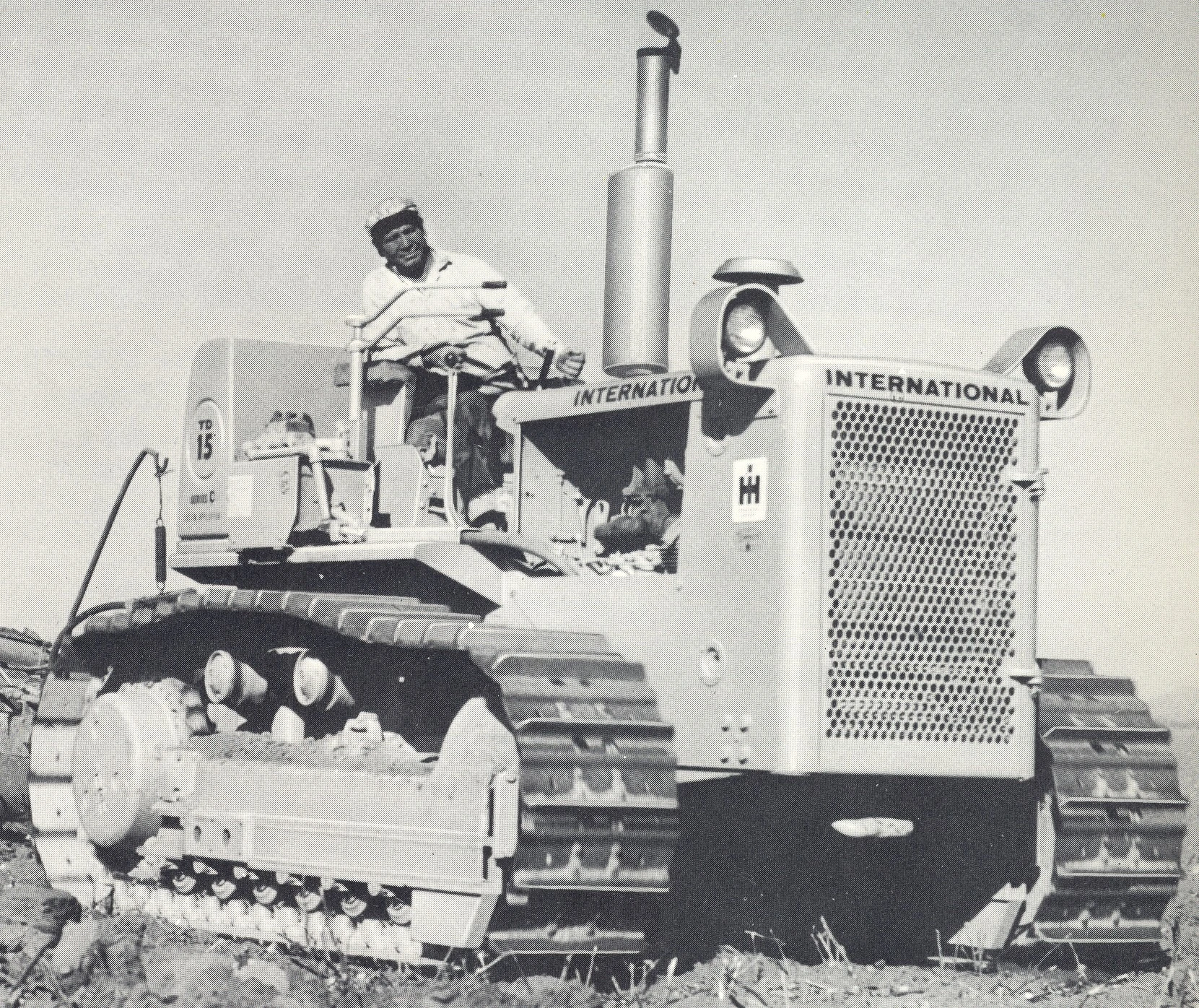

The International TD-15C Custom Application was a diesel engined crawler tractor built by the International Harvester company from 1972 to 1973 in the USA.
Contents |
Model history
Edit
- For Company history, see International Harvester.
The International TD-15C Custom Application replaced the TD-15B Custom Application. The new model was the same as the gear drive version of the regular TD-15C except for a larger fuel tank and wider (20") track shoes. The 110 drawbar hp TD-15C competed with the 106-hp Allis-Chalmers HD-11 Series B Agricultural but came between Caterpillar's 90-hp D-5 Special Application and 125-hp D-6D Special Application
Timeline Edit
- 1972 - TD-15C Custom Application replaced TD-15B Custom Application
- 1973 - Production discontinued
Factory locations Edit
Specification Edit
See Infobox for basic details
- Track frame: 6 rollers, 2 idlers
- Track shoe width: 20"
- 5-speed gear drive transmission
Variations and Options Edit
Serial Numbers Information Edit
Included with regular TD-15C
Preservation Edit
Little information on individual examples of these tractors in preservation is currently available on here.
- Do you know of any more examples to list ?
| Make + Model No. | Reg No. (if known) | Serial No. | Build-Date | Engine-Type/Make | Owner (if known) | Photo | Were seen/Featured in | Other info |
|---|---|---|---|---|---|---|---|---|
| ||||||||
|
| ||||||||
| Please add any tractor with known reg or serial no. with Photo if possible. | ||||||||
| Make & model | reg no | serial no | date built | engine | owner |
| seen at | misc info |
| Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor. | ||||||||
