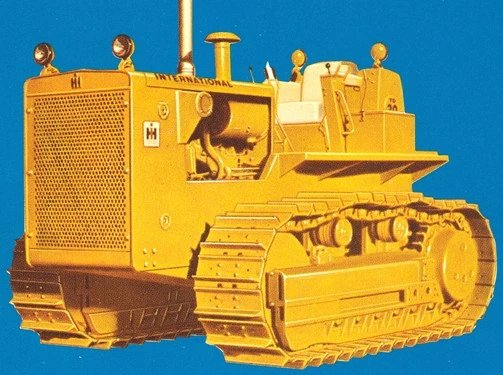

International TD-20B 1967
International TD-20B 1967
Model history
Model introduced 1963
Model discontinued 1970
Model status Discontinued
Preceded by TD-20 Series 201
Superseded by TD-20C
Engine Specification
Engine make International
Engine model DT-429
Fuel type diesel
Power hp 160 net
Governed rpm 2300
Displacement cu in /(litre) 429 ci
No. of Cylinders 6
Bore in (mm) 4.5"
Stroke in (mm) 4.5"
Cooling system water
Naturally aspirated, Turbo or Supercharged turbocharged
Transmission Details
Transmission type power shift with torque converter
Forward 4
Reverse 4
Drive crawler
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 20" tracks
Tractor Dimensions
Length (inches/metres) 164"
Width (inches/meters) 94"
Height (inches/meters) 95"
Weight (nominal) lb/kg 30300 lb
Wheelbase 74" gauge
Other info
Factories USA
Plow rating
Approximate Cost new in (year) $38800 (1970)
This box: view · talk

The International TD-20B was a diesel engined crawler tractor built by the International Harvester company from 1963 to 1970 in the USA.

Model historyEdit

For Company history, see International Harvester.

The International TD-20B replaced the TD-20 Series 201. A new 429 ci turbocharged 6-cylinder diesel, similar in design to the 361 ci of the TD-15B, replaced the 691 ci engine of the old TD-20 Series 201. The International DT-429 engine was rated at 150 net hp initially and increased to 160-hp in 1965. A 4-speed partial power shift transmission (2-speed power shift combined with 2-speed manual and torque converter) replaced the old manual 6-speed.

In 1963 the 150-hp International TD-20B, with its small high-speed turbocharged engine, was equal in power to the Allis-Chalmers HD-16 with its big low-speed non-turbo engine but the International was 10 hp behind the Caterpillar D-7E. International went to 160 hp in 1965 but the new power shift Allis-Chalmers HD-16DP jumped to 170 hp and Caterpillar went to 180 hp in 1966.

Timeline Edit

  • 1963 - TD-20B replaced TD-20 Series 201
  • 1971 - TD-20C replaced TD-20B

Factory locations Edit

Specification Edit

See Infobox for basic details

  • Track frame: 6 rollers, 2 top idlers
  • Track gauge: 74"
  • Track shoe width: 20"

Variations and Options Edit

  • Optional track shoe width: 24"
  • Belt pulley
  • Pto

Serial Numbers Information Edit

Year Serial no. run
start
Serial no. run
End
Number Built Notes
1963 4001 4670 670 Total calculated from serial range
1964 4671 5660 990
1965 5661
1966 20140 20857 718
1967 20858 22173 1316
1968 22174 22764 591
1969 22765 23240 476
1970 23241
Total built

Preservation Edit

No information on any individual examples of these tractors in preservation is currently available on here.
