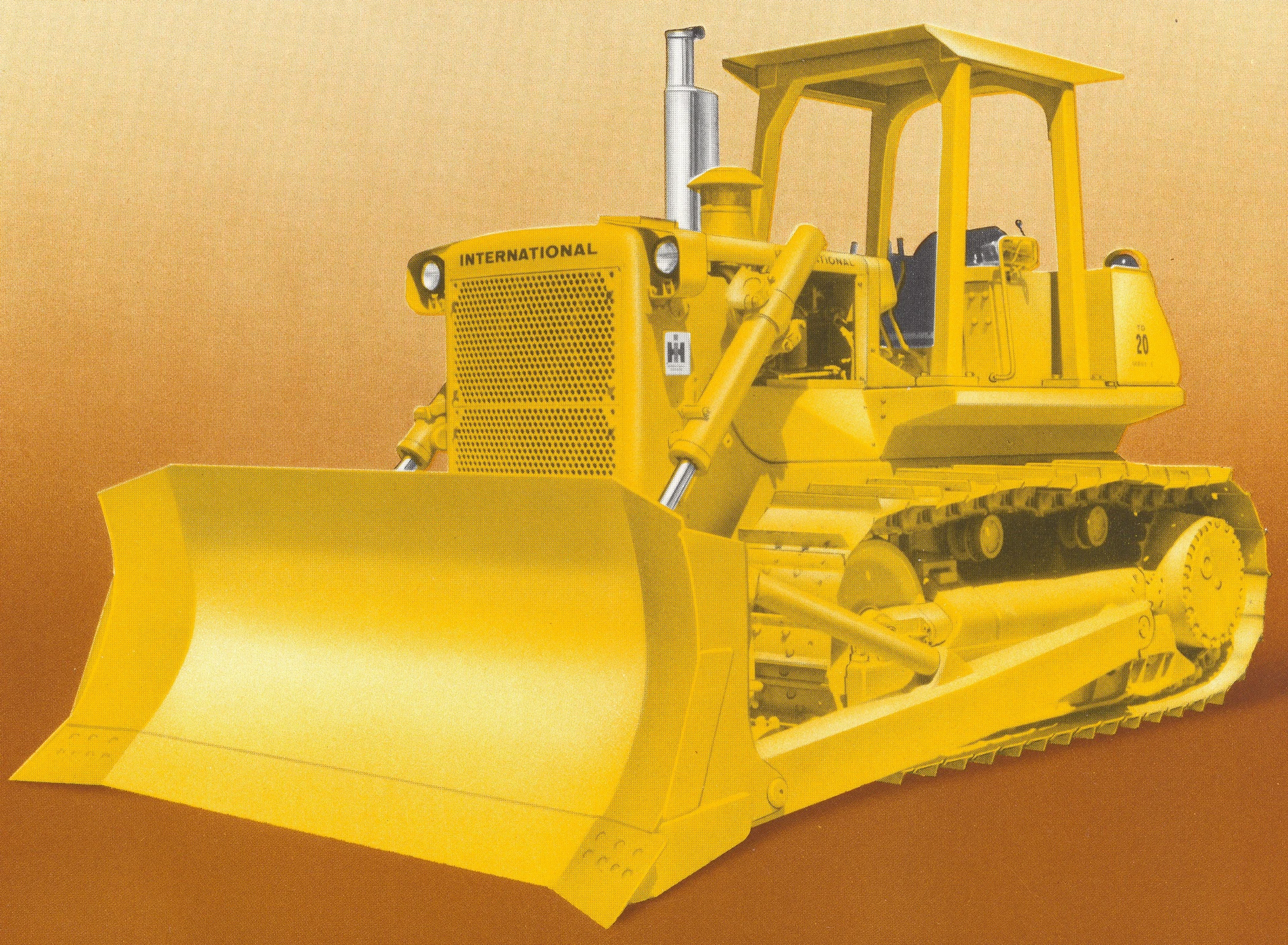

International TD-20E 1975
International TD-20E Pay Dozer, 1975
Model history
Model introduced 1974
Model discontinued 1984
Model status Discontinued
No. produced 2,808
Preceded by International TD-20C
Superseded by Dresser International TD-20E
Engine Specification
Engine make International
Engine model DVT-800
Fuel type diesel
Power hp 210 net
Governed rpm 2100
Displacement cu in /(litre) 798 ci
No. of Cylinders V8
Bore in (mm) 5.313"
Stroke in (mm) 4.5"
Cooling system water
Naturally aspirated, Turbo or Supercharged turbocharged
Transmission Details
Transmission type power shift combined with torque converter and power shift tracks
Forward 6
Reverse 6
Drive crawler
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 22" tracks
Tractor Dimensions
Length (inches/metres) 176"
Width (inches/meters) 100"
Height (inches/meters) 98"
Weight (nominal) lb/kg 46,600 lb
Wheelbase 78" gauge
Other info
Factories USA
Plow rating
This box: view · talk

The International TD-20E was a diesel engined crawler tractor built by the International Harvester company from 1974 to 1984 in the USA.

Model historyEdit

For Company history, see International Harvester.

The International TD-20E was considerably larger and heavier than the TD-20C it replaced. It was powered by the new International DVT-800 turbocharged 4-valve-per-cylinder V8 diesel engine. The standard transmission was a 3-speed power shift with torque converter. Power-shifted 2-speed tracks were optional, providing 6 forward and 6 reverse speeds along with powered turns (power to both tracks). The 210 net hp TD-20E competed with the 195-hp Allis-Chalmers HD-16 Series B, the 200-hp Caterpillar D-7G, 195-hp Fiat-Allis 16-B, 223-hp Fiatallis FD-20, and 220-hp Komatsu D-85E.

Factory locations Edit

Libertyville (Chicago), Illinois

Specification Edit

See Infobox for basic details

  • Track frame: 6 rollers, 2 top idlers
  • Track gauge: 78"
  • Track shoe width: 22"

Variations and Options Edit

Serial Numbers Information Edit

Year Serial no. run
start
Serial no. run
End
Number Built Notes
1974 30001 30041 41 Total calculated from serial range
1975 30042 30277 236
1976 30278 30507 230
1977 30508 30885 378
1978 30886 31222 337
1979 31223 31667 445
1980 31668 31926 259
1981 31927 31977 51
1982 31978 32028 51
1983 32029 32734 706
1984 32735 32808 74
Total built 2808


Preservation Edit

No information on any individual examples of these tractors in preservation is currently available on here.

Do you know of any examples to list ?

Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)
