International TD-25C Custom Application
Talk0
13,392pages on
this wiki
this wiki

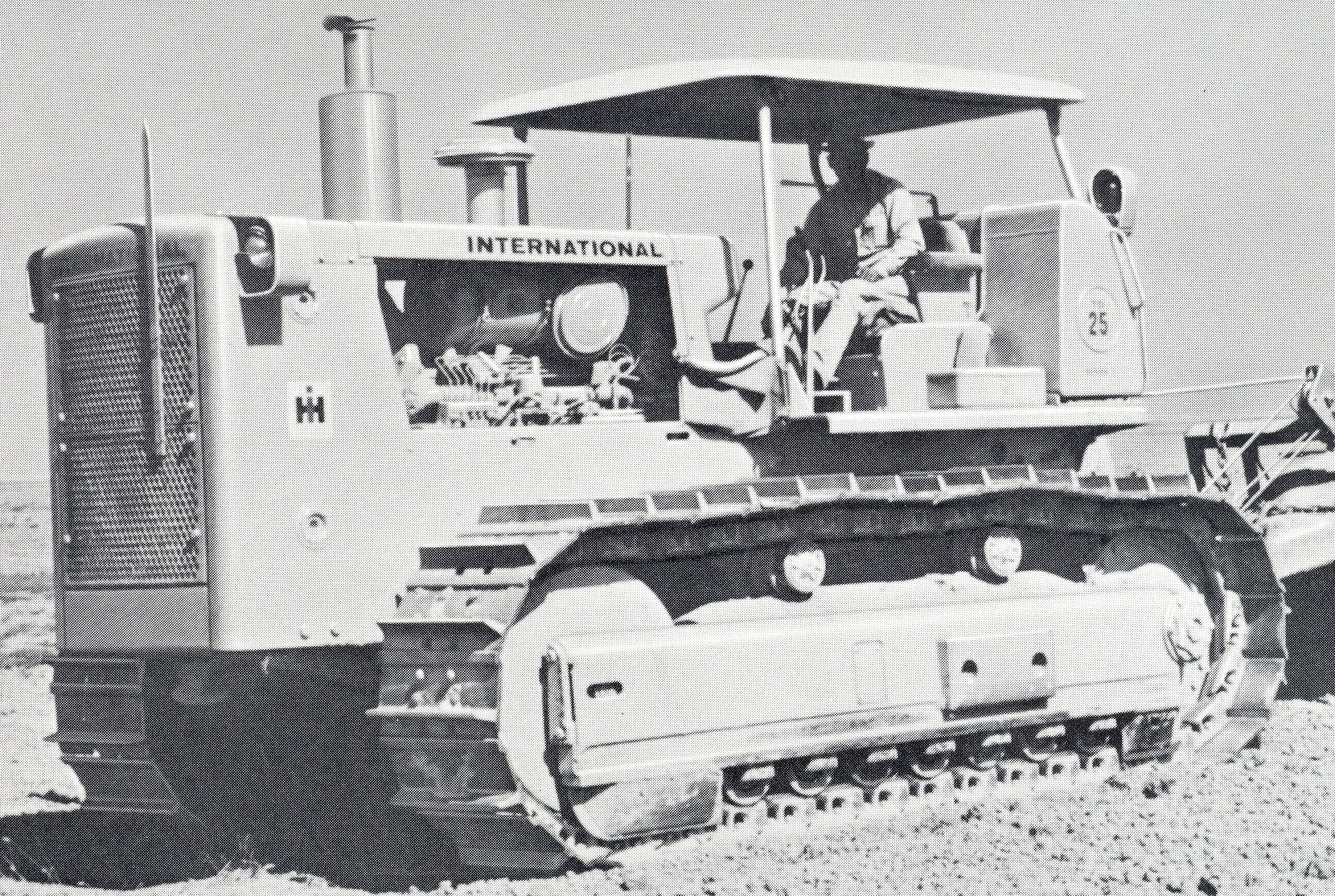

 International TD-25C Custom Application, 1972 | |
| Model history | |
|---|---|
| Model introduced | 1971 |
| Model discontinued | 1975 |
| Model status | Discontinued |
| Preceded by | New model |
| Engine Specification | |
| Engine make | International |
| Engine model | DTI-817B |
| Fuel type | diesel |
| Power hp | 285 net engine, 230 drawbar |
| Governed rpm | 1900 |
| Displacement cu in /(litre) | 817 ci |
| No. of Cylinders | 6 |
| Bore in (mm) | 5.375 in |
| Stroke in (mm) | 6 in |
| Cooling system | water |
| Naturally aspirated, Turbo or Supercharged | turbocharged & intercooled |
| Transmission Details | |
| Transmission type | 4-speed syncromesh with 2-speed planetary power shift in each track |
| Gearbox make | International |
| Forward | 8 |
| Reverse | 8 |
| Drive | crawler |
| General Data | |
| Linkage Category | drawbar |
| Tyre Sizes (std/options) | |
| Front | 22" tracks |
| Tractor Dimensions | |
| Length (inches/metres) | 206" |
| Width (inches/meters) | 106" |
| Height (inches/meters) | 101" |
| Weight (nominal) lb/kg | 52095 lb |
| Wheelbase | 84" gauge |
| Other info | |
| Factories | USA |
| Plow rating | |
The International TD-25C Custom Application was a diesel engined crawler tractor built by the International Harvester company from 1971 to 1975 in the USA.
Contents |
Model history
Edit
- For Company history, see International Harvester.
The International TD-25C Custom Application was essentially identical to the gear drive 285 hp (213 kW) TD-25C without the dozer blade. International advertised it as the largest agricultural tractor on the market. Later Komatsu made the 300 hp (220 kW) net D150A-1 Agricultural crawler.
Timeline Edit
- 1971 - TD-25C Custom Application introduced
- ~1975 - Model discontinued
Factory locations Edit
- USA
Specification Edit
See Infobox for basic details
- Track frame: 7 rollers, 2 top idlers
- Track gauge: 84"
- Track shoe width: 22"
Variations and Options Edit
- Optional track shoe width: 28"
Serial Numbers Information Edit
Included with regular TD-25C
Preservation Edit
No information on any individual examples of these tractors in preservation is currently available on here.
- Do you know of any examples to list ?
Gallery Edit
Add extra photos here please.
International TD-25C Custom Application, 1978
