International TD-30TC

Talk0
14,907pages on
this wiki

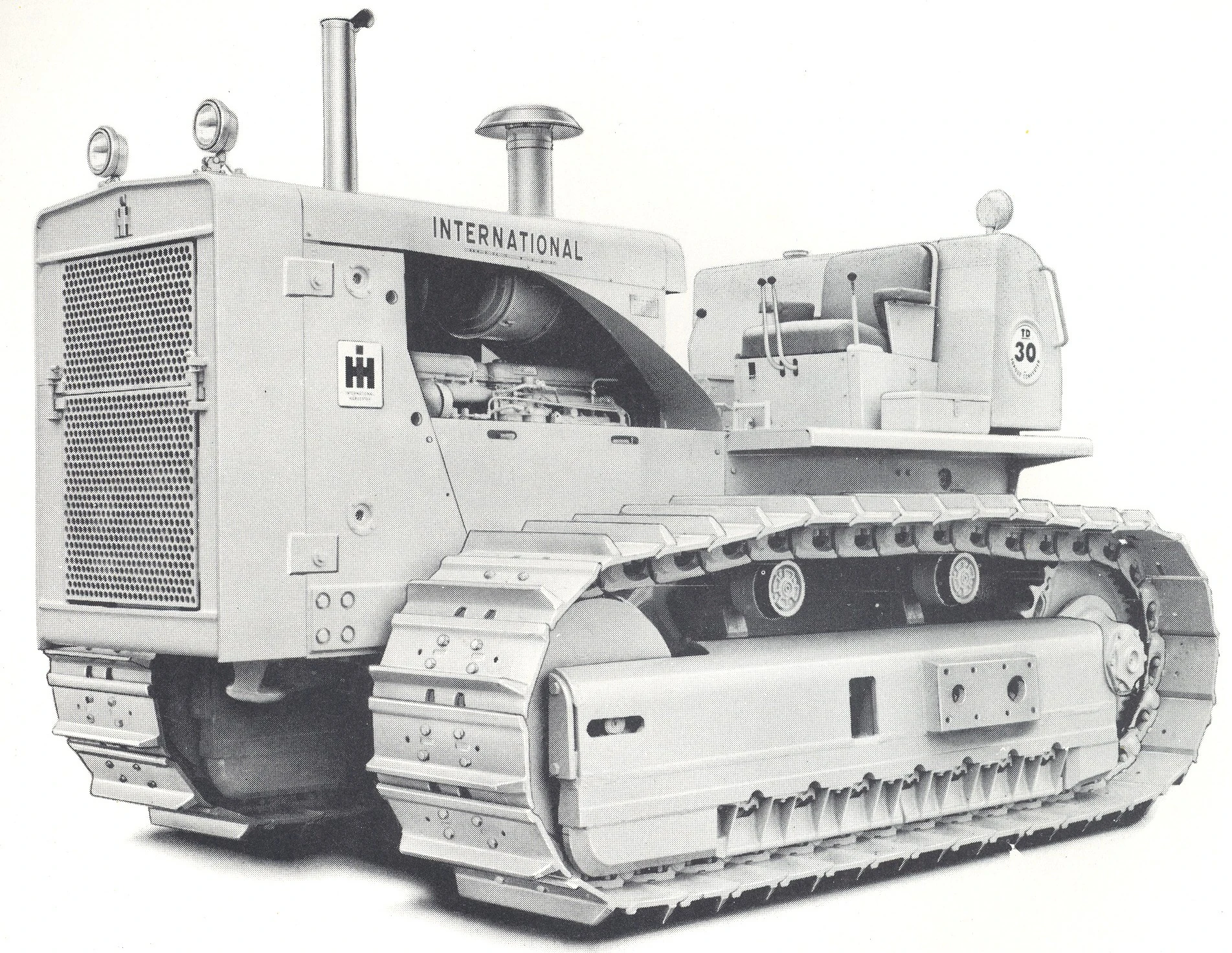

International TD-30 1962
International TD-30TC, 1962
Model history
Model introduced 1962
Model discontinued 1967
Model status Discontinued
No. produced 578
Preceded by New model
Superseded by International TD-25C
Engine Specification
Engine make International
Engine model DTI-817C
Fuel type diesel
Power hp 320 net engine
Governed rpm 2100
Displacement cu in /(litre) 817 ci
No. of Cylinders 6
Bore in (mm) 5.375 in
Stroke in (mm) 6 in
Cooling system water
Naturally aspirated, Turbo or Supercharged turbocharged & intercooled
Transmission Details
Transmission type 2-speed constant mesh with torque converter and 2-speed planetary power shift in each track
Gearbox make International
Forward 4
Reverse 4
Drive crawler
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 26" tracks
Tractor Dimensions
Length (inches/metres) 202"
Width (inches/meters) 110"
Height (inches/meters) 102"
Weight (nominal) lb/kg 55000 lb
Wheelbase 84" gauge
Other info
Factories USA
Plow rating
This box: view · talk

The International TD-30TC was a diesel engined crawler tractor built by the International Harvester company from 1962 to 1967 in the USA.

Model historyEdit

For Company history, see International Harvester.

For gear drive version see: International TD-30

The International TD-30TC used a more powerful intercooled version of the turbocharged engine from the gear drive TD-30. The International DTI-817C was also governed at a higher 2100 rpm. The transmission was the same as in the old TD-25TC Series 250: 2-speed constant mesh combined with torque converter and 2-speed power shift tracks. The 320 hp (240 kW) TD-30TC was about the size of the 1955 Caterpillar D9D that had founded this class of crawlers, but was quite a bit smaller and less powerful than the 385 hp (287 kW) 1962 Caterpillar D9G.

Timeline Edit

  • 1962 - TD-30TC introduced
  • 1965 - Model discontinued

Factory locations Edit

Specification Edit

See Infobox for basic details

  • Track frame: 7 rollers, 2 top idlers
  • Track gauge: 84"
  • Track shoe width: 26"

Variations and Options Edit

  • Optional track shoe width: 28"

Serial Numbers Information Edit

Year Serial no. run
start
Serial no. run
End
Number Built Notes
1962 1501 1675 175 Total calculated from serial range
1963 1676 1800 125
1964 1801 1940 140
1965 1941 2052 112
1966 2053 2078 26
1967 2079
Total built 578 Not including 1967

Preservation Edit

No information on any individual examples of these tractors in preservation is currently available on here.

Do you know of any examples to list ?

Gallery Edit

Add extra photos here please.
