International TD-8E
Talk0
13,410pages on
this wiki
this wiki

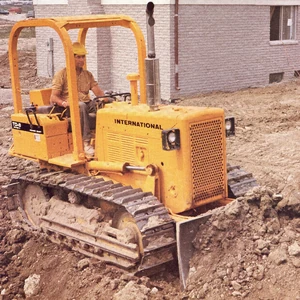

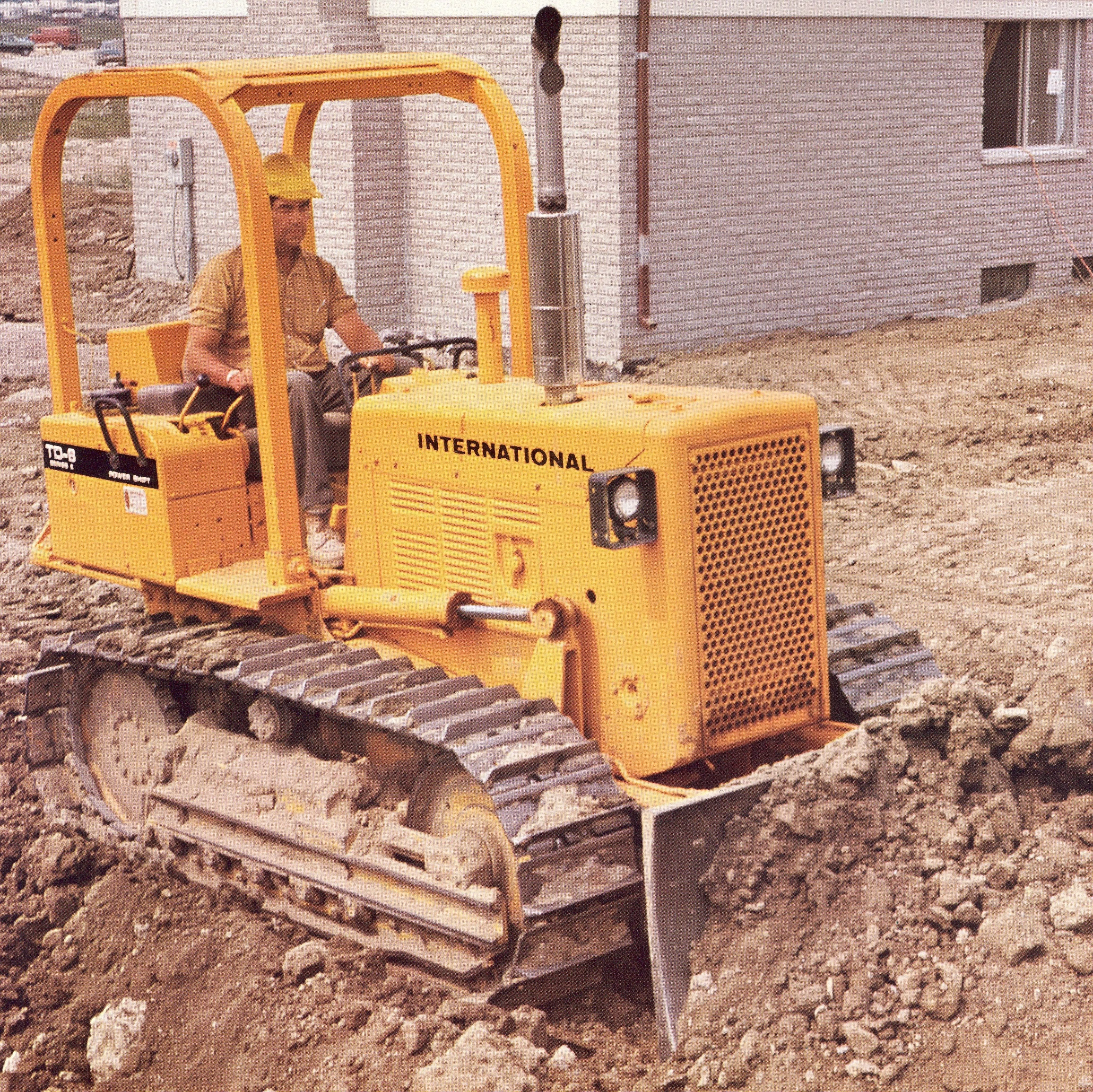

 International TD-8E 1975 | |
| Model history | |
|---|---|
| Model introduced | 1974 |
| Model discontinued | 1984 |
| Model status | Discontinued |
| No. produced | 3,560 (excluding 1981) |
| Preceded by | TD-8C Full Power Shift |
| Superseded by | Dresser International TD-8E |
| Engine Specification | |
| Engine make | International |
| Engine model | DT-239 |
| Fuel type | diesel |
| Power hp | 75 |
| Governed rpm | 2300 |
| Displacement cu in /(litre) | 239 ci |
| No. of Cylinders | 4 |
| Bore in (mm) | 3.875" |
| Stroke in (mm) | 5.062" |
| Cooling system | water |
| Naturally aspirated, Turbo or Supercharged | turbocharged |
| Transmission Details | |
| Transmission type | power shift with torque converter |
| Forward | 3 |
| Reverse | 3 |
| Drive | crawler |
| General Data | |
| Linkage Category | drawbar |
| Tyre Sizes (std/options) | |
| Front | 16" tracks |
| Tractor Dimensions | |
| Length (inches/metres) | 112" |
| Width (inches/meters) | 70" |
| Height (inches/meters) | 71" |
| Weight (nominal) lb/kg | 16,697 lb (with dozer) |
| Wheelbase | 54" gauge |
| Other info | |
| Factories | USA |
| Plow rating | |
The International TD-8E was a diesel engined crawler tractor built by the International Harvester company from 1974 to 1984 in the USA.
Contents |
Model history
Edit
- For Company history, see International Harvester.
The International TD-8E was an upgrade of the TD-8C Full Power Shift. The main change was the addition of a turbocharger to the 239 ci 4-cylinder diesel engine. The new power output of 78 net hp exceeded the 75 hp of the TD-9B, so the older model was dropped. The TD-8E competed with the Allis-Chalmers HD-6EP, Case 850B and 850C, Caterpillar D-4D, Fiat-Allis 8, Fiatallis FD-5, and John Deere JD550. In 1984 International Harvester sold its construction equipment operations to Dresser Industries, which continued to build the TD-8E.
Timeline Edit
- 1974 - TD-8E replaced the International TD-8C Full Power Shift
- 1984 - TD-8E production taken over by Hough-International Div., Dresser Industries
Factory locations Edit
Specification Edit
See Infobox for basic details
- Track frame: 5 rollers, 1 idler
- Track gauge: 54"
- Track shoe width: 16"
Variations and Options Edit
- Hydraulic system
- Backhoe
- Logging winch
- Logging arch
Serial Numbers Information Edit
| Year | Serial no. run start[1] | Serial no. run End | Number Built | Notes |
|---|---|---|---|---|
| 1974 | 5001 | 5520 | 520 | Total calculated |
| 1975 | 5521 | 5885 | 385 | |
| 1976 | 5886 | 6275 | 390 | |
| 1977 | 6276 | 6691 | 416 | |
| 1978 | 6692 | 7309 | 618 | |
| 1979 | 7310 | 7882 | 573 | |
| 1980 | 7883 | 8045 | 163 | |
| 1981 | 8046 | 9503 | Apparently new serial number series started mid-year | |
| 1982 | 9504 | 9645 | 142 | |
| 1983 | 9646 | 9859 | 214 | |
| 1984 | 9860 | 9998 | 139 | |
| Total built | 3560 | Excluding 1981 | ||
Gallery Edit
Add extra photos here please.
add your images here
See also Edit
- International TD-8C Full Power Shift
- List of Tractor Manufacturers
- List of International Harvester Vehicles
- Collection related info
- Shows and Meets - events featuring tractors and other machinery
- Clubs Listing - List of clubs including various tractor marques
- Collections - list of private collections with tractors (add yours)
- Museums - includes museums featuring tractors (please add missing ones)
References / sourcesEdit
External linksEdit
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
