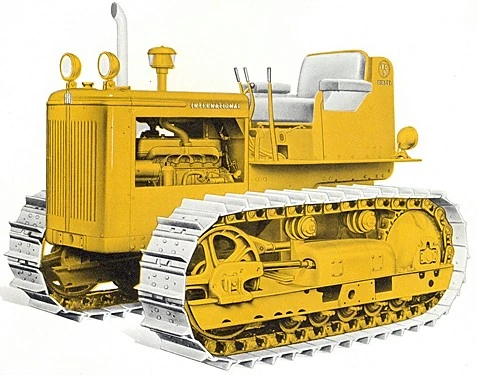

 International TD-9 Series 92 | |
| Model history | |
|---|---|
| Model introduced | 1959 |
| Model discontinued | 1962 |
| Model status | Discontinued |
| No. produced | 6,000 |
| Preceded by | TD-9 Series 91 |
| Superseded by | TD-9B |
| Engine Specification | |
| Engine make | International |
| Engine model | DT-282 |
| Fuel type | diesel |
| Power hp | 66 net, 56 drawbar |
| Governed rpm | 1700 |
| Displacement cu in /(litre) | 282 ci |
| No. of Cylinders | 6 |
| Bore in (mm) | 3.6875" |
| Stroke in (mm) | 4.390625" |
| Cooling system | water |
| Naturally aspirated, Turbo or Supercharged | turbocharged |
| Transmission Details | |
| Transmission type | sliding gear |
| Gearbox make | International |
| Forward | 5 |
| Reverse | 1 |
| Drive | crawler |
| General Data | |
| Linkage Category | drawbar |
| Tyre Sizes (std/options) | |
| Front | 13" tracks |
| Tractor Dimensions | |
| Length (inches/metres) | 117" |
| Height (inches/meters) | 75" |
| Weight (nominal) lb/kg | 11800 lb |
| Turning circle (nominal) inches/meters | 14 ft |
| Wheelbase | 60" gauge |
| Other info | |
| Factories | USA |
| Plow rating | 6-7 |
| Approximate Cost new in (year) | $10250 (1962) |
The International TD-9 Series 92 was a diesel engined crawler tractor built by the International Harvester company from 1959 to 1962 in the USA.
Contents |
Model history
Edit
- For Company history, see International Harvester.
The International TD-9 Series 92 replaced the Series 91. The new model was the same size and looked about the same but a lightly-turbocharged version of the smooth-running 282 ci 6-cylinder diesel engine from the wheel tractor line replaced the old 350 ci four. The TD-9 Series 92 was fairly evenly matched with the gear-drive Allis-Chalmers HD-6, Caterpillar D-4, and Oliver OC-12.
Timeline Edit
- 1959 - 6-cylinder TD-9 Series 92 replaced Series 91
- 1962 - TD-9B replaced TD-9 Series 92
Specification Edit
See Infobox for basic details
- Track gauge: 60"
- Track frame: 5 rollers, 2 idlers
- Track shoe width: 13"
- 281 ci turbocharged 6-cylinder diesel engine
- 5-speed transmission
- Electric starting and lighting
- Drawbar
Variations and Options Edit
- Optional track shoe width: 18"
- Pto
- Hydraulic system
Factory locations Edit
Serial Numbers Information Edit
| Year | Serial no. run start[1] | Serial no. run End | Number Built | Notes |
|---|---|---|---|---|
| 1959 | 501 | 2352 | 1852 | TD-9 Series 92 |
| 1960 | 2353 | 3894 | 1542 | |
| 1961 | 3895 | 5099 | 1205 | |
| 1962 | 5100 | 6501 | 1402 | |
| Total built to date | 6000[2] | |||
