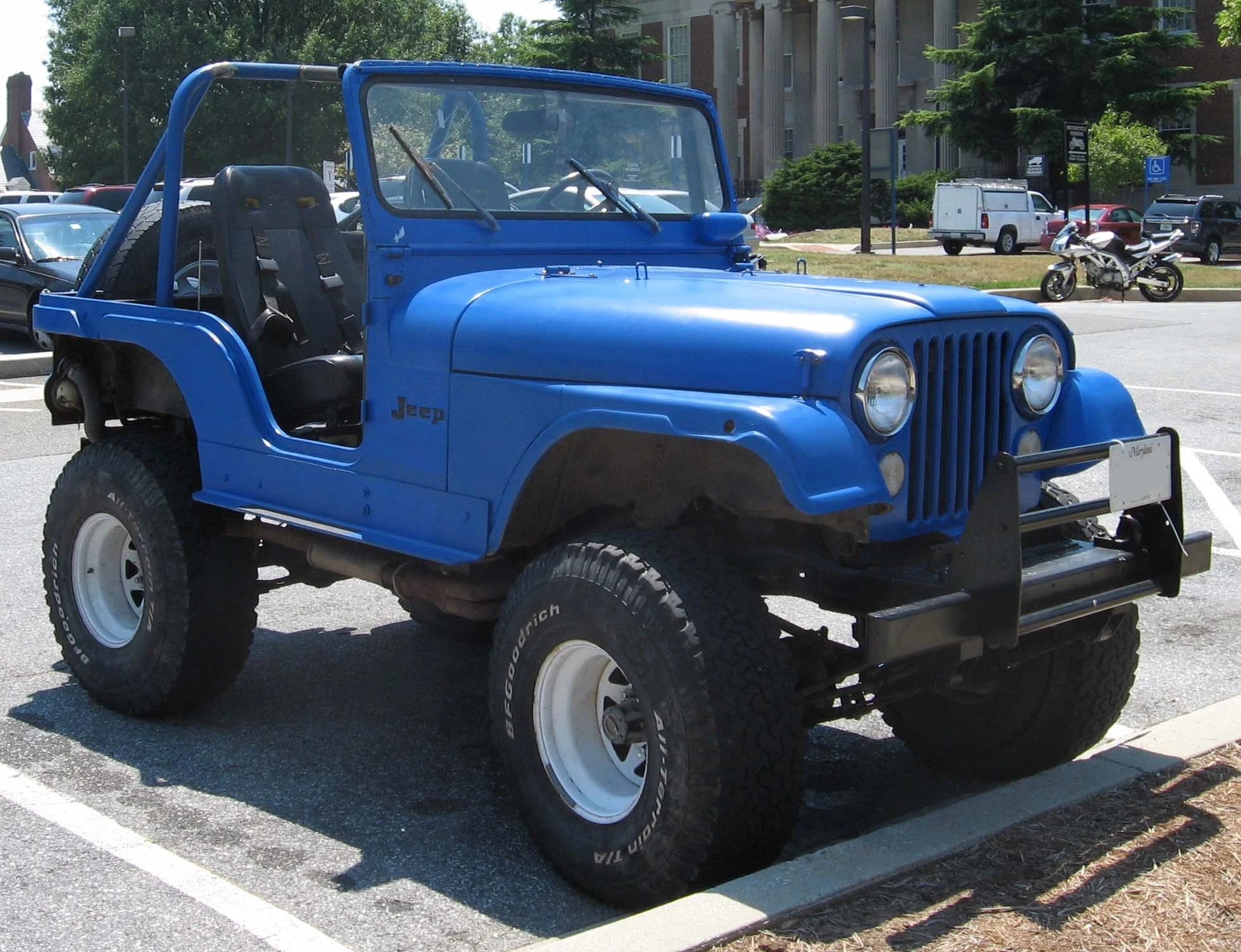

Jeep CJ
[[File:Jeep-CJ|frameless|upright=1.25|alt=]]
Manufacturer Willys-Overland (1944-1953)
Kaiser-Jeep (1953-1970)
American Motors Corporation (1970-1987)
Production 1944-1986
Assembly Toledo, Ohio, United States
Successor Jeep Wrangler
Jeep Comanche (For pickup version)
Class Compact sport utility vehicle
2-door pickup truck
Body style(s) 2-door SUV
2-door convertible
Layout Front engine, rear-wheel drive / four-wheel drive

The Willys CJ (later Jeep CJ) (or Civilian Jeep) is a public version of the famous Willys Military Jeep from World War II.

The first CJ prototype (the Willys CJ-2) was introduced in 1944 by Willys, and the same basic vehicle stayed in production through seven variants and three corporate parents until 1986.

A variant of the CJ is still in production today under license. The last CJs, the CJ-7 and CJ-8, were replaced in 1987 by the Jeep Wrangler.

Also available were two-wheel-drive variants, known as DJs.[1]

CJ-1Edit

Willys-Overland CJ-1
Production 1944

By 1944, the Allies were confident the war would be won. This allowed Willys to consider designing a Jeep for the post-war civilian market. Documentation is hard to come by, but it seems that a Willys-Overland CJ-1 (for "Civilian Jeep-1") was running by May of that year. The CJ-1 was apparently an MB that had been modified by adding a tailgate, drawbar, and a civilian-style canvas top. None of the CJ-1s built have survived, and it is not known (at this writing) how many were built.[2]

CJ-2Edit

Willys-Overland CJ-2
Production 1944-1945

Although it bore the CJ name, the Willys-Overland CJ-2 was not really available at retail. The CJ-2s, also known as "AgriJeeps," were the second generation prototype for the first production civilian Jeep, and were used solely for testing purposes. It was directly based on the military Willys MB, using the same Willys Go Devil engine, but stripped of all military features, particularly the blackout lighting. They had tailgates, Power Take-offs ("PTO"s), engine governors, column-shift T90 manual transmissions, 5.38 gears, 2.43:1 low-range transfer cases, and driver's-side tool indentations. The earlier models had brass plaques on the bonnet and windscreen that read "JEEP". Later models were stamped "JEEP" a la the familiar "WILLYS" stamping that appeared on the CJ-2A and later models. Some CJ-2s had "AgriJeep" plaques affixed to the dash. The spare tire was mounted forward of the passenger-side rear wheel on the earlier models and aft of the rear wheel on later ones. It seems that CJ-2s were distributed to "agricultural stations" for evaluation purposes. Of the 45 CJ-2s built, serial numbers CJ2-06, CJ2-09, CJ2-11, CJ2-12, CJ2-14, CJ2-26, CJ2-32, CJ2-37 and CJ2-39 have survived. Only CJ2-09 has been restored.[2]

CJ-2AEdit

Willys-Overland CJ-2A

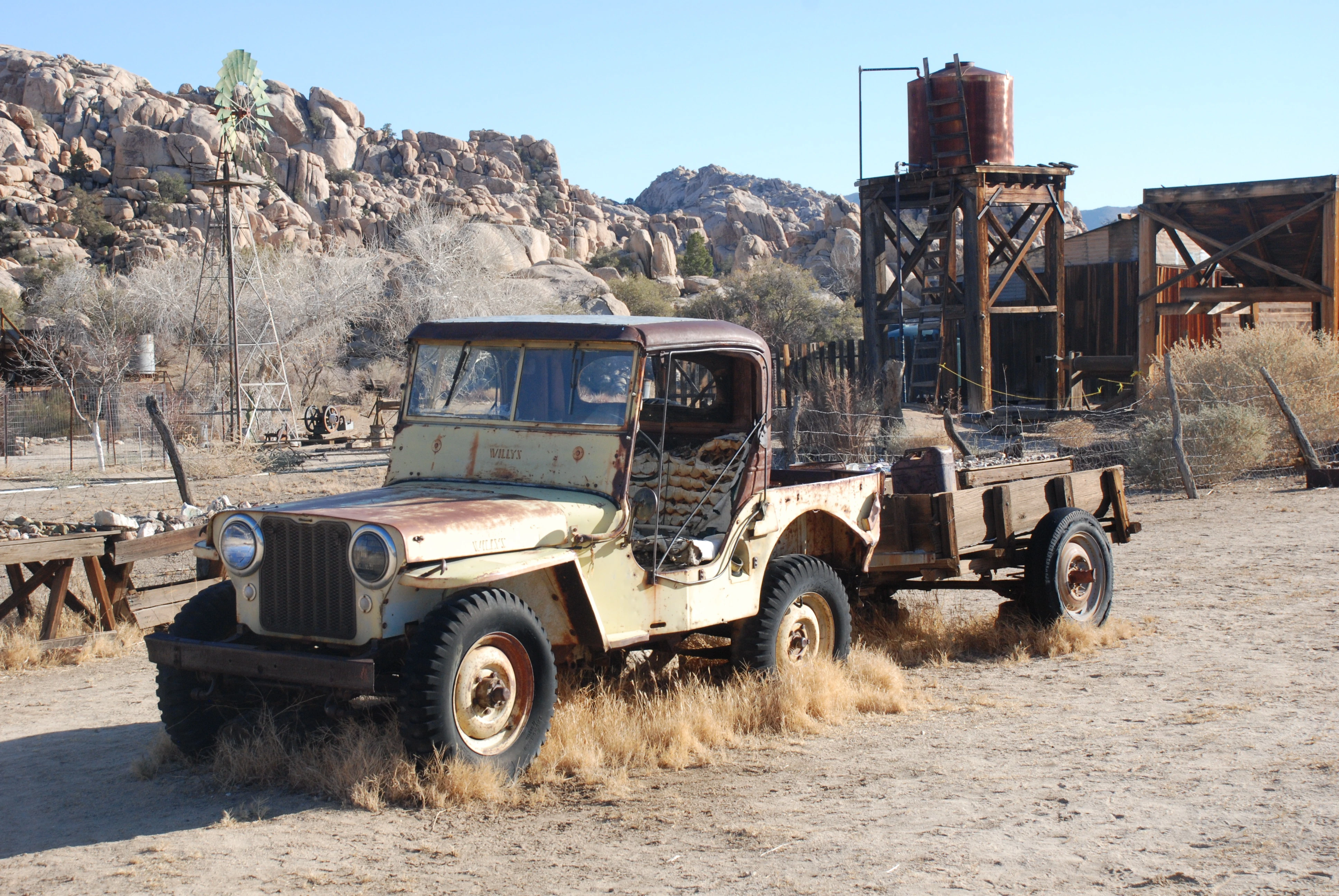

[[File:Desert Queen Ranch - Willy's Jeep|frameless|upright=1.25|alt=]]
Production 1945-1949
Transmission(s) 3-speed manual

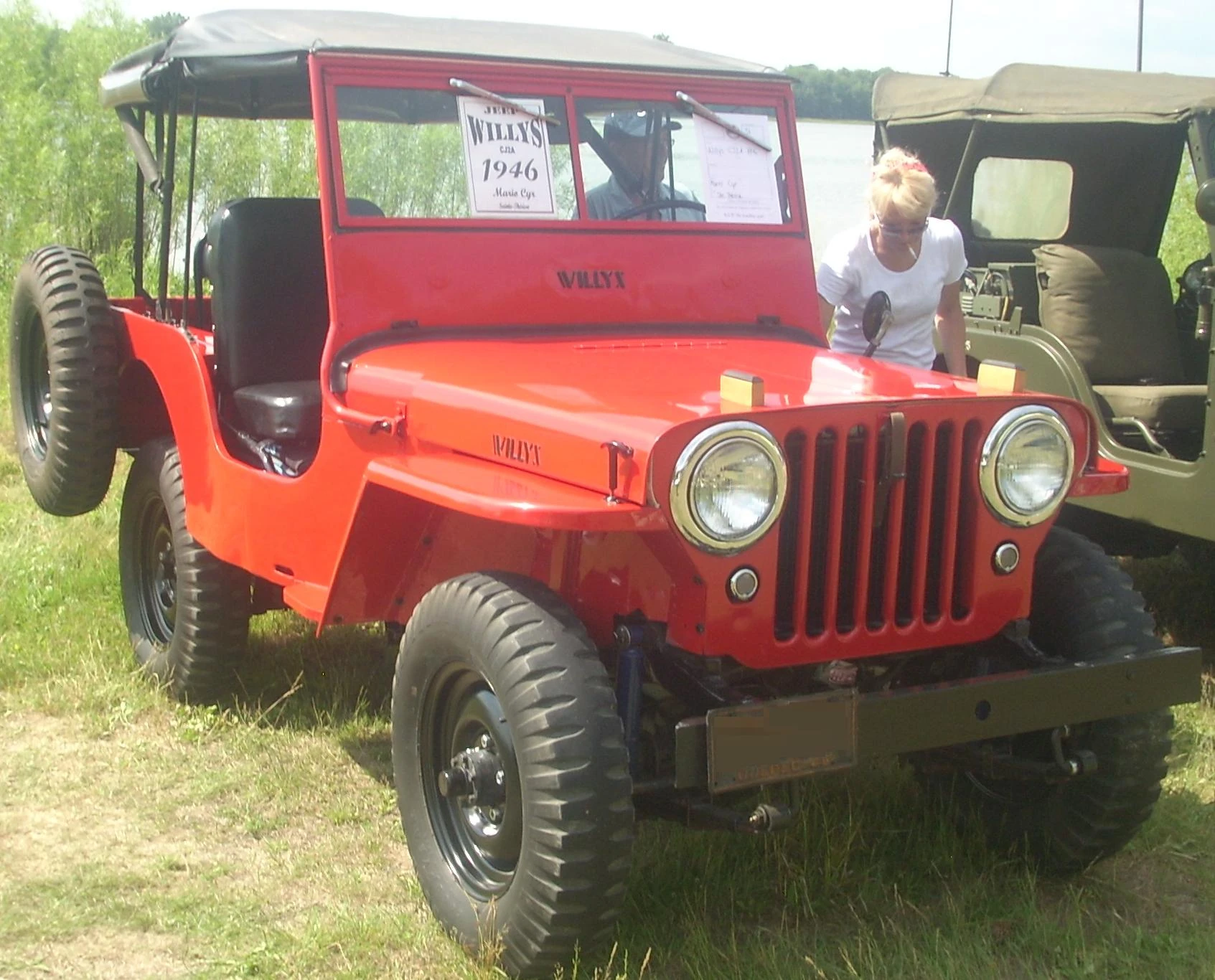

'46 Jeep CJ (Auto classique Laval '10)

1946 Jeep CJ

Lessons learned with the CJ-2 led to the development of the first full-production CJ, the 1945-1949 Willys-Overland CJ-2A. The CJ-2A looked very much like a civilianized MB with a tailgate and side mounted spare tire. One major difference between the MB and the CJ-2A can be found by looking at the grilles of the two vehicles. The MB had recessed headlights and nine-slot grilles while the CJ2A had larger headlights flush-mounted in a seven-slot grille. In place of the MB's T-84 transmission, the CJ-2A was equipped with the beefier T-90 three speed transmission. However, the CJ-2A was still powered with the reliable L-134 Go-Devil engine. Many of the early CJ-2As were produced using surplus military Jeep parts such as engine blocks and, in a few cases, modified frames.

Since the CJ-2A was primarily intended for farming, ranching, and industrial applications, a wide variety of extra equipment could be purchased with the Jeep. Examples of extra equipment are: rear seat, center rear view mirror(Stock CJ-2As came with only a driver side mirror), front passenger seat (Stock CJ-2As only came with a driver seat), canvas top, front PTO, rear PTO, belt pulley drive, capstan winch, governor, rear hydraulic lift, snow plow, welder, generator, mower, disc, front bumper weight, heavy duty springs, dual vacuum windshield wipers (stock CJ-2As were equipped with a manual wiper on the passenger side and a vacuum wiper on the driver side), dual taillights (Stock CJ-2As had a taillight on the driver side and a reflector on the passenger side), and hot-climate radiator, driveshaft guards, heater, side steps, and radiator brush guard.

CJ-2As were produced with very unique, lively, and sometimes downright ugly color combinations. From 1945 to mid-1946, CJ-2As were only available in two color combinations: Pasture Green with Autumn Yellow wheels and Harvest Tan with Sunset Red wheels. Additional color combinations added in mid-1946 were: Princeton Black with Harvard Red or Sunset Red wheels, Michigan Yellow with Pasture Green, Sunset Red or Americar Black wheels, Normandy Blue with Autumn Yellow or Sunset Red wheels, and Harvard Red with Autumn Yellow or Americar Black wheels. The Pasture Green and Harvest Tan combinations were dropped later in 1946. The Harvard Red combinations were dropped in 1947 and replaced with: Picket Gray with Harvard Red wheels, and Luzon Red with Universal Beige wheels. In 1948, the following color combinations were also added: Emerald Green with Universal Beige wheels, Potomac Gary with Harvard Red or Americar Black wheels. For 1949, the Picket Gray, Michigan Yellow, and Normandy Blue combinations were dropped. Olive drab was also available for export models.

On early CJ-2As, the front seats were covered in Slate Gray vinyl and the rear seat (if ordered) was covered in olive drab vinyl. Later in production, seats could be Barcelona Red, Slate Gray, or olive drab.

A total of 214,760 CJ-2As were produced.

CJ-3AEdit

Willys-Overland CJ-3A
[[File:Willys mb 1943 06011701|frameless|upright=1.25|alt=]]
Production 1949-1953

The Willys-Overland CJ-3A was introduced in 1949, and replaced the CJ-2A by the next year. It featured a one-piece windshield with a vent as well as wipers at the bottom, and a beefed up suspension to accommodate the various agricultural implements that were being built for the vehicle.[3] Another difference was a shorter rear wheelwell (the wheelwell from the top front edge to the rear of the body is 32 inches (810 mm) on the 3A compared to 34 inches (860 mm) on the 2A) and moving the drivers seat rearward.[4] A bare-bones Farm Jeep version was available starting in 1951 with a power takeoff. 131,843 CJ-3As were produced before the series ended in 1953.

CJ-4Edit

Willys-Overland CJ-4
Production 1951-1953
Wheelbase 81 in (2057 mm)

Only one Willys-Overland CJ-4[5] was ever built as an experimental concept in 1951. It used the new Willys Hurricane engine and had an 81-inch (2,057 mm) wheelbase.
The CJ-4 body tub was an intermediate design between the straightforward raised hood from the CJ-3B and the all new curved body style of the CJ-5.
The design was rejected and the vehicle eventually sold to a factory employee.

CJ-3BEdit

Willys CJ-3B

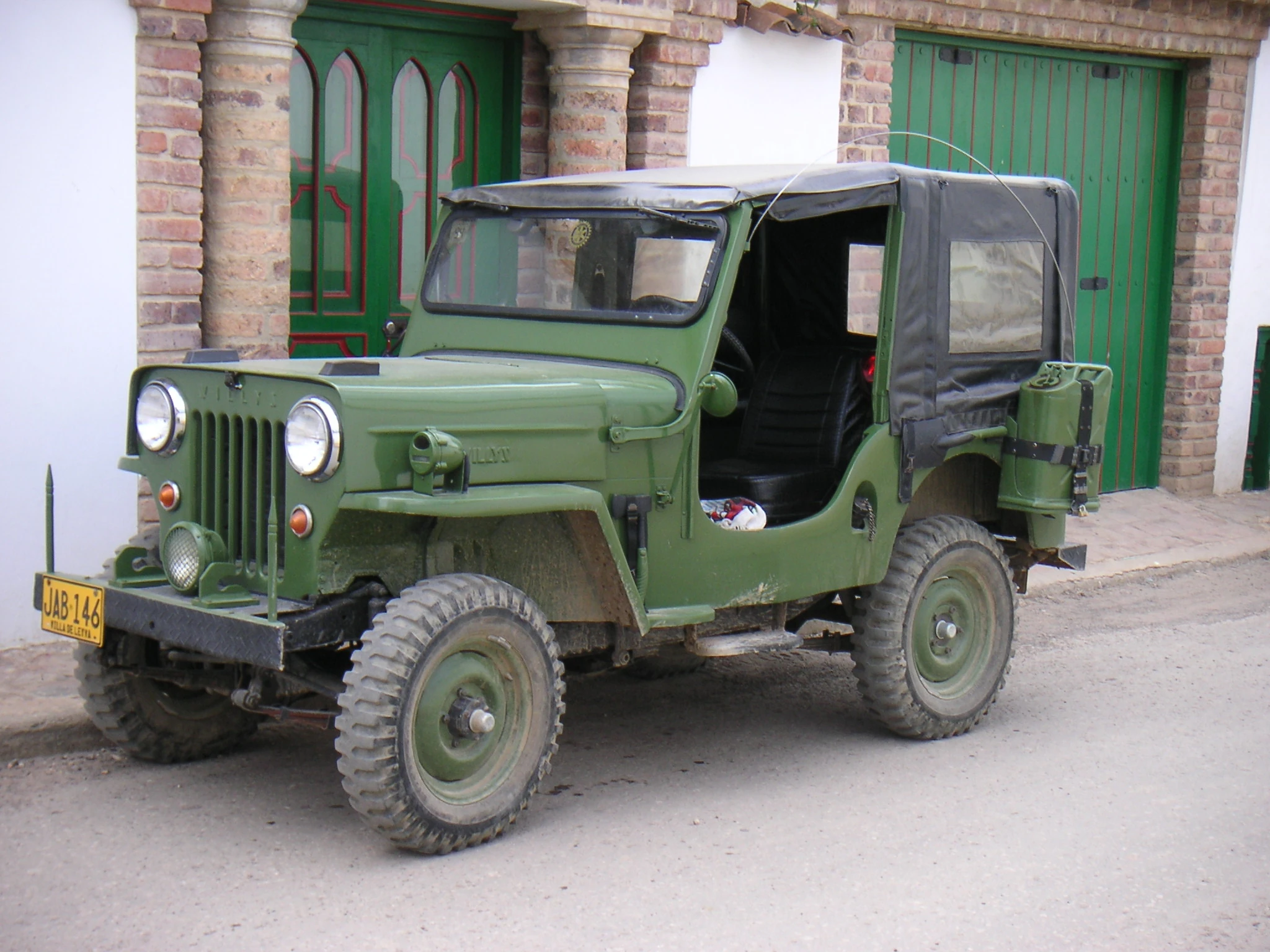

[[File:Willyjeep01|frameless|upright=1.25|alt=]]
Production 1953-1968

The Willys CJ-3B replaced the CJ-3A in 1953, the same year Willys was sold to Kaiser. Kaiser removed "Overland" from the subcompany name. CJ-3B introduced a higher grille and hood to clear the new Willys Hurricane engine. The CJ-3B was produced until 1968 with a total of about 196,000 [6] produced, although the design was licensed to a number of international manufacturers, including Mitsubishi of Japan and Mahindra of India. Mitsubishi ceased production of vehicles derived from the CJ-3B design in 1998 after selling approximately 200,000 units.[7] Mahindra continues to produce Jeeps based on the Willys CJ-3B today. M606 was a militarized version of CJ-3B.

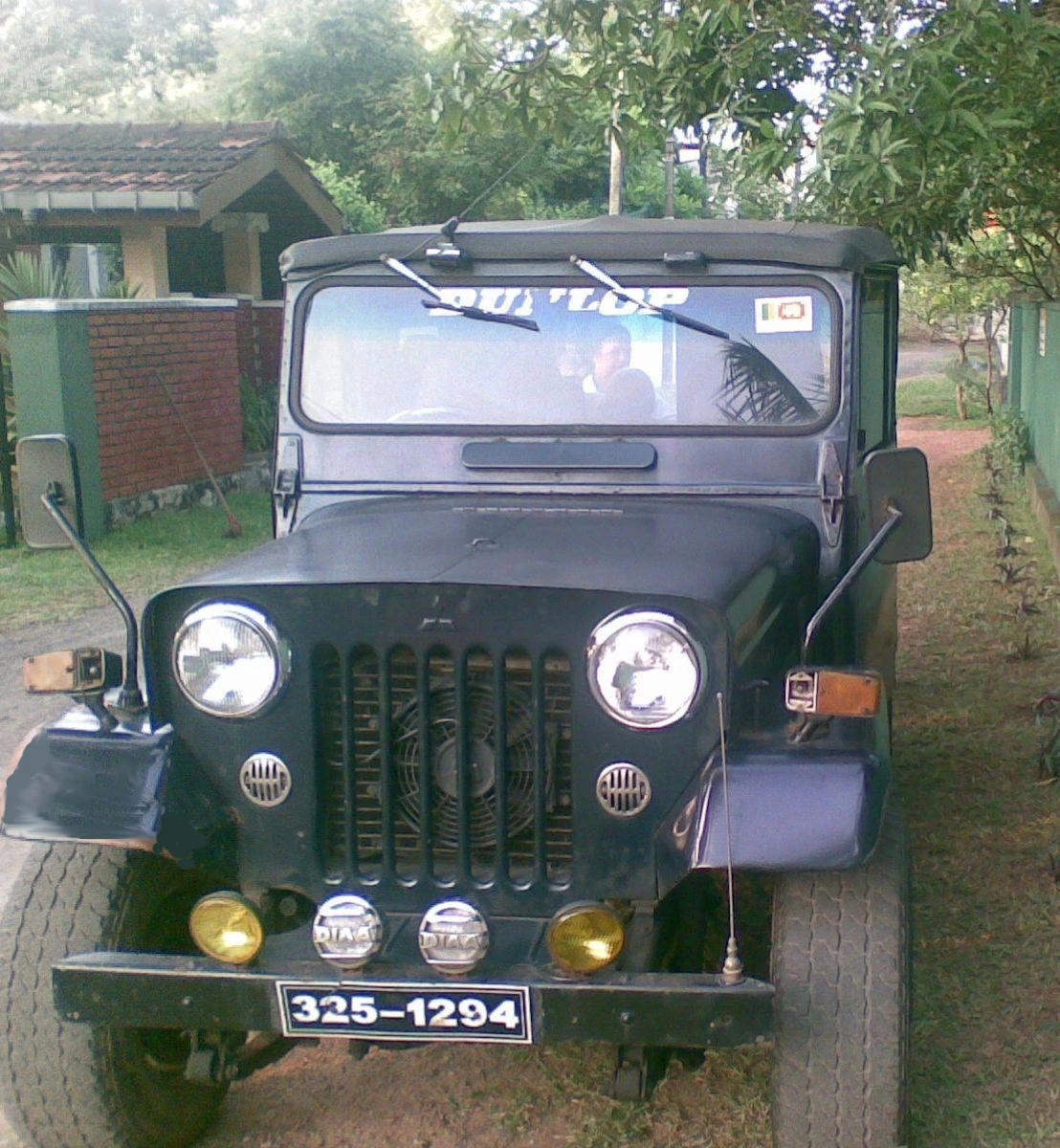

Mitsubishi Jeep J20
[[File:Mitsubishi J20|frameless|upright=1.25|alt=]]
Manufacturer Mitsubishi Motors (1953-1998)
Production 1953-1998
Assembly Tokyo, Japan
Successor Mitsubishi Pajero
Class Compact sport utility vehicle
2-door pickup truck
Body style(s) 2-door SUV
2-door convertible
Layout Front engine, four-wheel drive

CJ-5Edit

Willys CJ-5/Jeep CJ-5

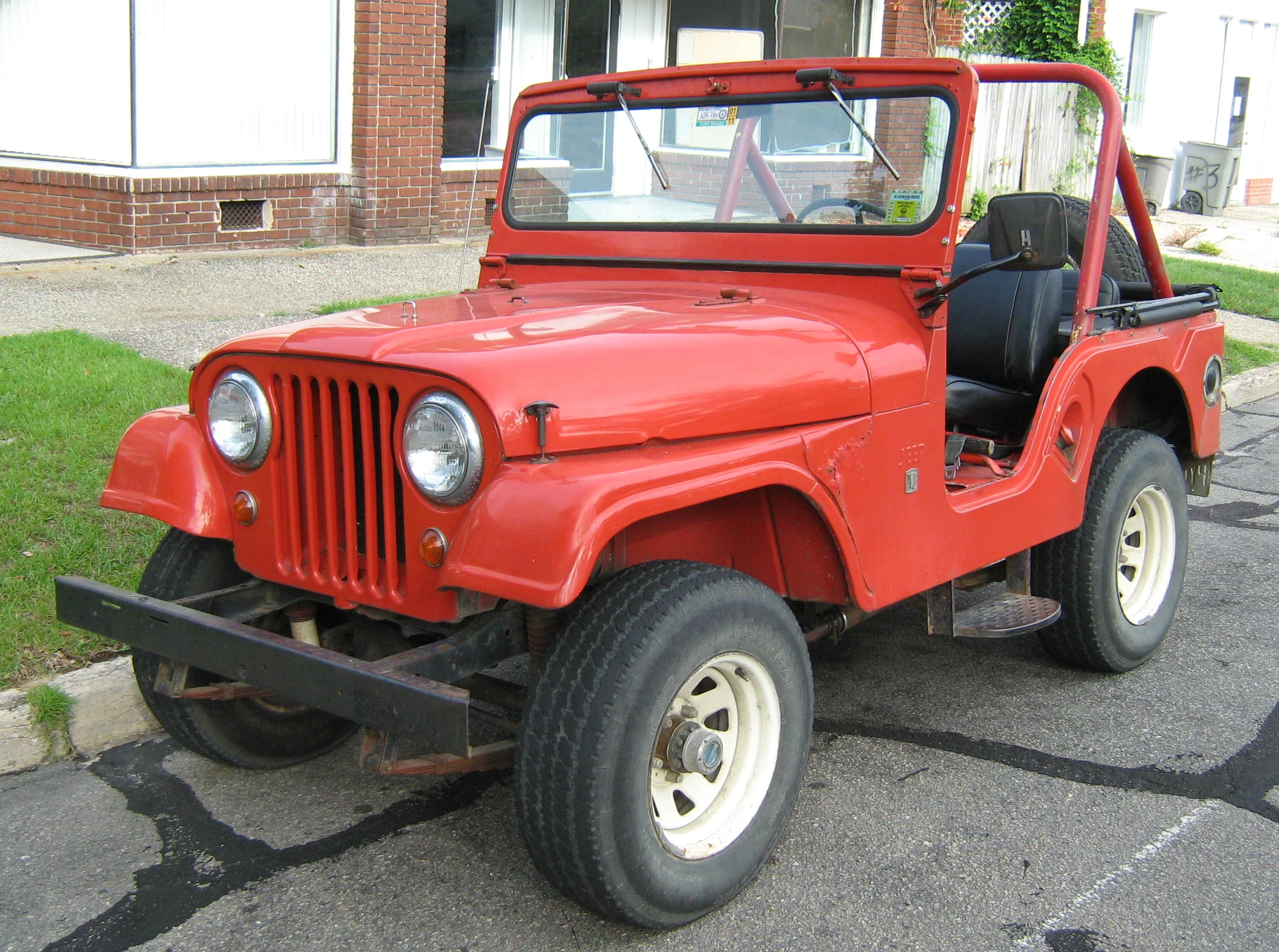

[[File:Jeep CJ-5 V6 red open body
CJ-5 with V6 engine|frameless|upright=1.25|alt=]]
Also called Jeep Shahbaz (Pars Khodro)[8]
Production 1954-1983
Engine(s) Willys Hurricane F-head I4
Perkins Diesel
225 cu in (3.7 L) Dauntless V6
151 cu in (2.5 L) Iron Duke I4
232 cu in (3.8 L) AMC I6
258 cu in (4.2 L) AMC I6
304 cu in (5 L) AMC V8
Transmission(s) 3-speed manual
4-speed manual
Wheelbase 81 in (2057 mm) (1954-1971)
83.5 in (2121 mm) (1972-1983)
Length 138.2 in (3510 mm)
Width 68.5 in (1740 mm)
Height 67.7 in (1720 mm)
Curb weight 2,665 lb (1,209 kg)[9]
Related Jeep DJ-5

The Willys CJ-5 (after 1964 Jeep CJ-5) was influenced by new corporate owner, Kaiser, and the Korean War M38A1 Jeep. It was intended to replace the CJ-3B, but that model continued in production. The CJ-5 repeated this pattern, continuing in production for three decades while three newer models appeared. "The CJ-5 has the distinct honor of being a vehicle that was hard to kill off... equaling the longest production run of note."[10] A total of 603,303 CJ-5s were produced between 1954 and 1983.

In 1965, Kaiser bought the casting rights to the Buick 225 cu in (3.7 L) V6 Dauntless and the CJ-5 and CJ-6 got a new engine with 155 hp (116 kW) supplementing the four-cylinder Willys Hurricane engine.

A similar model, the Jeep DJ, was based on the CJ.

The company was sold to American Motors (AMC) in 1970, and the GM engine was retired after the 1971 model year. (GM's Buick division repurchased the engine tooling in the early 1970s which served as the powerplant in several GM vehicles.) The "Trac-Lok" limited-slip differential replaced the "Powr-Lok" in 1971.

American Motors began using their own engines in 1972. Replacing the Hurricane was the one-barrel 232 cu in (3.8 L) (except in California). Optional was a one-barrel 258 cu in (4.2 L) (standard in California). Also in 1972, AMC's 304 cu in (5 L) V8 engine became available in the same tune as a base V8 muscle car. To accommodate the new engines the fenders and hood were stretched 5 inches (127 mm) starting in 1972 and the wheelbase was stretched 3 inches (76 mm). Other drive train changes took place then as well, including the front axle becoming a full-floating Dana 30.

In 1976 the tub and frame were modified slightly from earlier versions. The windshield frame also changed meaning that tops from 1955-1975 will not fit a 1976-1983 CJ-5 and vice-versa.

In 1979, the standard engine become the 258 cu in (4.2 L) I6 that now featured a two-barrel carburetor.

From 1980 to 1983, the CJ-5 came standard with a "Hurricane"-branded version of the GM Iron Duke I4.

Several special CJ-5 models were produced:

  • 1973 Super Jeep
  • 1977-1983 Golden Eagle
  • 1979 Silver Anniversary

Early Tuxedo Park models were trim lines, but the Tuxedo Park Mark IV was claimed as a separate model than the other CJ series (marked in 1965 as the "Universal"), with more differences than past models. The Tuxedo Park Mark IV was an attempt to crack the mass market; it was, according to Jeep, “a new idea in sports cars ... the sportiest, most FUNctional car on the automotive scene.” It added to the standard CJ chrome bumpers, hood latches, gas cap, mirror, and tail lamp trim. 81 and 101 inch wheelbases were available, with a variety of convertible top and seat colors, and front bucket seats in “pleated British calf grain vinyl.” Sales of this model, introduced in 1965, were low.[17]

In Australia, a unique variant of the CJ5/CJ6 was produced in limited numbers. In 1965, when the CJ was given the all-new Buick V6, Jeep saw the need for something similar in Australia. As such, they began to fit Falcon 6 cylinder engines to them at their Rocklea factory in Queensland. The jeep was fitted with an engine, pedal box and clutch/brake system corresponding to the equivalent Falcon at the time; i.e. a 1965 CJ5 would be fitted with 1965 Falcon engine/clutch components. When the Falcon received a hydraulic clutch system, so too did the Jeep. Combat 6 jeeps were also fitted with Australian Borg Warner differentials, and Borg Warner brand gearboxes. Unfortunately there is very little documentation about these jeeps, and often the only way to conclusively identify them is by owner history. Web page describing Jeep's presence in Australia, including the "Combat 6"

CJ-6Edit

Willys CJ-6/Jeep CJ-6
Production 1955-1975
Engine(s) F-head 4 cylinder
Perkins Diesel
225 cu in (3.7 L) V6 Dauntless
Iron Duke I4
304 cu in (5 L) V8
Wheelbase 101 in (2565 mm)

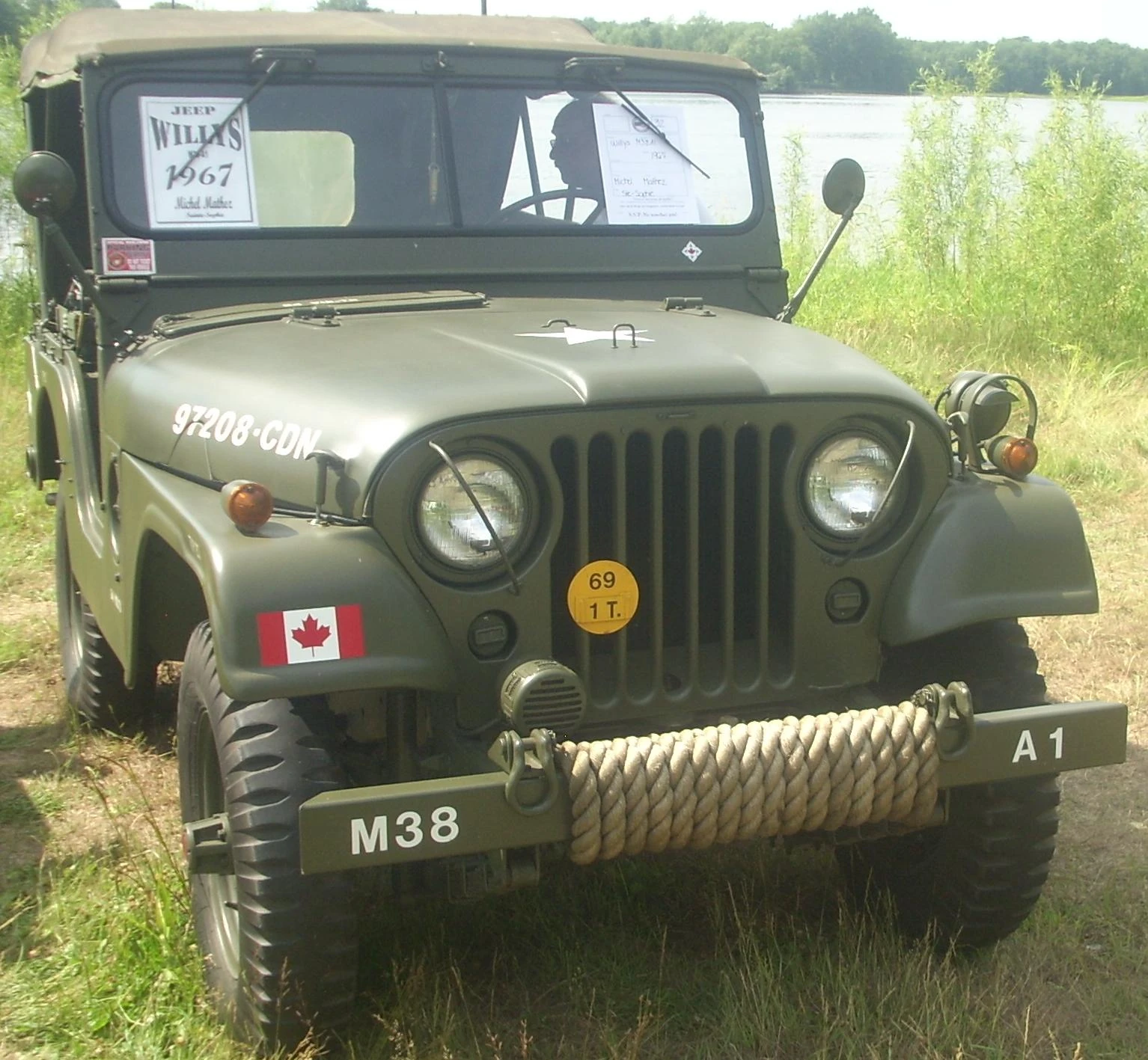

'67 Jeep CJ (Auto classique Laval '10)

1967 Jeep CJ

The CJ-6 was simply a 20-inch (508 mm) longer-wheelbase (101 in) CJ-5. Introduced in 1955 as a 1956 model, the CJ-6 was never very popular in the United States. Most CJ6 models were sold to Sweden and South America. The U.S. Forest Service put a number of CJ-6 Jeeps in to use. American sales ended in 1975. Just 50,172 had been made when the series went out of production completely in 1981. Just as in the CJ-5, the V6 and V8 engine choices appeared in 1965 and 1972. Former President Ronald Reagan owned a CJ-6 and used it on his California Ranch.[18]

CJ-5A and CJ-6AEdit

CJ-5A & CJ-6A
Production 1964-1968

From 1964-1968 Kaiser elevated the Tuxedo Park from just a trim package to a separate model for the CJ-5A and CJ-6A. A Tuxedo Park Mark IV is signified by a different prefix from a normal CJ-5 with a VIN prefix of 8322, while a normal CJ-5 VIN prefix is 8305 from 1964-1971.

CJ-7Edit

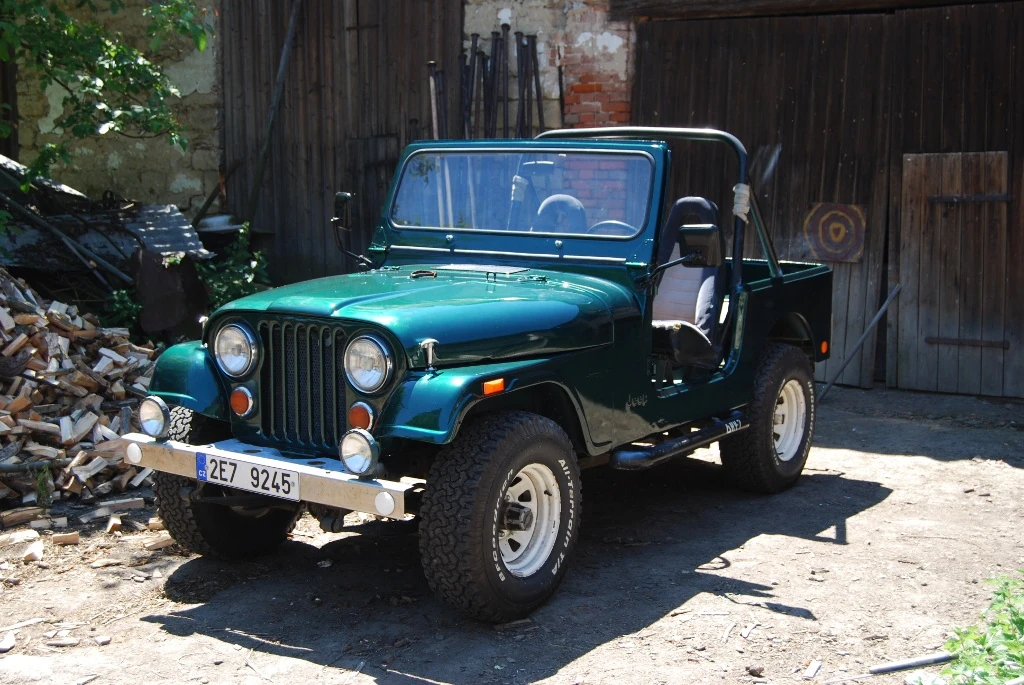

Jeep CJ-7
[[File:Zepredu4|frameless|upright=1.25|alt=]]
Production 1976-1986
Engine(s) 150 cu in (2.5 L) AMC I4
151 cu in (2.5 L) GM Iron Duke I4
232 cu in (3.8 L) AMC I6
258 cu in (4.2 L) AMC I6
304 cu in (5 L) AMC V8
145 cu in (2.4 L) Isuzu Diesel C240
Transmission(s) 5-speed manual
4-speed manual
3-speed automatic
Wheelbase 93.3 in (2370 mm)
Length 148 in (3759 mm)
Width 68.5 in (1740 mm)
Height 67.7 in (1720 mm)
Curb weight 2,707 lb (1,228 kg)[19]

The Jeep CJ-7 featured a longer wheel base than the CJ-5 and lacked the noticeable curvature of the doors previously seen on the CJ-5. The other main difference to the CJ-5 was to the chassis which hitherto consisted of two parallel longitudinal main c-section rails. To help improve vehicle handling and stability the rear section of the chassis stepped out to allow the road springs and dampers to be mounted closer to the outside of the body. It was introduced in 1976 and 379,299 were built during 11 years of production.

The CJ-7 featured an optional new automatic all-wheel drive system called Quadra-Trac, as well as a part-time two speed transfer case; an automatic transmission was also an option. Other features included an optional molded hardtop, and steel doors. The CJ-7 was also available in Renegade and an upgraded Laredo model. Noticeable by their different body decals, the Laredo model featured nicer seats, steering wheel tilt, and a chrome package that included the bumpers, front grill, and mirrors. An optional Trak-Lok differential was available for the rear. Ring and Pinion was typically 3.54, but later went down to 2.73.

The reports of the CJ7 were different in each type of engine: the 2.4D mounted the 4.10 (the production was that both RENEGADE LAREDO), the 4.2 and 2.5 l6 rode a ratio of 3.73 while the construction with AMC V8 304 (production 76-81, which became part of the Golden Eagle version) was equipped with a ratio of 3.55. From 76 to 80 was mounted a reducer DANA 20, DANA 30 front axle (27 or 31 spline) and an AMC 20 rear very strong (a 29 spline), while in recent years production of 8cioè years' construction Laredo, where were added to the package of chrome bumpers, hooks and interior, comfortable leather seats, clock and tachometer) was fitted with a rear Dana 44 was introduced in 1980 and a gearbox 300 DANA better than the last and still in production and highly sought after by lovers of off-road.

The machine during his 11 years had various equipment packages:

  • Renegade 1976-1986 (2.4D L6-2.5-4.2-5.0 V8)
  • Golden Eagle 1976-1979 (5.0 V8)
  • Laredo 1982-1986 (2.4D-4.2 l6)
  • Jamboree Edition (Limited Edition 2500 models which were built for the 30th anniversary 2.5 and 4.2)

A diesel powered version was made in the Ohio factory for export only. The engines were provided by General Motors, the owners of Isuzu Motor Cars. Production of this diesel version is believed to have been only between 1980 and 1982. This model had the Isuzu C240 engine, T176 Transmission, Dana 300 Transfer box although there are reports of some being produced with the dana 20. Typically they had 4.1 ratio, narrow track axles.

The CJ-7 continues to be used in the sport of mud racing, with either the stock body or a fiberglass replica. It is also a favorite for rock crawling.

Engines

  • 150 cu in (2.5 L) AMC I4
  • 151 cu in (2.5 L) GM Iron Duke I4
  • 232 cu in (3.8 L) AMC I6
  • 258 cu in (4.2 L) AMC I6 99.4 PS (73 kW/98 hp), 261 N·m (193 lb·ft)
  • 304 cu in (5 L) AMC V8 127 PS (93 kW/125 hp), 296 N·m (218 lb·ft)[19]
  • 145 cu in (2.4 L) Isuzu Diesel C240

Transmissions

  • Warner T-18 (4 speed)
  • Borg-Warner T-4 (4 speed)
  • Borg-Warner T-5 (5 speed)
  • Tremec T-150 (3 speed manual)
  • Tremec T-176 (4 speed manual)
  • Borg-Warner SR-4 (4 speed)
  • GM TH-400 (3 speed automatic)
  • Chrysler TF-999 (3 speed automatic transmission - 4.2L)
  • Chrysler TF-904 (3 speed automatic transmission - 2.5L)

Transfer Cases

  • Dana 20 (1976–79)
  • Dana 300 (1980–86)
  • Borg-Warner QuadraTrac #1339 (1976–1979)

Axles

  • Dana 30 Front (1976–86)
  • 2-Piece AMC 20 Rear (1976–86)
  • Dana 44 Rear (1986)

CJ-8 (Scrambler)Edit

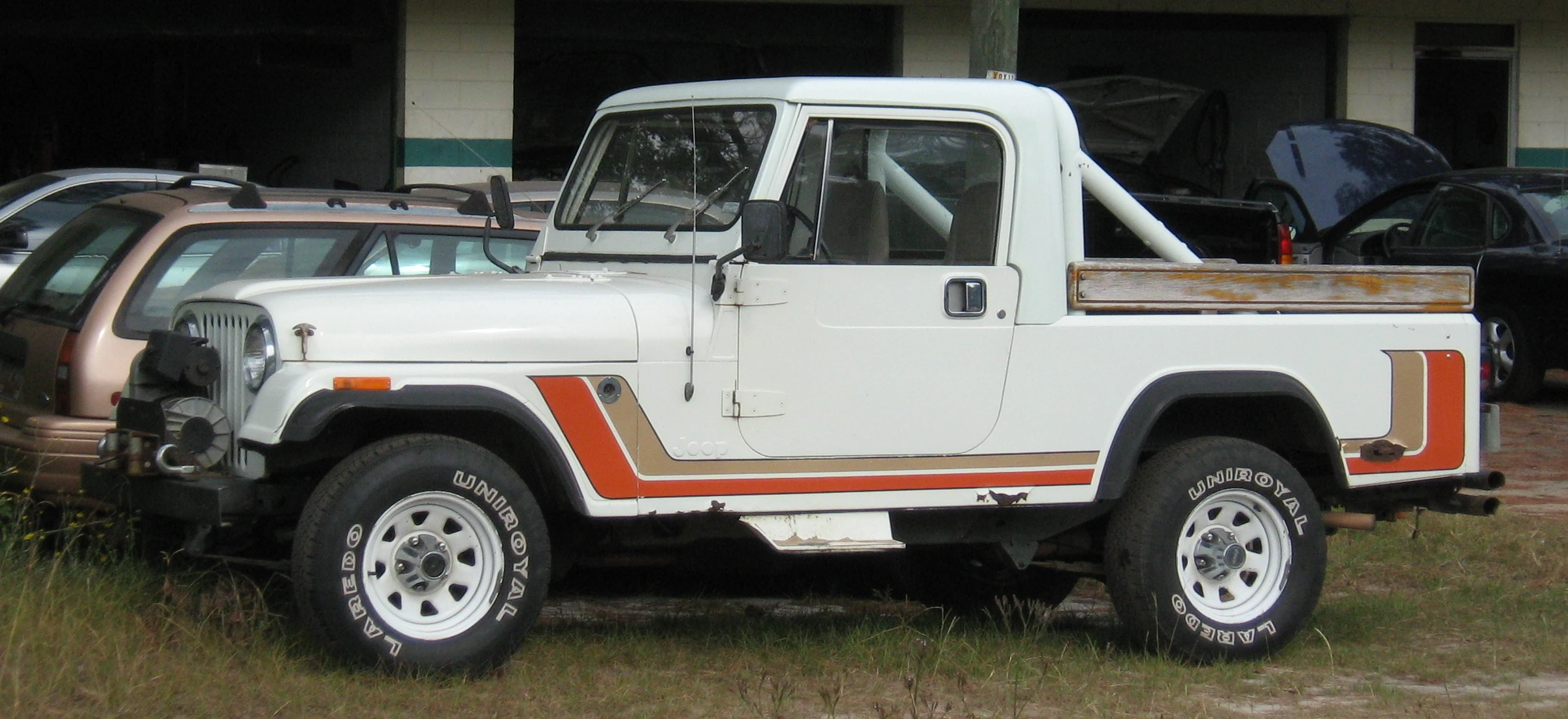

Jeep CJ-8 Scrambler
[[File:Jeep SCrambler white SC-a|frameless|upright=1.25|alt=]]
Production 1981-1986
Body style(s) 2-door pickup truck
Transmission(s) 5-speed manual
4-speed manual
3-speed automatic
Wheelbase 103 in (2616 mm)

The Jeep (CJ-8) Scrambler was a pickup truck version of the CJ-7, introduced in 1981. It featured a 103-inch (2,616 mm) wheelbase and a pickup bed. Only 27,792 were built in the five years of production before being replaced by the similarly-sized Comanche.

The Jeep Scrambler (CJ-8) did not offer the Quadra-Trac system. The majority of Jeep Scramblers (CJ-8) used the traditional transfer case and manual front-locking hubs to engage the four-wheel drive. Most Scramblers (CJ-8) used a four- or five-speed manual transmission but a three-speed automatic transmission was an available option.

A full length steel hardtop CJ-8 based on the Scrambler was made for the Alaskan Postal Service, using right hand drive and automatic transmissions. Instead of the rear tailgate the steel hardtop utilized a hinged barn door opening to the back. There were only 230 of these produced and sold in the US. This version was also widely sold in Venezuela and Australia as the "CJ8 Overlander", with small differences including full length rear windows on the Overlander. Jeep Australia (Circa 1984). "Jeep Overlander CJ-8 Specifications and Dimensions".  The steel hardtops used on these postal scramblers and Overlanders were known as "World Cab" tops.

Former U.S. President Ronald Reagan also owned a blue Scrambler (CJ-8) and used it on his California "Rancho del Cielo" property (image)[20] with the license plate "Gipper."[21]

CJ-10Edit

Jeep CJ-10
Production 1981-1985
Body style(s) 2-door pickup truck
Engine(s) Nissan SD33 3.3L V6 Diesel

The Jeep CJ-10 was a CJ-based pickup truck. Produced from 1981 through 1985, it was sold mainly as an export vehicle, though some were used by the United States Air Force for use as an aircraft pulling vehicle (see CJ-10a). They featured square headlights mounted in the fenders and a 9-slot grille, a homage to the old Jeeps of WWII which originally had a 9 slot grille (the civilian model, the CJ-2 and 2a, were given a 7 slot grille as a distinction between the military and civilian models).

Image link

CJ-10aEdit

Jeep CJ-10a
Production 1984-1986
Body style(s) 2-door flightline aircraft tug
Engine(s) Nissan SD33 3.3L V6 Diesel

The Jeep CJ-10a was a CJ10-based flightline aircraft tug. Produced in Mexico from 1984 through 1986, were used by the United States Air Force for use as an aircraft pulling vehicle. About 2300 of them were produced. Image link
