Jinma 654

Talk0

13,397pages on
this wiki

Jinma 654
Model history

Model introduced	Unknown
Model discontinued	Unknown
Model status	Current
Engine Specification
Engine model	YTR4105-T63
Power hp	65
Power kW	47.8
Governed rpm	2200
Displacement cu in /(litre)	4.3
No. of Cylinders	4
Bore in (mm)	105mm
Stroke in (mm)	125mm
Cooling system	Water
Transmission Details
Transmission type	Unknown
Clutch	Single-function dry constant meshing
Forward	8
Reverse	2
Drive	MFWD
General Data
Linkage Category	Cat II
Lift capacity (lb/kg)	10800
P.T.O rpm	540/1000
Tractor Dimensions
Wheelbase	2188mm
Other info
Factories	China
Plow rating	Unknown
Web site	http://www.jm-tractor.com/
This box: view · talk

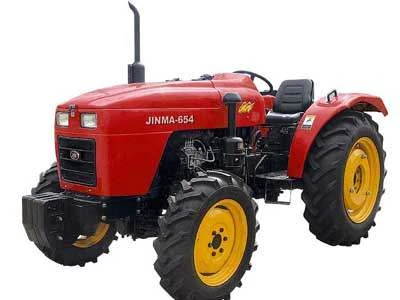

The Jinma 654 tractor was built in China by Jinma. It features a 65 horsepower (48 kW) engine.^[1]

Model historyEdit

For brand history, see Jinma.

ReferencesEdit

↑ http://www.jinma-tractor.com/product_show.asp?id=626

External linksEdit

Jinma website
