John Deere DB120 48 row planter

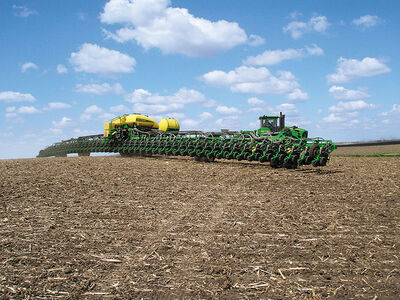

John Deere DB120 planter

The John Deere DB120 is an agricultural planter made by John Deere. Upon its release in 2009, it was the largest production planter in the world. It has a 120 feet wide tool-bar and plants 48 rows which are 30 inches apart. It is estimated that the planter should sow 90 to 100 acres per hour at 5 to 5.5 miles per hour ground speed.[1][2] John Deere claims that the planter is 30% more productive than their 36 row DB90 planter.[1] To transport such an incredibly wide implement, the DB120 folds into five sections . The planter weighs in at over 20 tons empty and almost 24 tons when loaded with seed.[1] The DB120 had a limited release in 2009 with orders being taken for the 2010 season. It retailed at $345,000 dollars.[3]

The DB120 needs a GPS System to guide it as there are no row markers to indicate where to position the tractor/planter.

See alsoEdit

ReferencesEdit

  1. 1.0 1.1 1.2 Russnogle, John (2009-02-12). "World’s Largest Planter: John Deere’s DB120". Corn & Soybean Digest. Retrieved on 2010-05-17.
  2. "John Deere introduces its largest planter ever - the new DB120". Ag Weekly Online (February 27, 2009). Retrieved on 17 May 2010.
  3. "Big Planter Topic at Classic". AgWired. Zimmcomm New Media, LLC (March 4, 2009). Retrieved on 18 May 2010.
