Low loader

Talk0
14,422pages on
this wiki

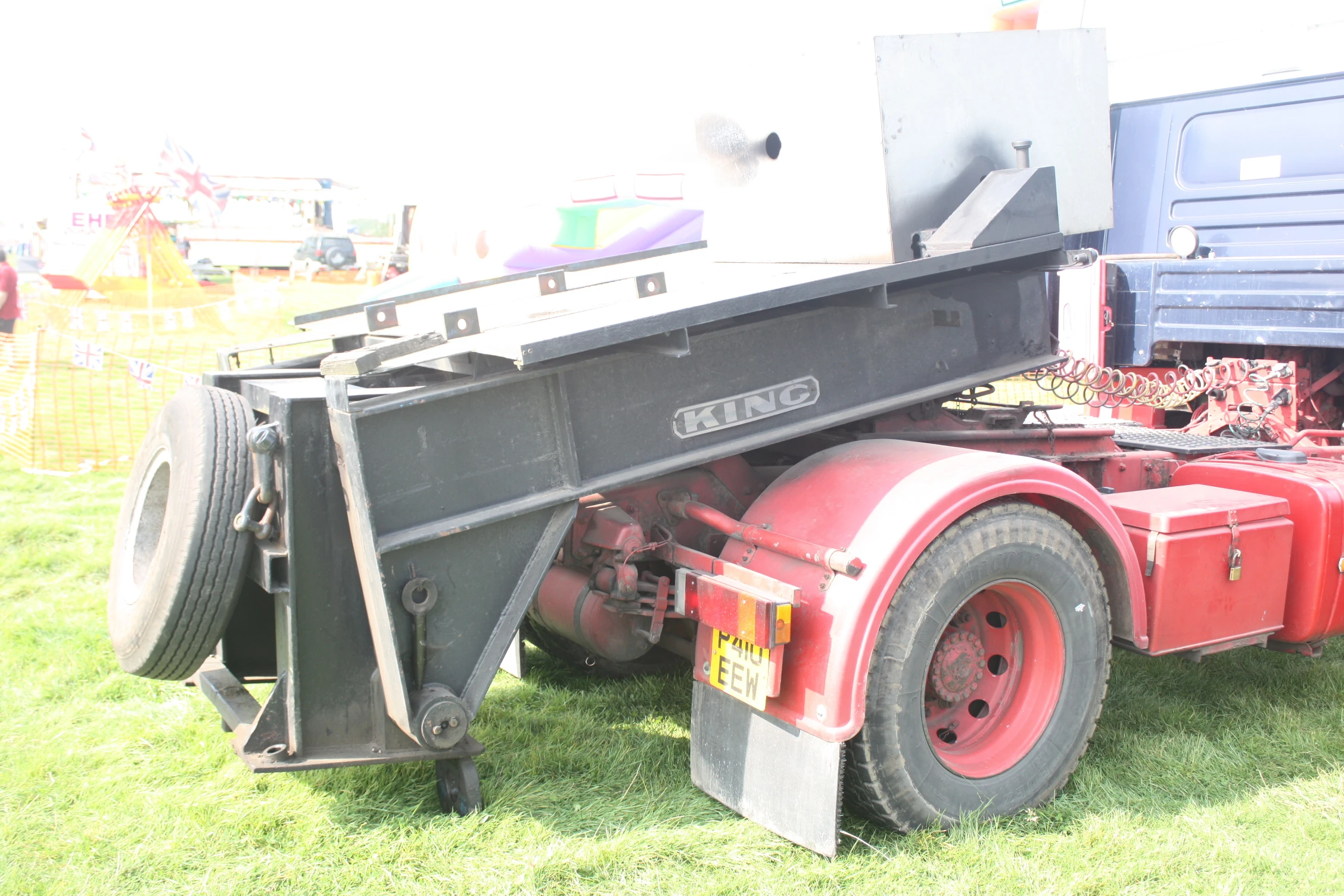

King removable neck - IMG 1807
A King removable neck unit in the hook-up position
BulldozerD11Added by BulldozerD11

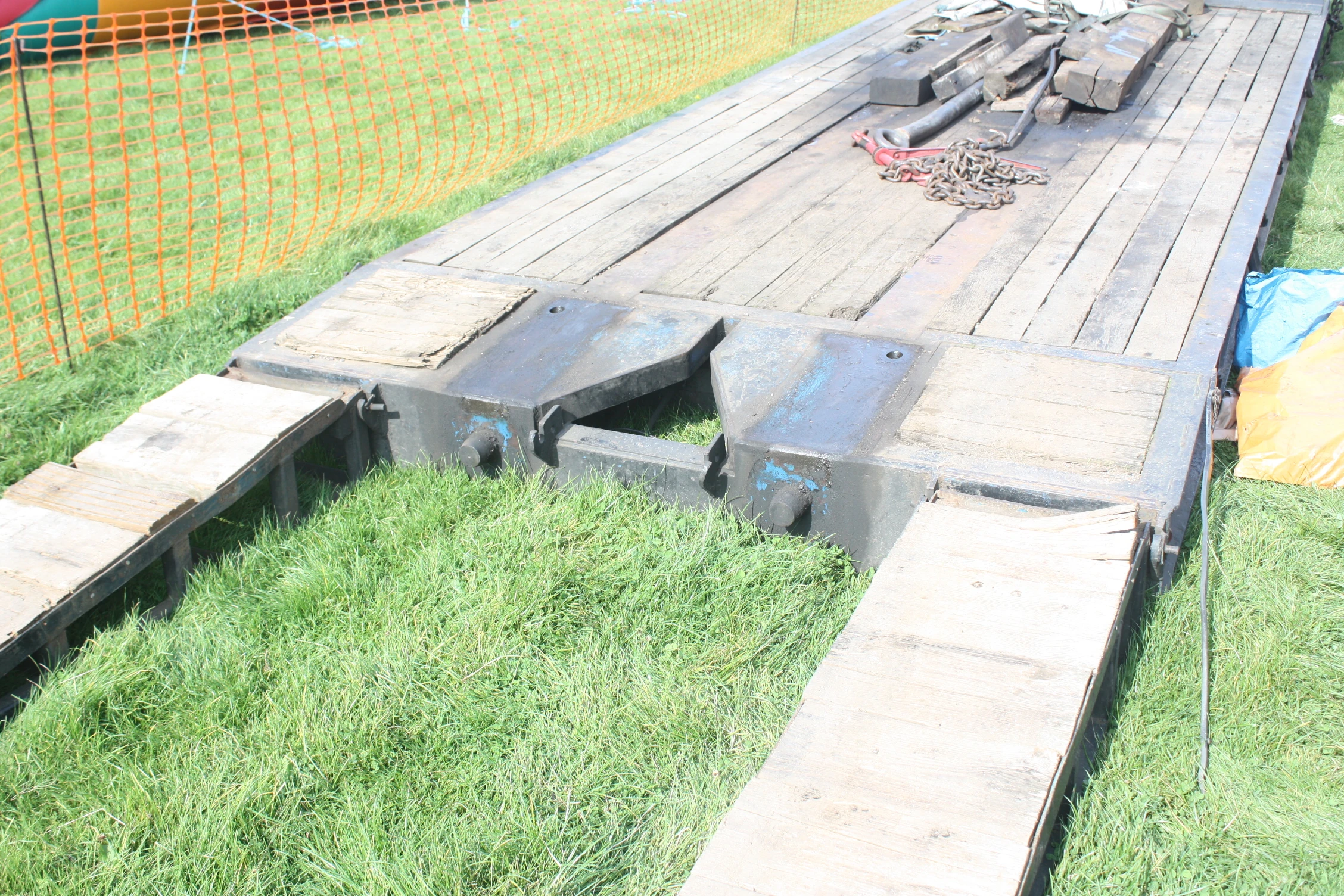

King low loader deck - IMG 1808
King low loader deck - note lifting pins
BulldozerD11Added by BulldozerD11

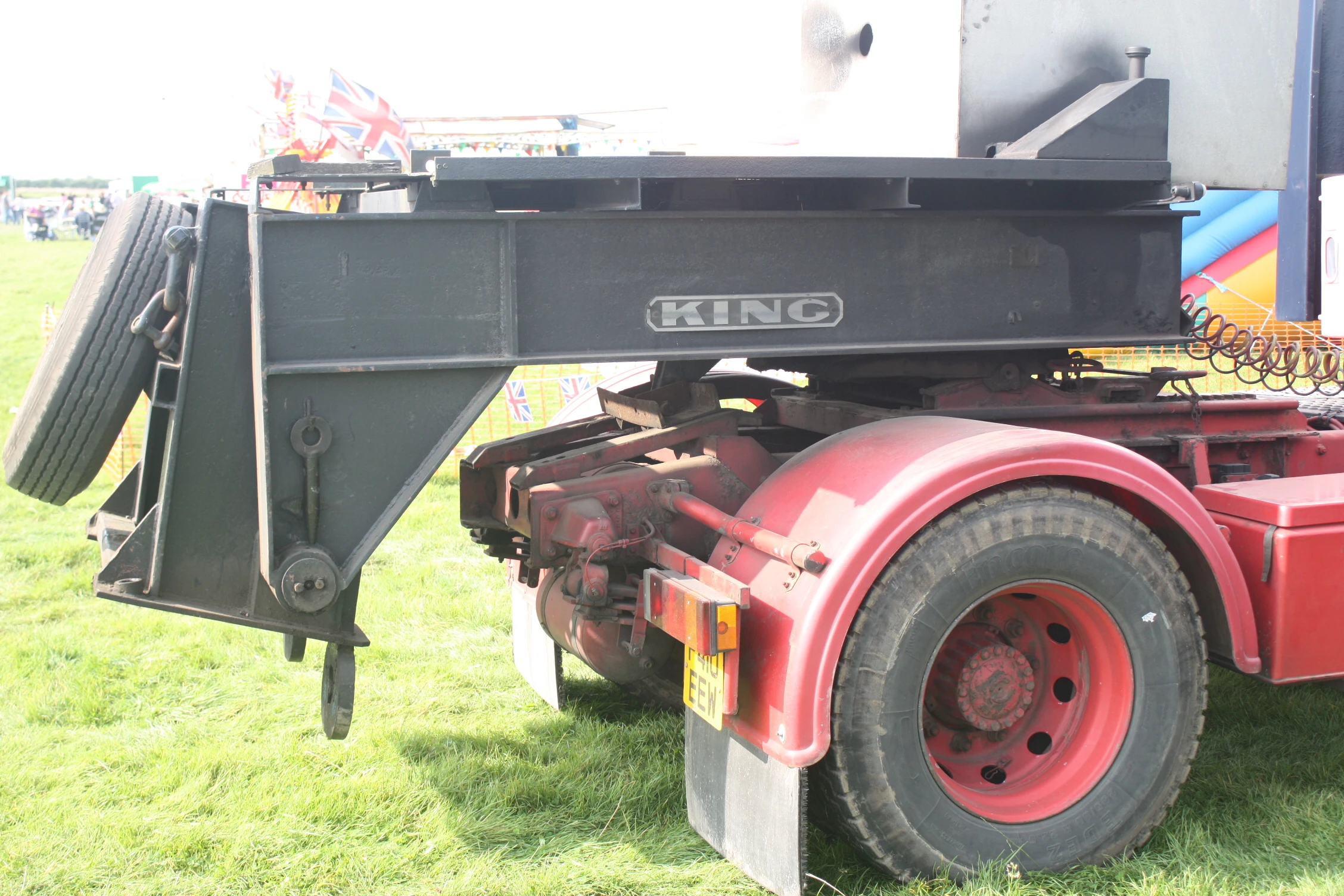

King neck - up position IMG 1812
King neck in the lifted position for manoeuvring - lift bar visible below King sign
BulldozerD11Added by BulldozerD11

A Low Loader is (Lowboy - US English) a Semi-trailer that has two drops in deck height one drop right after the gooseneck and one drop in front of the rear axles. This allows the deck to be extremely low versus normal trailers. It offers the ability to carry legal loads up to 12' tall that other trailers could not.

History Edit

The first low loader trailer was invented in the 1920s and featured a riveted gooseneck and solid rubber tires.[citation (source) needed] Early trailers had removable rear axles to allow loading in the UK. The first detachable gooseneck trailer was invented(patented) in 1958[1].

The low loader trailer comes in several variants, for a wide spectrum of tasks. Some of the variants are:

  • Fixed Gooseneck - which allow a longer deck length and lightest weight of all lowboys.
  • Technical Gooseneck - Second longest deck length and weight.
  • Hydraulic Detachable Gooseneck - Quickest and easiest to detach but, at the expense of weight and deck length.

Variants Edit

  • Fixed Neck, Neck is fixed to trailers offering the lightest weight sacrificing the ability to detach and load over the front
  • Mechanically Detachable Gooseneck, While usually lighter than the Hydraulic Detachable Gooseneck users sacrifice ease of detaching and time to detach. Used for long speciality hauls.

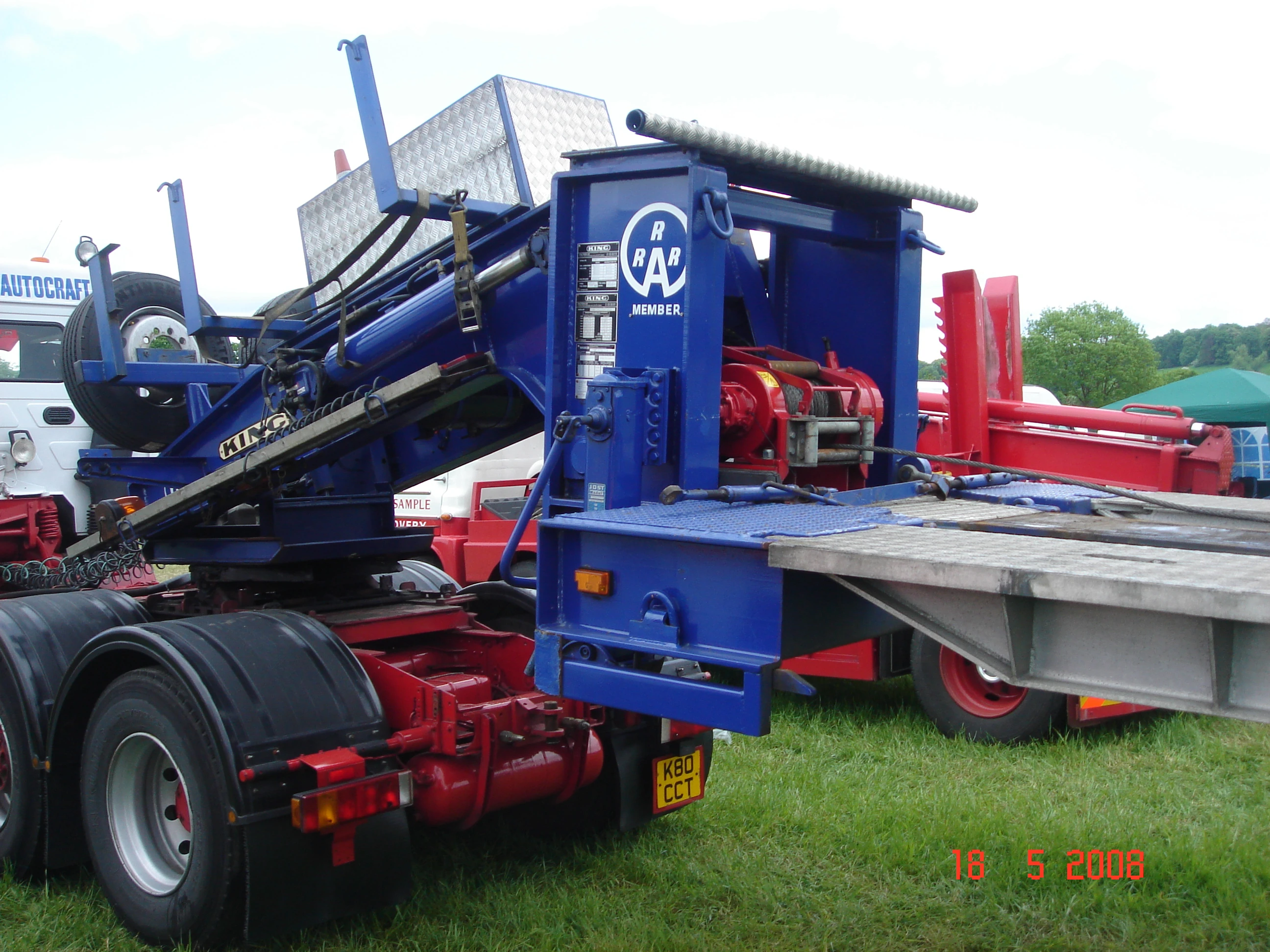

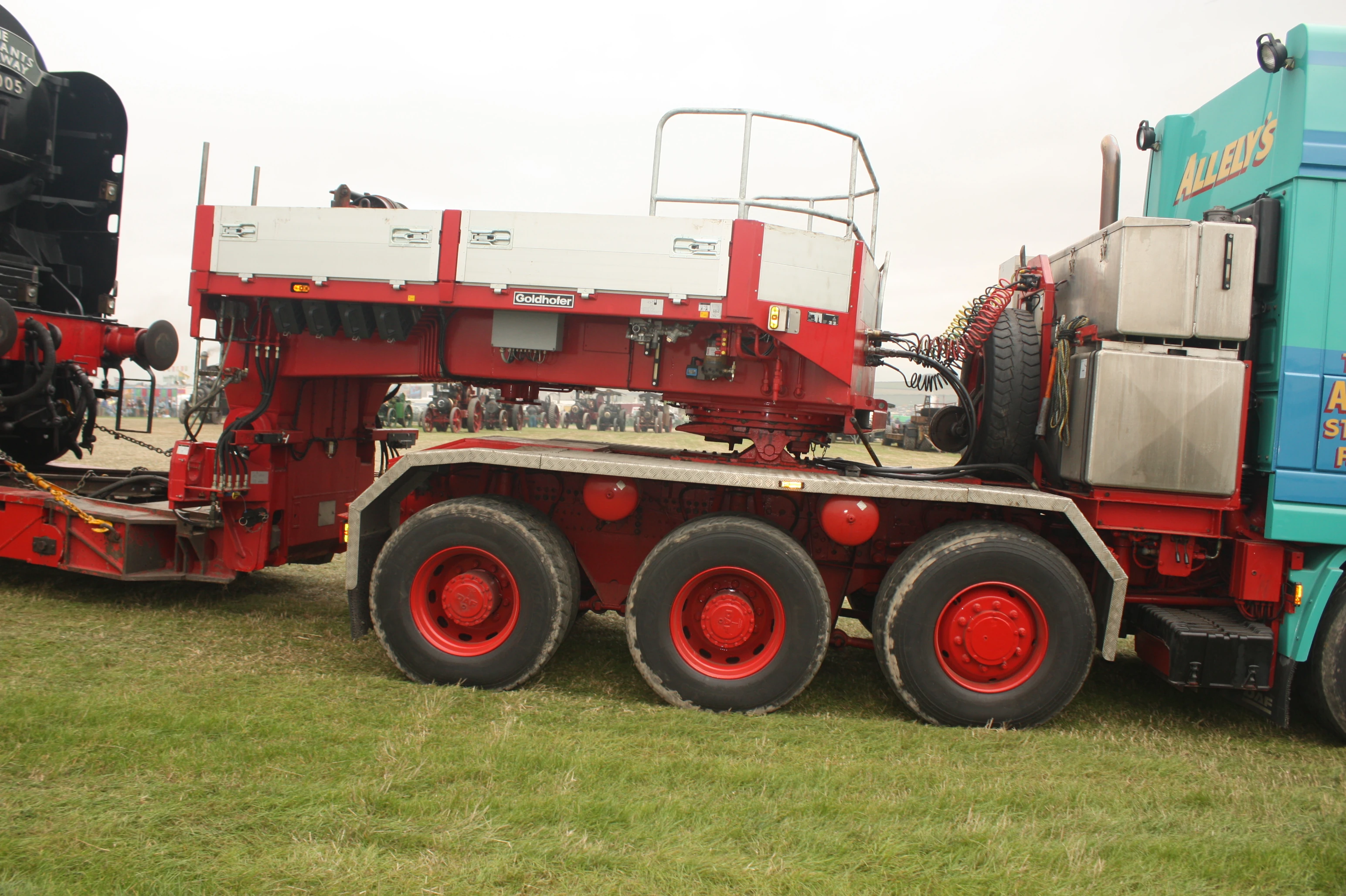

  • Hydraulic Detachable Gooseneck, the most common and versatile of Lowboy trailers the Gooseneck is detached using Large hydraulic cylinders to raise and lower the trailer, and a small cylinder to shore the neck to the truck to remove the neck so a large piece of equipment can be driven over the front onto the deck of the trailer for transport.
  • Hydraulic folding Gooseneck, folds down to form the ramp.

Features Edit

A few of the features Low Loader Trailers have are:

Suspension type
  • Spring ride suspension - Lowest cost while causing a rougher ride and more cycles to the steel of the trailer.
  • Air Ride suspensions have a very smooth ride increasing the life cycle of the trailer frame. Air Ride's can also be adjusted for a higher or lower deck height.
Main Structure Metal Type
  • Mill Rolled beams save money while being around 4-6,000lbs heavier, they also reverse camber after a few years.
  • T1 or A514 beams save weight and allow more versatile engineering of the trailer because they are cut to the highest strength shape possible and welded together.

References Edit
