McCormick-Deering T-35

Talk0
14,422pages on
this wiki
McCormick-Deering T-35

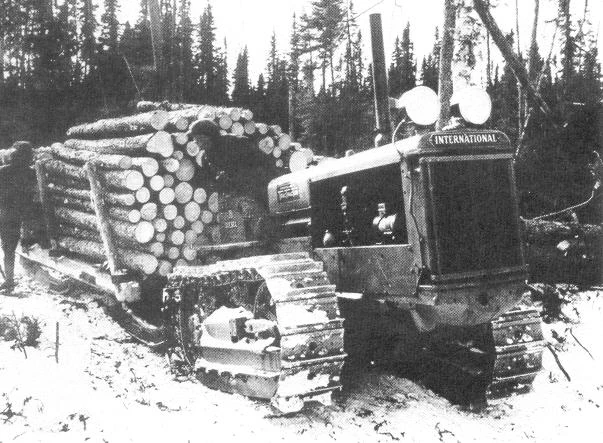

McCormick-Deering T-35 1937
McCormick-Deering T-35 1937
Model history
Model introduced 1937
Model discontinued 1939
Model status Discontinued Discontinued
No. produced 499
Preceded by New model
Superseded by International T-9
Engine Specification
Engine make International
Fuel type gasoline
Power hp 44 belt, 37 drawbar
Governed rpm 1750
Displacement cu in /(litre) 279 ci
No. of Cylinders 6
Bore in (mm) 3.625 in
Stroke in (mm) 4.5 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 5
Reverse 1
Drive crawler
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 13" tracks
Tractor Dimensions
Length (inches/metres) 132 in
Width (inches/meters) 59 in
Height (inches/meters) 69 in
Weight (nominal) lb/kg 10070 lb
Other info
Factories Tractor Works, Chicago, Illinois, USA
Plow rating
Nebraska Tests No. 279
Approximate Cost new in (year) $2340 (1938)
This box: view · talk

The McCormick-Deering T-35 was a gasoline engined crawler tractor built by the International Harvester company from 1937 to 1939 in Chicago, Illinois, USA.

Model historyEdit

For Company history, see International Harvester.

The McCormick-Deering T-35 crawler was inserted into the McCormick-Deering line in 1937 to fill in the gap between the T-20 and T-40. The T-35 was very similar in design to the T-40 but a bit smaller. The engine was the 279 ci ohv 6-cylinder that had been used in the first version of the T-40, coupled to a 5-speed transmission.

Timeline Edit

Factory locations Edit

Tractor Works, Chicago, Illinois

Specification Edit

See Infobox for basic details

Variations and Options Edit

  • Wide-tread version
  • Optional track shoes up to 22"
  • Belt pulley
  • Pto

Serial Numbers Information Edit

Year Serial no. run
start[1]
Serial no. run
End[1]
Number Built Notes
1936 2[1]
1937 TKB507 2969 241[1] Serial range includes T-35, TD-35
1938 2970 4628 1659[2]
1939 4629 6092 1464[3]
Total built 499[1]

Preservation Edit

No information on any individual examples of these tractors in preservation is currently available on here.

Do you know of any examples to list ?

Gallery Edit

Add extra photos here please.

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  • Please supply some relevant references or sources for information for verification of data.
  1. 1.0 1.1 1.2 1.3 1.4 Wendel, C. H., 150 Years of International Harvester, Crestline Publishing, Sarasota, Florida, 1981
  2. Klancher, Lee, International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, 1996, p.103 (includes T-35 and TD-35
  3. Klancher, Lee, International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, 1996, p.103 (includes T-35 and TD-35
