McCormick-Deering W-14
Talk0
13,410pages on
this wiki
this wiki

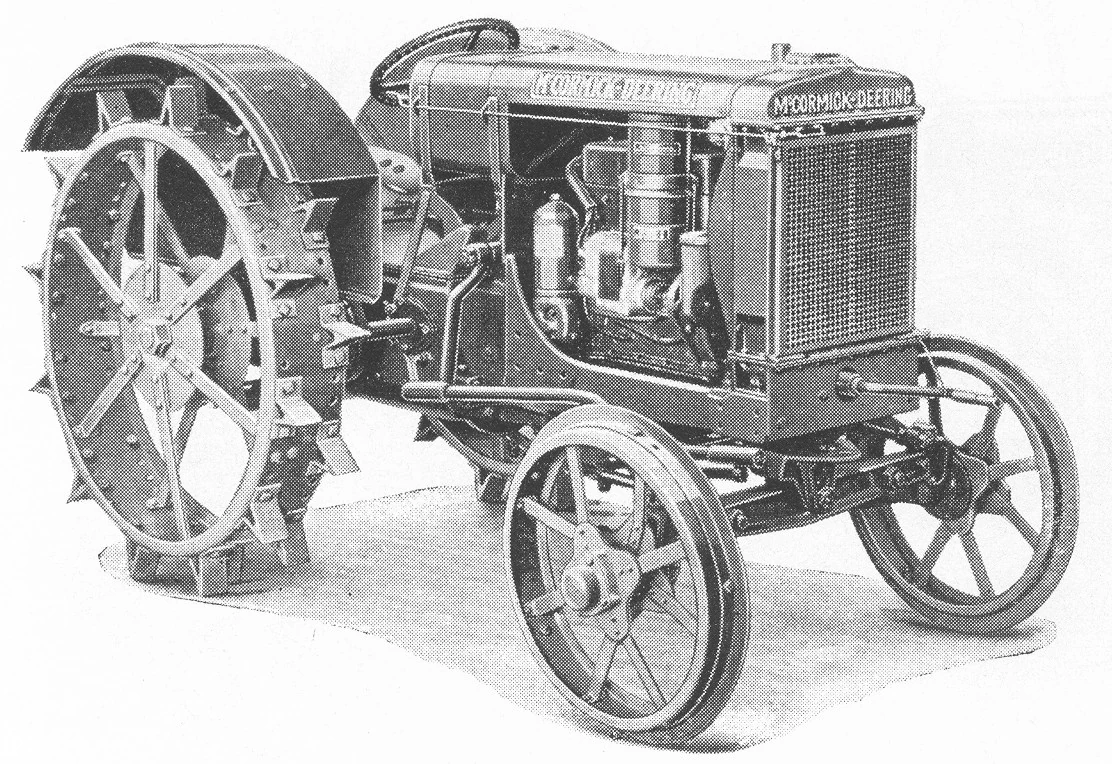

 McCormick-Deering W-14 | |
| Model history | |
|---|---|
| Model introduced | 1938 |
| Model discontinued | 1939 |
| Model status | Discontinued |
| No. produced | 1,162 |
| Preceded by | McCormick-Deering W-12 |
| Engine Specification | |
| Engine make | International |
| Fuel type | distillate |
| Power hp | 17 belt, 13 drawbar |
| Governed rpm | 1650 |
| Displacement cu in /(litre) | 113 ci |
| No. of Cylinders | 4 |
| Bore in (mm) | 3 |
| Stroke in (mm) | 4 |
| Cooling system | Water |
| Naturally aspirated, Turbo or Supercharged | NA |
| Transmission Details | |
| Transmission type | sliding gear |
| Gearbox make | International |
| Forward | 3 |
| Reverse | 1 |
| Drive | 2-WD |
| General Data | |
| Linkage Category | Drawbar |
| Tyre Sizes (std/options) | |
| Front | 22.5"x3.5" steel wheels |
| Rear | 42"x8" steel wheels |
| Tractor Dimensions | |
| Length (inches/metres) | 103 in |
| Width (inches/meters) | 50 in |
| Height (inches/meters) | 55 in |
| Weight (nominal) lb/kg | 2900 lb |
| Turning circle (nominal) inches/meters | 18 ft |
| Wheelbase | 60 in |
| Other info | |
| Factories | Tractor Works, Chicago, Illinois, USA |
| Plow rating | 2 |
| Nebraska Tests No. | 297 |
| Approximate Cost new in (year) | $825 (1939) |
The McCormick-Deering W-14 was built by International Harvester from 1938 to 1939 in the Chicago, Illinois Tractor Works factory, USA.
Contents |
Model history
Edit
The McCormick-Deering W-14 was an update of the McCormick-Deering W-12. The engine speed of 1650 rpm now matched the speed of the corresponding Farmall F-14 whereas the W-12 had operated at 1,700 rpm.
Timeline Edit
Factory locations Edit
- International Harvester Tractor Works, Chicago, Illinois, USA
SpecificationsEdit
See infobox for basic details
Variations and Options Edit
- Belt pulley
- Pto
- Available rubber tires
- Front: 6.00-16 4-ply
- Rear: 9.00-24 or 11.25-24 6-ply
Serial numbers and production figuresEdit
| Year | Serial run[1] | Number Built[2] | Notes (Total built 3,630). |
|---|---|---|---|
| 1938 | WS4134-4609 | 476 | |
| 1939 | WS4610-5296 | 686 |
Note: "Number Built" and "Serial Run" may not always agree if they are based on different International Harvester records. Different parts of the company did not always agree on the interpretation of production vs. sales or model year vs. calendar year vs. sales year vs. fiscal year.
Preserved modelsEdit
See alsoEdit
Gallery Edit
Add extra photos here please.
McCormick-Deering W-14 1939, hood missing, 6.00-16 front and 9.00-24 rear rubber tires
