Mogul 10-20
Talk0
13,356pages on
this wiki
this wiki

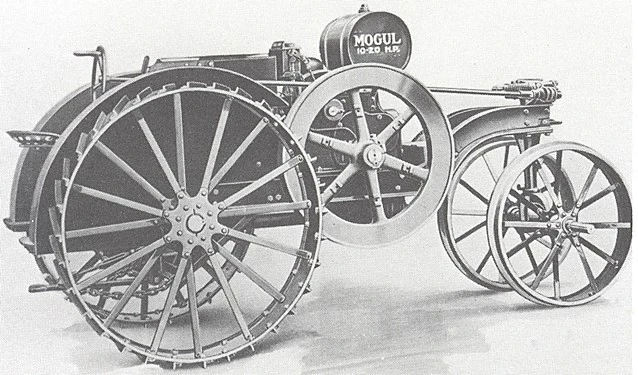

 Mogul 10-20 1917 from old sales brochure | |
| Model history | |
|---|---|
| Model introduced | 1916 |
| Model discontinued | 1919 |
| Model status | Discontinued |
| No. produced | 8,985 |
| Preceded by | Mogul 8-16 |
| Superseded by | McCormick-Deering 10-20 |
| Engine Specification | |
| Engine make | International |
| Fuel type | kerosene |
| Power hp | 20 belt, 10 drawbar (rated) |
| Governed rpm | 400 |
| Displacement cu in /(litre) | 681 ci |
| No. of Cylinders | 1 |
| Bore in (mm) | 8.5 in |
| Stroke in (mm) | 12 in |
| Cooling system | Water |
| Naturally aspirated, Turbo or Supercharged | NA |
| Transmission Details | |
| Transmission type | spur gear |
| Gearbox make | International |
| Forward | 2 |
| Reverse | 1 |
| Drive | 2-WD |
| Linkage Category | Unknown |
| Tyre Sizes (std/options) | |
| Front | steel 36"x6" |
| Rear | steel 54"x10" |
| Tractor Dimensions | |
| Length (inches/metres) | 135 in |
| Height (inches/meters) | 70 in |
| Weight (nominal) lb/kg | 5500 lb |
| Wheelbase | 90 in |
| Other info | |
| Factories | Tractor Works, Chicago, Illinois |
| Plow rating | 3 |
| Approximate Cost new in (year) | $950 (1917) |
The Mogul 10-20 tractor was built in the International Harvester Tractor Works, Chicago, Illinois.
Contents |
Model History
Edit
This lightweight Mogul 10-20 1916-19 should not be confused with the larger Mogul 10-20 built around 1911-12. This 10-20 was based on the Mogul 8-16 but with the engine bore increased by a half inch and with a 2-speed transmission.
Factory locations Edit
- Tractor Works, Chicago, Illinois
Specification Edit
See Infobox for details
Serial Numbers Information Edit
| Year | Serial run[1] | Number Built[2] | Notes (Total built 8,985). |
|---|---|---|---|
| 1916 | BC501- | 25 | |
| 1917 | 5338 | ||
| 1918 | 3146 | ||
| 1919 | 476 |
PreservationEdit
Add details of any known examples in preservation.
| Make + Model No. | Reg No. (if known) | Serial No. | Build-Date | Engine-Type/Make | Owner (if known) | Photo | Were seen/Featured in | Other info |
|---|---|---|---|---|---|---|---|---|
| Mogul 10-20 | - | sn BC4327 | ? | IHC | ? |
| Somerset Vintage & Classic Tractor Show 2009 | |
| ||||||||
|
| ||||||||
| Add your | tractor | to the | list | copy this |
| section and paste into table | then fill in your data | |
| Please add any tractor with known reg or serial no. with Photo if possible. | ||||||||
| Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor. | ||||||||
Gallery Edit
Add extra photos here please.
An International Harvester Mogul 10-20 a 20 hp at Bath and Southwest Tractor show 2009
Mogul 10-20 1917
