A mower is a machine for cutting crops or plants that grow on the ground.

Line of manual and motor mowers and ride on mowers at Scorton NY show 09 - IMG 2155
A lime of Manual, motor and ride on mowers at a UK show
BulldozerD11Added by BulldozerD11

IntroductionEdit

British Anzani lawn mower -award wining restoration-IMG 2972
An award winning restored British Anzani lawn mower
BulldozerD11Added by BulldozerD11
Bamfords Mower 2
A typical trailed finger bar mower from Bamfords
BulldozerD11Added by BulldozerD11
Claas mower - at Lamma - IMG 4730
A multi head Claas forage mower, with canopy rasied to show the cutting heads, on display at th LAMMA show in 2009
BulldozerD11Added by BulldozerD11

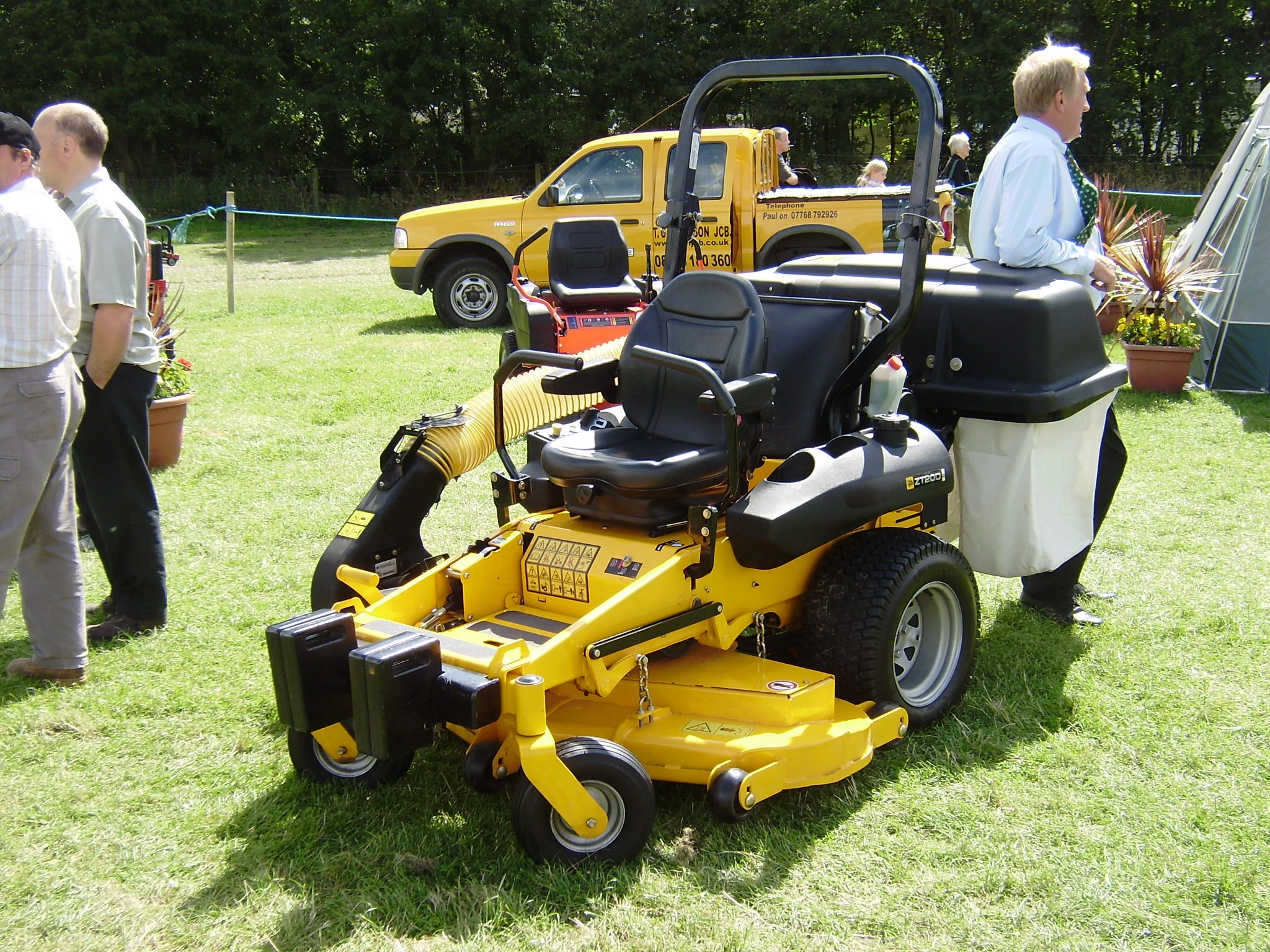

JCB Zero swing mower
Latest JCB Zero swing ride on mower, c/w grass collection hopper
BulldozerD11Added by BulldozerD11

The smaller mower used for lawns and sports grounds (playing fields) is called a lawn mower or grounds mower, which is often self-powered and have rotary or reel cutters, or may also be small enough to be pushed by the operator. Larger mowers are used to cut hay or other crops and place the cut material into rows, which are referred to as windrows. Often, such mowers are called windrowers or mower-conditioners. A Swathers are also used to cut hay and grain crops.

Larger mowers are usually ganged (equipped with a number or gang of similar cutting units), so they can adapt individually to ground contours. They may be powered and drawn by a tractor or draft animals. The cutting units can be mounted underneath the tractor between the front and rear wheels, mounted on the back with a three point hitch or pulled behind the tractor as a trailed mower. There are also dedicated self propelled cutting machines, which often have the mower units mounted at the front and sides for easy visibility by the driver.

Prior to the invention and adoption of mechanized movers, (and today in places where use of a mower is impractical or uneconomical), hay and grain was cut by hand using scythe or sickle.

Boom or side-arm mowers are mounted on long hydraulic arms, similar to a backhoe arm, which allows the tractor to mow steep banks or around objects while remaining on a safer surface.

TypesEdit

The cutting mechanism in a mower may be one of several different designs—

  • Sickle mowers, also called reciprocating mowers, bar mowers, or finger-bar mowers, have a long (typically six to seven and a half feet) bar on which is mounted fingers with stationary guardplates. In a channel on the bar there is a reciprocating sickle with very sharp sickle sections (triangular blades). The sickle bar is driven back and forth along the channel. The grass, or other plant matter, is cut between the sharp edges of the sickle sections and the finger-plates (this action can be likened to an electric hair clipper). The bar rides on the ground, supported on a skid at the inner end, and it can be tilted to adjust the height of the cut. A spring loaded board at the outer end of the bar guides the cut hay away from the uncut hay. The so-formed channel, between cut and uncut material, allows the mower skid to ride in the channel and cut only uncut grass cleanly on the next swath. These were the first successful horse-drawn mowers on farms and the general principles still guide the design of modern mowers. The drive was from a Iron wheel turning a gear to drive a crank, thus they were called ground drive mowers. these were still used with early tractors that did not have P.T.O. drives to turn the mechanism.


  • Rotary mowers, also called drum mowers, have a rapidly rotating bar, or disks mounted on a bar, with sharpened edges that cut the crop. When these mowers are tractor-mounted they are easily capable of mowing grass at up to 20 miles per hour (32 km/h) in good conditions. Some models are designed to be mounted in double and triple sets on a tractor, one in the front and one at each side, thus able to cut up to 20 foot (6 metre) swaths. In rough cutting conditions the blades attached to the disks are swivelled to absorb blows from obstructions. Mostly these are rear-mounted units and in some countries are called scrub cutters. Self-powered mowers of this type are used for rougher grass in gardening and other land maintenance. The large set need a high horse power tractor to drive several drums at once, and this lead to some farm contractor to build early Self-propelled mowers for contract silage operations.
  • Reel mowers, also called cylinder mowers (familiar as the hand-pushed or self-powered cylinder lawn mower), have a horizontally rotating cylindrical reel composed of helical blades, each of which in turn runs past a horizontal cutter-bar, producing a continuous scissor action. The bar is held at an adjustable level just above the ground and the reel runs at a speed dependent on the forward movement speed of the machine, driven by wheels running on the ground (or in self-powered applications by a motor). The cut grass may be gathered in a collection bin. This type of mower is used to produce consistently short and even grass on bowling greens, lawns, parks and sports grounds. When pulled by a tractor (or formerly by a horse), these mowers are often ganged into sets of three, five or more, to form a gang mower. A well-designed reel mower can cut quite tangled and thick tall grass, but this type works best on fairly short, upright vegetation, as taller vegetation tends to be rolled flat rather than cut.
  • Flail mowers have a number of small blades on the end of chains attached to a horizontal axis. The cutting is carried out by the ax-like heads striking the grass at speed. These types are used on rough ground, where the blades may frequently be fouled by other objects, or on tougher vegetation than grass, such as brush (scrub). Due to the length of the chains and the higher weight of the blades, they are better at cutting thick brush than other mowers, because of the relatively high inertia of the blades. In some types the cut material may be gathered in a collection bin. As a boom mower (see above), a flail mower may be used in an upright position for trimming the sides of hedges, when it is often called a hedge-cutter. flail mowers were used for a few years for silage and hay production but it was soon found that rotary mowers were preffered and produced a better quality crop for collection by the Silage Harvester.

Manufactures Edit

Early Makes Edit

Trailed Finger bar mowers
