Planter

Talk0
14,910pages on
this wiki

Redirected from Planting machinery

John Deere 71 Flexi Planter, 2 Row

A very small, two row John Deere planter

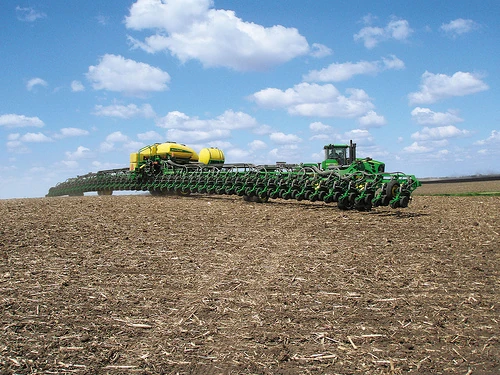

John Deere DB120 48 row planter

The John Deere DB120, the largest planter in the world with 48 rows and a 120 foot width; capable of sowing up to 100 acres per hour (at a fairly high speed for planting; 5+)

A planter is an agricultural farm implement towed behind a tractor, used for sowing crops through a field.[1][2] It is connected to the tractor with a draw-bar, or a three-point hitch. Planters lay the seed down in precise manner along rows. Seeds are distributed through devices called row units.[1] The row units are spaced evenly along the planter.[1] Planters vary greatly in size, from 2 rows to 48, with the biggest in the world being the 48-row John Deere DB120. The space between the row units also vary greatly. The most commons row spacing today is 30 inches. [1] On smaller and older planters, a marker sticks out half the width of the planter and draws a line in the field where the tractor should be centered for the next pass. The marker is usually a single disc harrow disc on a rod on each side of the planter. On larger and more modern planters, GPS navigation systems and things like auto-steer for the tractor are used.

Older planters commonly have a seed bin for each row and a fertilizer bin for two or more rows. In each seed bin plates are installed with a certain number of teeth and tooth spacing according to the type of seed to be sown and the rate at which the seeds are to be sown. The tooth size (actually the size of the space between the teeth) is just big enough to allow one seed in at a time but not big enough for two. Modern planters often have a large bin for seeds that are distributed to each row.

ManufacturersEdit

See alsoEdit

ReferencesEdit

Smallwikipedialogo This page uses some content from Wikipedia. The original article was at Planter (farm implement). The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia
