RotinofF5-2947

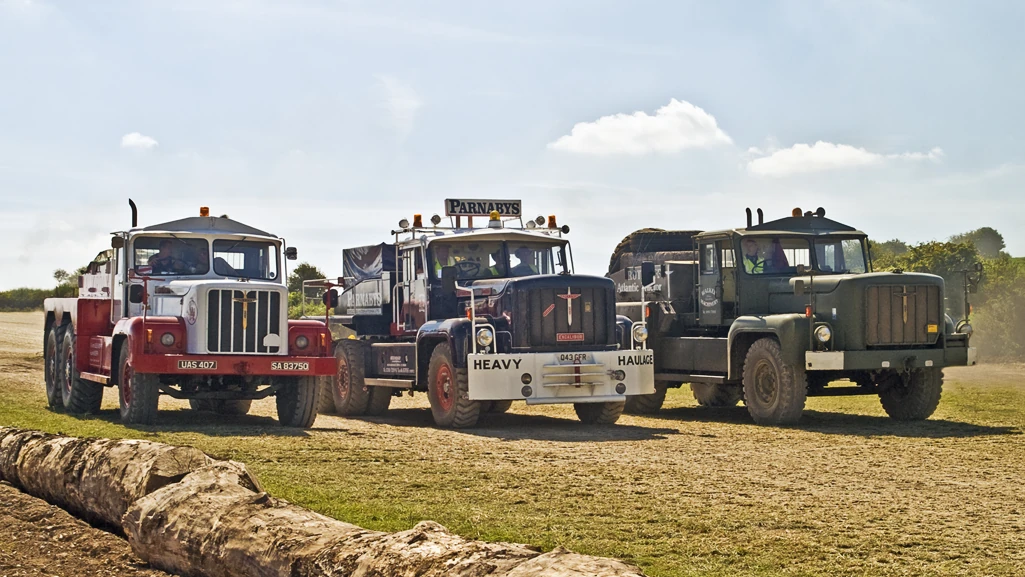

3 of the surviving Rotinoff trucks in Britain lined up at the Great Dorset Steam Fair

FB IMG 1500732475171

ROTINOFF MOTORS LIMITED 1952-1962 Colbrook, Buckinghamshire England

'LOMOUNT VEHICLES & ENGINEERING LIMITED 1960-1962 Slough, Buckinghamshire England

Rotinoff Motors Ltd was a British builder of commercial vehicles that specialised in Heavy haulage units. Founded by the son of a Russian engineer in 1952.

Company historyEdit

Rottinof Viscount at National Road Tpt Hall of Fame-Alice Springs - photo by Ian Lynas
DSC00711

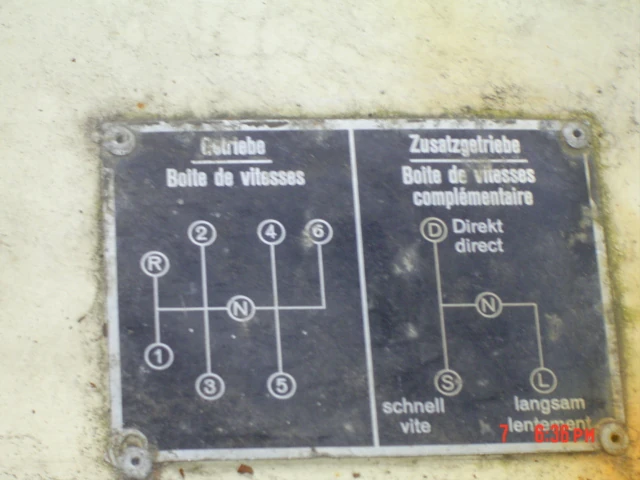

Gear shift pattern plate on the Sunters Rotinoff in the Dave Weedon collection

George Rotinoff, son of a Russian engineer set up Rotinoff Motors Ltd at Colnbrook near Slough in 1952 to build heavy haulage tractors.[1] He developed the 140 tons gross "Atlantic", and the 330 tons gross "Super Atlantic". The trucks were fitted with Kirkstall axles. Also built were 2 long wheelbase "Viscounts" which were of a lighter construction and went to Australia for use as cattle hauling roadtrains for the Vestey Bros Northern Cattle Transport Company. The company also built a one-off dumper was built known as a "Pacific" which it is believed was built as a prototype. George Rotinoff died in 1959 when only 35 vehicles had been built bearing the Rotinoff name, after which no more vehicles were built.

In the 1960s ROTINOFF MOTORS were taken over by another company called Lomount Vehicle & Engineering Ltd. Later still, when Lomount ended production in 1962, the design rights were acquired by Atkinson Vehicles Lid of Walton-le-Dale, Preston, who briefly marketed the trucks under the Atkinson name badge. Atkinson Vehicles developed the massive ATKINSON Omega 6X6model specially designed for Contruction and Haulage that is powered by the same Rolls Royce Diesel engines of which few of them are still around.

The Swiss army had 12 for pulling tank transporters and the only one was sold new into UK heavy haulage to Sunter Bros of Northallerton.

Several were re imported into the UK and sold on by dealers Walkers Machinery of Oxford.

Do you know more of the history ? if so click here and help build the Wiki database up.

FROM THE WIKIPEDIA PAGES

ROTINOFF MOTORS LIMITED The company was founded in 1952 by the Belarusian émigré George Rotinoff. The Rotinoff company specialized in the production of ballast tractors and heavy transport vehicles. The vehicles of Rotinoff were widely used in Europe as tractors for tank transporters. In the Swiss army, the Rotinoff Atlantic GR 7 was used from 1958 - 1991 by the tank troops to haul Centurion tanks. More Rotinoff transporters were in use as road trains in Australia for the transport of cattle.

George Rotinoff died in 1959, and the brand name Rotinoff was then discontinued. Worldwide there are still Rotinoff vehicles in operation today and they are coveted collectibles.

ROTINOFF INFORMATION UPDATES April 2018

“ROTINOFF Rotinoff Motors Ltd was formed at Colnbrook, near Slough in Buckinghamshire, in 1952 by George Rotinoff, a White Russian immigrant, to build heavy tractors suitable for military lank transport. After suitability trials, the 6x4 Rotinoff Atlantic GR.7 was approved by the Swiss Army. The first example appeared in 1955.

It had a maximum gross train weight rating of 140 tons, was powered by a 12.17 litre/ 743cu in Rolls Royce C6.SFL Series 109 direct-injection supercharged diesel developing 250bhp, and had a David Brown 6-speed main & 3-speed auxiliary transmission both of which were synchromesh. Kirkstall axles were fitted. A heavier Super Atlantic GR.7 look the C8.TFL 16.2 litre/ 988cu in "straight eight" Rolls Royce supercharded diesel giving 335bhp. These were also fitted with 18-speed transmissions and were capable of gross train weights up to 300 tons. As well as the Atlantic and Super Atlantic, Rotinoff built a 7.3m/24ft wheelbase Viscount GR.37/ AU load-carrying drawbar tractor suitable for Australian road train operations.

This had the additional option of a Rolls Royce B.81.8P 8-cylinder gasoline engine rated at 220bhp, designated the Viscount 64.GKS. Also listed was a forward-control Viscount 84.BJS rigid eight drawbar tractor. An estimated 35 Rotinoffs were built. From 1960 onwards the company changed its name from Rotinoff Motors to Lomount Vehicle & Engineering Ltd. Later still, when Lomount company ended production in 1962, the design rights were acquired by Atkinson Vehicles Limited of Walton-le-Dale, Preston in Lancashire who briefly marketed these trucks under the Atkinson name badge.”

ROTINOFF Heavy Truck Model RangeEdit

Rotinoff Atlantic ballast tractors Rotinoff Atlantic Rotinoff Super Atlantic Rotinoff Viscount, cattle transporters (2 examples built) Rotinoff Pacific Rotinoff Atkinson

Locations of preserved vehicles

Schweizerisches Militärmuseum Full Science Museum, London Sources Data of the Rotinoff Super Atlantic on militärfahrzeuge.ch (in German) Schweizerisches Militärmuseum Full: Werksammlung Mowag GmbH Kreuzlingen (in German) External links


Models BuiltEdit

2Rotinoff s 006

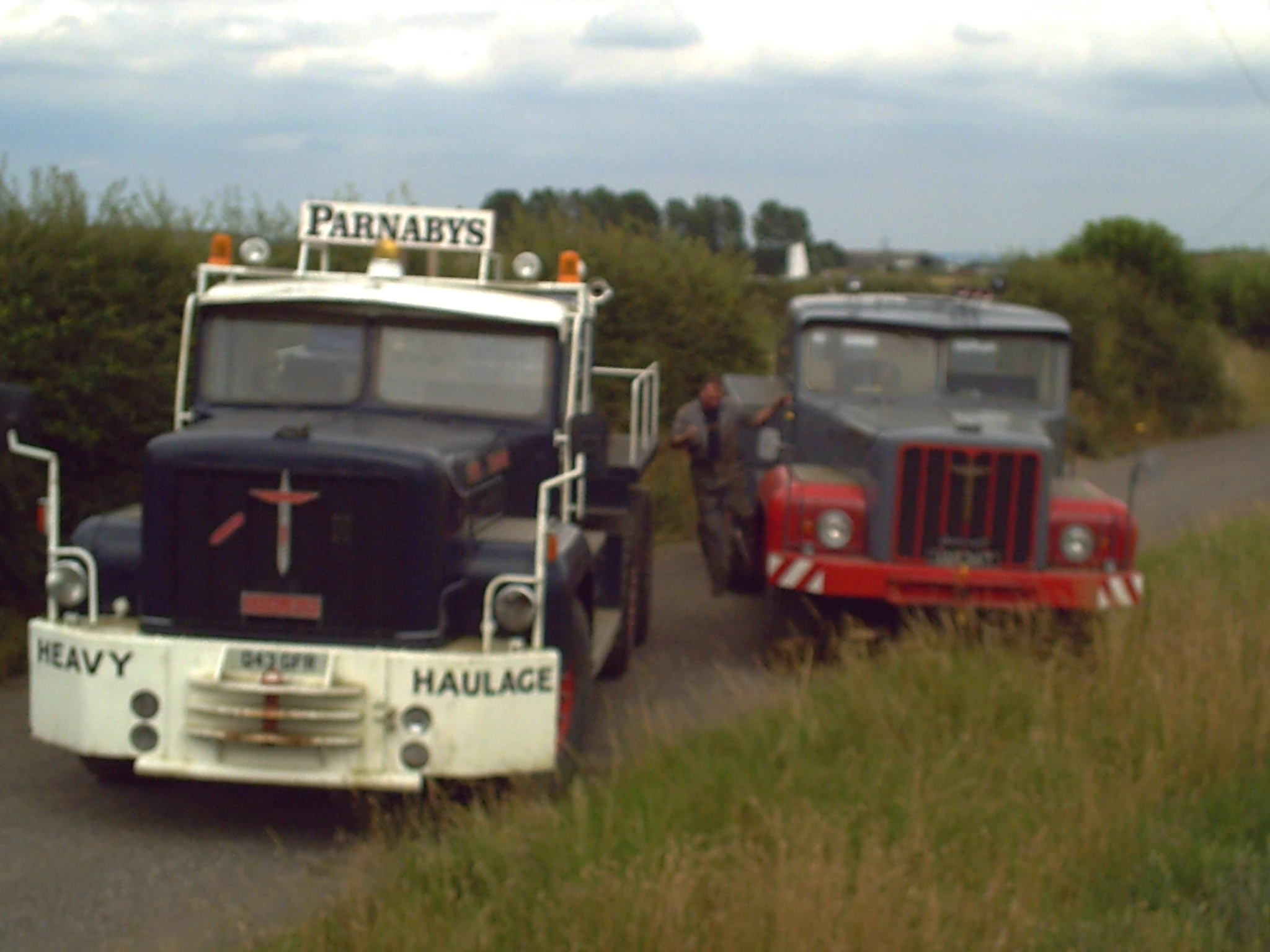

Dave Weedons Super Atlantic Q43 GFR and Atlantic UAS 347

2Rotinoff s 001

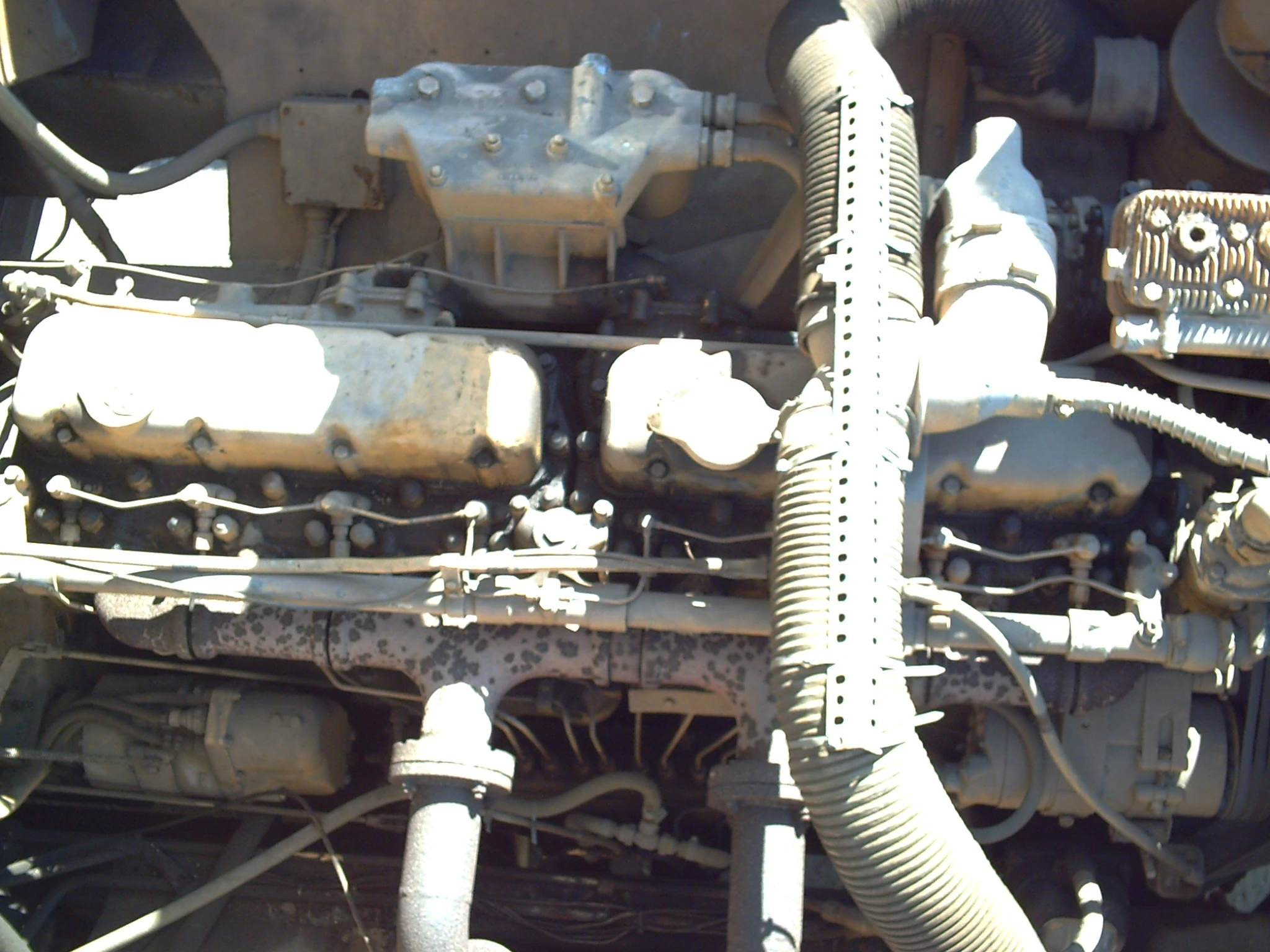

8 cylinder Rolls Royce supercharged engine in the Super Atlantic

DSC00712

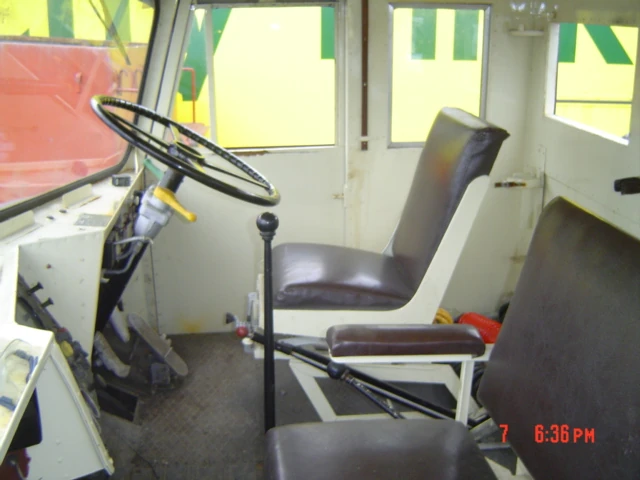

Inside Atlantic cab (Sunters)

Preserved machinesEdit

Out of the 35 built apparently 11 still survive including the 2 sold to Australia.

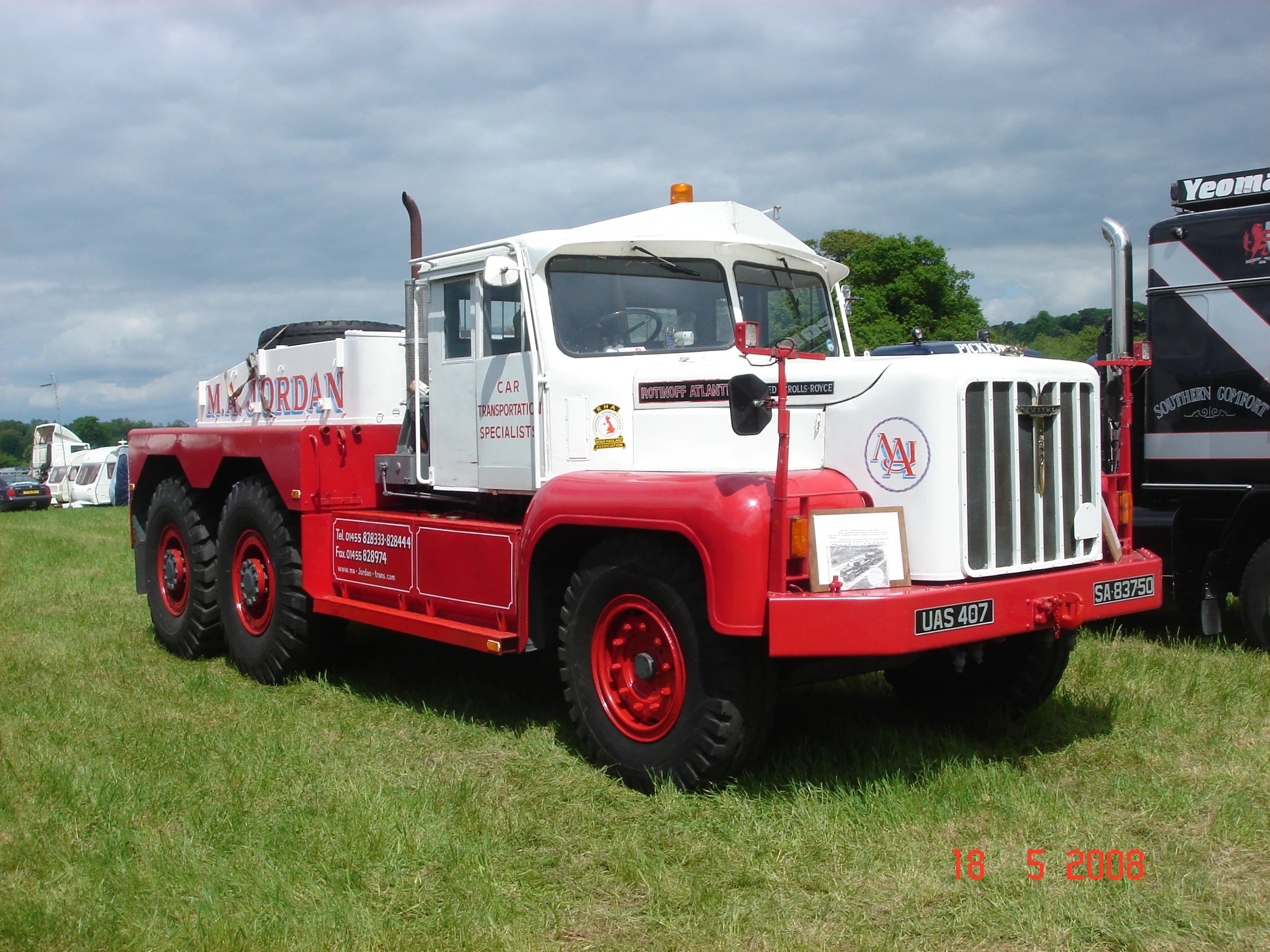

  • The photo above is of Mark Lord's Rotinoff Atlantic UAS 407 that was at the Dunscombe Park steam fair 2017 in the Vintage trucks section.
  • A Sunters livery machine was at GDSF in 2008 Photo here on the CMN web site This is not the 'Actual' Sunters machine as that one is in a museum.
  • The Sunters Rotinoff reg no RPY 767 now resides at the The Science Museum Large objects store at Wroughton Airfield near Swindon. (some of this collection is displayed occasionally at special events).
  • A Military version is in a Swiss museum.[2]
  • The 11 trucks known are:-
    • 2 in Yorkshire Dave Weedon collection, UAS 347(in Sunters livery) and Q43 GFR- Excalibur(ex Parnabys)
    • 2 at Walker Machinery, ?
    • 1 UAS 407 Is with Mark Lord in North Yorkshire, (ex Swiss Army)
    • 1 SBS114 is in Malta (ex JCB), (carries a Malta reg no)
    • 2 In Australia, (Viscounts) built for the Vestry meat empire. Both are in the National Transport Hall Of Fame at Alice Springs, Northern Territory. 1 is fully restored.
    • 1 In The Science Museum, RPY 767
    • 1 In Jamaica,
    • 1 In a Swiss Museum
ROTINOFF MOTORS LIMITED Model Range Photo Gallery


GalleryEdit

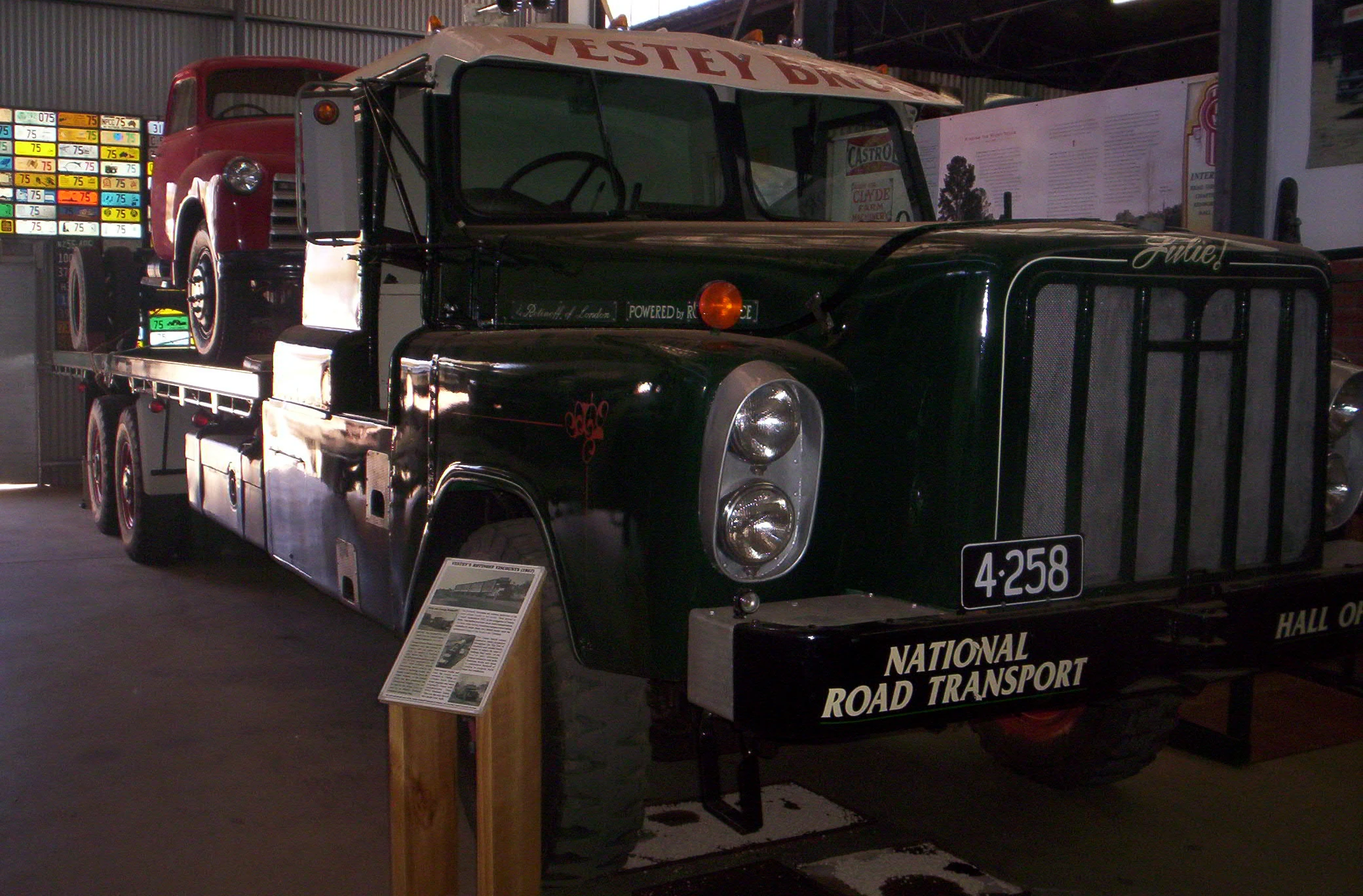

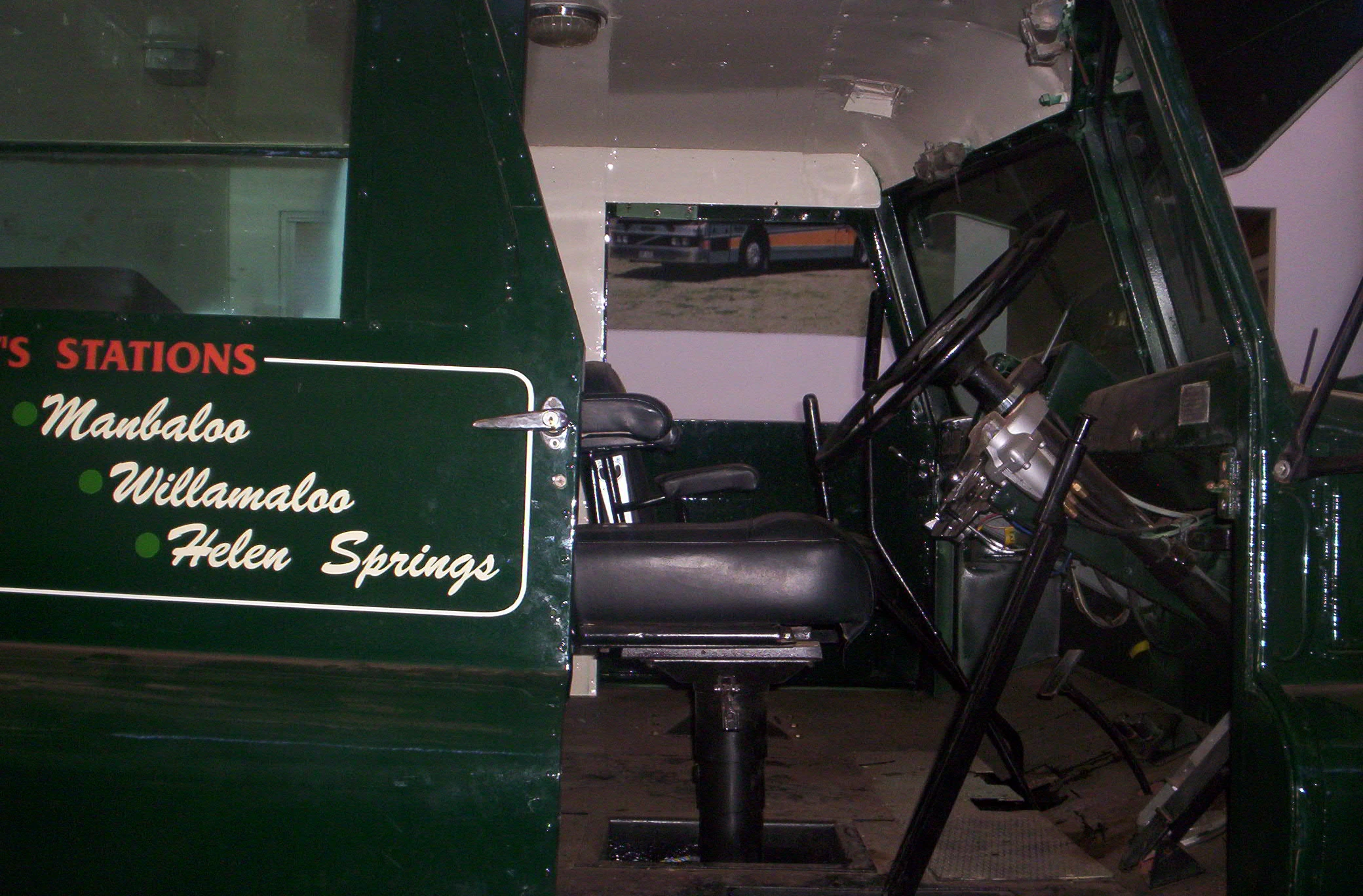

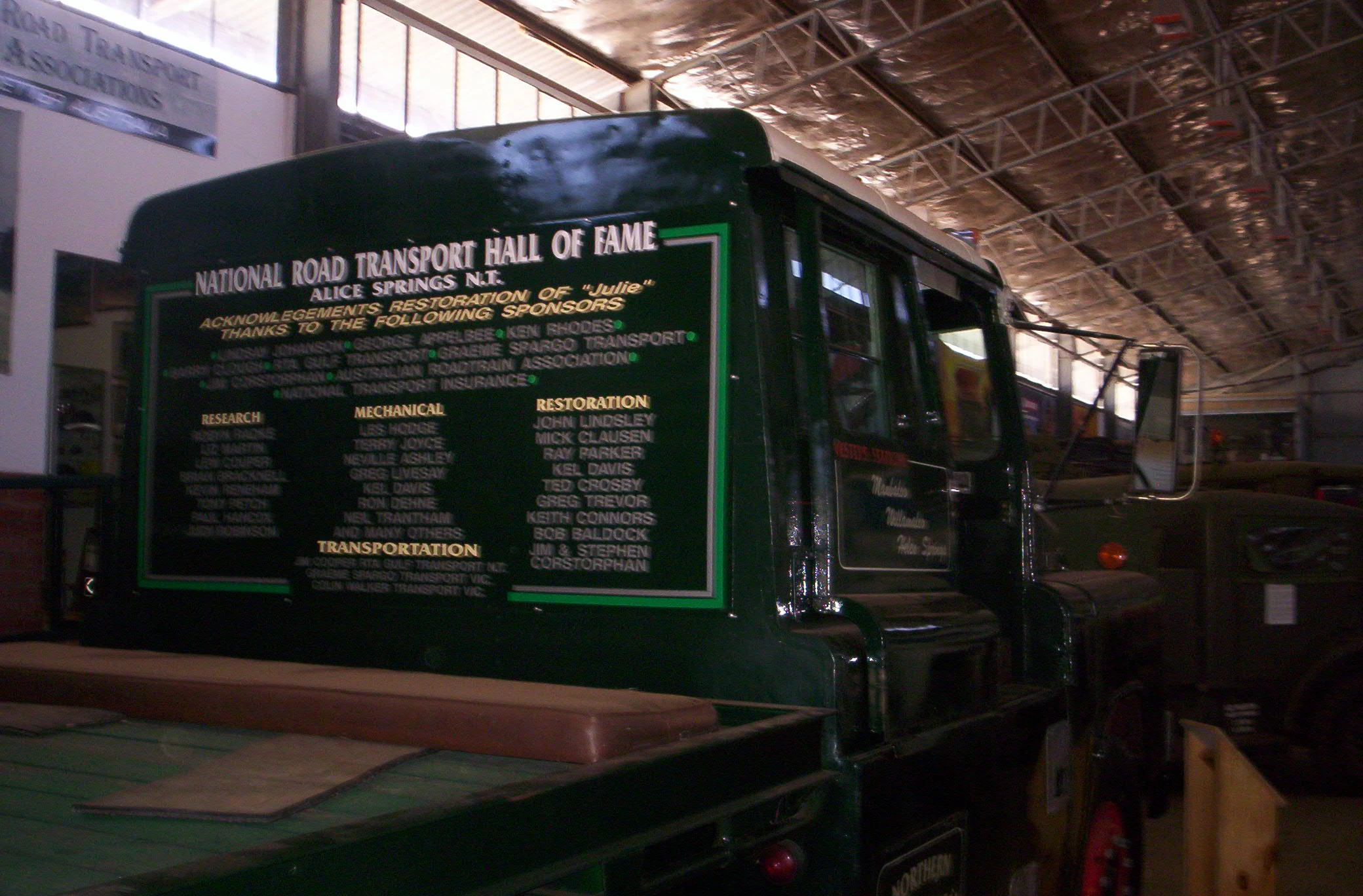

The Australian Rotinoff's
100 2464 100 2465 100 2466
Other Rotinoff's
Walker Machinery Rotinoff at Fawley Hill 2013

FB IMG 1505676189967


Scale modelsEdit

  • Matchbox produced a version of the Rotinoff as No.15. One was sold recently for £2400 on E bay.[3]
