Sanderson

Talk0
14,521pages on
this wiki
40px-Crystal Clear app kedit.svg Please help improve this article or section by expanding it.

Further information might be found on the talk page or at requests for expansion.

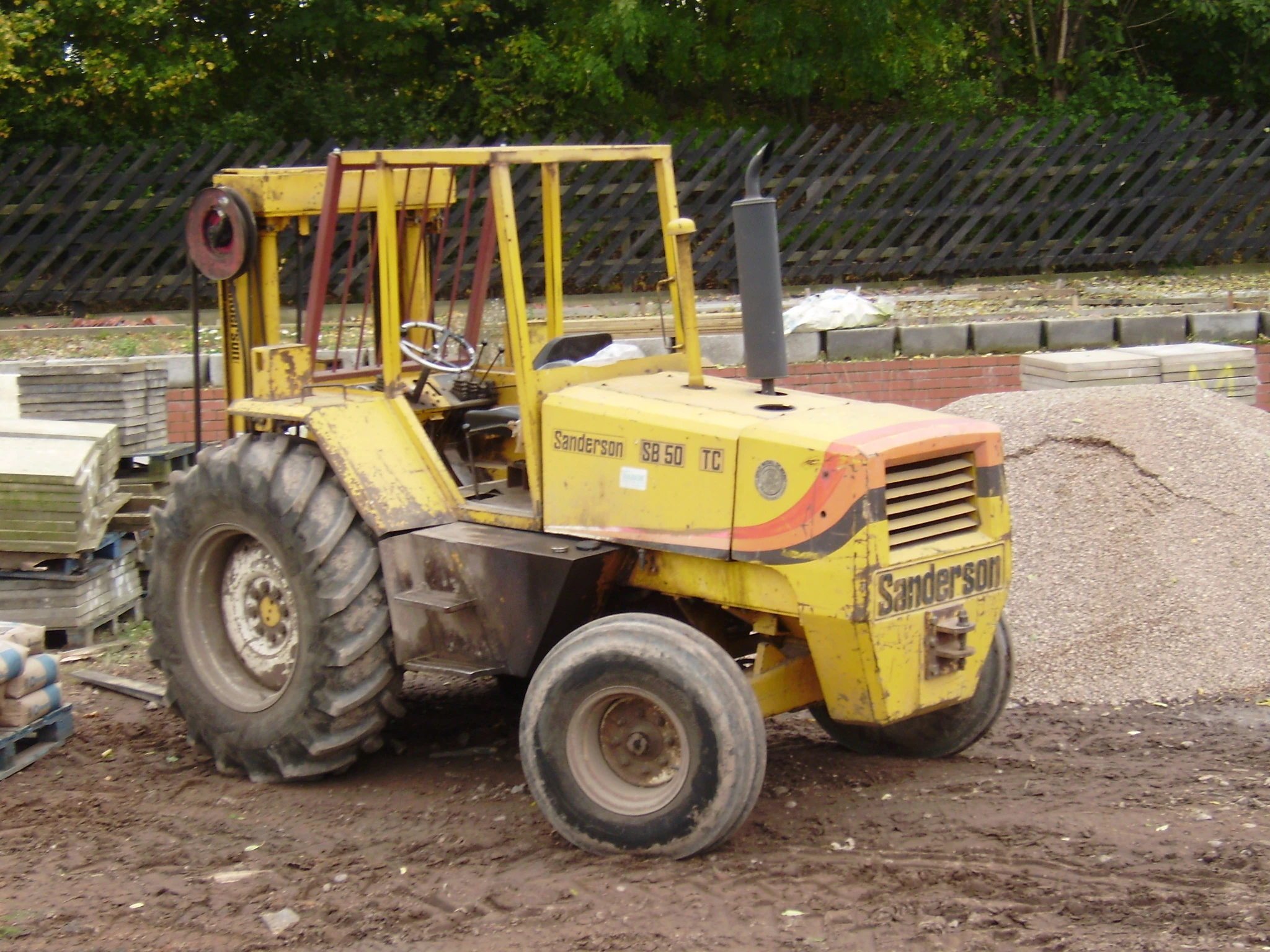

Sanderson RT forklift - PA040122

A Sanderson SB50 working at Ruddington Transport Museum

Sanderson (Forklifts) Ltd of Croft Skegness, Lincolnshire were a manufacturer of "Rough terrain" forklifts and Telescopic handlers (Teleporters).

HistoryEdit

Early history and origin unknown, please fill in details

In 1981 Sanderson were Awarded a Gold Medal for Machinery by the Royal Agricultural Society of England (RASE) at the Royal Show.[1]

By 1984 they had taken over the failed Priestman excavators operation from parent company Acrow. And by 1988 had also acquired Winget a site dumper manufacturer .

To build a range of products Including (according to 1988 publicity photo);

  • 5 - Teleporter models (Sanderson)
  • 2 - Rough terrain Forklifts (Sanderson)
  • 2 - Long reach excavators (Priestman VC 15 & 20)
  • 3 - Hydraulic excavators (Priestman)
  • 5 - Dumper trucks (Winget)
  • 3 - Batch Mixers (Winget)
  • 3 - Diesel Towed Mixers (Winget)

By the end of 1990 Sandersons were in trouble themselves and went bust with RB Cranes the successor to Ruston-Bucyrus company of Lincoln buying up the rights & Patents to the VC line of Excavators and continuing to build them including developing a new VC30 with 20, 25, & 30 m booms. The massive 30m machine weighing in at 61 tons. They were still available to order from RB Cranes successors Clarke Chapman part of the NEI group, who also own the Stothert & Pitt brand name. The RB Cranes brand name has since transferred to an new owner in 2010.[citation (source) needed]

The Sanderson name and teleporter model range was sold off to Aveling Barford (part of the Wordsworth Holdings Group).[2] In 2010 They subsequently went into administration, but parts of the group were bought out (No details yet).

The Winget dumper brand name and model range was bought by Seddons Plant & Engineers of Bolton (part of the Seddon Group, and continues today with a revised range of machines.[citation (source) needed]Source: Laurie Hatchard. Then Sales Manager Seddons Plant & Engineers.


Related developmentsEdit

Main article: Liner Concrete Machinery

It is worth mentioning at this point that Laurie Hatchard was involved with the development and launch of what could be described as the first proper Telescopic Handler. This was the Liner Giraffe called at the time an SPV (site placing vehicle)designed by Ridley Stokoe, Liners then Works/engineering director. Liner Concrete Machinery launched the Liner Giraffe at the Public Works Exhibition in November 1974 priced at £12900 plus vat.(confirmed by Laurie Hatchard (now Hatchard Plant & Machinery Cheshire)[citation (source) needed] It was very much ahead of its time but was eventually copied by JCB with their 520 Loadall Telehandler.

Laurie Hatchard sold many Liner Giraffes to companies like McAlpine Brand & Zokke, Redrow, and a number of Giraffes were ordered by the British Army. The Giraffe was four wheel drive, four wheel steer, whereas the first models of the JCB 520 were only two wheel drive/two wheel steer and struggled on site. Ironically, JCB are now probably the best machine on the market, whilst little trace of the Liner company or there products can be found, following the demise of the original company at Gateshead around the end of the seventies.

Model rangeEdit

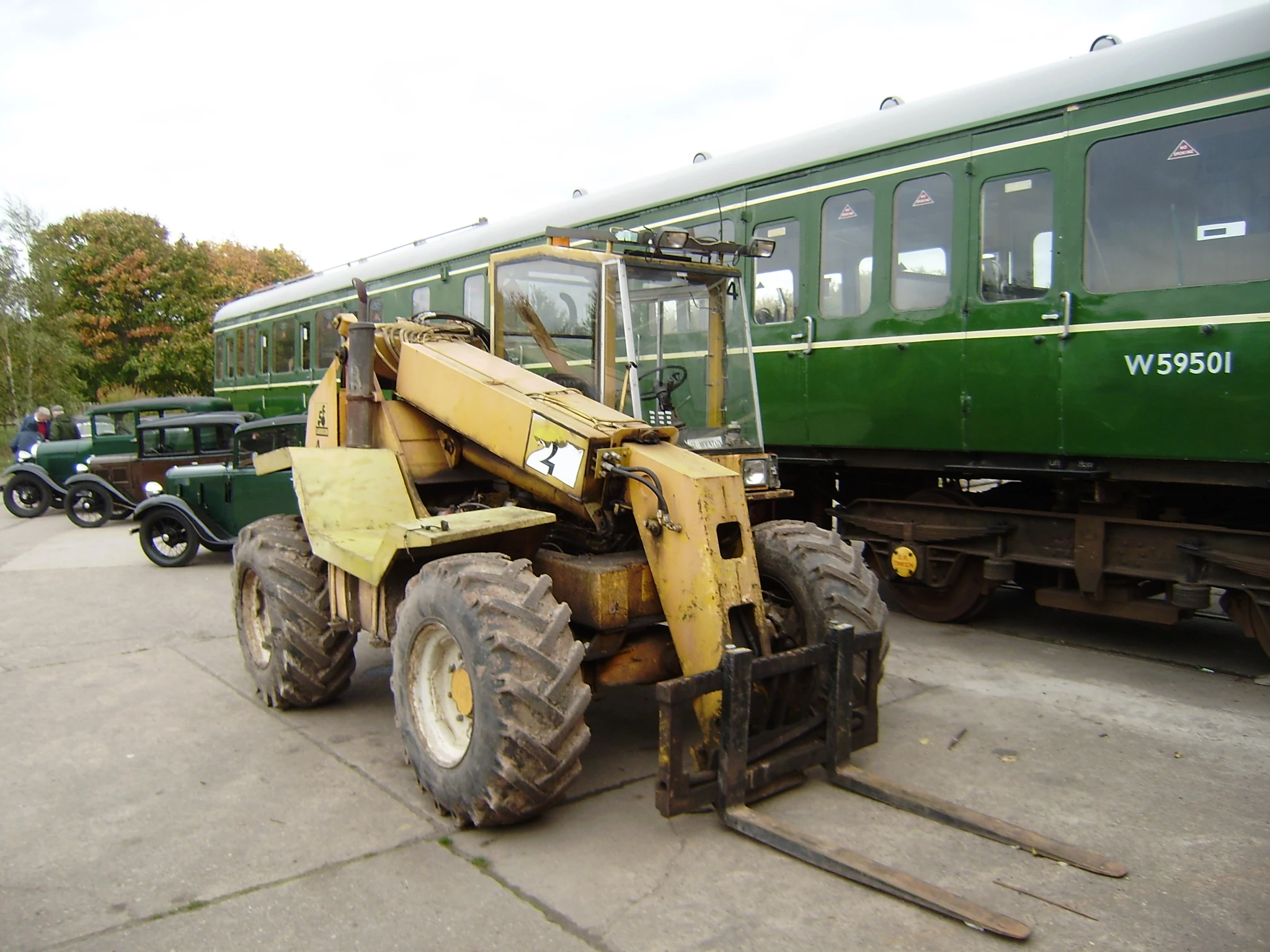

Sanderson Teleporter - PA040106

Sanderson Teleporter at Ruddington Transport Museum Nottingham

  • Sanderson Plantman Forklift
  • SB 45 Forklift
  • SB 50 Forklift
  • SB 504 forklift: 4wd version of SB50
  • SB 55 TC Forklift
  • SB 60 Forklift
  • SB 65 TC Forklift
  • SB 70 Forklift
  • SB 704 forklift: 4wd version of SB70
  • SB 80 forklift
  • Sanderson 247 Teleporter 7 Mtr. reach
  • Sanderson 249 Teleporter
  • Sanderson 622 Teleporter
  • Sanderson 624 Teleporter
  • Sanderson 623 Teleporter
  • Sanderson 625 Teleporter
  • Sanderson 725 Teleporter2
  • Sanderson 725C Teleporter
  • Sanderson TL6 Loadall
  • Sanderson TL7 Loadall
  • Sanderson 11 30 Teleporter, Ford engined
  • Sanderson 11 40 Teleporter
  • Sanderson 5M26 Teleporter

TC: Torque Converter

Aveling Barford eraEdit

  • Sanderson GX525 - Articulated Teleporter
