Sprocket

Talk0
14,907pages on
this wiki
Sprocket16

16 tooth sprocket. Do = Sprocket diameter. Dp = Pitch diameter

Chain

A sprocket and roller chain

A sprocket[1] or sprocket-wheel[2] is a profiled wheel with teeth, cogs,[3] or even sprockets[4] that mesh with a chain, track or other perforated or indented material.[5][6] The name 'sprocket' applies generally to any wheel upon which are radial projections that engage a chain passing over it. It is distinguished from a gear in that sprockets are never meshed together directly, and differs from a pulley in that sprockets have teeth and pulleys are smooth.

Sprockets are used in bicycles, motorcycles, cars, tracked vehicles, and other machinery either to transmit rotary motion between two shafts where gears are unsuitable or to impart linear motion to a track, tape etc. Perhaps the commonest form of sprocket is found in the bicycle, in which the pedal shaft carries a large sprocket-wheel which drives a chain which in turn drives a small sprocket on the axle of the rear wheel. Early automobiles were also largely driven by sprocket and chain mechanism, a practice largely copied from bicycles.

Sprockets are of various designs, a maximum of efficiency being claimed for each by its originator. Sprockets typically do not have a flange. Some sprockets used with timing belts have flanges to keep the timing belt centered. Sprockets and chains are also used for power transmission from one shaft to another where slippage is not admissible, sprocket chains being used instead of belts or ropes and sprocket-wheels instead of pulleys. They can be run at high speed and some forms of chain are so constructed as to be noiseless even at high speed.

Transportation Edit

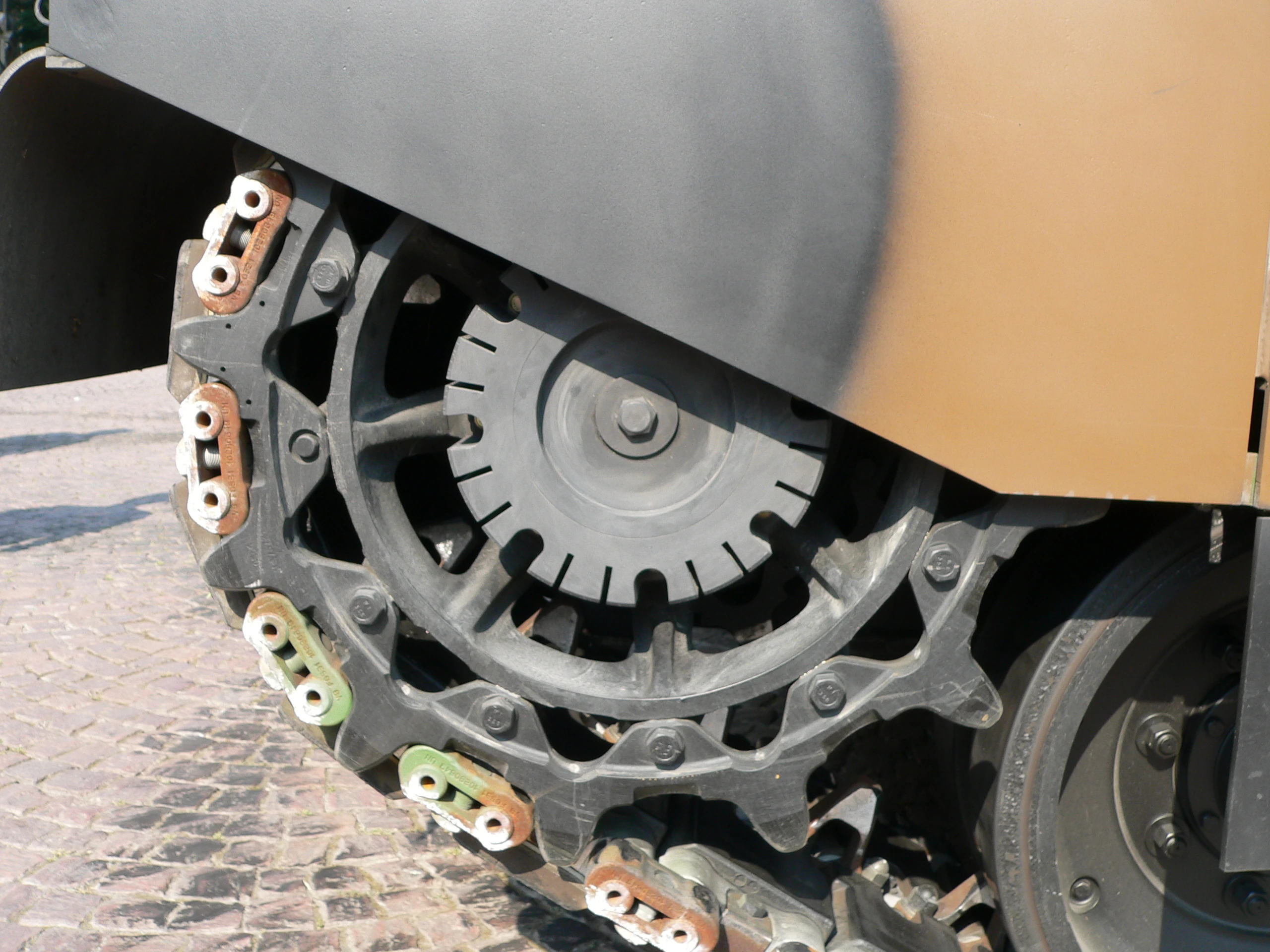

Leclerc p1040882

Tread drive sprocket of the Leclerc main battle tank (2006).

In the case of bicycle chains, it is possible to modify the overall gear ratio of the chain drive by varying the diameter (and therefore, the tooth count) of the sprockets on each side of the chain. This is the basis of derailleur gears. A 10-speed bicycle, by providing two different-sized driving sprockets and five different-sized driven sprockets, allows up to ten different gear ratios. The resulting lower gear ratios make the bike easier to pedal up hills while the higher gear ratios make the bike faster to pedal on flat roads. In a similar way, manually changing the sprockets on a motorcycle can change the characteristics of acceleration and top speed by modifying the final drive gear ratio.

Tracked vehiclesEdit

Cat D9T dozer - Finning - IMG 6571

Caterpillar D9T with elevated Hi-drive system

In the case of vehicles with caterpillar tracks the engine-driven toothed-wheel transmitting motion to the tracks is known as the drive sprocket and may be positioned at the front or back of the vehicle, or in some cases, both. In the Caterpillar Hi-drive layout the drive sprocket is elevated with a extra Idler at the rear of the machine. The elevated sprocket having a more direct drive path and also easier serving with claims of less wear as it is raised out of the mud.

Film and paperEdit

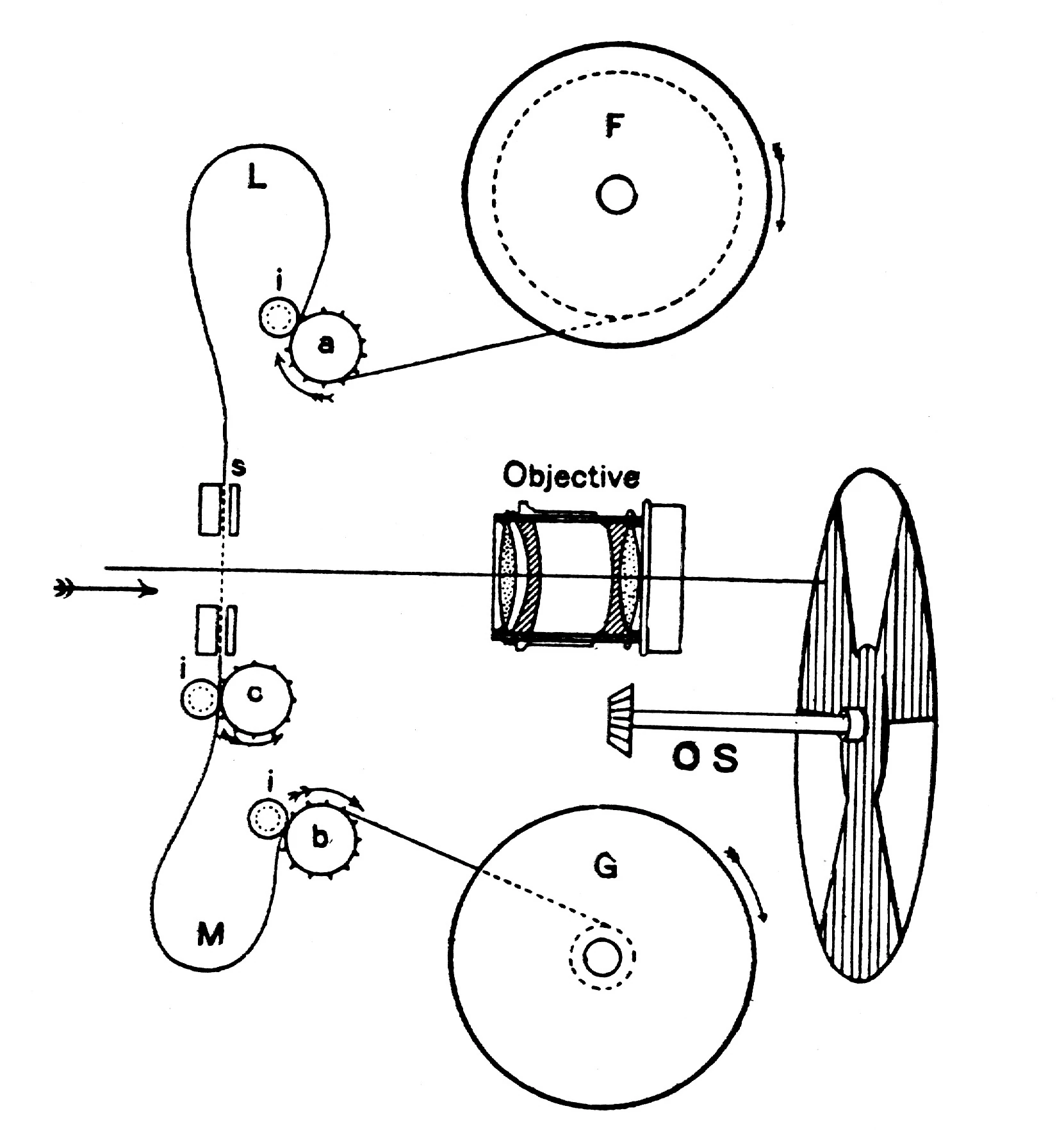

Optic Projection fig 226

Moving picture mechanism from 1914. The sprocket wheels a, b, and c engage and transport the film. a and b move with uniform velocity and c indexes each frame of the film into place for projection.

Sprockets are used in the film transport mechanisms of movie projectors and movie cameras (pre digital era).[7] In this case, the sprocket wheels engage perforations in the film stock. Sprocket feed was also used for the punched tape originally used to programe computers and is used for paper feed to some computer printers. (it provides 'positive' registration, as opposed to a 'friction' drive system were slippage can occur.

See also Edit

References Edit

  1. "Sprocket - Definition". Merriam-Webster. Retrieved on 2011-11-14. “sprocket, n. 1: a toothed wheel whose teeth engage the links of a chain”
  2. (1989) Oxford English Dictionary, 2nd, Oxford University Press. “sprocket, n. 2. b. ellipt. A sprocket-wheel, esp. that of a cycle; and (Cinematogr.), one that propels film by engaging with perforations along its edge.”
  3. (1989) Oxford English Dictionary, 2nd, Oxford University Press. “cog, n. 1. a. One of a series of teeth or similar projections on the circumference of a wheel, or the side of a bar, etc., which, by engaging with corresponding projections on another wheel, etc., transmit or receive motion.”
  4. (1989) Oxford English Dictionary, 2nd, Oxford University Press. “sprocket, n. 2. a. A projection (either forked or simple) from the rim of a wheel, engaging with the links of a chain.”
  5. The Encyclopedia Americana: a library of universal knowledge, sprocket. pg 460
  6. Elements of machine design By Oscar Adolph Leutwiler
  7. Motion picture handbook By Frank Herbert Richardson
