Toyota RAV4

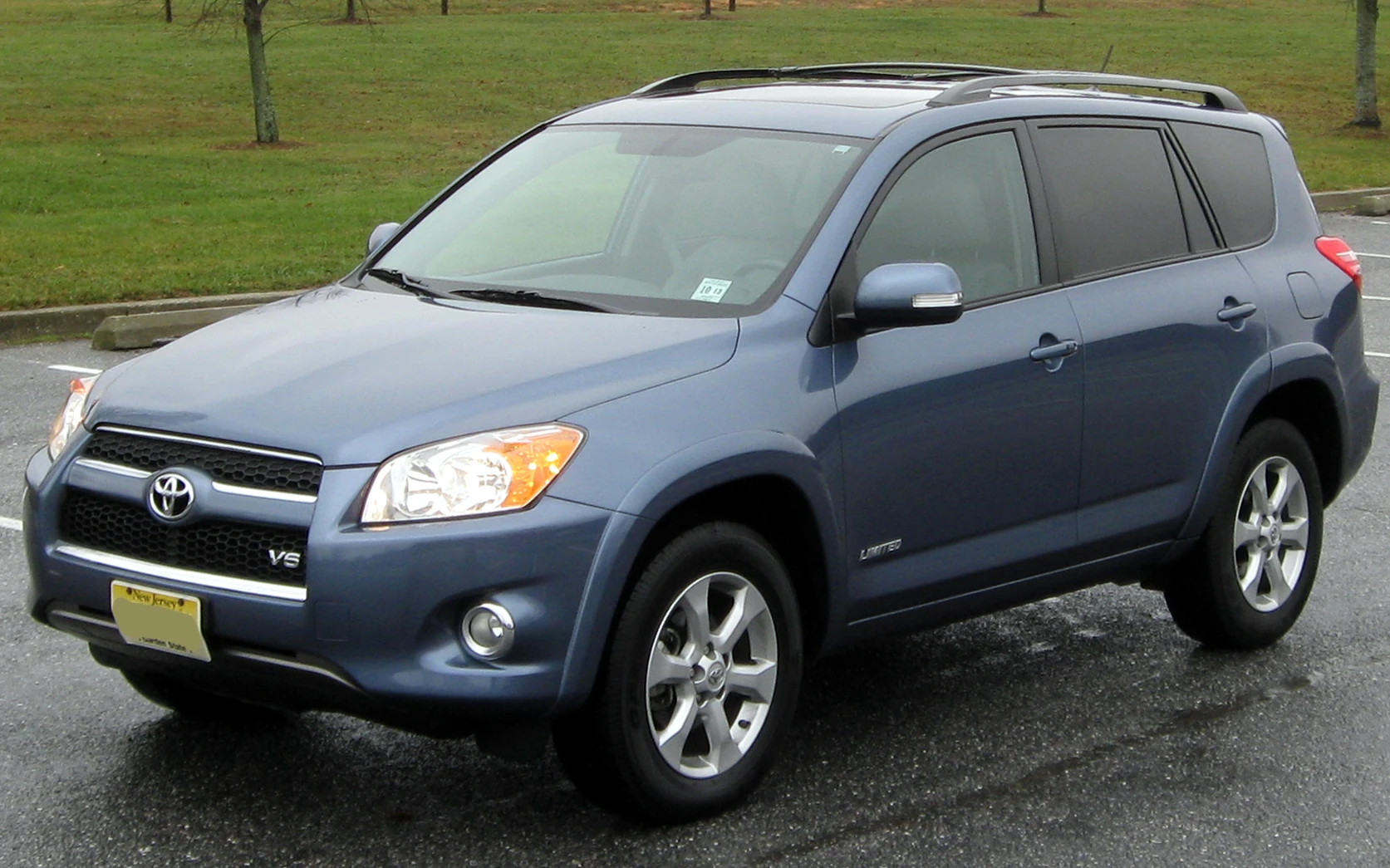

[[File:2010 Toyota RAV4 Limited -- 12-12-2010 2|frameless|upright=1.25|alt=]]
Manufacturer Toyota Motor Corporation
Production 1994–present
Class Compact Crossover SUV
Layout Front engine, front-wheel drive / all-wheel drive

The Toyota RAV4 is a compact crossover SUV from Toyota. It was the first compact crossover SUV,[1] introduced in Japan and Europe in 1994 and beginning sales in North America in 1996. The vehicle was designed for consumers wanting a vehicle that had most of the benefits of SUVs, such as increased cargo room, higher visibility, and the option of full-time four-wheel drive, along with the maneuverability and better fuel economy of a smaller car. Its name stands for "Recreational Active Vehicle with 4-wheel drive", although not all RAV4s have four wheel drive, which is optional in some countries.[2] The early success of the RAV4 paved the way for other compact SUVs such as the Ford Escape and the Subaru Forester.

In most countries, the RAV4 is the only compact SUV from Toyota. In other markets, it is the crossover counterpart of the FJ Cruiser. Since the 2006 third generation model, Toyota has offered both short- and long-wheelbase versions of the RAV4. Short-wheelbase versions are retailed in Japan and Europe, with Australia and North America receiving the long-wheelbase versions. Toyota in Japan also sells the longer version as the Toyota Vanguard.

First generation (XA10, 1994–2000)Edit

First generation

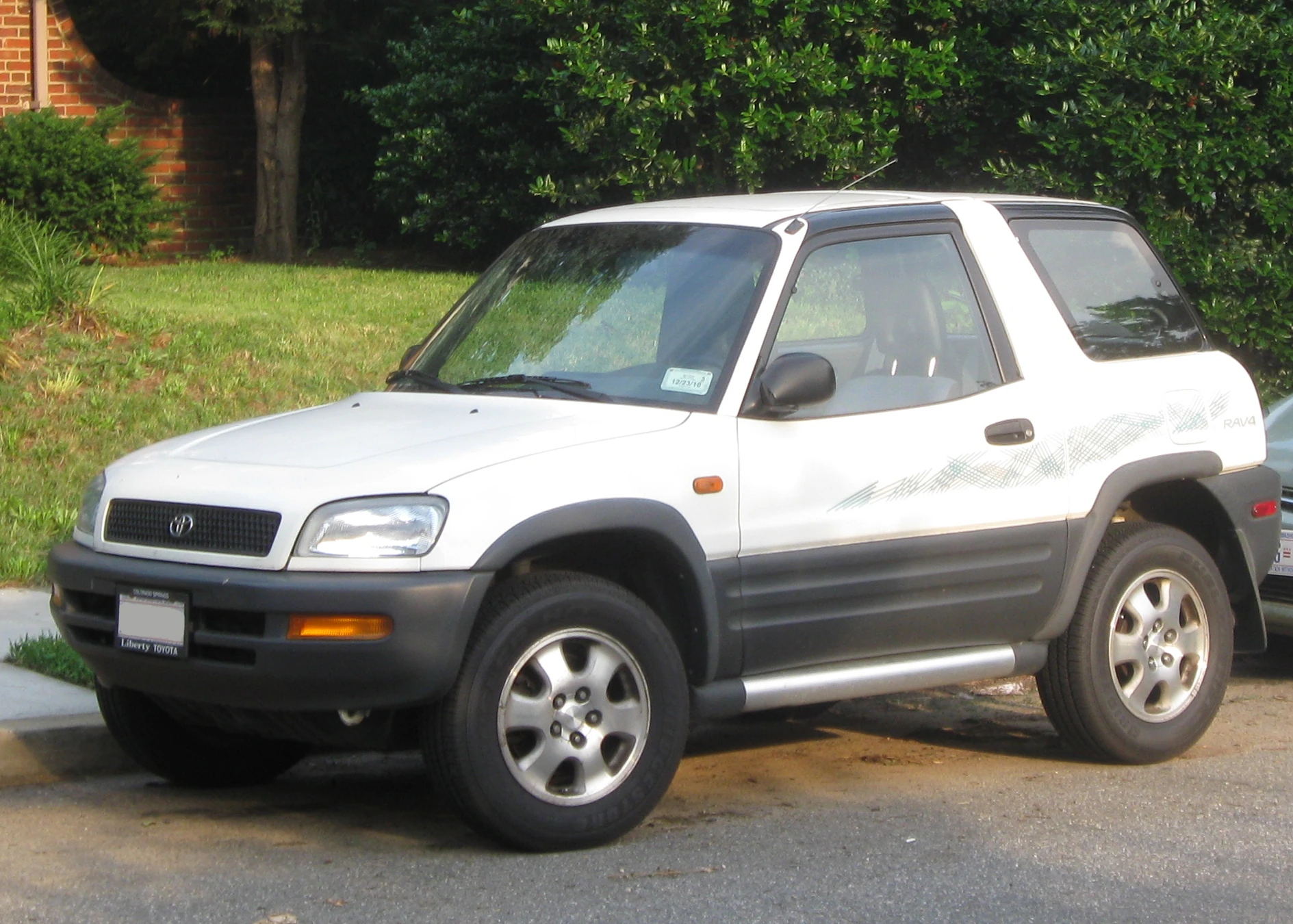

[[File:1996-1997 Toyota RAV4|frameless|upright=1.25|alt=]]
Also called Toyota RAV4 EV
Production 1994–2000 (Gasoline powered RAV4)
1997–2003 (EV)
Model year(s) 1995–2000
Assembly Toyota, Aichi, Japan
Tahara, Aichi, Japan
Body style(s) 2-door SUV
4-door SUV
2-door convertible
Engine(s) 2.0 L I4 3S-FE (138HP)
Transmission(s) 5-speed manual
4-speed automatic
Wheelbase 4-door: 2,410 mm (94.9 in)
2-door: 2,200 mm (86.6 in)
Length 1998–2000 4-door: 4,160 mm (163.8 in)
1998–1999 2-door: 3,750 mm (147.6 in)
1994–1997 2-door: 3,740 mm (147.2 in)
1994–1997 4-door: 4,150 mm (147.6 in)
Width 1695 mm (66.7 in)
Height 1994–1997 2-door FWD: 1,646 mm (64.8 in)
4-door FWD: 1,650 mm (65.0 in)
1994–1997 2-door 4WD: 1,655 mm (65.2 in)
4-door AWD & 1998–2000 2-door: 1,661 mm (65.4 in)
Fuel capacity 58 L (15 US gal/13 imp gal)
Related Toyota Corolla
Toyota Tercel
Toyota Celica
Toyota Paseo
Geo/Chevrolet Prizm

The RAV4 was originally based on the Corolla platform, and was offered in both two and four-door versions. In the US, a 2.0 litre straight-4 producing 120 hp (89 kW) was offered. Both front wheel drive and all-wheel drive were available, and the RAV4 could be had with either a five-speed manual or four-speed automatic transmission. In 1998, the RAV4 was slightly restyled on the front and rear fascias, and a soft-top two-door was made available. Power was increased slightly to 127 hp (95 kW). In 1999, the two-door hardtop was dropped from the American lineup, leaving the 4-door and soft-top models.

RAV4 EVEdit

Main article: Toyota RAV4 EV

The RAV4 EV is a plug-in, all-electric variant of the RAV4. Produced from 1997 to 2003 for fleet lease, this ‘zero emission’ model was only offered for public sale for seven months in 2002, in very small quantities in California. Powered by an advanced NiMH battery pack capable of storing 27 kWh, the RAV4 EV can go up to 120 miles (190 km) between charges, and came with a 60,000-mile (97,000 km) battery warranty.

GalleryEdit

Second generation (XA20, 2000–2005)Edit

Second generation

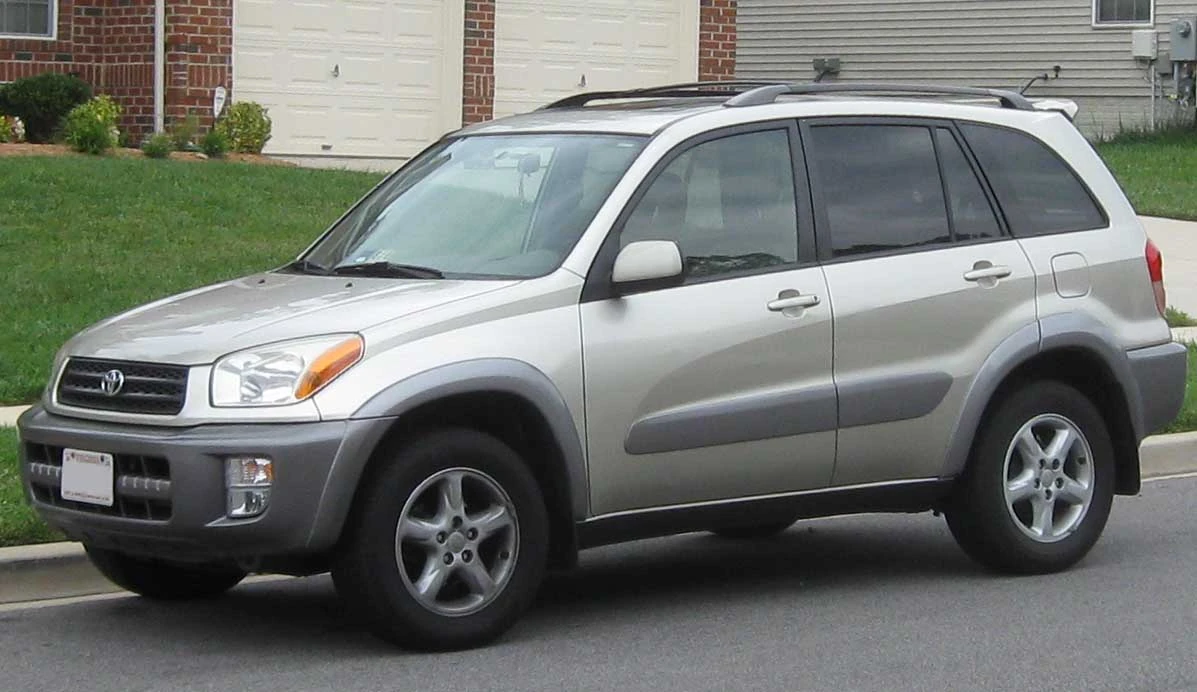

[[File:01-03 Toyota RAV4|frameless|upright=1.25|alt=]]
Production 2000–2005
Model year(s) 2001–2005
Assembly Tahara, Aichi, Japan
Obu, Aichi, Japan
Body style(s) 4-door SUV
2-door SUV (Not for North America)
Engine(s) 2.0 L I4 1AZ-FE
2.0 L diesel I4 1AZ-FSE
2.4 L I4 2AZ-FE
Transmission(s) 5-speed manual
4-speed automatic
Wheelbase 2490 mm (98.0 in)
Length 2004–2005: 4,230 mm (166.5 in)
2001–2003: 4,193 mm (165.1 in)
Width 1,735 mm (68.3 in)
Height 2004–2005: 1,680 mm (66.1 in)
2001–2003: 1,650 mm (65.0 in)
Curb weight 1,150 kg (2,535 lb)
Fuel capacity 56 L (15 US gal/12 imp gal)
Related Toyota Corolla
Toyota Celica
Toyota Matrix
Toyota Voltz
Chevrolet Prizm
Pontiac Vibe

The second generation RAV4 went on sale in the middle of 2000, and came in base Edge and upmarket Cruiser models (model designations may vary according to market), in both 3- and 5-door configurations. The main differentiation between the two models was in appearance. Edge models came with unpainted grey bumpers and side cladding, mirrors, and door handles, and featured steel rims. Cruiser models gained body-coloured (painted) bumpers and moldings, mirrors, and door handles, alloy wheels, and ABS brakes. All models came equipped with a brand-new 2.0 litre 4-cylinder engine featuring VVT (variable valve timing), resulting in improved power and torque, as well as fuel consumption. Permanent all-wheel-drive was a feature. Options were ABS brakes (on the Edge), and air conditioning (on all models).

The second generation RAV4 was originally offered in a number of trim levels: NV was 2-wheel drive, while NRG, GX, and VX were permanent 4-wheel drive with differing levels of equipment.[3] It continued on the Corolla platform. Although the RAV4 was available as a two-door in Europe, Asia and Australia, the American model was now only available in a four-door configuration. A 2.0 litre I4 engine producing 148 hp (110 kW) and a D-4D diesel engine were available. Some RAV4s came with anti-lock braking system, electronic stability control, air conditioning, a height-adjustable driver's seat, cruise control, a six-speaker CD stereo and power windows, mirrors and seats. A sport package added a mesh grille, hood scoop, color-keyed door handles, a roof rack, silver sport pedals, heated mirrors, gray-painted bumpers and fender flares, and sport fabric seats. Other options included alloy wheels, heated seats, a sunroof and keyless entry. 16-inch wheels were standard; larger tires were available on all wheel drive models.

In late 2003, the 2004 model RAV4 was given a styling update, improved equipment, and, in certain markets, a new engine. In the United States the safety structure was improved and Vehicle Stability Control made standard. The RAV4's 2.0 litre engine was upgraded with a new 2.4 litre engine, producing 161 horsepower (120 kW) and 162 foot-pounds (220 N·m). Fuel economy improved by over 2%. The base Edge was renamed CV, and gained standard air conditioning (previously an option). The CV also received painted bumpers, which came in either silver or body-coloured shades, depending on the body colour. In addition, the model range was given a subtle facelift, largely comprising of a new front bumper with circular fog lights.

In 2005, a new "CV Sport" model was added to the range, which included a non-functional bonnet (hood) scoop, giving the RAV4 a more aggressive appearance. The CV Sport model was short-lived, lasting only a year, and was introduced primarily to stimulate sales until the new model arrived in early 2006.

The second generation RAV4 enjoyed success in Australia, where it became the best-selling SUV in the country in 2001, overtaking its rival, the Honda CR-V, for the first time.

Notably, the second-generation RAV4 had the highest proportion of female drivers among all makes and models in the United States with the possible exception of the Volkswagen New Beetle, according to 2003–04 registration and survey data.[4]

GalleryEdit

Third generation (XA30, 2005–present)Edit

Third generation

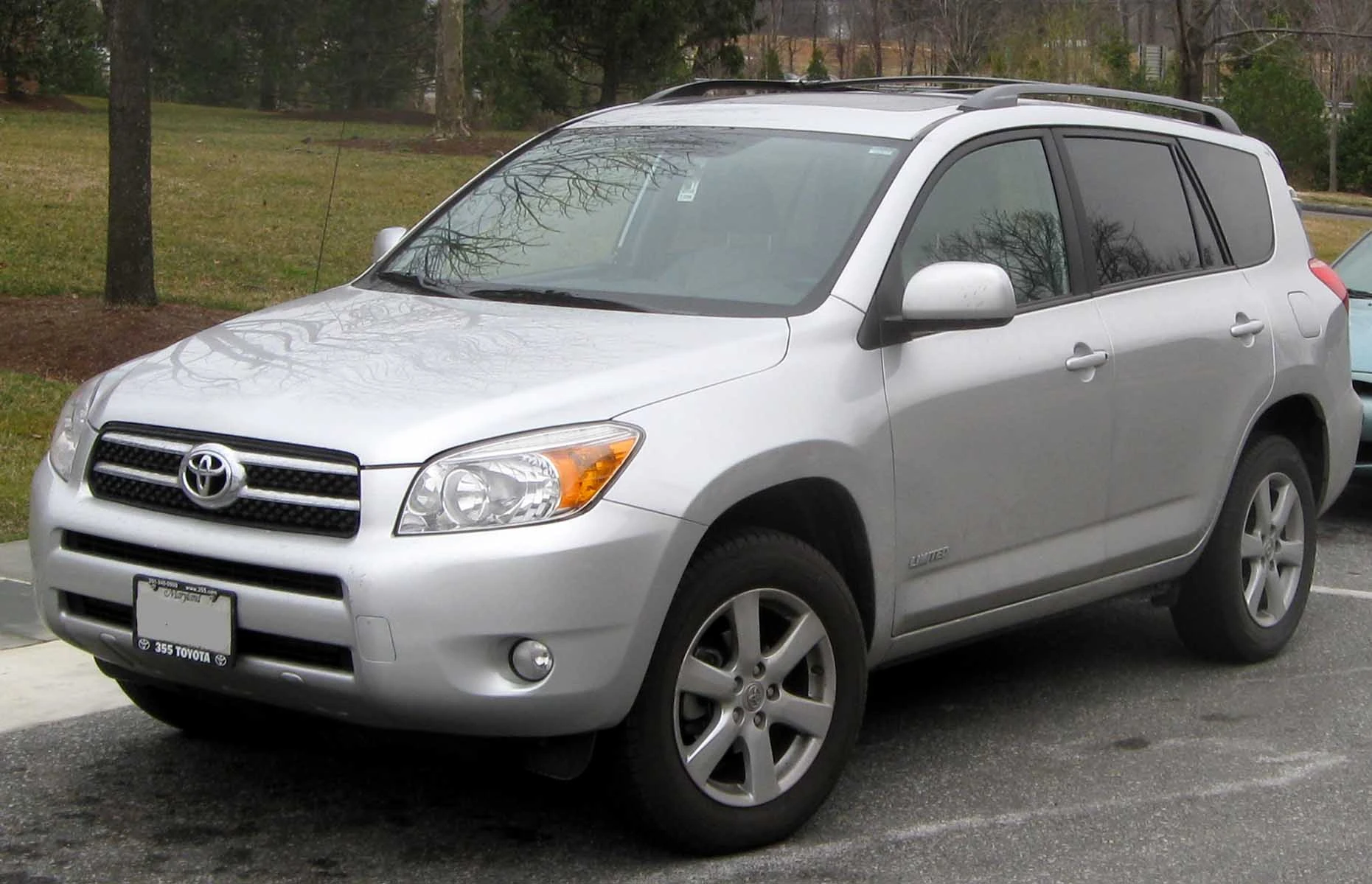

[[File:Toyota RAV4 Limited|frameless|upright=1.25|alt=]]
Also called Toyota Vanguard (Japan, LWB)
Production 2005–present
Model year(s) 2006–present
Assembly Tahara, Aichi, Japan
Obu, Aichi, Japan
Woodstock, Ontario, Canada (TMMC from November 2008)
Tianjin, China
Body style(s) 4-door SUV
Engine(s) 2.0 L 1AZ-FE I4
2.2 L 2AD-FTV turbodiesel I4
2.2 L 2AD-FHV D-CAT turbodiesel I4
2.4 L 2AZ-FE I4
2.5 L 2AR-FE I4
3.5 L 2GR-FE V6
Transmission(s) 6-speed manual
5-speed manual
4-speed automatic
5-speed automatic
6-speed automatic
CVT
Wheelbase SWB: 2,560 mm (100.8 in)
LWB: 2660 mm (104.7 in)
Length 2005-2008 LWB: 4,600 mm (181.1 in)
SWB: 4,395 mm (173.0 in)
2009- LWB: 181.9 in (4620 mm)
Width SWB: 1,815 mm (71.5 in)
LWB: 1815 mm (71.5 in)
LWB Sport: 73.0 in (1854 mm)
Height LWB: 1,685 mm (66.3 in)
LWB Sport & 2006-2008 Limited: 68.7 in (1745 mm)
LWB Australia: 1,695 mm (66.7 in)
SWB: 1,720 mm (67.7 in)
2009- Limited LWB: 69.1 in (1755 mm)
Fuel capacity 60 L (16 US gal/13 imp gal)

The Toyota RAV4 was completely redesigned for the 2006 model year, using an all-new platform and was first unveiled at the 2005 Frankfurt Motor Show.[5] The new RAV4 uses an Electric Power Steering (EPS) system.

The third generation RAV4 is offered in two versions: a short- or a long-wheelbase model. The short-wheelbase model is sold only in Japan and Europe, with the long-wheelbase RAV4 sold in Australia and North America. Since 2007, the extended-length RAV4 is also sold alongside its shorter counterpart in Japan as the Toyota Vanguard, albeit with a revised front-end body work incorporating a revised grille, bumper, bonnet and headlamps.[6][7]

Japanese models went on sale in 2005 at Toyota Netz dealers.[8] The 2-door was dropped beginning with 2007 model, leaving Toyota without a mini SUV until the 2009 Toyota Urban Cruiser, which is sold only in Europe.[9]

It is also the first generation of RAV4 to be offered in regular (for Asian and European markets, dropping the spare wheel from the rear) and extended (for North American and Australian markets) versions. The extended-length RAV4 is larger by 21% in interior volume from the last generation and now has an available third-row seat for two small children (North America only). The RAV4 can still be had in either front-wheel-drive or all-wheel-drive in North America and Japan; however most countries only sell the all-wheel-drive version.

FaceliftEdit

In 2008 (MY 2009) RAV4 was given a mid-cycle refresh in some markets, featuring a number of changes, including an all-new 4-cylinder engine, and a redesigned front end and tweaked rear end. The Limited model gets a different front grille and bumper cover from other models. The Sport model features a bigger spoiler and red badging along with an option on the V6 model to have a rear door without the externally-mounted spare tire (run-flat tires are used on this model). New features/options include turn signal mirrors, backup camera (with monitor built into rear view mirror), satellite navigation, smart keyless entry, a push button start , a multifunction meter display, etc. Much of the interior remains the same. In 2009, it was also the first time for the Canadian market to have a 2WD model sold in Canada.

JapanEdit

Model ranges include X, G, and Sport, replacing RAV4 L and RAV4 J. The X and G can be ordered with either front-drive or AWD. The Sport model with over fender is AWD only. The extended-length RAV4 is sold in Japan as the Toyota Vanguard, released on August 30, 2007. It is sold in five- and seven-passenger versions and slots between the regular RAV4 and Kluger. As it is often the case in Japan-only vehicles, the Vanguard comes loaded with high-tech gadgets, including steering-assisted stability control, keyless entry and satellite navigation. The Toyota Vanguard was facelifted in 2010.

AustraliaEdit

In Australia, the RAV4 is sold in 4-cylinder base CV, Cruiser, Cruiser L and the limited edition Altitude trim levels, and CV6, SX6, and ZR6 6-cylinder variants.

MalaysiaEdit

In Malaysia, only the 2.0 automatic variant is available, in a single trim level. This model uses the 1AZ-FE 4-cylinder, in-line 16-valve engine with DOHC and VVT-i. The output for the 2.0 litre RAV4 in Malaysia is at 112 kW (150 hp) at 6,000 rpm with a torque of 194 Nm (143 lb·ft) at 4,000 rpm.

North AmericaEdit

North American models include choices of 2.4 litre 2AZ-FE I4 or 3.5 litre 2GR-FE V6 engine. The V6 model has a horsepower of 269. In model year 2009 a slightly larger 2.5 litre 2AR-FE I4 replaced the previous 4-cylinder engine. Either 4-cylinder engine came equipped with a 4-speed automatic transmission. The North American RAV4 with 3.5 litre 2GR-FE V6 engine is fitted with a 5-speed automatic transmission. The 2GR engine was later introduced into the Australian market RAV4 in 2007. All US models feature Toyota's Star Safety System which includes Vehicle Stability Control. The new RAV4 topped Toyota SUV sales in the United States for the first time.

No manual transmission or diesel engines are available on North American models.

Facelifted for the 2009 MY North America models include the choice of a new 2AR-FE I4 or 2GR-FE V6 engine.[10] On Consumer Reports test loop the 4-cyl RAV4 tops its class in fuel economy with 23 mpg.[11] In a Car and Driver comparison involving seven other compact SUVs the V6 RAV4 tied the 4-cyl Honda CR-V for best observed fuel economy at 24 mpg.[12]

MexicoEdit

The RAV4 first model year was 2004; then only came in 2 trim levels: Base and L. This was already an outgoing generation but still sold pretty well and both came in 2WD mode only and both models had as a standard equipment 16-inch alloy wheels and roof rack. The new generation of the RAV4 which is the current one had more variations in the standard equipment and the Base and Limited trims continue to be available but on the Limited trim 4WD became an option and the Base model now had 17-inch steel wheels but the roof rack was still standard in both trims.For the refresh of 2009 the roof rack in the Base model was eliminated as a standard equipment and the Sport trim was added to the lineup and previously until the 2008MY all RAV4s in Mexico had 4 cylinder engines but for 2009 on the Sport model became available the V6 engine but also retained the 4 cylinder engine and the Limited trim was only available in the V6 engine and 4WD traction. For 2010 the RAV4 in Mexico has been simplified again to 2 trims but now the Limited trim was dropped and consequently killing the 4WD mode meanwhile the Base and Sport trims are remain unchanged from 2009. The RAV4 in Mexico has experienced good acceptance since its introduction.

Body StylesEdit

Chassis codes (DBA-A)ACA31WACA36WACA33LACA37LGSA30GSA35
Drive4WDFWD4WDFWDFWD4WD
Engine (Japan)2AZ-FE2AZ-FE----
Engine (China)--2AZ-FE1AZ-FE--
Engine (Europe)----2GR-FE2GR-FE

EnginesEdit

CodeYearsType/codePower, torque@rpm
1AZ-FE (2.0 VVT-i)2005-1,998 cc (1.998 L/121.9 cu in) (86.0x86.0mm) I4153.56 PS (113 kW/151 hp)@6000, 192 N·m (142 lb·ft)@4000
1AZ-FE (2.0 VVT-i)2007MY-2008MY (UK)1,998 cc (1.998 L/121.9 cu in) (86.0x86.0mm) I4152.28 PS (112 kW/150 hp)@6000, 194 N·m (143 lb·ft)@4000
2AZ-FE2005-2,362 cc (2.362 L/144.1 cu in) (88.5x96.0mm) I4170 PS (125 kW/168 hp)@6000, 224 N·m (165 lb·ft)@4000
2AR-FE2009MY-2,494 cc (2.5 L/152.2 cu in) I4181 PS (133 kW/179 hp)@6000, 233 N·m (172 ft·lbf)@4000
2GR-FE2005-3,456 cc (3.456 L/210.9 cu in) (94.0x83.0mm) V6273 PS (201 kW/269 hp)@6200, 333 N·m (246 lb·ft)@4700
3ZR-FAE (2.0 Valvematic)2008-1,987 cc (1.987 L/121.3 cu in) (80.5x97.6mm) I4158 PS (116 kW/156 hp)@6200, 198 N·m (146 ft·lbf)@4400 (4000?)
2.0 D-4D2005-2006MY1,995 cc (1.995 L/121.7 cu in) (82.2x94.0mm) I4115.57 PS (85 kW/114 hp)@4000, 250 N·m (184 ft·lbf)@1800-3000
2.2 D-4D Diesel2007MY-2008MY2,231 cc (2.231 L/136.1 cu in) (86.0x96.0mm) I4135.96 PS (100 kW/134 hp)@3600, 310 N·m (229 ft·lbf)@2000-2800
2.2 D-4D Diesel 180 (UK)2007MY2,231 cc (2.231 L/136.1 cu in) (86.0x96.0mm) I4176.75 PS (130 kW/174 hp)@3600, 400 N·m (295 ft·lbf)@2000-2600
2.2 D-4D, 2.2 D-CAT (UK)2008-2,231 cc (2.231 L/136.1 cu in) (86.0x96.0mm) I4150 PS (110 kW/148 hp)@3600, 340 N·m (251 ft·lbf)@2000-2800
2.2 D-CAT2008-2,231 cc (2.231 L/136.1 cu in) (86.0x96.0mm) I4177 PS (130 kW/175 hp)@3600, 400 N·m (295 ft·lbf)@2000-2800

ProductionEdit

The vehicles were built in Toyota's Tahara, Aichi assembly plant, and under contract by Toyota Industries in its Nagakusa, Obu, Aichi plant. Beginning in November 2008, the North American vehicles were built in the Toyota Motor Manufacturing Canada Inc. Second Plant.[13][14] Beginning in March 2009, Chinese models began production in by Tianjin FAW Toyota Motor Co. Ltd.‎ in a joint-venture plant in Tianjin, China.[15]

GalleryEdit

SalesEdit

Calendar year US Canada
2000 53,777[16]  ?
2001 86,368  ?
2002 86,601[17]  ?
2003 73,204  ?
2004 70,314[18]  ?
2005 70,518  ?
2006 152,047[19]  ?
2007 172,752  ?
2008 137,020  ?
2009 149,088[20] 25,784[21]
2010 170,877[22]  ?
